Online Library of Selected Images:
-- U.S. NAVY SHIP TYPES --

WORLD WAR I ERA COLLIERS --
with Specialized Coal Handling Gear

During World War I the U.S. Navy had nine colliers with specialized coal handling gear. All were built by the Navy to support the combatant fleet.

To facilitate identification, these vessels are listed in four classes, all containing ships of essentially identical design ("sister ships").

This page features a table (with links to individual ships) of World War I era U.S. Navy colliers with specialized coal handling gear, plus a photograph of each ship in this group.


Click each ship name to access that ship's complete Online Library entry.

Click the small photographs to prompt a larger view of the same image, and the words "Picture Data" to access the Picture Data Sheet for that image.



TWO SHIPS -- 450-foot type with one smokestack amidships and four single masts with coaling booms

  • Vestal, USN 1909-1950 (Built by USN, 1909, ex USS Erie 1905).
    12585 Tons (displacement); Length 450.0'; Breadth 60.1'
    USS Vestal was converted into a repair ship with two masts in 1912-1913.
  • Prometheus, USN 1910-1950 (Built by USN, 1910, ex USS Ontario 1905).
    12585 Tons (displacement); Length 450.0'; Breadth 60.1'
    USS Prometheus was converted into a repair ship with two masts in 1913-1914.

    .
     USS Vestal as collier:

    Picture Data
     USS Prometheus, 1910:

    Picture Data
    .


    ONE SHIP -- 520-foot type with paired smokestacks aft and seven kingpost pairs with coaling booms

  • Cyclops, USN 1910-1918 (Built by USN, 1910).
    19360 Tons (displacement); Length 520.0'; Breadth 65.0'

    .
     USS Cyclops, 1911:

    Picture Data
    .

    TWO SHIPS -- 520-foot type with paired smokestacks aft and eight lattice towers with coaling booms

  • Jupiter, USN 1913-1942 (Built by USN, 1913).
    19360 Tons (displacement); Length 520.0'; Breadth 65.0'
  • Neptune, USN 1911-1939 (Built by USN, 1911).
    19480 Tons (displacement); Length 520.0'; Breadth 65.0'

    .

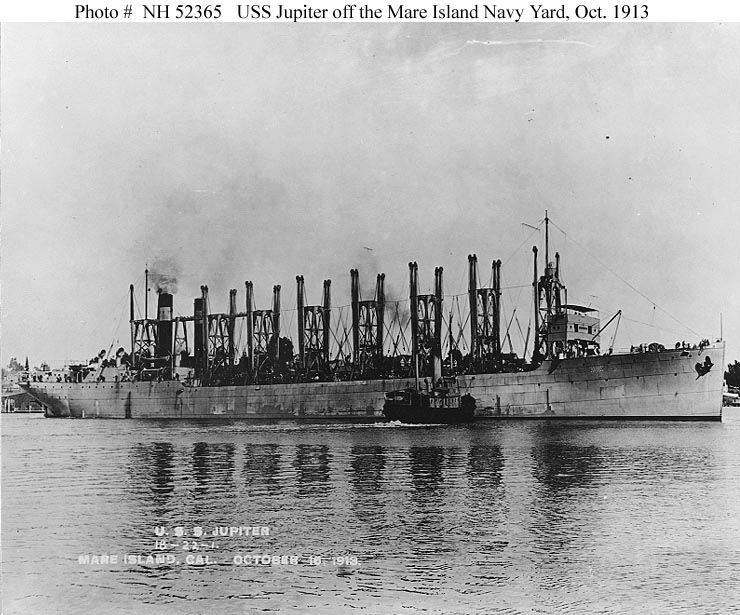

     USS Jupiter, 1913:

    Picture Data
     USS Neptune:

    Picture Data
    .


    THREE SHIPS -- 385-foot type with one smokestack aft, two masts, and five kingpost pairs with coaling booms

  • Vulcan, USN 1909-1923 (Built by USN, 1909).
    11250 Tons (displacement); Length 385.0'; Breadth 53.0'
  • Mars, USN 1909-1923 (Built by USN, 1909).
    11250 Tons (displacement); Length 385.0'; Breadth 53.0'
  • Hector, USN 1909-1916 (Built by USN, 1909).
    11250 Tons (displacement); Length 385.0'; Breadth 53.0'
    USS Hector was lost in 1916.

     USS Vulcan:

    Picture Data
     USS Mars:

    Picture Data

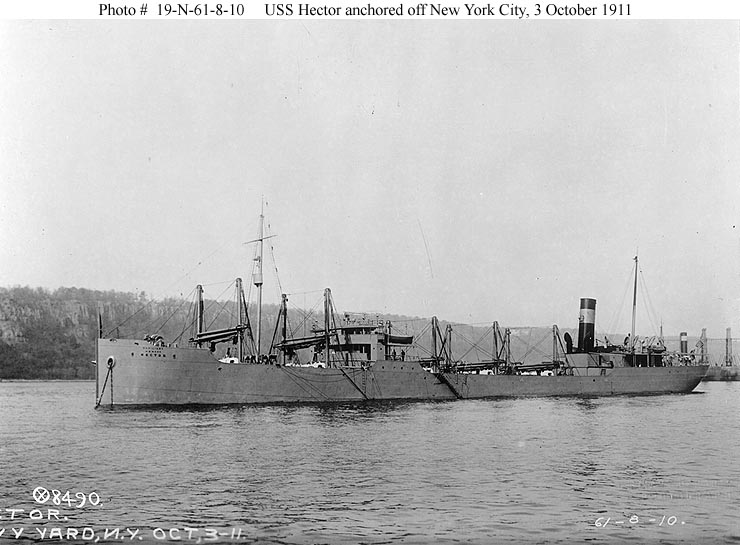

     USS Hector, 1911:

    Picture Data


    TWO SHIPS -- 500-foot type with one smokestack aft and seven lattice goalpost masts with coaling booms

  • Proteus, USN 1913-1941 (Built by USN, 1913).
    19080 Tons (displacement); Length 500.0'; Breadth 62.0'
  • Nereus, USN 1913-1941 (Built by USN, 1913).
    19080 Tons (displacement); Length 500.0'; Breadth 62.0'

    .
     USS Proteus:

    Picture Data
     USS Nereus:

    Picture Data
    .


    TWO SHIPS -- 514-foot type with paired smokestacks aft, seven lattice towers with coaling booms, and a lattice tower mast over the bridge

  • Orion, USN 1912-1933 (Built by USN, 1912).
    19250 Tons (displacement); Length 514.0'; Breadth 65.0'
  • Jason, USN 1913-1936 (Built by USN, 1913).
    19250 Tons (displacement); Length 514.0'; Breadth 65.0'

    .

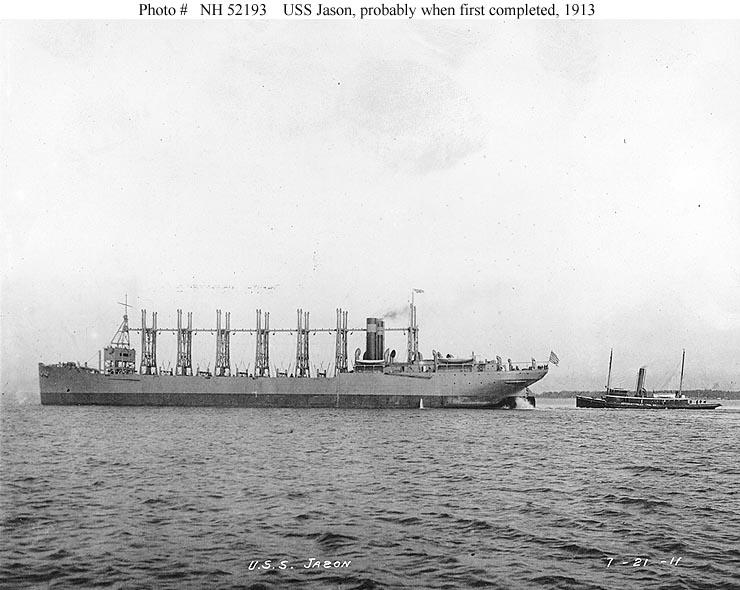

     USS Jason, 1913:

    Picture Data
     USS Orion, circa 1913:

    Picture Data
    .
