Introduction 1 The operation plan 3 Departure from Espiritu Santo 4 The approach 5 The action: first phase 7 The action: second phase 13 Events after the action 17 Experiences of the van destroyers 18 Summary 20 Appendix I: The Lamson and the Lardner 21 Appendix II: The plan of battle 22 Charts and Illustrations Chart: The Battle of Tassafaronga Illustration: New Orleans at Tulagi after the battle Illustration: Camouflaged New Orleans at Tulagi Illustration: New Orleans at Sydney, Australia Illustration: She arrives at Puget Sound Navy Yard Illustration: Prefabricated bow for New Orleans Illustration: Minneapolis at Tulagi Illustration: Minneapolis en route to Pearl Harbor Illustration: In dock at Pearl Harbor Illustration: Damage by second torpedo
The Battle of Tassafaronga

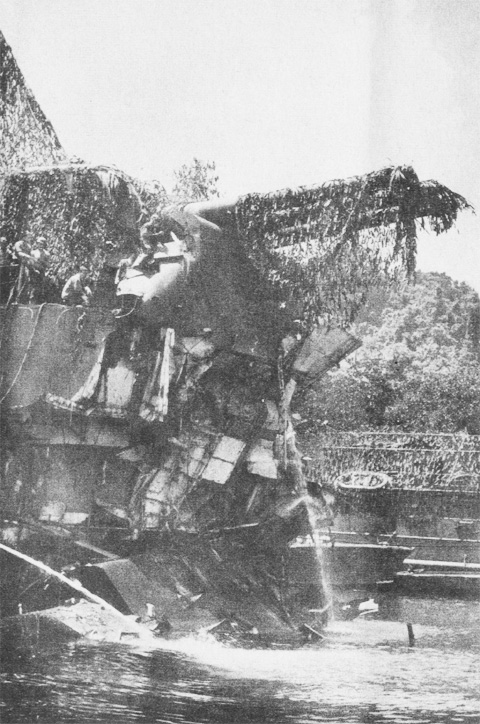

New Orleans at Tulagi after Battle of Tassafaronga.
Bow is missing forward of Turret II
In the mid-November Battle of Guadalcanal,1 the Japanese failed in their greatest effort to recapture the southern Solomons. Nevertheless, their troops fought on doggedly. The enemy air force frequently attacked Henderson Field, and hostile light surface craft and submarines continued to infest the waters bounded by Guadalcanal, Savo, and Florida Islands. Gradually, however, the increasing American land force on Guadalcanal began to thrust the Japanese back, maintaining a pressure which proved more and more effective.
COMSOPAC's War Diary for the latter part of November contains numerous reports from the Commanding General on Guadalcanal of minor encounters with Japanese troops. Day after day witnessed the dislodging of small enemy units from positions threatening Henderson Field. Toward the end of the month, the reports assumed a larger significance. East of the Tenaru River our forces dispersed the Japanese troops. The Marines crossed the Matanikau River (scene of much bloody fighting, 20-26 October) in force, and drove relentlessly westward under cover of naval bombardments until, as December approached, they passed well beyond Point Cruz.
Plans were formulated for a general attack to eliminate all Japanese resistance on the island. The final offensive was postponed, however, pending the Army's relief of the First Marine Division. During the change-over, which continued through December and most of January, active shore operations on Guadalcanal were confined to patrol probings of enemy lines.
For some time after the Battle of Guadalcanal, the Japanese appeared
to have abandoned their troops to slow but inevitable extinction. The unfailing indicator of their intentions--the amount of shipping in the Buin-Faisi area--fell rapidly after the middle of November, and remained low for a week or 10 days.
On the 24th, however, Japanese shipping concentrations began to grow. Three days later the number of vessels in Buin and Shortland harbors was reported to have mounted from a mere dozen the previous week to 25-30, in addition to small craft. An enemy move in force to supply and reinforce his southern Solomons positions seemed imminent. If American troops were to continue their successes, this attempt had to be balked.
Our victory at the Battle of Guadalcanal, though overwhelming, had cost us 18 ships sunk or so badly damaged that extensive repairs were required. With the exception of destroyers, COMSOPAC's only available surface units were the carrier Enterprise, the battleship Washington, and the light cruiser San Diego at Noumea and the heavy cruisers Northampton and Pensacola at Espiritu Santo.
Several other ships were, however, en route to the South Pacific. By 25 November, as the enemy's aggressive plans became evident, we had assembled a force adequate to counter the expected offensive. At Nandi in the Fijis lay the carrier Saratoga, the battleships North Carolina, Colorado, and Maryland, and the light cruiser San Juan. The heavy cruisers New Orleans, Northampton, and Pensacola, and the light cruiser Honolulu were stationed at Espiritu Santo. These last two, together with the heavy cruiser Minneapolis which arrived on the 27th, had come from Pearl Harbor. Here also on the 27th were the destroyers Drayton (which had accompanied the Minneapolis), Fletcher2 Maury, and Perkins.
On 27 November, these 5 cruisers and 4 destroyers at Espiritu Santo were grouped in to a separate task force, under the command of Rear Admiral Thomas C. Kinkaid, with general instructions from COMSOPAC to intercept any Japanese surface forces approaching Guadalcanal. Admiral Kinkaid prepared a detailed set of operational orders for the Force, but, before he could go over them with his captains, he was ordered to other duty. He was replaced by Rear Admiral Carleton H. Wright, who had just made port in the Minneapolis.
Task Force WILLIAM3 was, therefore, constituted as follows:
Four heavy cruisers:
Minneapolis (FF), Capt. Charles K. Rosendahl
New Orleans, Capt. Clifford H. Roper
Northampton, Capt. Willard A. Kitts, 111
Pensacola, Capt. Frank L. Lowe
One light cruiser:
Honolulu (F), Rear Admiral Mahlon S. Tisdale), Capt. Robert W. Hayler
Drayton, Lt. Comdr. James E. Cooper
Fletcher (F), Comdr. William M. Cole
Maury, Lt. Comdr. Gelzer L. Sims
Perkins, Lt. Comdr. Walter C. Ford
The destroyers Lamson (Lt. Comdr. Philip H. Fitz-Gerald) and Lardner (Lt. Comdr. William M. Sweetser), under the command of Comdr. Laurence A. Abercrombie in the Lamson, joined Task Force WILLIAM 2 hours before the action but took little part in the engagement.
On 29 November the Task Force was moored at Espiritu Santo on 12 hours notice. Admiral Wright held a conference, attended by Admiral Tisdale and the commanding officers of the 9 ships, at which the operation plan drawn up by Admiral Kinkaid was "briefly discussed."
The plan divided the Task Force into one destroyer and two cruiser units. Each unit included at least one ship equipped with SG radar and one ship with CXAM or SC-1 radar.4 The Minneapolis, New Orleans and Pensacola formed one unit under Admiral Wright. Admiral Tisdale led the second cruise unit composed of the Honolulu and Northampton. The four destroyers comprised the third unit under the command of the Senior Officer Present, Comdr. Cole, in the Fletcher.
The Operation Plan
Much of the plan was general in nature, and not relevant to this Narrative. It contained, however, six Annexes, two of which are of particular
interest: the communications plan (which included instructions for the use of radar) and the course of action prescribed for a night engagement.
Unit commanders were to assign radar guardships for continuous all-around search, and for surface search with SG equipment as practicable during the hours of darkness. Unidentified objects detected at night were to be reported by TBS5 to the unit commander, who was instructed to acknowledge the report. Three conditions of radar operation were set: (1) unrestricted radar use; (2) search equipment to be used only by the flagship or the radar guardship--a restriction designed to lessen the likelihood of the enemy picking up emissions from CXAM and SC radars, but not affecting the free use of SG and FC6 radars; (3) all CXAM, SC, and SG-1 radars to remain silent, responsibility for search falling to the SG's.
The tactical plan governing the movements of Task Force WILLIAM in a night engagement were set forth at length in Annex "F".7 Its most important provisions were: (1) the cruisers were to form a line of bearing normal to the general bearing line and 4,000 yards astern of the destroyers, which were to stand 30° on the engaged bow of the cruiser line. (2) First contacts were expected to be made by radar. (3) The engagement was to open with a torpedo attack by the destroyers. Once their blow had been delivered, the smaller ships were to follow the cruisers in engaging enemy cruisers or destroyers, and to provide starshell illumination if so ordered. (4) It was hoped to keep the range greater than 12,000 yards until after the torpedo attack, when shellfire would commence at a range of from 10,000 to 12,000 yards. Fire was to be opened under radar control and to be maintained, if possible.8 If not, individual ships were authorized to illuminate by starshells. Use of searchlights was specifically forbidden. (5) Fighting lights were to be employed only if our ships were fired upon by friendly vessels.
Task Force WILLIAM remained on 12 hours notice throughout most of 29 November. Positive information regarding Japanese intentions was
Departure from Espiritu Santo
meager. COMSOPAC could only anticipate another expedition to supply Guadalcanal, not when it might be made or in what force.
At 1940 Admiral Wright received orders to prepare to depart with his force at the earliest possible moment, and to proceed at the best possible speed to intercept an enemy group of 6 destroyers and 6 transports which was expected to arrive off Guadalcanal the next night. He directed Task Force WILLIAM to make all preparations necessary to get under way immediately, and advised COMSOPAC that his ships would be ready to sortie at midnight.
Three hours later COMSOPAC ordered Admiral Wright to proceed with all available units, pass through Lengo Channel (between Guadalcanal and Florida Islands), and intercept the Japanese off Tassafaronga on the northwestern shore of Guadalcanal. Later, Admiral Wright received information that enemy combatant ships might be substituted for the transports, or that the Japanese force might consist wholly of destroyers, and that a hostile landing might be attempted off Tassafaronga earlier than 2300, 30 November. He received no further advices respecting the size or composition of the opposing units.9
Admiral Wright promptly put into effect, with minor modifications, Admiral Kinkaid's operation plan, and set midnight as the zero hour for his ships to sortie. Actually the destroyers got under way at 2310, the cruisers at 2335. The whole Force cleared the well-mined, unlighted harbor of Espiritu Santo without incident and shaped its course to pass northeast of San Cristobal Island.
Two planes were catapulted half an hour before sunrise on 30 November with orders to return to Espiritu Santo and report for temporary duty to COMSOPAC. At approximately 1700 the cruisers launched their remaining planes to proceed to Tulagi. These aircraft were furnished with
with parachute flares. Their pilots had instructions to search between Lunga Point and Cape Esperance, starting at 2200, to report all enemy ships sighted to Admiral Wright, but not to release flares unless so directed by him.10
During the morning of 30 November, Admiral Wright informed the Task Force of the reported composition of the enemy force. He also issued additional instructions for the anticipated night operations. These included the burning of screened wake lights, and the use of green and white for fighting lights. As communicated, the plan directed the destroyers to concentrate 2 miles ahead of the guide ship Minneapolis before entering Lengo Channel. In the interim between clearing the Channel and encountering the enemy, the destroyers were to steam on a bearing of 300° T. from the guide, maintaining the same 2-mile distance. The cruisers were to form on a line of bearing of 140°, and to maneuver by turn movements so as to pass about 6 miles from the Guadalcanal coast. The Admiral added that he expected gunfire to commence at a range of about 12,000 yards, and that the situation would probably permit withholding fire until the completion of a torpedo attack. He authorized any vessel having a known enemy target within 6,000 yards to open fire.
As the ships approached Lengo Channel, their order was: Fletcher, Perkins, Maury, Drayton, followed by the cruiser column, Minneapolis, New Orleans, Pensacola, Honolulu, and Northampton.
Just before Task Force WILLIAM entered the Channel, it encountered a friendly east-bound force consisting of 3 transports and 5 destroyers, including the destroyers Lamson and Lardner. Admiral Wright had known that these vessels were in the general area, but became aware of their actual location only at the time of meeting. "Collisions were narrowly avoided," and Task Force WILLIAM reduced speed, first to 20 knots, then to 15. At 1850 the Lamson and Lardner had received orders from COMSOPAC to join the Task Force at the entrance to Lengo Channel. The junction took place at about 2100. Comdr. Abercrombie, in the Lamson, now became Senior Destroyer Officer Present. As it was too late to communicate the details of the operation to him, and therefore impossible for him to assume command of all the destroyers,
Admiral Wright directed the Lamson and Lardner to take up a position astern of the cruiser column.11
Task Force WILLIAM cleared Lengo Channel at 2225 at a speed of 20 knots. Its average speed made good from midnight, 29 November, until it entered the Channel at 2140, 30 November, was 28.2 knots. The cruisers steamed in column, 1,000 yards apart, while the destroyers in the van bore 300° T., 4,000 yards from the Minneapolis. The night was very dark, the sky completely overcast. Maximum surface visibility was not over 2 miles.
The Action: First Phase
2223 Cruisers change course to 320° T., destroyers taking parallel courses. 2239 All ships turn to 280° T. 2306 Minneapolis' SG radar picks up two objects off Cape Esperance. 2308 Simultaneous turn made to place cruisers and destroyers in columns. 2314 Course changed to 300° T. by head of column movement. 2316 Comdr. Cole asks permission to launch torpedo attack on enemy formation of 5 ships, distant 7,000 yards. 2320 Van destroyers deliver torpedo attack, followed by gunfire and starshells. 2321 Minneapolis opens fire and is joined by other cruisers as they locate targets. 2325 Van destroyers retire westward around Savo Island.
At 2223 the cruisers changed course by head of column to 320° T., with the destroyers taking up parallel courses. About 15 minutes later, all ships formed on a line of bearing of 140°, on a course 280° T. At the same time SG radars began to search the Guadalcanal shoreline for indications of the enemy's presence.
The SG on the Minneapolis, which had played a large part in navigating the Task Force through Lengo Channel, picked up the first contact with the enemy. At 2306 what appeared to be "a small wart on Cape Esperance" became visible on the PPI screen. It grew larger until it finally detached itself from the outline of the land mass. It bore 284° T., at a distance of 26,000 yards. Admiral Wright immediately informed the rest of his Force of the radar contact. Gradually the number of ships on the Minneapolis' SG screen increased, until by 2315 seven were clearly
perceptible. They were proceeding at 15 knots on a southeasterly course.12
Shortly after learning of the Minneapolis' contact, the Fletcher picked up two enemy vessels, bearing 285° T., 14,000 yards off her port bow. Tracking immediately commenced, revealing five ships, four about one mile and a quarter off Guadalcanal, the fifth half a mile outside and abreast of the second ship. A solution of 15 knots on a course of 140° T. was obtained. At 2316, as the enemy formation bore 243° T. at a range of 7,000 yards, Comdr. Cole in the Fletcher requested permission to launch torpedoes. Admiral Wright inquired if the targets were within range, and, upon receiving an affirmative answer, authorized the torpedo attack.
Two other van destroyers noted the presence of the enemy. The Drayton's SG picked up five ships after the Fletcher reported contact, but for some reason the plot was erratic, giving a target speed of zero. No Japanese ships were visible from the Perkins until 2315, when the SC equipment revealed five vessels bearing 284° T., approximately 3,000 yards from Tassafaronga Point and 14,480 yards from the destroyer. Radar plot determined the course of this target as 125° T. and the speed 15 knots. Although the number of ships appearing on the Perkins' screen was the same as that on the Fletcher's, the discrepancy in bearings was so great (Perkins 284°; Fletcher, 243°) that if the bearings were accurate the two groups of ships must have been widely separated. The Maury had no SG equipment and could not locate the enemy at this time.
Steaming 1,000 yards astern of the flagship was the New Orleans. Her SG also failed to discover the Japanese ships for several minutes after their appearance on the Minneapolis' screen at 2306. Eight minutes later, however, what appeared on the SG screen to be a reef close to Guadalcanal was identified as a column of ships, with a single vessel on the flank. This Japanese formation stood 14,000 yards from the New Orleans, and although the bearing was not recorded, it was doubtless the same formation as that observed by the Fletcher.
The experiences of the other cruisers in the column varied. The Pensacola, third in line, lacked SG equipment, and made no radar contacts until well after the Minneapolis had opened fire. Next came the Honolulu, which, despite constant SG search on the bearings and ranges reported by
the Minneapolis and Fletcher, observed no enemy ships for several minutes.13 Last in the column was the Northampton, which had no SG radar, and had to depend on the reports of the other ships. Neither of the two rear destroyers, also lacking SG equipment, was able to locate the Japanese.
At approximately 2320, having received authority to launch a torpedo attack, the Fletcher fired 10 torpedoes in two half salvos by SG control. The center of the Japanese line bore 267° T., at a distance of 7,300 yards--a torpedo range of 9,600 yards from our leading destroyer and 8,200 yards from the Drayton in the rear. Simultaneously the Perkins launched eight torpedoes, recording the range as 5,000 yards. Because she still could not obtain a target speed of more than zero, the Drayton only fired two. The Maury had no positive contacts and did not fire at all.
Barely a minute after the torpedoes were launched, Admiral Wright ordered all ships to open gun fire, and the van destroyers began firing 5-inch shells and starshells. The Fletcher selected the selected the rear enemy ship as her target. It was 7,500 yards distant on a bearing of 188° T. After firing about 60 rounds in two minutes, the Fletcher lost her target from the FD radar. She therefore ceased firing and retired to the northwest around Savo Island, followed by the other three destroyers astern.14
At the time Comdr. Cole reported the target range from the Fletcher as satisfactory for a torpedo attack, seven enemy ships could be seen on the Minneapolis' radar screen, and their range had decreased to about 10,000 yards. The flagship selected a target 9,200 yards off her port bow on a bearing of 260° T. This vessel stood farthest right in the Japanese formation; the ship farthest left bore 239° T.
Assisted by starshells from the port 5-inch battery, the main battery of the Minneapolis fired four salvos at what was finally identified as a transport. The first salvo was somewhat over, but the next three were directly on. After the fourth salvo, the transport "violently disintegrated," and the flagship momentarily checked fire.
One minute after the Minneapolis opened, the New Orleans began firing her main battery, directed entirely by radar, at an enemy destroyer 8,700 yards distant on a bearing of 220° T. Personnel in the New Orleans
noticed that this target, moderately illuminated by starshells from the van destroyers, was receiving fire from others of our cruisers. The destroyer apparently blew up after the New Orleans' fourth salvo.
The Pensacola had difficulty in locating a target without an SG radar. She searched with her FC on the bearing and at the range reported by the van destroyers and soon picked up an unidentified object. Tracking began just as Admiral Wright gave the order to fire. With the aid of FC, and starshell illumination from either the Honolulu or Northampton, the Pensacola opened fire on what her officers believed to be a light cruiser steaming at 17 knots 10,000 yards off the port bow. The target lay to the left of the ships under fire from the two forward cruisers. Because the first three salvos proved only near-hits, the Pensacola resorted to her own starshells for better illumination. Ships astern also fired at the same target which was seen to sink when the Pensacola's fourth or fifth salvos landed. Shots from other ships and smoke in the target area made identification difficult, but no one in the Pensacola doubted that the Japanese ship was a cruiser. Fire ceased temporarily when the vessel sank.
The Honolulu could find no target until at least two minutes after the Minneapolis and New Orleans had begun to fire. At about 2224, starshells from our heavy cruisers lighted up a Japanese destroyer. The FC radar shortly picked it up and the Honolulu commenced firing on this target, which bore 250° T. at a mean radar range of 9,600 yards. Half a minute of rapid fire produced several hits, but fading illumination left the target scarcely visible through the smoke and splashes. Accordingly the port 5-inch battery fired several starshell spreads. Reports from the rangekeeper indicated a steady decrease in the vessel's speed. By 2327 it had ceased moving. After one more minute of concentrated fire, observers in the Honolulu saw the enemy destroyer break up and sink, and immediately checked their fire.
Without an SG radar, our fifth and last cruiser, the Northampton, experienced great difficulties in locating the enemy. The land background of Guadalcanal balked all efforts to pick up with the CXAM the contacts developed by the other ships. Finally the main and AA batteries were trained toward the fall of shot from the other cruisers, and the FC promptly located a destroyer target. Shortly thereafter, Plot reported a satisfactory solution on the rangekeeper and the main battery opened fire, using radar train. The target, on a relative bearing of 325°
Camouflaged New Orleans at Tulagi.
New Orleans at Sydney, Australia.

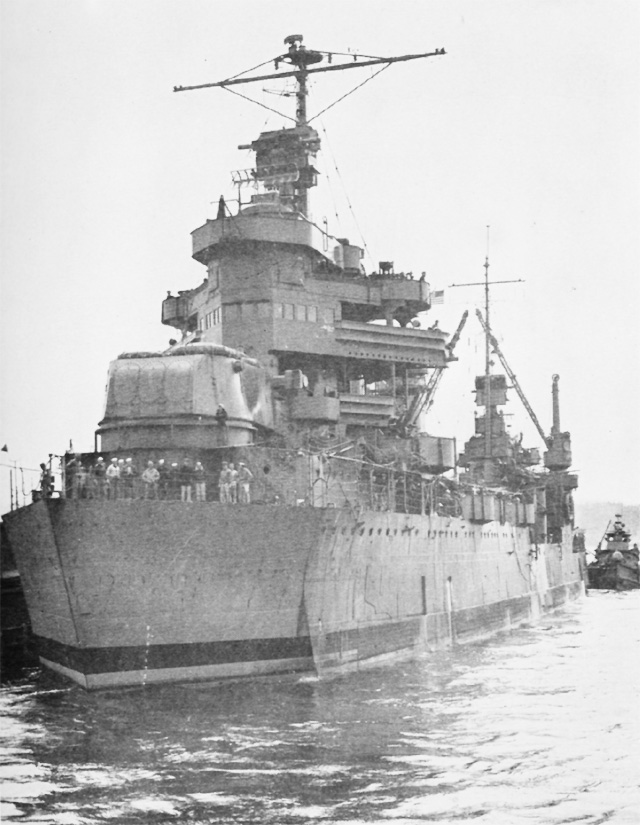

She arrives at Puget Sound Navy Yard.

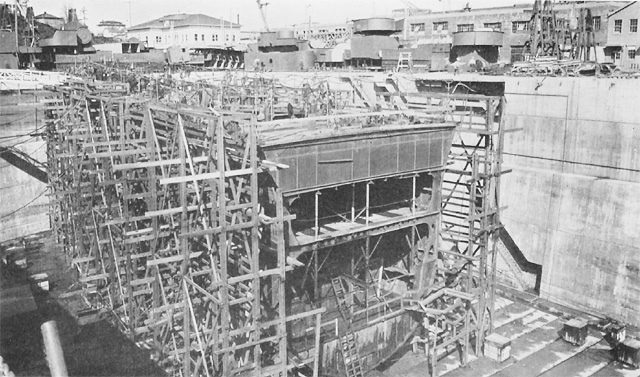

Prefabricated bow for New Orleans at Puget Sound Navy Yard.

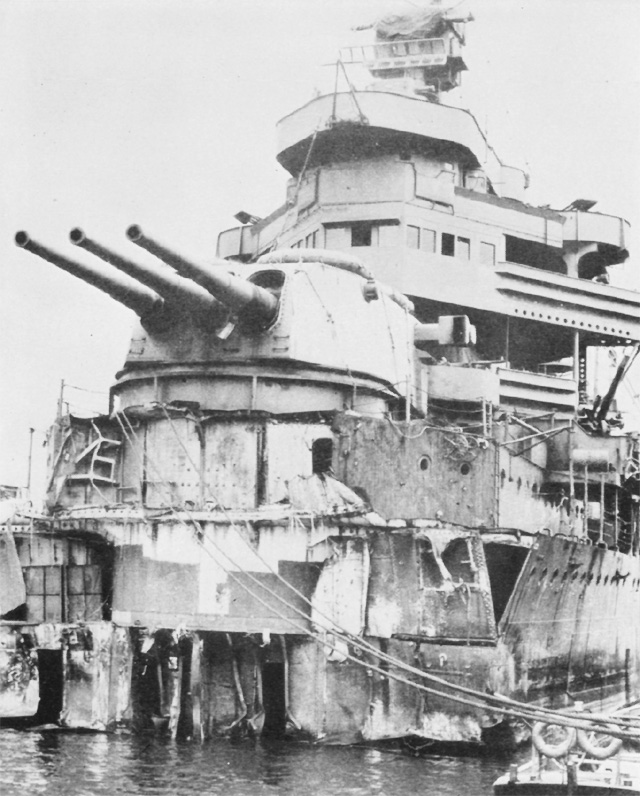

Minneapolis at Tulagi, showing turret I.

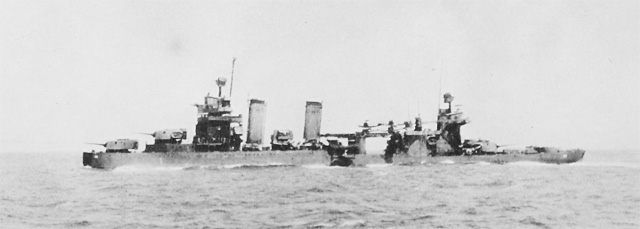

Minneapolis at sea, en route to Pearl Harbor.
Minneapolis at Tulagi, showing turret I.

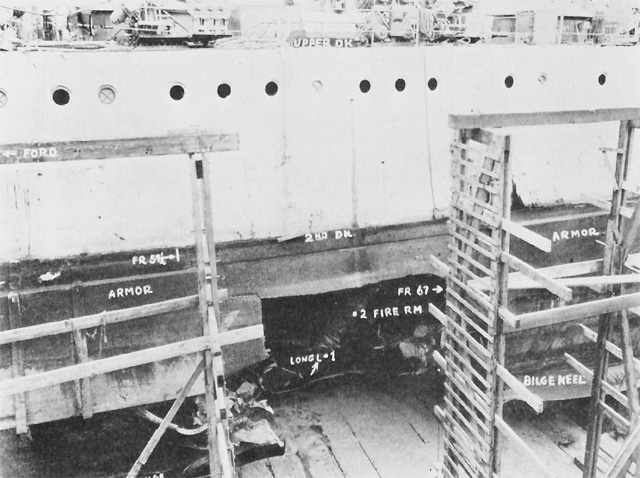

Damage by second torpedo, port side looking inboard and aft.
and at a range of 11,500 yards, could not be seen until the third salvo landed. Despite frequent hits, the enemy destroyer had not sunk before the danger of collision with cruisers ahead forced the Northampton to change course.
Neither of our rear destroyers could locate the Japanese at the time our cruisers began the action. Visibility was so bad that the Lamson's personnel could see only two cruisers ahead. Neither the Lamson nor the Lardner succeeded in picking up radar contacts.
When the Minneapolis saw her transport target disintegrate under the impact of her fourth salvo, all the cruisers had engaged in a rapid fire of starshells and big gun salvos. Blinding flashes, smoke, and splashes in and around the enemy made it virtually impossible for observers to obtain a clear picture of the Japanese formation. They could scarcely determine whether or not the enemy had returned our fire. Some Japanese fire directed at the Minneapolis was noted, but no damage resulted.
As the action opened, the SG screen on the Minneapolis showed the Japanese proceeding on a southeasterly course, but shortly thereafter it indicated that the hostile column had made a 180" turn and that several ships had progressed well to the right of the original bearing.15
Our flagship's second target, reported as a destroyer with a single raked stack, lay to the right of her first target at a distance of 10,500 yards. Capt. Rosendahl of the Minneapolis observed that the New Orleans was also firing on this ship. When the fourth salvo from the Minneapolis struck the destroyer, the latter's bow and stern rose as though she had broken in two, and a few seconds later she disappeared.16
Gunfire by the Pensacola had been temporarily checked as her first target disappeared from view. Within a few minutes her FC radar detected another Japanese ship about 5° to the right of the first, scarcely 8,000 yards away. As our cruiser fired her first salvo, the vessel emerged from the smoke and became clearly visible. It had one large stack, like the Yubari or cruisers of the Mogami class. Moreover FC radar indicated a heavy ship. Smoke billowed from her stern, though whether it resulted from our fire or mechanical generation could not be determined. Virtually
all the shells of the Pensacola's second salvo landed abaft the stack. A great explosion followed, after which the ship disappeared both from sight and from the radar screens. Spot I and several officers confirmed its destruction. As no other Japanese ships were immediately visible, orders were issued to unload the Pensacola's guns through the muzzle.
The Honolulu was still engaging her first target at this time. Poor visibility in the neighborhood of the Japanese destroyer frequently forced our light cruiser to check fire. At about 2328, however, the destroyer apparently went down. Meanwhile the Northampton was experiencing similar difficulties with her first target.
Our two rear destroyers now entered the battle. In the absence of a target, the Lamson fired starshells to help illuminate the enemy formation. The Guadalcanal land mass completely blanketed the search and fire control radars of both destroyers. As the Lamson changed course to 300° T., she sighted 3 enemy destroyers bearing about 260° T., just to the left of splashes from the salvos of the cruiser column ahead. At 2225 the Lardner commenced to fire on these ships at an estimated range of 9,000 yards (target angle 270°, speed zero). After three salvos from the forward guns, she lost the target and had no success in discovering another.17
The Minneapolis and New Orleans again shifted fire after completing the destruction of their second targets about 2326. The flagship chose a destroyer or light cruiser bearing 330° T., 9,000 yards distant, and fired two salvos. The ship disappeared, but no one saw it sink. The New Orleans picked out a cargo ship, which, after four salvos, exploded so violently that observers believed it must have carried gasoline or ammunition.
At this stage of the battle, the Pensacola apparently checked fire; the Honolulu and Northampton still engaged their destroyer targets; the Lamson and Lardner could not locate the enemy; and the four van destroyers withdrew around Savo Island. Thus far the engagement had proved entirely one-sided. Not a single Japanese shell had struck any ship in Task Force WILLIAM. On their retirement course, the van destroyers noticed shells dropping astern; some enemy gunfire was also directed at our cruisers. For a brief interval the third target of the Minneapolis had returned her fire, but in an inaccurate and desultory fashion.
Certain facts, however, must have produced considerable concern in
the American ships. Foremost was the uncertainty regarding the composition of the Japanese forces. Advices prior to the battle led Admiral Wright to expect six enemy destroyers, plus combat vessels or cargo ships. The flagship's SG screen pictured only seven ships; the Fletcher's revealed eight. No more vessels were seen or located by the radars. In most previous night actions the Japanese had divided their ships into two or more groups, and nothing indicated a reason for a change of formation on 30 November. The enemy profited by the presence of the land mass of Guadalcanal at his right, while Admiral Wright's device for revealing its position by means of parachute flares failed because the planes did not arrive on schedule. Moreover, the night was so dark, visibility so limited, and flashes and smoke in the target area so confusing that it was impossible to obtain a clear idea of what was taking place.
The Action: Second Phase
2327 Minneapolis torpedoed. 2328 New Orleans torpedoed. 2339 Pensacola torpedoed. 2348 Northampton torpedoed.
Up to 2327, the results of our gunfire furnished ample cause for optimism. There was reason to believe that several enemy ships had been sunk. Our radar search seemed most effective, except just before the van destroyer torpedo attack, which had been launched at an excessive range. We had apparently surprised the enemy--a prime advantage in any night action--and disrupted his retaliatory power. For a brief moment victory seemed to be ours.
At 2327, however, the Japanese struck the first of a series of crippling torpedo blows. Within one minute both the Minneapolis and the New Orleans had their bows blown off. Eleven minutes later, at 2339, the Pensacola was hit, and the resulting fire was not extinguished for 4 hours. Two torpedoes struck the Northampton at 2348, causing her to sink within the same space of time. In 20 minutes the fortunes of war shifted disastrously.
The Minneapolis received her first hit forward of turret I, abreast the aviation gasoline compartment. An instant later, another torpedo struck No. 2 fireroom. The second hit followed so closely that many personnel felt only one explosion. Fire immediately blazed up in the
forecastle, sending long tongues of flame into the air. Huge sheets of water mounted so high around the port side of the ship that in falling they appreciably checked the forecastle fires, and flooded the navigating bridge. Clouds of smoke and acrid fumes billowed over the bridge, but did not penetrate the pilot house. Fumes and flames from burning gasoline and oil swept aft over the fantail, drenching personnel in Sky Aft with oil and water. Two men near the port 5-inch battery were blown overboard. As the flagship shuddered and rolled drunkenly from side to side, many other personnel suffered severe bruising against bulkheads. The entire bow section tore loose at frame 22, folded downward, and dangled from the rest of the hull. The water level flowed aft as far as No. 1 barbette. Soon firerooms 1, 2, and 3 were flooded and all personnel inside were drowned or suffocated.
Men less courageous than the crew of the Minneapolis would have considered their part in the engagement ended. Nevertheless the turrets quickly resumed fire on the third target. The flagship's speed had been greatly reduced, and her tenth salvo passed directly over the stacks of the Pensacola, racing by to port.
Unhappily, the machinery of the Minneapolis did not equal the heroism of her crew. After one more salvo, firing ceased as power failed in all turrets. The ship slowed rapidly, and steering control was momentarily lost. Partly because of the immersion of the bow, the fires in the forecastle soon subsided. A 4° list to port was almost halved by pumping oil overboard and jettisoning all available heavy objects. Faced with the helplessness of the Minneapolis and her inability to remain in action, Admiral Wright now ordered Admiral Tisdale in the Honolulu to assume command of the Task Force.18
When the Minneapolis was torpedoed, the New Orleans had to come hard right to avoid ramming her. The burning flagship seemed to be done for. Rarely a minute passed before the New Orleans herself received a torpedo hit on her port bow. The gasoline stowage and magazine groups 1 and 3 exploded, and the entire bow as far aft at the barbette of
turret II was blown away. All personnel in both forward turrets lost their lives. The bow floated aft along the port side, tearing gaping holes at frames 130 and 136 just above the waterline. With the rifles of turret I pointing skyward it soon sank off the port quarter.19
Steering and engine control from the New Orleans' pilot house failed, as did communications between the pilot house and Battle II. The ship swung right and steadied on an easterly course in the general direction of Tulagi. As far aft as frame 42, the main deck was wrecked. The second deck was missing forward of frame 31, and flooded aft to frame 42. The explosion had torn out everything below the second deck forward of frame 31. All forward magazines blew out.20
When the Pensacola sheered out of line to pass the two crippled cruisers, her search radar located a target 4,000 yards off the port bow. Starshell illumination proved unsatisfactory, partly because of insufficient ready ammunition, and the outline of the enemy ship could not be seen. After the seventh salvo, the target faded from the radar screen never to reappear.
As the Pensacola now came round 20° to her base course of 300° T., a radar search to the right of the previous target picked up an unidentified ship proceeding at high speed on a course of 295° T. at a distance of 12,000 yards. The Pensacola opened up again with radar-controlled fire, but the first salvo disabled the after FC. Because the forward radars could not spot, resort was had to ladder spotting. Firing ceased as the target disappeared following the third salvo. At this time observers noticed small splashes close aboard on the Pensacola's port bow.
About 2 miles due south of Savo Island, the Pensacola steadied on a course of 300° T. at a speed of 20 knots. At 2339 without warning a torpedo struck the port side aft, outside the fuel tank forward of turret III. The oil ignited instantaneously, causing raging fires throughout the cruiser. Fuel was blown as high as the maintop, transforming the mainmast into a blazing torch and roasting all the personnel in Control Aft to death. Much of the hose on deck caught fire, and by the time the remaining lines were connected the flames were so intense that they could not be
extinguished. Time and again they seemed under control only to blaze up anew as more oil gushed from the fuel tanks.21
Just as her first target broke up, the Honolulu had to sheer out of column with hard right rudder to avoid colliding with the Minneapolis and the New Orleans. She kept right for three minutes. Zigzagging to avoid torpedoes, she opened fire under a starshell spread on a second target 7,000 yards to port.22 Smoke from oil burning on the water near our damaged cruisers, as well as that in the area of the enemy, obscured the target. Several starshell spreads failed to reveal the presence of this or other Japanese ships.
The Northampton, still engaging her first destroyer target, apparently ceased fire about 2330 and sheered out of column astern d the Honolulu. She did not return to the base course as soon as the latter; instead she steamed north on a course of 350° until 2335. Next, she proceeded four minutes on a course of 320° T., firing desultorily at her target, on which she noted hits at 2337. About the time the Pensacola was torpedoed (2339), the Northampton began to come left, steadying on a course of 280° T. which she held for 9 minutes, without discovering any target. At 2348, two torpedoes were seen close aboard on the port bow, approaching from about 270° T., traveling very close together. One ran about 10 feet below the waterline, the other almost on the surface. Capt. Kitts barely had time to order hard left rudder before the torpedoes struck so close together that many in the Northampton felt only one explosion. Violent vibration followed for several seconds.
One torpedo hit frame 108 at the waterline, the other struck frame 98, 10 feet below. The resulting damage was similar to that on the other three cruisers. Fuel and diesel oil ignited and sprayed in flames over
the mainmast structure and the boat deck, where it detonated the 5-inch ready ammunition. The explosion blew out the ship's port side between frames 105 and 113, leaving eight feet of skin plate protruding over the side. The main and second decks were torn away from frame 105 to frame 107, then aft to frame 112, and outboard along frame 117. At first the Northampton listed to port 10°, then, notwithstanding all efforts lessen it, the angle increased to 20°. Capt. Kitts stopped the ship in the hope that she would right herself, bur when the list reached 23° he ordered the bridge abandoned, the firerooms secured and all personnel brought topside. At 0130 all hands except the salvage crew were ordered over the side.
Twenty minutes later, the Fletcher and Drayton (which had rounded Savo Island in company with the Honolulu) received orders to rescue the Northampton's officers and crew, and shortly thereafter started picking them up. The cruiser's fires increased as steadily as her list and the water supply at the fire mains fell off ominously. At 0240, when the list reached 35°, Capt. Kitts and the salvage party abandoned ship. On the morning of 1 December, just after 0300, the Northampton turned on her beam ends, then rolled over and sank stern first. An hour later, the Fletcher and Drayton had completed their search for survivors, rescuing all 57 officers and 716 men.
Not until 0001 on 1 December did Admiral Tisdale receive Admiral Wright's TBS message of 2333 placing him in command of Task Force WILLIAM. A tense situation confronted the new commander. The four van destroyers were far ahead, their fate unknown. Four of the 5 cruisers had been knocked out of action. Somewhere in the rear steamed two remaining destroyers with only the vaguest notion of what had taken place. In the Honolulu neither the radars nor the naked eye detected a single enemy ship. Yet in view of the multiple torpedoing, it seemed clear that a number of undamaged Japanese ships were still at large the sound.
Events After the Action
SG radar search of the Guadalcanal shoreline revealed no targets of any kind , although it did pick up four ships off the northern coast of Savo Island. Admiral Tisdale accordingly ordered Capt. Robert W. Hayler, commanding the Honolulu, to pursue these vessels around the island.
The ships were soon identified as our van destroyers. Admiral Tisdale instructed them over TBS to begin a search for our crippled cruisers and then followed them around Savo. A searchlight beam was seen just over the horizon to the southeast at 0013, sweeping toward the Honolulu.23 She promptly reversed course, placing Savo between herself and the searchlight. As she doubled around the northwest side of the island, friendly planes dropped flares over the beach near Tassafaronga and reported damaged vessels offshore. Admiral Tisdale ordered the Honolulu to stand down to bombard these ships, but the aircraft later notified him that the vessels sighted were only burnt-out hulks stranded in previous engagements. The Honolulu now shaped her course south and southeast from Savo toward Lengo Channel. At about 0133 Admiral Tisdale granted Capt. Hayler's request to reverse course and retire between Savo and Cape Esperance. Shortly thereafter the Fletcher and Drayton, complying with instructions to stand by the cruisers, joined the Honolulu.
The three ships soon encountered the battered, burning Northampton, surrounded by life rafts loaded with survivors. The Honolulu altered her course radically to avoid running them down, slowing briefly to 15 knots so as not to capsize the rafts. Admiral Tisdale directed the Fletcher and Drayton to make the rescues while the Honolulu continued on alone at 30 knots. She searched unsuccessfully for the Japanese throughout the area between Guadalcanal and Florida Islands. East of Savo, however, she was joined by the Lamson and Lardner, which had cruised north of Lengo Channel, ignorant of the whereabouts of our ships. At 0800 Admiral Tisdale established visual contact with Admiral Wright, who informed him that the Northampton had been sunk and that the Minneapolis, Pensacola, and New Orleans were in no condition to be towed away from Tulagi. Admiral Wright then ordered the Honolulu to return to Espiritu Santo, screened by the Lamson and Lardner.
After the van destroyers opened the action with their torpedo attack, they fired several rounds of starshells and from 50 to 100 rounds of service ammunition with no perceptible results. At 2327 they retired to the northwest to skirt Savo Island under orders from Comdr: Cole in the Fletcher. While steaming along the west coast of Savo, they made several
Experiences of the Van Destroyers
radar contacts. At 233024 the Fletcher's SG radar showed one Japanese ship bearing 190° T. at a distance of 12,500 yards, close by the beach at Cape Esperance. The FD radar was matched in train, but could not pick up the target which eventually disappeared from the screen. At 2337 the Drayton's SG radar located three ships to the north of Cape Esperance heading on a course parallel to the Drayton's at a distance of 12,000 yards. Four torpedoes were fired without observed result.
As the van destroyers rounded Savo, they noticed several splashes astern and the wakes of several torpedoes. Frequent zigzagging enabled them avoid the torpedoes, and none of the shells dropped very close. At 0004, when the destroyers reached the northern side of Savo Island, speed was reduced and recognition lights were flashed. A TBS message from Admiral Tisdale directed Comdr. Cole to dispatch two destroyers to stand by the New Orleans, then reported to be 10 miles east of Savo. At 0058 the Maury and Perkins left on this mission.25 At 0120 the Fletcher [and] the Drayton sighted the Honolulu and fell in astern of her. As previously noted, these three ships very nearly ran into the Northampton and her survivors.
For three and one-half hours the Fletcher and Drayton engaged in rescue work. The Fletcher's whaleboat was lowered, under the command of Ens. C. F. Gressard, and began to tow several rafts back to the destroyer. So many men on the first raft grabbed for the gunwale that they capsized it. Efforts to right the boat had to be abandoned in order to free men for other activities. A motor whaleboat from the Northampton now came alongside the Fletcher, which manned it with a crew consisting of L. C. Jenkins, Seaman Second Class; J. F. Gephardt, Machinist's Mate First Class; and J. W. Jarrell, Seaman Second Class. These men worked with "praiseworthy" zeal for two hours, towing rafts and boats to the side of the Fletcher from which hung four cargo nets, two floater nets, and all available sea ladders to aid the survivors in climbing to the deck.
Others of the Fletcher's crew went over the side to rescue men so weak at they could not reach the nets. J. E. Howell, Fireman First Class,
swam out over 100 yards several times to carry lines to struggling survivors. All told, the Fletcher picked up 42 officers and over 600 men from the Northampton.
Similar instances of cool courage marked the rescue operations conducted by the personnel of the Drayton, who took aboard 15 officers and 113 men--including four stretcher cases--without the aid of a power boat. Time after time, Ens. J. F. Ryan swam back and forth to assist exhausted men into the Drayton's motor whaleboat. Once they gained the deck of the Drayton, the men of the Northampton received unsparing attention from Lieut. William M. Pope, medical officer, who went without sleep for over 30 hours to treat their many cases of bruises, burns, and shock.
By 0435 no more men could be found in the water, so the Fletcher and the Drayton stood east at 25 knots in the hope of meeting Admiral Tisdale. Since the Honolulu could not be raised by TRS, Comdr. Cole decided to make for Espiritu Santo. He sent a dispatch to Admiral Wright (for the information of COMSOPAC) stating the circumstances and advising that the two destroyers would proceed unless a rendezvous were ordered. COMSOPAC later designated a rendezvous with the Honolulu at 1700, 1 December. The Fletcher and Drayton could not locate the Honolulu at 1700, but did meet her accompanied by the Lardner at 0330, 2 December, as they proceeded on their course. The four ships arrived at Espiritu Santo at 1000, 2 December.
In the Tassafaronga action on the night of 30 November 1942, Task Force WILLIAM opposed the first important Japanese attempt to reinforce Guadalcanal after the decisive engagements of mid-November. The battle opened auspiciously. Task Force WILLIAM apparently possessed the initial advantage of surprise. This it implemented by excellent gunnery, which, so far as CINCPAC could determine, resulted in the sinking of the Takanami and three other Japanese destroyers and the damaging of two or more others.26 On the other hand, not a single enemy shell struck any of our ships.
This repulse of the Japanese, however, was only achieved at severe cost to the United States Navy. During the second phase of the battle, the enemy launched an amazingly effective and devastating torpedo attack
which resulted in the sinking of one heavy cruiser (Northampton), and serious damage to three others (Minneapolis, New Orleans, and Pensacola).27 Losses in personnel during the action consisted of 19 officers and 398 enlisted men.
The "Lamson" and the "Lardner"
By reason of their recent addition to Task Force WILLIAM, the destroyers Lamson and Lardner had been ordered by Admiral Wright to take up a position astern of the cruiser column. At the outset of the action, neither ship possessed any information concerning the bearing of the targets, nor did either possess SG radar equipment. After the Lardner sighted and fired three salvos at three destroyers bearing 260° T., she lost all targets, and, at about 2329, shifted course to the left in an attempt to rejoin the other U. S. ships. As she came left to 350° T., the Lardner was fired upon by our own vessels. She immediately flashed fighting lights, identified herself over TBS as friendly, and gave the bearings of the ship firing on her as 350° to 320° T. The firing continued, however, until 2337, so Lt. Comdr. Sweetser turned right on an easterly course and withdrew out of range.
Meanwhile, the Lamson followed 600 yards astern of the Northampton. At 2339 the Northampton hauled out to starboard to avoid collision with the cruisers ahead. The Lamson also swung out, and as she turned 90° she, too, was fired upon for a period of 30 seconds by the 40-mm. or 1.1-inch guns of some ship astern. The destroyer now came left to join her guide, but no contact with the Northampton could be made.
Although neither destroyer had suffered damage, the situation confronting Comdr. Abercrombie was dangerous in the extreme. As already quoted in part from his Action Report: "No information was obtained concerning the disposition of enemy forces, what might be encountered,
no recognition signals, no reference or rendezvous points or anything pertaining to the night's operations. As a result . . . I was completely perplexed throughout the operation and due to the incorrect recognition signals the two ships of this unit were fortunate in extricating themselves without damage from precarious positions." At 2352 he ordered the Lardner to join him in proceeding toward Lengo Channel where they would await further instructions.
Guadalcanal later radioed orders for the Lamson and the Lardner to stand by the Minneapolis, which was limping toward Lunga Point. When contact was made at 0254, the Lardner joined the Minneapolis, while the Lamson continued to search the Guadalcanal area for other ships. The Lamson rejoined the Minneapolis at 0441 and stood by with the Lardner until the three vessels arrived off Tulagi.
Admiral Wright thereupon ordered the two destroyers to proceed to the action area and search for survivors, and, upon contact with the Honolulu, to report to Admiral Tisdale for orders. The junction was effected at 0745, 1 December. The Honolulu, Lamson, and Lardner then received orders to return to the base at Espiritu Santo. About 2100 the Lamson was ordered by COMSOPAC to double back to Tulagi to assist the damaged cruisers. The Honolulu and Lardner, joined by the Fletcher and Drayton at 0330, continued on to the base at Espiritu Santo, which they reached at 1000, 2 December.
The plan of battle
The tactical plan governing Task Force WILLIAM in a night action was as follows:
1. Cruisers will form on line of bearing normal to the general bearing line, distance 1,000 yards. Destroyers will form at 4,000 yards 30° on the engaged bow of cruiser line.
2. Initial contact should be made by radar. One or more destroyer pickets will be stationed 10,000 yards in the direction of expected contact, in order to obtain early information of the enemy. When so stationed, destroyers will be ordered to take station as pickets on specified true bearings from the guide. Approach maneuvering will be ordered by TBS based upon radar tracking. All maneuvers after commencement of firing by our cruisers will be ordered by TBS and secondary warning net.
3. As soon as possible destroyers will be ordered to form and attack. It is expected that destroyer torpedo attacks will be made early in order to obtain the maximum benefits of surprise. All radar facilities may be used by destroyers, and the attack should be made on radar information insofar as possible. Results of radar tracking will be furnished the destroyer commander by TBS. Destroyers must clear expeditiously and in such a positive manner that there is the least possible chance for mistaken identity. All ships having IFF must ensure that it is turned on well before night action, particularly when destroyers are separated from the cruisers. On completion of torpedo attacks and after commencement of cruiser action, destroyers engage enemy destroyers or cruisers being engaged by our cruisers, and be prepared to provide starshell illumination if so ordered.
4. Insofar as practicable, the range will be maintained in excess of 12,000 yards until our destroyer attack has been completed. Commencement of fire will be ordered at a range of between 10,000 and 12,000 yards. Fire will be opened using fire control radars, and the distribution of fire will be normal insofar as can be determined with the radar equipment available. Intention is that cruiser planes will silhouette enemy force by flares. Visual point of aim should be used as soon as available. If fire cannot be maintained with fire control radar, and visual point is not available, individual ships may illuminate with starshells. Searchlights will not be used. Ships should be prepared to spot by radar.
5. In normal action the range will be controlled by ship turns. When action is broken off, the course may be reversed and the range closed in order to sink enemy cripples. In reverse action the range will be controlled by ship turns and head of column movements not in excess of 30°. The minimum range will depend upon the tactical situation and advantages gained in the early phases of the action, but in general will not be less than 6,000 yards.
6. Night fighting lights may only be used if under attack by a friendly vessel, and then only for the shortest possible time to ensure recognition.
1. See Combat Narrative: Battle of Guadalcanal.
2. The Fletcher was the only United States ship to emerge undamaged from the furious night action of 12-13 November.
3. Numbers identifying task forces have been omitted from all Combat Narratives for reasons of security. In place of these numbers will be found the Navy FLAG name for the first letter of the surname of the commanding officer of a task force.
4. A medium range radar designated to detect both ships and aircraft. The SG radar, on the other hand, is used primarily for detection of surface craft. It is also useful for night navigation. Ships in Task Force WILLIAM lacking SG radar were the Northampton, Pensacola, Maury, Lamson, and Lardner.
5. High-frequency voice radio.
6. Fire control radars used primarily for detecting the fire of main batteries, but also employed for short range search.
7. This Annex is fully reproduced in Appendix II.
8. The purpose of selecting this considerable range was, of course, to take full advantage of the opportunities offered by our excellent search and fire control radars.
9. The inadequacy of Admiral Wright's information contrasts with the more ample knowledge of enemy units received by Admiral Scott prior to the Battle of Cape Esperance, and by Admirals Turner and Lee before the Battle of Guadalcanal. Air search had revealed the number and characteristics of enemy forces with considerable accuracy in the days preceding those actions. But despite a report on the night of 29 November of the departure from Buin of 12 destroyers, steaming in a southeasterly direction, thorough air search under ideal conditions the next day failed to locate any Japanese vessels approaching Guadalcanal. CINCPAC noted that 12 destroyers was the maximum number sighted in the Buin area, and that there was no record of where they were on 30 November, but that they could have been outside our air-search radius to the east or west, or concealed in harbors along the route to Guadalcanal.
10. Admiral Wright hoped by effective use of flares to compensate for the enemy's decided advantage of inshore operations near Guadalcanal, where radar detection would be difficult. Unfortunately light winds at Tulagi harbor prevented the planes from taking off as planned, and delayed their arrival over the combat site until action had terminated.
11. "No information was obtained concerning the disposition of enemy forces, what might be encountered, no operation orders, no special instructions, no recognition signals, no reference or rendezvous points or anything pertaining to the night's operations."--Action Report of Comdr. Abercrombie.
12. Later it developed that at about the same time a cruiser-plane pilot had sighted another group of six Japanese vessels close inshore near Tassafaronga and approximately 4 miles from the ships located on the SG screen.
13. This was the first action in which SG radars in various ships performed erratically. Prior to the opening of gunfire at the Battle of Cape Esperance, a gap of almost 20 minutes occurred between the detection of the enemy by the SG radar of the Helena and the first contact visible on the Boise's screen. See Combat Narrative, Battle of Cape Esperance.
14. None of the van destroyers took further part in the action. Their only remaining roles consisted of rescuing survivors from the Northampton and helping the other cruisers fight fire and enter Tulagi Harbor.
15. The Action Report of the radar officer of the New Orleans also noted this apparent countermarch by enemy ships close inshore.
16. "Officers in the New Orleans reported their second target as lying somewhat to the right of the first, and that it appeared to be an Atago-class heavy cruiser which exploded after three or four salvos. The general direction of this target and its speedy destruction suggested that it sank from the combined fire of our two leading cruisers.
17. The parts played by the Lamson and Lardner during the remainder of the action are set forth in Appendix I.
18. Capt. Rosendahl set his course for Lunga Point, hoping that if he had to beach the Minneapolis, it could be done on the American-held shore. At 0200, when it became evident that his ship could make 3 to 31/2 knots and might hold her own against further flooding, he decided to steer for Tulagi Harbor, 18 miles away. The tug Bobolink and several PT bolts came out to meet the Minneapolis a few miles from Tulagi and assisted her into port. She came alongside the beach at Sasapi, port side to, secured mooring lines to coconut trees and stumps, and was camouflaged as effectively as possible with nets and foliage (see illustrations facing pp. 10 and 11).
19. The absence of any fire of consequence, despite the tremendous heat and volume of the explosion, is indisputable evidence of the thoroughness with which paint and inflammables had been removed and disposed of for fire prevention."--Action Report of Capt. Roper of the New Orleans.
20. Thus critically damaged, the New Orleans limped toward Tulagi at five knots. Since he feared that the forward transverse bulkhead might collapse from the excessive pressure of the sea, Capt. Roper tried to reverse the ship and back her into port. The vessel proved unmanageable going astern, but she reached Tulagi without further mishap and tied up alongside the Maury.
21. The explosion immediately caused a list of 13°, which was corrected within an hour by pumping out the fuel tanks and throwing over the side everything that the crew could pry loose. The Pensacola lost all steering control when the torpedo struck. Central Control attempted unsuccessfully to take over. Both gyros were knocked out. Water flooded the engine room and the port shaft from the forward engine broke. The water level rose in the after fireroom, while flooded magazines and fires rendered turret III useless.
Communication with Steering Aft was shortly restored by relay through Central Station. The steering room still remained in commission, although all leads from forward stations had failed, so the Executive Officer, Comdr. Harry Keeler, Jr., shifted control to Steering Aft and conned the ship by telephone. A speed of 8 knots was obtained from No. 1 shaft. Capt. Lowe confirmed Comdr. Keeler's decision to make for Tulagi, where the burning cruiser anchored at 0344. Not for some time could the fires he brought under control.
22. The Honolulu was the only cruiser to adopt zigzagging tactics. The Pensacola's prompt return to her base course has been noted. It will be seen that the Northampton also proceeded steadily on her several courses.
23. It was later learned that this searchlight was operated by Americans near Henderson Field.
24. The Minneapolis and New Orleans were torpedoed at about 2328, the Pensacola at 2339, and the Northampton at 2348.
25. The New Orleans turned out not to need immediate assistance, so the Perkins and Maury steamed to the aid of the Pensacola, which was blazing fiercely. The Perkins led the Pensacola into Tulagi by use of SG radar and once inside the harbor, at 0400, furnished her all available fire-fighting apparatus. The Maury stood by until, just outside Tulagi, she overheard a TBS request from the New Orleans that one destroyer join her. The Maury steamed toward the New Orleans, located her at 0235, and guided her into Tulagi, where she moored alongside because the cruiser had no anchor.
26. In the light of subsequent information, it seems certain that two enemy destroyers were sunk.
27. Our combatant losses in the South Pacific area from torpedo fire to 1 December 1942 were as follows:
Ships sunk by torpedoes 13 Ships sunk by combined torpedo and gunfire 10 Ships badly damaged by torpedo fire 5 Total 28
At the Battle of the Java Sea, our Dutch ally lost three ships, the British one to torpedoes. The Australians lost one ship by torpedo and gunfire at the Battle of Savo Island.
