NAVSHIPS A-2 (374)
SUMMARY OF WAR DAMAGE
TO
U. S. BATTLESHIPS, CARRIERS, CRUISERS AND DESTROYERS
8 DECEMBER, 1942 TO 7 DECEMBER, 1943
Preliminary Design Section
Bureau of Ships
Navy Department
10 March, 1944
Printed by U. S. Hydrographic Office
CONTENTS
Section |
Page |
|
Foreword |
1 |
|
Summary Tables |
2 |
|
Ships Lost During Second Year of War |
6 |
|
Ships Damaged During Second Year of War |
13 |

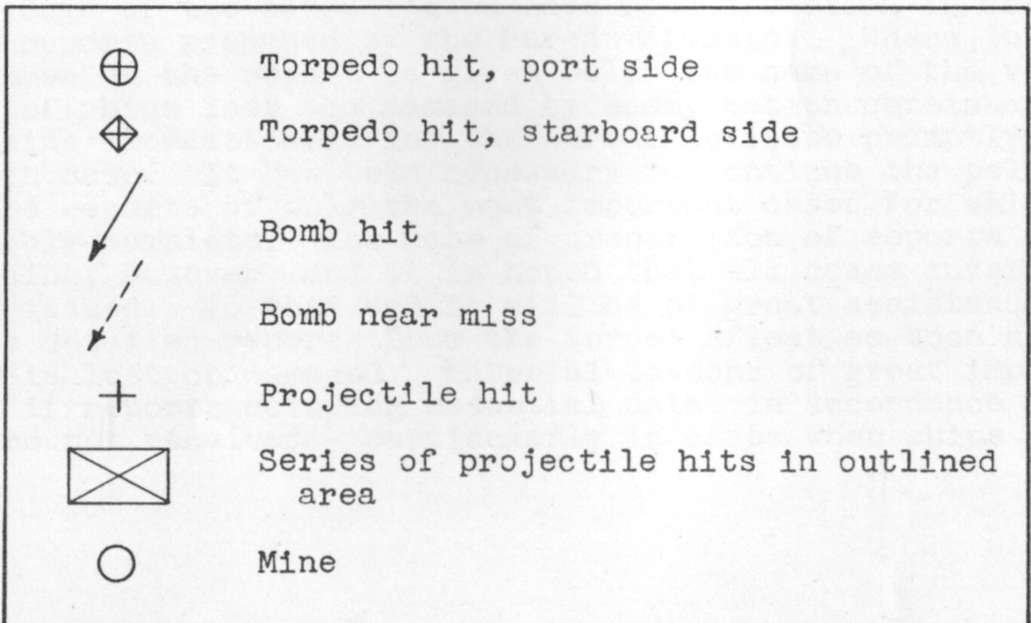

LEGEND
* WAR DAMAGE REPORTS NOT YET ISSUED
--i--
References:
(a) BuShips ltr. C-FS/L11-1(374);C-EN28/A2-1 of 17 April, 1942.
(b) Navships A(374) - Summary of War Damage to U.S. Battleships, Carriers, Cruisers and Destroyers, 17 October, 1941 to 7 December, 1942 - of 15 September, 1943.
1. This is the second in a series of annual summaries of war damage to U.S. naval vessels covering the second year of the war, 8 December, 1942 to 7 December, 1943. Reference (b) covered the first year of the war.
2. This summary Is based on the best Information available to this Bureau. Receipt of information in correction of any of the data which may be found in error will be appreciated.
3. Some of the cases listed have been described in detail in the war damage reports prepared by the Bureau of Ships. Where this has been done, the number of the report is given below the name of the vessel. The number of ships lost and damaged by enemy action continues to increase and it remains impracticable for the Bureau to Issue promptly a detailed report for each case. It has been necessary to continue the policy of issuing detailed reports of only the most important cases for which the data are reasonably complete. The rate of preparation of reports by the Bureau is increasing, however, and it is hoped that all cases covering important lessons can be issued. To this end it will be of great assistance to the Bureau to receive detailed reports from the forces afloat as soon as practicable after a ship is lost or damaged. Material lessons of great importance may be missed if reports covering essential data, in accordance with reference (a), are not received - particularly in cases when ships are lost.
--1--
SHIPS DAMAGED OR LOST DUE TO ENEMY ACTION
17 October, 1941 to 7 December, 1943
SUMMARY
Cause of Damage or Loss
Type of Ship |
Aircraft |
Submarine |
Surface Craft |
Mine |
Disappeared |
Total |
||||
Bomb |
Torp. |
Bomb + Torp. |
Torp. |
Gunfire |
Gnf. |
|||||
BB |
4 |
1 |
4 |
1 |
- |
2 |
- |
- |
- |
12 |
CV |
4 |
2 |
2 |
5 |
- |
- |
- |
- |
- |
13 |
CA |
2 |
1 |
- |
1 |
4 |
5 |
4 |
- |
1 |
18 |
CL |
6 |
2 |
2 |
1 |
3 |
3 |
1 |
- |
- |
18 |
DD |
22 |
5 |
1 |
12 |
8 |
20 |
2 |
1 |
4 |
75 |
Total |
38 |
11 |
9 |
20 |
15 |
30 |
7 |
1 |
5 |
136 |
--2--
TABLE II
SHIPS DAMAGED OR LOST DUE TO ENEMY ACTION
17 October, 1941 to 7 December, 1943
SUMMARY
Cause of Damage or Loss by Years*
Type of Ship |
* |
Aircraft |
Sub- marine |
Surface Craft |
Mine |
Disappeared |
Total |
||||
Bomb |
Torp. |
Bomb + Torp. |
Torp. |
Gun- fire |
Torp + Gnf. |
||||||
BB |
1 |
4 |
1 |
4 |
1 |
— |
2 |
— |
— |
12 |
|
2 |
— |
— |
— |
— |
— |
— |
_ |
||||
CV |
1 |
4 |
— |
2 |
4 |
— |
— |
_ |
10 |
||
2 |
— |
1 |
— |
— |
— |
— |
— |
1 |
|||
CVL |
1 |
— |
— |
— |
— |
— |
— |
— |
_ |
||
2 |
— |
1 |
— |
— |
— |
— |
— |
— |
1 |
||
CVE |
1 |
— |
— |
— |
— |
— |
— |
— |
— |
||
2 |
— |
— |
— |
1 |
— |
— |
— |
— |
— |
1 |
|
CA |
1 |
2 |
— |
— |
1 |
4 |
4 |
4 |
— |
1 |
16 |
2 |
— |
1 |
— |
— |
— |
1 |
— |
— |
2 |
||
CL |
1 |
3 |
1 |
1 |
1 |
— |
2 |
1 |
— |
9 |
|
2 |
3 |
1 |
1 |
— |
3 |
1 |
— |
— |
— |
9 |
|
DD |
1 |
10 |
2 |
1 |
8 |
3 |
14 |
2 |
— |
4 |
44 |
2 |
12 |
3 |
— |
4 |
5 |
6 |
— |
1 |
— |
31 |
|
Total |
1 |
23 |
4 |
8 |
15 |
7 |
22 |
7 |
— |
5 |
91 |
2 |
15 |
7 |
1 |
5 |
8 |
8 |
— |
1 |
— |
45 |
* 1. Ships damaged and lost — 17 October, 1941 to 7 December, 1942.
2. Ships damaged and lost — 8 December, 1942 to 7 December, 1943.
--3--
TABLE III
SHIPS LOST DUE TO ENEMY ACTION
30 October, 1941 to 7 December, 1943
SUMMARY
Cause of Loss by Years*
Type of Ship |
* |
Aircraft |
Sub- marine |
Surface Craft |
Mine |
Disappeared |
Total |
||||
Bomb |
Torp. |
Bomb + Torp. |
Torp. |
Gun- fire |
Torp. + Gnf. |
||||||
BB |
1 |
— |
1 |
1 |
— |
— |
— |
— |
— |
— |
2 |
2 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
|
CV |
1 |
— |
— |
2 |
2 |
— |
— |
— |
— |
— |
4 |
2 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
|
CVE |
1 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
2 |
— |
— |
— |
1 |
— |
— |
— |
— |
— |
1 |
|
CA |
1 |
— |
— |
— |
— |
1 |
1 |
2 |
— |
1 |
5 |
2 |
— |
1 |
— |
— |
— |
— |
— |
— |
— |
1 |
|
CL |
1 |
— |
— |
— |
1 |
— |
— |
1 |
— |
— |
2 |
2 |
— |
— |
— |
— |
1 |
— |
— |
— |
— |
1 |
|
DD |
1 |
5 |
1 |
1 |
5 |
3 |
4 |
2 |
— |
4 |
25 |
2 |
3 |
1 |
— |
4 |
3 |
— |
— |
— |
— |
11 |
|
Total |
1 |
5 |
2 |
4 |
8 |
4 |
5 |
5 |
— |
5 |
38 |
2 |
3 |
2 |
— |
5 |
4 |
— |
— |
— |
— |
14 |
* 1. Ships lost — 30 October, 1941 to 7 December, 1942. 2. Ships lost — 8 December, 1942 to 7 December, 1943.
--4--
TABLE IV
SHIPS DAMAGED DUE TO ENEMY ACTION
17 October, 1941 to 7 December, 1943
SUMMARY
Cause of Damage by Years*
Type of Ship |
* |
Aircraft |
Submarine |
Surface Craft |
Mine |
Total |
||||
Bomb |
Torp. |
Bomb + Torp. |
Torp. |
Gunfire |
Torp. + Gnf. |
|||||
BB |
1 |
4 |
— |
3 |
1 |
— |
2 |
— |
— |
10 |
2 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
|
CV |
1 |
4 |
— |
— |
2 |
— |
— |
— |
— |
6 |
2 |
— |
1 |
— |
— |
— |
— |
— |
— |
1 |
|
CVL |
1 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
2 |
— |
1 |
— |
— |
— |
— |
— |
— |
1 |
|
CA |
1 |
2 |
— |
— |
1 |
3 |
3 |
2 |
— |
11 |
2 |
— |
— |
— |
— |
— |
1 |
— |
— |
1 |
|
CL |
1 |
3 |
1 |
1 |
— |
— |
2 |
— |
— |
7 |
2 |
3 |
1 |
1 |
— |
2 |
1 |
— |
— |
8 |
|
DD |
1 |
5 |
1 |
— |
3 |
— |
10 |
— |
— |
19 |
2 |
9 |
2 |
— |
— |
2 |
6 |
— |
1 |
20 |
|
Total |
1 |
18 |
2 |
4 |
7 |
3 |
17 |
2 |
— |
53 |
2 |
12 |
5 |
1 |
— |
4 |
8 |
— |
1 |
31 |
* 1. Ships damaged — 17 October, 1941 to 7 December, 1942.
2. Ships damaged — 8 December, 1942 to 7 December, 1943.
--5--
COMBATANT SHIPS LOST DURING SECOND YEAR OF WAR AIRCRAFT CARRIERS, ESCORT.
|
|
|
|
|
|

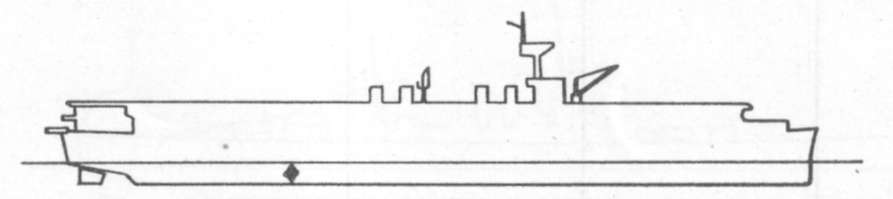

LISCOME BAY (CVE56) |
11/24/43 |
Gilbert Islands |
Sub. Torp - 1 |
After portion of ship destroyed by magazine explosion -plunged by stern with heavy starboard list. |
Struck by Japanese submarine torpedo starboard side in vicinity of after bomb magazine, causing mass detonation of aircraft bombs, including depth bombs. Stern destroyed aft of frame 118. Bow section remained afloat for 23 minutes. Fire gutted forward portion above hangar deck. |
--6--
SHIPS LOST
HEAVY CRUISERS
Ship |
Date |
Place |
Source |
Manner of Sinking |
Remarks on Damage |

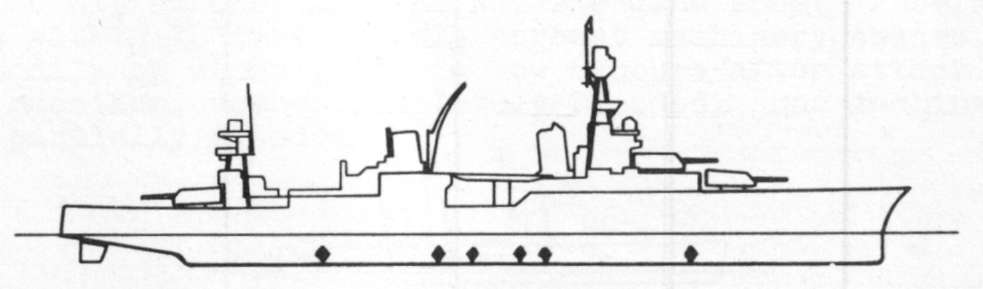

CHICAGO (CA29) |
1/29-30/43 |
Rennell Is. |
Air. Torp - 6 |
Capsized |
On 29 Jan. - struck by 2 deep-running Japanese aircraft torpedoes starboard side at frames 80 and 100. Extensive flooding. Propulsive power lost. Taken in tow. On 30 Jan. - struck by 4 Japanese aircraft torpedoes on starboard side, one at frame 33 and the others between frames 60 and 80. Capsized and sank in 20 minutes. |
--7--
SHIPS LOST
LIGHT CRUISERS
Ship |
Date |
Place |
Source |
Manner or Sinking |
Remarks on Damage |
HELENA (CL50) *War Damage Report No. 45 |
7/6/45 |
Kula Gulf, Solomon Islands |
DD Torp - 5 |
Bow broke off and floated - remainder "jack-knifed" and sank bodily |
Struck by 5 Japanese destroyer torpedoes on port side. One shallow hit near frame 52 severed bow at frame 56. Two deep hits near frames 82 and 88. Bottom structure destroyed and lower part of hull fractured about frame 85. Hull flooded and sank bodily in 7 minutes. |
--8--
SHIPS LOST
DESTROYERS
Ship |
Date |
Place |
Source |
Manner of Sinking |
Remarks on Damage |

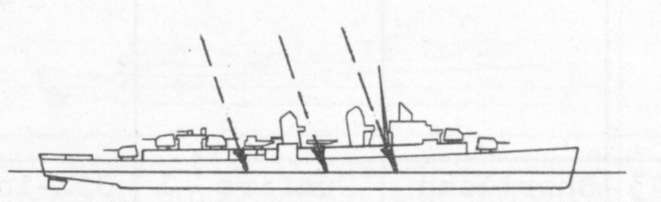

DeHAVEN (DD469) |
2/1/43 |
Guadalcanal Is. |
Bomb - 4 |
Sank bodily |

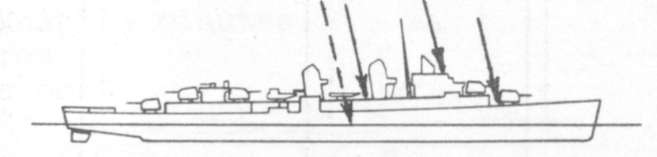

Severely damaged by 3 bomb hits and one near miss located amidships and forward. Ship settled by the bow and sank bodily in 2 minutes. |
AARON WARD (DD485) |
4/7/43 |
Guadalcanal Is. |
Bomb - 5 |
Sank bodily |
One bomb hit on port side of No. 2 engine room. Four near misses within 10 feet of hull abreast machinery spaces. Sank bodily by stern while in tow 6 hours after attack. Three machinery spaces completely flooded. One machinery space partially flooded. |
STRONG (DD468) |
7/5/43 |
Kula Gulf, Solomon Islands |
Midget Sub. Torp - 1 |
Buckled amidships - Sank bodily |
Struck by Japanese torpedo (probably from midget submarine), port side, frame 90. Forward boiler and engine rooms flooded immediately, after boiler room flooded slowly. Listed 15 degrees to starboard. Projectile from shore battery struck after portion of hull. List increased. Vessel finally buckled amidships and sank bodily. |
--9--
SHIPS LOST
DESTROYERS (continued)
Ship |
Date |
Place |
Source |
Manner of Sinking |
Remarks on Damage |

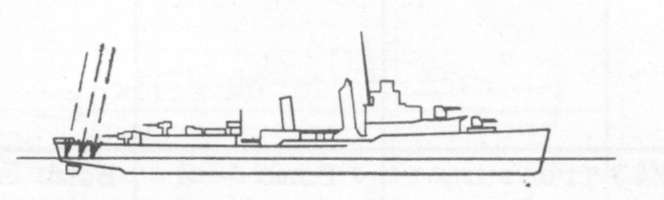

MADDOX (DD622) |
7/10/43 |
Sicily |
Bomb - 3-4 |
Capsized plunged by stern |
One or possibly 2 direct bomb hits on stern and 2 near misses at stern. After portion of ship up to forward engine room flooded. Ship capsized and plunged by stern in 2 minutes. |
GWIN (DD433) |
7/13/43 |
Kula Gulf, Solomon Islands |
DD Torp - 1 |
Plunged by stern |

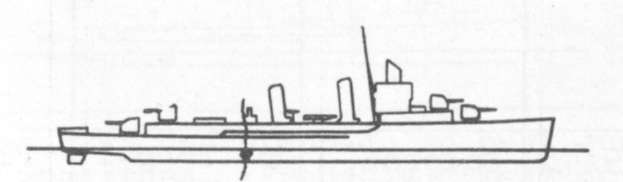

Struck by deep-running Japanese destroyer torpedo on port side at frame 150. Severe flooding aft. Remained afloat for 7 hours - finally sunk by U.S. forces. |
ROWAN (DD405) |
9/11/43 |
Salerno, Italy |
"E" boat Torpedo - 1 |
Unreported |
Struck by German "E" boat torpedo on port quarter probably abreast after magazines. Probably a mass detonation occurred in after magazine, possibly in depth charge magazine. Sank in 40 seconds. - |
--10--
SHIPS LOST
DESTROYERS (continued)
Ship |
Date |
Place |
Source |
Manner of Sinking |
Remarks on Damage |
HENLEY (DD591) |
10/3/43 |
New Guinea |
Sub. Torp - 1 |
Sank bodily |

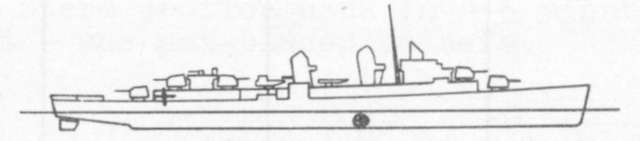

Japanese submarine torpedo struck port side, frame 70, in way of forward boiler room. Both boiler rooms and fuel oil tanks forward opened to the sea. Severe structural damage. Keel broken, main deck blown open and bridge structure wrecked. Sank in 15 minutes. |

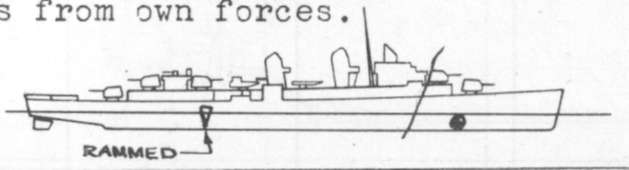

CHEVALIER (DD451) |
10/6/43 |
Vella La Vella Is. |
PT or DD Torp. - 1 Rammed by O'BANNON |
Broke in two - destroyed by own forces |
Struck by Japanese PT or DD torpedo port side forward of bridge. Bow severed - floated. Rammed by O'BANNON on starboard side after engine room. Forward boiler room and after engine room flooded completely. Other engineering spaces flooded slowly. Struck by torpedo from own forces aft, possibly in way of depth charge magazine, causing magazine explosion. Disintegrated and sank. Bow sunk by depth charges from own forces. |
BUCK (DD420) |
10/9/43 |
Salerno, Italy |
Sub. Torp - 1 |
Plunged by bow |
A German submarine torpedo probably struck starboard side abreast the bridge. Bow broke off about frame 74. Boiler rooms flooded immediately. Engine rooms intact except for loss of steam. Stern section sank in 4-5 minutes. A depth charge detonated - was not placed on safe. |
--11--
SHIPS LOST
DESTROYERS (continued)
Ship |
Date |
Place |
Source |
Manner of Sinking |
Remarks on Damage |
BRISTOL (DD453) |
10/13/43 |
Northwest African Waters |
Sub. Torp - 1 |
Broke in two-stern sank bodily - bow section plunged |

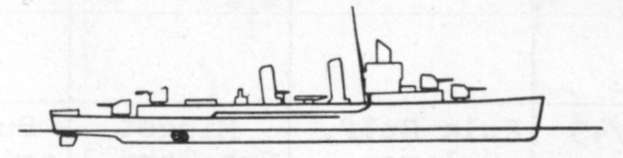

Struck by deep-running German submarine torpedo, port side, about frame 70. Keel severed. Vessel sagged and broke in two at frame 70. Stern sank first. Bow sank in 10 minutes. |
BEATTY (DD640) |
11/6/43 |
Northwest African Waters |
Air. Torp - 1 |
Broke in two |
Struck by German aircraft torpedo starboard side, frame 124. Structural damage severe. After engine and boiler rooms flooded immediately. Forward engine room flooded slowly. Progressive flooding aft resulted in increased list. Finally broke in two and sank, 3 hours and 22 minutes after hit. |
--12--
COMBATANT SHIPS DAMAGED DURING SECOND YEAR OF WAR
AIRCRAFT CARRIERS
Ship |
Date |
Place |
Source |
Remarks on Damage |
INDEPENDENCE (CVL22) |
11/20/43 |
Gilbert Islands |
Air. Torp - 1 |
Struck by shallow-running Japanese aircraft torpedo on starboard side at or aft of frame 103. Both starboard shafts damaged. After engine room and 10 spaces next abaft engine room flooded immediately; after boiler room flooded slowly. One propeller remained in operation. |

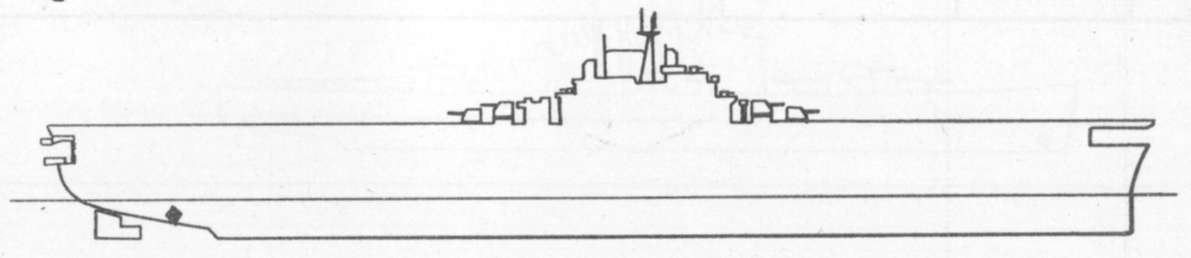

LEXINGTON (CV16) |
12/4/43 |
Marshall Islands |
Air. Torp - 1 |
Struck by Japanese aircraft torpedo starboard side frame 186 about 12 feet below the waterline. Average amount of structural damage end flooding. No. 2 tail shaft assembly lost with strut. No. 3 shaft suffered slight misalignment. Nos. 1 and 4 shafts undamaged. Steering control lost. |
--13--
SHIPS DAMAGED
HEAVY CRUISERS
Ship |
Date |
Place |
Source |
Remarks on Damage |

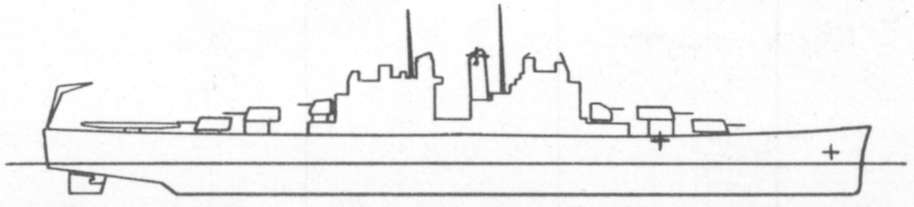

SALT LAKE CITY (CA25) |
3/26/43 |
Bering Sea |
Gunfire - 5 |
Incurred damage from three 8-inch projectile hits and two 8-inch shorts. Damage of a minor nature except for a hit which penetrated the hull just aft of after engine room and detonated in after fuel oil tank. An operating casualty caused temporary loss of steam. |
--14--
SHIPS DAMAGED
LIGHT CRUISERS
Ship |
Date |
Place |
Source |
Remarks on Damage |
HONOLULU (CL48) |
7/13/43 |
Kula Gulf, Solomon Islands |
DD Torp - 2 |
Struck by deep-running Japanese destroyer torpedo, starboard side, at frame 10. All of bow except main deck destroyed forward of frame 15. Main deck folded down over remainder of bow. Dud torpedo struck and penetrated light plating at stern. Minor flooding. Speed reduced. |
ST. LOUIS (CL49) |
7/13/43 |
Kula Gulf, Solomon Islands |
DD Torp - 1 |
Struck by deep-running Japanese destroyer torpedo, starboard side, at frame 6. Bow destroyed below second deck forward of frame 23. Minor flooding. Speed reduced. |
--15--
SHIPS DAMAGED
LIGHT CRUISERS (continued)
Ship |
Date |
Place |
Source |
Remarks on Damage |
PHILADELPHIA (CL41) |
9/11/43 |
Salerno, Italy |
Radio controlled bomb - 1 |
A 1400 Kg (3080-lb.) German radio-controlled A.P. bomb struck abreast starboard side frame 110 about 15 feet from hull. Some flexural vibrations. Slight damage to hull aft. Minor electrical damage due to shock. No. 4 shaft out of alignment. |
SAVANNAH (CL42) |
9/11/43 |
Salerno, Italy |
Radio controlled bomb - 1 |
Struck by 1400 Kg (3080-lb.) German radio-controlled A.P. bomb on top of No. III turret. Penetrated roof plate, passed through gun room and downward inside of barbette detonating in handling room. Bottom holed on port side. Ship flooded frames 23-61 to third deck. Flash and fire in No. III turret. |
DENVER (CL58) |
11/2/43 |
Bougainville Is. |
Gunfire - 3 |

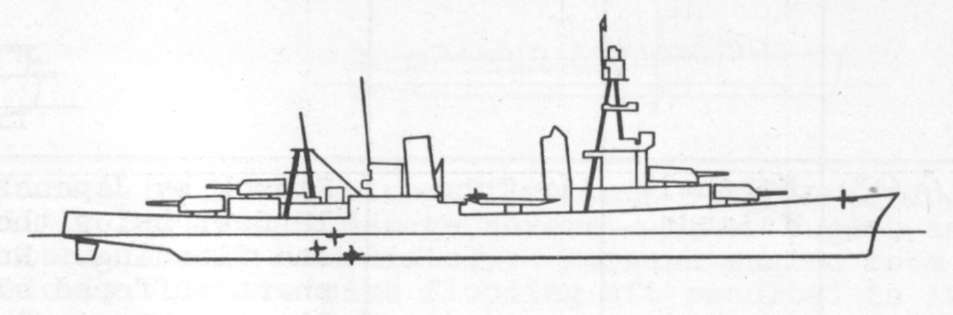

Struck by 3 dud 8-Inch projectiles; one on No. 1 stack (hood), one at frame 37 starboard just below main deck, and one at frame 6 starboard 3 feet below second deck. All projectiles passed through vessel without detonating. Three small compartments flooded. Structural damage slight. |
--16--
SHIPS DAMAGED
LIGHT CRUISERS (continued)
Ship |
Date |
Place |
Source |
Remarks on Damage |
MONTPELIER (CL57) |
11/2/43 |
Bougainville Is. |
Bomb - 2 |

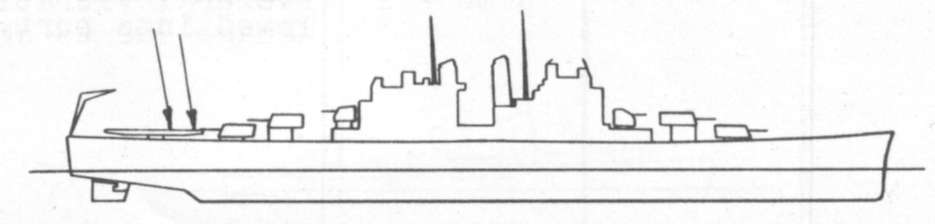

Two small Japanese demolition bombs struck starboard catapult. No apparent damage except to catapult. |
BIRMINGHAM (CL62) |
11/8/43 |
Bougainville Is. |
Air. Torp - 1 Bomb - 2 |
Small Japanese aircraft torpedo struck the port side at frame 20 about 10 feet below the waterline. Damage small for torpedo. Two bombs caused moderate damage. One struck starboard side of counter above waterline. The other (anti-personnel bomb) detonated above center and left guns on No. IV turret. |
DENVER (CL58) |
11/13/43 |
Bougainville Is. |
Air. Torp - 1 |
Struck by Japanese aircraft torpedo starboard side frame 99 about 10 feet below the waterline. Average structural damage. After engine room and spaces abaft after engine room flooded immediately. After boiler room flooded slowly. No. 3 shaft remained in operation. |
--17--
SHIPS DAMAGED DESTROYERS
Ship |
Date |
Place |
Source |
Remarks on Damage |
LaVALLETTE (DD448) |
1/30/43 |
Rennell Is. |
Air. Torp - 1 |
Struck by deep-running Japanese aircraft torpedo on port side at frame 94 in way of forward engine room and boiler room; rapid flooding in these two spaces. Slow flooding into after boiler room. Towed into port. |
BAILEY (DD492) |
3/26/43 |
Bering Sea |
Gunfire - 5 |
One 8-Inch projectile struck at frame 67, main deck. One 8-inch dud projectile struck No. 4 gun mount. One 8-inch short holed forward engine room at frame 100. Engine room flooded. Machinery damage caused by lubricating oil failure due to vibration at high speeds after damage. Minor damage from 2 other shorts. |
COGHLAN (DD606) |
3/26/43 |
Bering Sea |
Gunfire -numerous shorts |
No direct hits. Minor fragment damage from shorts. Director damaged. Small fire in after uptakes. |
--18--
CONFIDENTIAL
SHIPS DAMAGED
DESTROYERS (continued)
Ship |
Date |
Place |
Source |
Remarks on Damage |
GWIN (DD433) |
6/30/43 |
Rendova Strait, Solomon Islands |
Gunfire - 1 |
A 5-inch common projectile struck at frame 129, port side. Minor fragment damage. Torpedo warheads penetrated by fragments. |
MAYRANT (DD402) |
7/26/43 |
Palermo, Sicily |
Bomb - 1 |

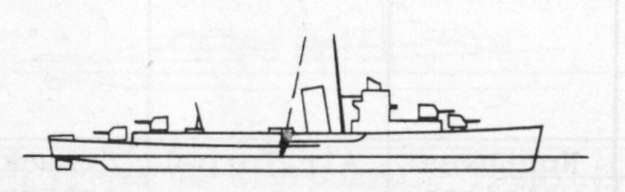

Extensive damage was incurred from a near miss on the port side frame 102-1/2 within 6 feet of the bilge. The 3 after engineering spaces flooded immediately. The forward boiler room flooded partially. Listed 4° to starboard due to displacement of heavy engineering weights. No fragment damage. Towed to repair base. |
RHIND (DD404) |
7/26/43 |
Palermo, Sicily |
Bomb - 2 |
Two bomb near misses on starboard side 15 feet and 25 feet from hull at frames 60 and 118 respectively, caused shock derangement of I.C. equipment. Slight fragment damage to hull. Rudder jammed temporarily. No flooding. |
--19--
SHIPS DAMAGED
DESTROYERS (continued)
Ship |
Date |
Place |
Source |
Remarks on Damage |
SHUBRICK DD639) |
84/43 |
Palermo, Sicily |
Bomb - 1 |
Direct hit, 500-pound German bomb in forward engine room. Passed through bottom and detonated 5-6 feet below hull. Structural damage severe but localized. Forward engine room and after boiler room flooded. Shock was minor. |
ABNER READ (DD526) |
8/18/43 |
Kiska Is. |
Mine - 1 |
Japanese mine detonated on contact with stern. Stern destroyed aft of frame 170. Flooding forward of frame 170 was slight. |
KENDRICK (DD612) |
9/2/43 |
Northwest African Waters |
Air. Torp - 1 |
Struck by shallow-running German torpedo on rudder from directly astern. Stern deflected upward about 4 feet at after perpendicular with sharp knuckle in hull at frame 183. Propeller shafts out of alignment. Maximum safe speed 6-1/2 knots. |
--20--
SHIPS DAMAGED
DESTROYERS (continued)
Ship |
Date |
Place |
Source |
Remarks on Damage |
CONYNGHAM (DD571) |
9/4/45 |
Huon Gulf, New Guinea |
Bomb - 3 |
Three near misses on port quarter between 25 and 50 yards from hull resulted in minor fragment damage to hull aft. One fragment penetrated a torpedo warhead - warhead jettisoned. |
SAUFLY (DD465) |
10/1/43 |
Kula Gulf, Solomon Islands |
Bomb - 3 |
Three near misses about 25 feet from shell along port side. Minor fragment damage. |
SELFRIDGE (DD557) |
10/6/43 |
Vella La Vella Is. |
PT or DD Torp - 2 |
Struck by torpedo at frame 40 starboard. Possibly struck by torpedo frame 30 port. Torpedoes were fired by Japanese PT boat or destroyer Bow missing forward of bridge. No fire or magazine explosions. Flooding in intact portions slight. |
--21--
SHIPS DAMAGED
DESTROYERS (continued)
Ship |
Date |
Place |
Source |
Remarks on Damage |
PERKINS (DD377) |
10/20/43 |
Finschhafen, New Guinea |
Bomb - 1 |
An anti-personnel bomb abreast frame 40 starboard side about 30 feet from hull. Severe fragment damage - 135 fragment holes in bridge structure starboard side. |
CONY (DD508) |
10/27/43 |
Treasury Is. |
Bomb - 2 |
Bomb struck and detonated on starboard side main deck frame 163. A second bomb struck port side main deck frame 157 and detonated In a fuel oil tank. After engine room flooded slowly. Oil vapor fire extinguished in 4 hours. |
DYSON (DD572) |
11/1/43 |
Shortland Is. |
Gunfire - 1 |
Six-inch dud projectile struck bow chock. Minor damage. |
WADSWORTH (DD516) |
11/1/43 |
Bougainville Is. |
Bomb - 1 |
An anti-personnel bomb struck water port side abreast frame 208 about 25 yards from hull. Minor fragment damage to port side of hull and topside structure abaft No. 3 mount. |
--22--
SHIPS DAMAGED
DESTROYERS (continued)
Ship |
Date |
Place |
Source |
Remarks on Damage |
FOOTE (DD511) |
11/2/43 |
Bougainville Is. |
DD Torp - 1 |
Struck by shallow-running Japanese destroyer torpedo on starboard side about frame 202. Stern missing aft of frame 200. Remainder of stern aft of frame 182 bent sharply upward. Severe flexural vibration. Main deck buckled at frame 29. Moderate flooding. Shafts damaged. |
SPENCE (DD512) |
11/2/43 |
Bougainville Is. |
Gunfire - 1 |
Struck by one dud 8-inch projectile at frame 157 starboard side 3 feet above first platform deck. Damage slight. |
RINGGOLD (DD500) |
11/20/43 |
Tarawa Is. |
Gunfire - 2 |
Struck by 2 dud 5-inch projectiles: one at frame 142 at the waterllne on the starboard side, and one on the forward torpedo mount. Slight structural damage. Minor flooding. After switchboard damaged. |
CONVERSE (DD509) |
12/3/43 |
Bougainville Is. |
Bomb - 1 |
A near miss on starboard side about frame 116 resulted in slight wrinkling of shell. Slight leakage. Minor shock damage. |
--23--
