ONI-204
GERMAN NAVAL VESSELS

NAVY DEPARTMENT
OFFICE OF THE CHIEF OF NAVAL OPERATIONS

August 13, 1942

RESTRICTED


Table of Contents

INTRODUCTION
CHARACTERISTICS OF GERMAN NAVAL VESSELS
GERMAN ONE-STACKERS
JERRY JINGLES
MISTAKEN IDENTITY
GERMAN CAMOUFLAGE
LIST OF GERMAN NAVAL VESSELS
RANGE TABLE
SHIP DETAILS

INTRODUCTION

  1. ONI 204 - German Naval Vessels - is issued in loose leaf to provide maximum flexibility. Ultimately the material comprising this identification manual on the German Navy will be as shown in the table of contents with such additional data as experimentation and experience prove to be of aid to the fighting forces. Meanwhile, to avoid delay in reaching the users of this and similar publications on foreign navies, introductory material and individual ship class jackets are issued as the information is processed and printed.
  2. While the manual of each naval power is designed as a separate entity and bound in appropriate Naval War College colors for ready reference, the format is so arranged that the holders of these several manuals can make any special assembly which may be indicated by the operating area, the strategical or tactical situation obtaining, or the limitations of the unit upon which the user is embarked. To facilitate such assembly the forces afloat will be issued separate Task binders into which the interchangeable sheets may be arranged into air views only, target angles only or any combination suitable for a given theater of operations.
  3. ONI 204 is a "Restricted" publication. Subject to the limitations imposed by its classification, it is the intent that the responsible officer feel free to exercise such latitude and discretion in its circulation as to insure a familiarity on the part of the officers and men of our fighting forces, and those of other United Nations, with the units of the German Navy.
  4. ONI 204 has been prepared from the best information available to the Navy Department. In the main, it is based upon published material and reconnaissance photographs. Except for fragmentary addenda which may be uncovered, the first source has been exhausted. It is expected that future revisions will derive largely from reconnaissance photographs and contributions (sketches and descriptions) from combat personnel.
  5. Cases of mistaken identity resulting frequently in tragic consequences have occurred with disconcerting regularity among European belligerents. These manuals are designed to facilitate timely recognition and to provide general and tactical information which may assist in the moment when contact with the enemy is first made.
  6. Corrections and addenda to ONI 204 will be issued as information becomes available.



IN REPLY REFER TO INITIALS AND NO. /s/ H. C. TRAIN
OP-16-F-20
RESTRICTED
S1/EF30
SERIAL NO. 3170216
CAPTAIN, U. S. NAVY
DIRECTOR OF NAVAL INTELLIGENCE


CHARACTERISTICS OF GERMAN NAVAL VESSELS
DIVISION OF NAVAL INTELLIGENCE - IDENTIFICATION AND CHARACTERISTICS SECTION - NOVEMBER, 1942



The larger and newer units of the German Navy resemble one another closely and share many common characteristics.

Their hulls show a marked sheer line, usually terminating in a characteristically snubbed clipper bow.

The low, rakish lines of the battleships and heavy cruisers have evolved through the higher and chunkier hulls of the older pocket battleships (now rated as heavy cruisers).

No two-stackers occur in the German Navy of a heavier classification than light cruisers. These ships stem from an older design type. Their stacks are rather slender, their sheer lines straighter, their hulls less rakish and they carry heavy tubular masts supporting light platforms.

The pre-Hitler battleships are unmistakable, with their low wide hulls and high stacks. Formerly three-stackers, the two forward funnels of these ships have been trunked into a single heavy forward stack, and they now show two stacks of unequal thickness (see below).

German destroyers have low hulls, with long forecastles. They are two stackers, with flat-sided stacks of unequal thickness, topped by exceptionally high clinker-screens.

Torpedo boats and escort vessels are often one-stackers. Their hulls may be flush or broken and their stacks also show very high clinker-screens in most instances.



Upper (left to right): Old Battleship; Heavy Cruiser; Battleship
Lower (left to right): Mine Sweeper; Torpedo Boat; Destroyer; Light Cruiser


German one stackers all have silhouettes that build up in pyramidal form to heavy tower foremasts. High aft rangefinders and bulbous A-A directors constitute unmistakable German elements in their design. "Humpbacked" main battery turrets characterize all new ships with the exception of Tirpitz.

Except in instances where masts have been applied to stacks, mainmasts are high, slender tripods or quadrupods.

Upper left and middle: Heavy Tower Foremasts.   Upper right: Slender Mainmast.
Center (left to right): High Range Finder; Bulbous AA Director; Squat Single Stacks (3 photos).
Lower (left to right): Crane; Search-light Platforms (2 photos); Catapult; Humpbacked Turret.

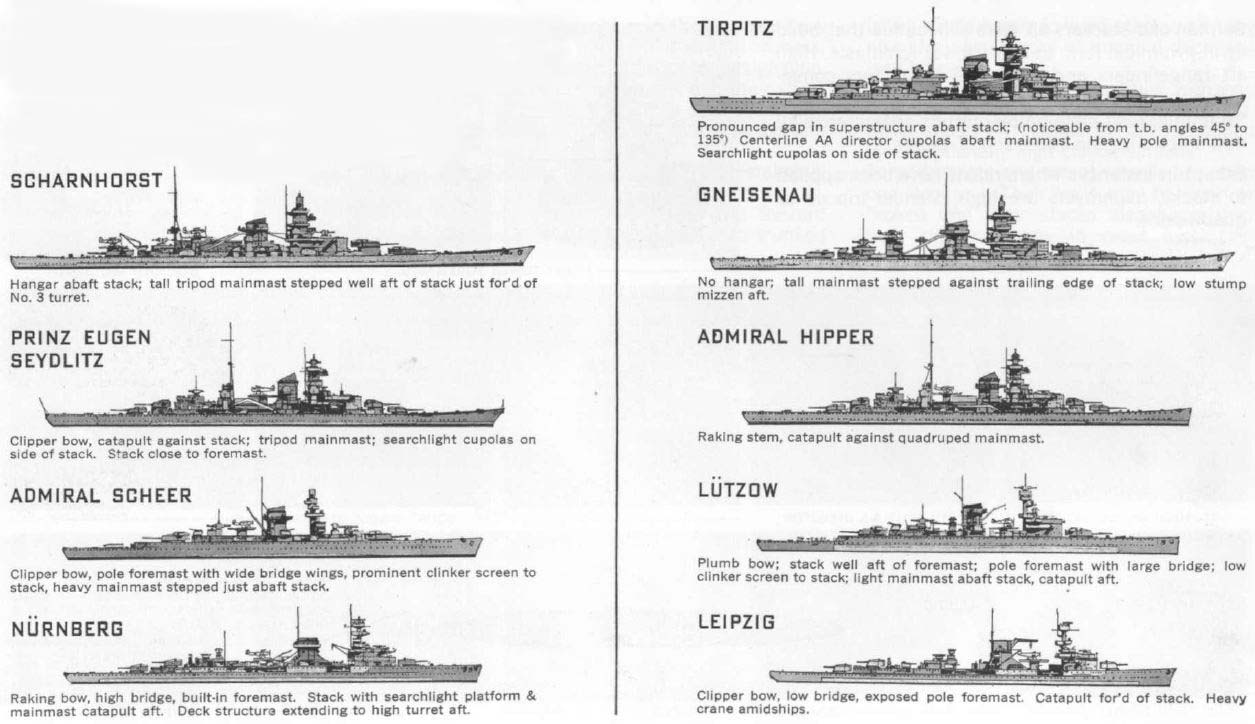

GERMAN ONE-STACKERS
DIVISION OF NAVAL INTELLIGENCE - IDENTIFICATION AND CHARACTERISTICS SECTION - SEPTEMBER, 1942



All the newer and more important ships of the German Navy are ONE-STACKERS. These ships are very similar in appearance, difficult to identify individually when seen in profile. It will be noted that aerial and bow or stern views are highly distinctive, however. The purpose of this chart is to call attention to the distinguishing characteristics of these ships.

GENERAL NOTES CAPITAL SHIPS:
Relatively low freeboard, wide beam, straight sides, considerable sheer forward of turrets, continuous hull curve stem to stern.

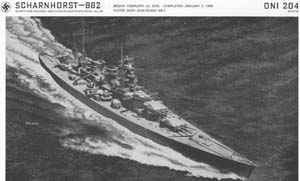

SCHARNHORST
Hanger abaft stack; tall tripod mainmast stepped well aft of stack just forward of No. 3 turret.

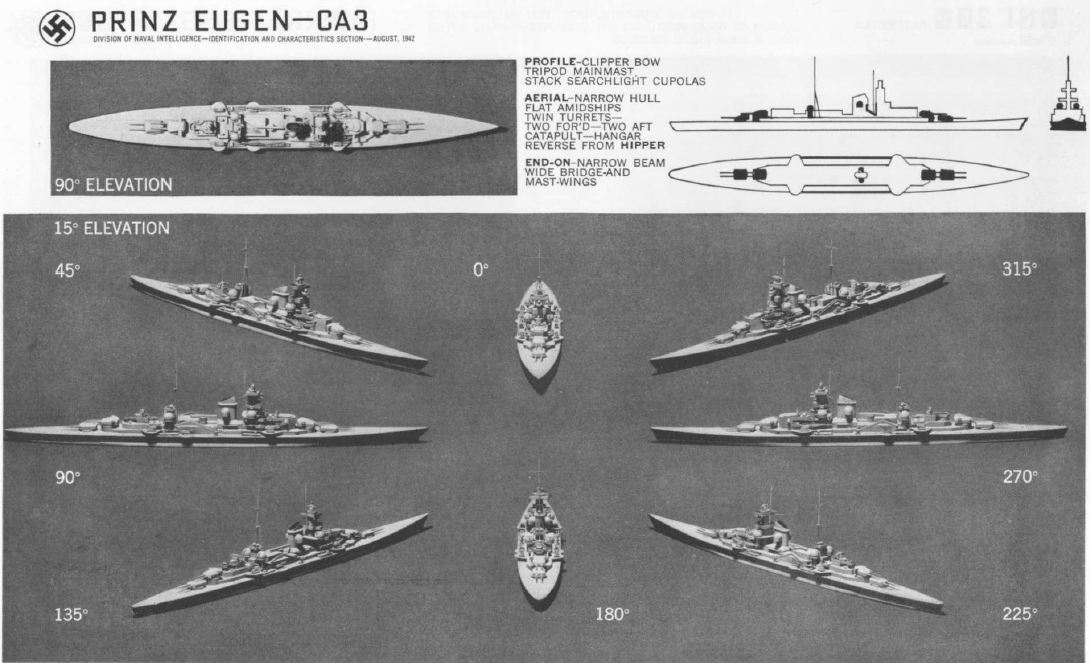

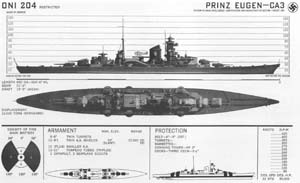

PRINZ EUGEN SEYDLITZ
Clipper bow, catapult against stack; tripod mainmast; searchlight cupolas on side of stack. Stack close to foremast.

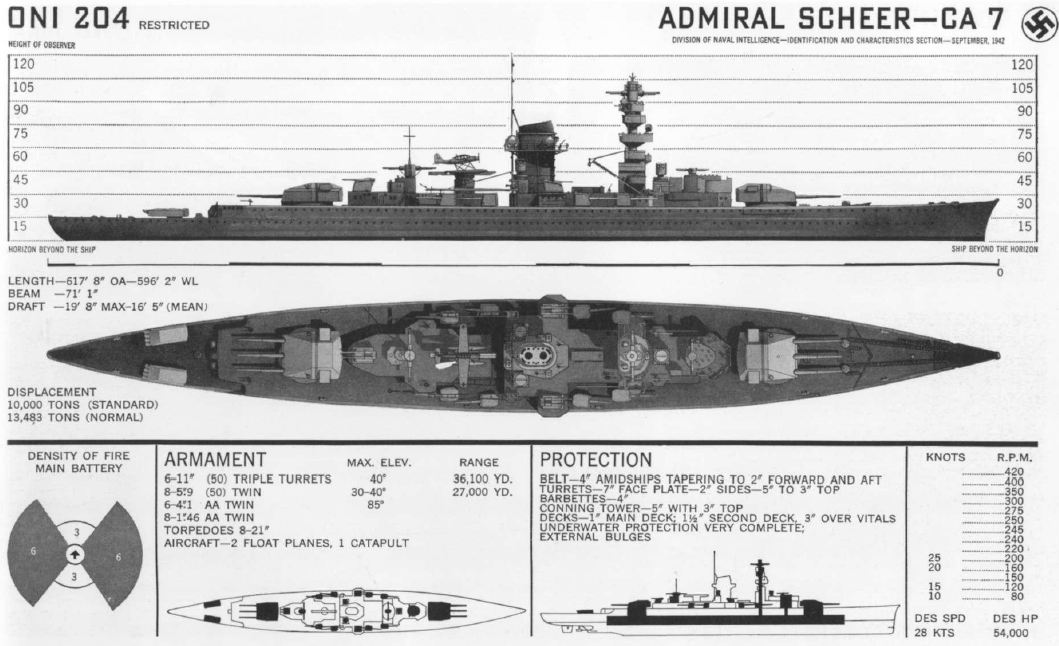

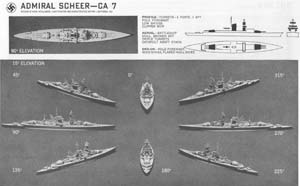

ADMIRAL SCHEER
Clipper bow, pole foremast with wide bridge wings, prominent clinker screen to stack, heavy mainmast stepped just abaft stack.

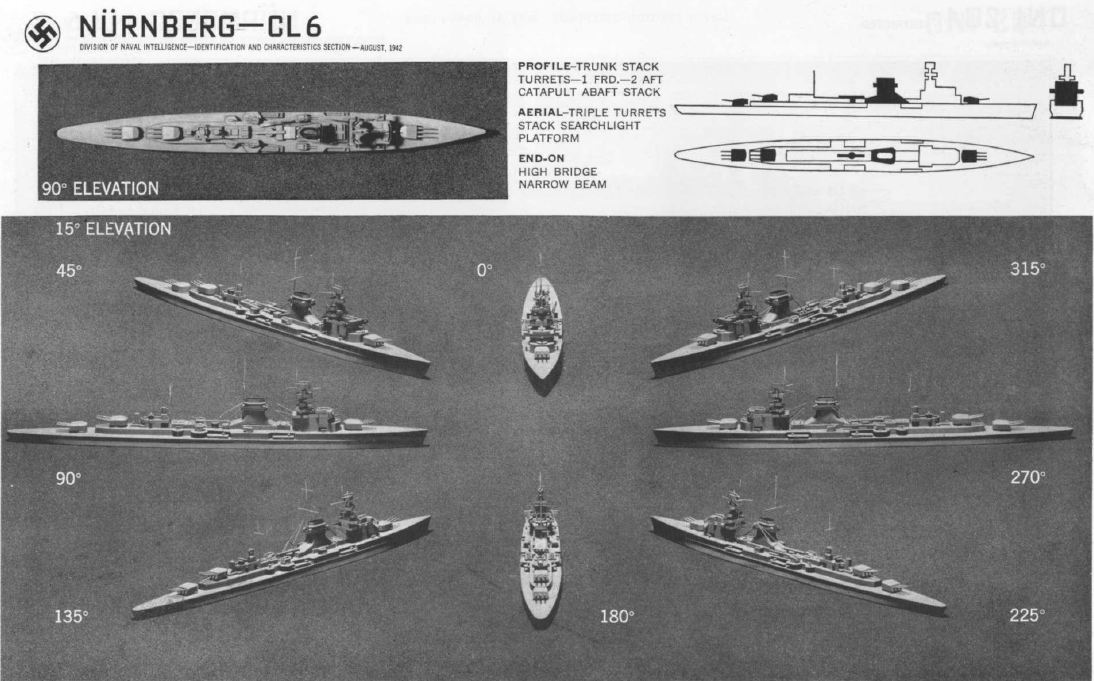

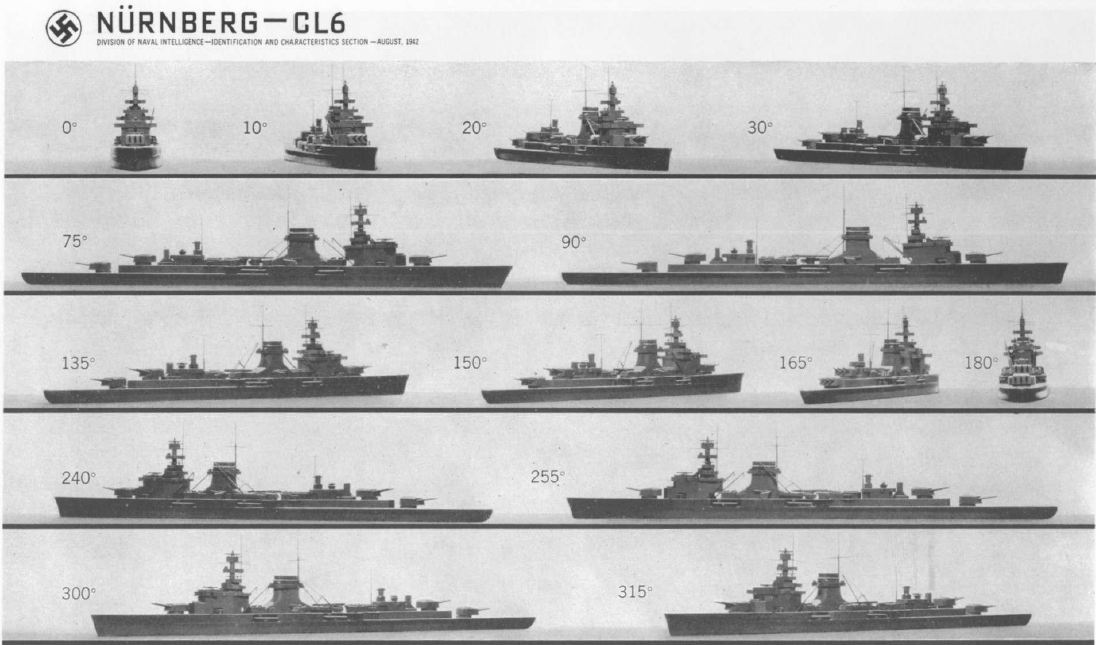

NÜRNBERG
Raking bow, high bridge, built-in foremast. Stack with searchlight platform & mainmast catapult aft. Deck structure extending to high turret aft.

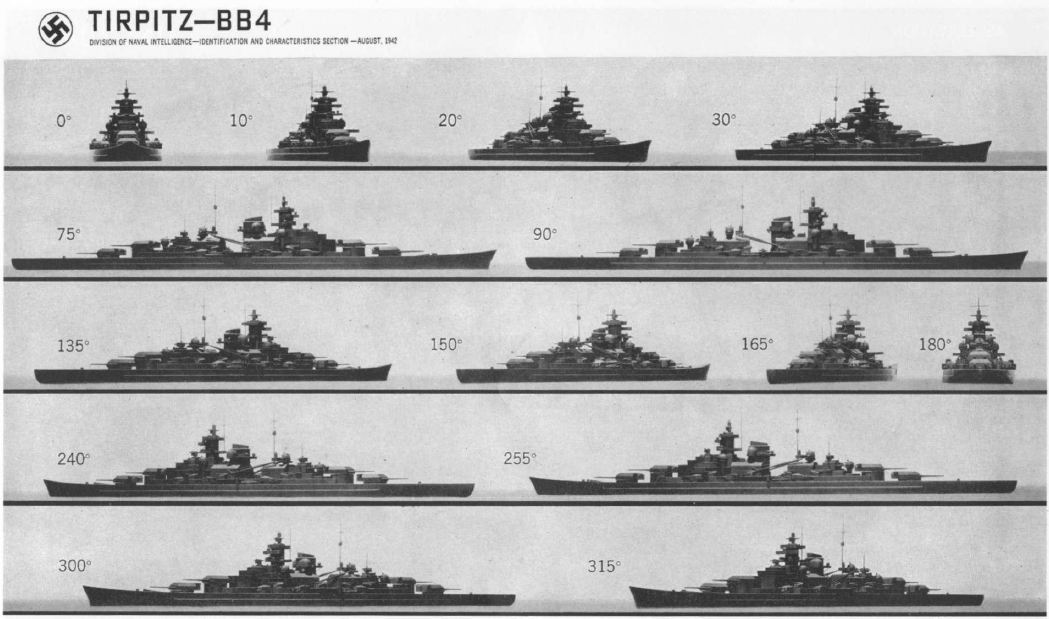

TIRPITZ
Pronounced gap in superstructure abaft stack; (noticeable from t.b. angles 45° to 135°). Centerline AA director cupolas abaft mainmast. Heavy pole mainmast. Searchlight cupolas on side of stack.

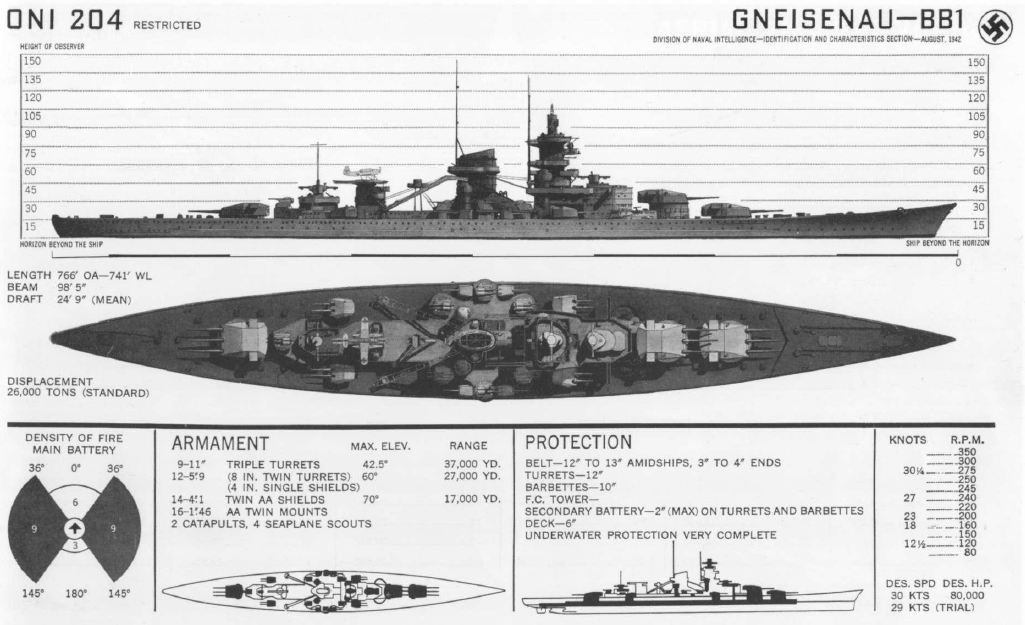

GNEISENAU
No hanger; tall mainmast stepped against trailing edge of stack; low stump mizzen aft.

ADMIRAL HIPPER
Raking stem, catapult against quadruped mainmast.

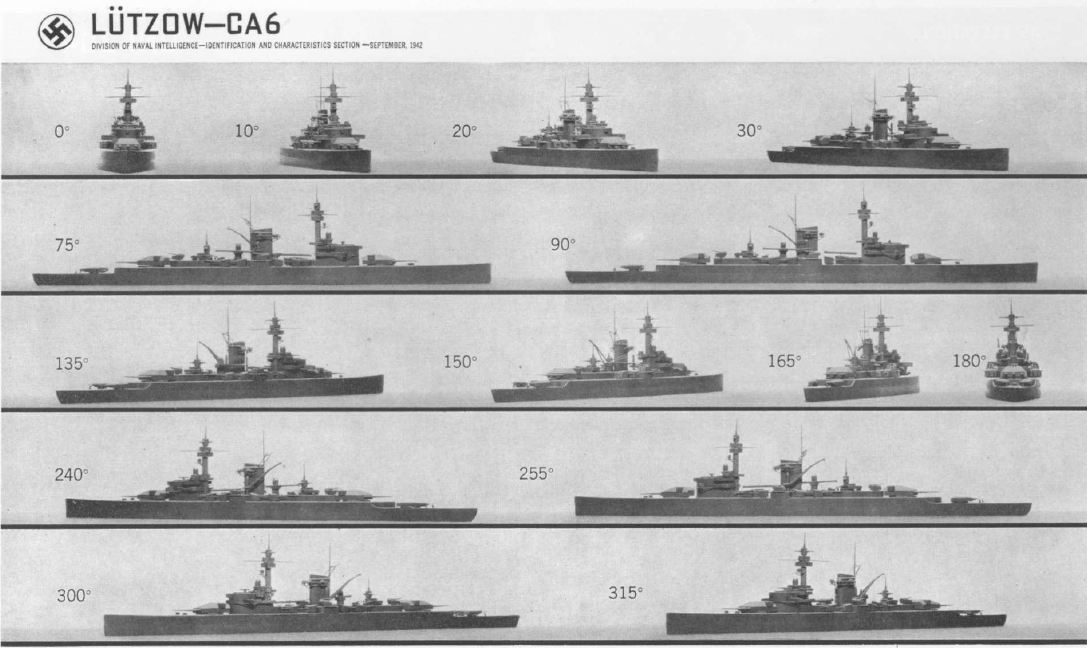

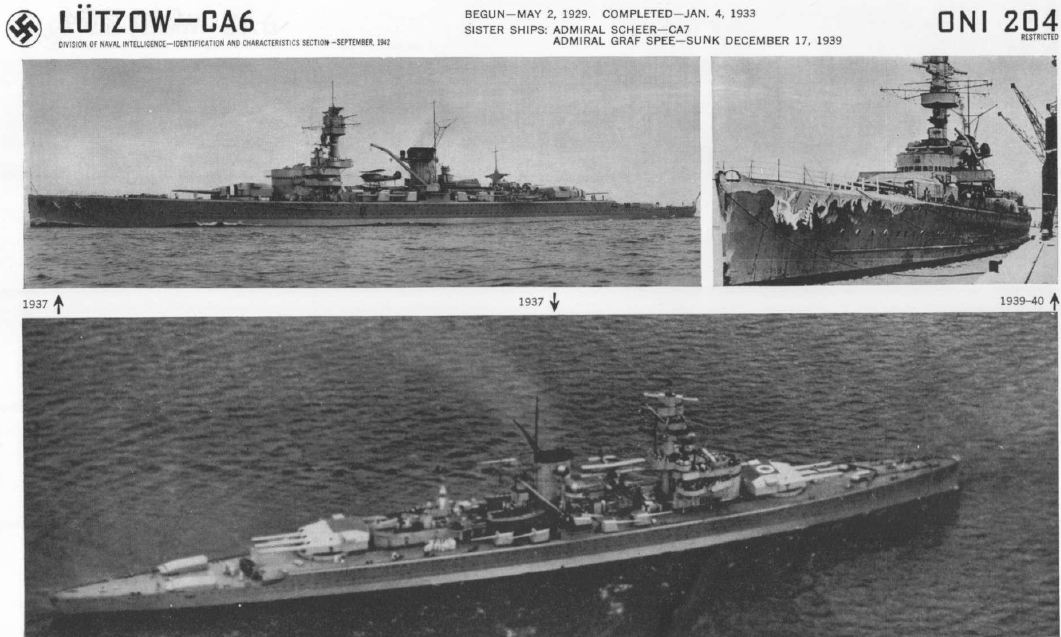

LÜTZOW
Plumb bow; stack well aft of foremast with large bridge; low clinker screen to stack; light mainmast abaft stack, catapult aft.

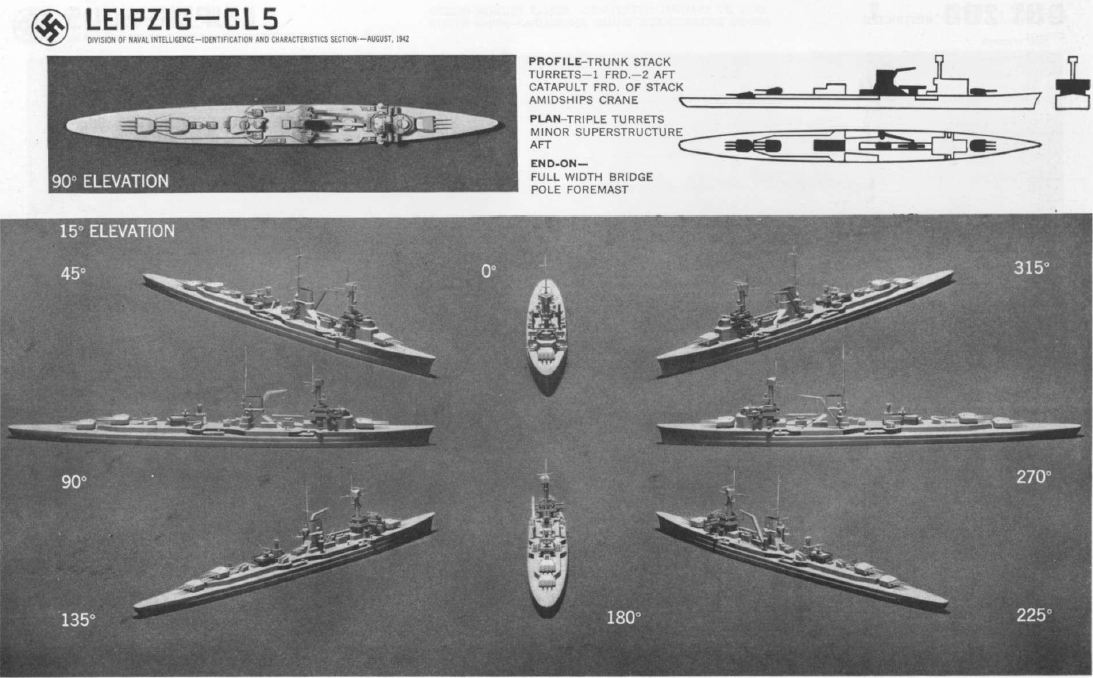

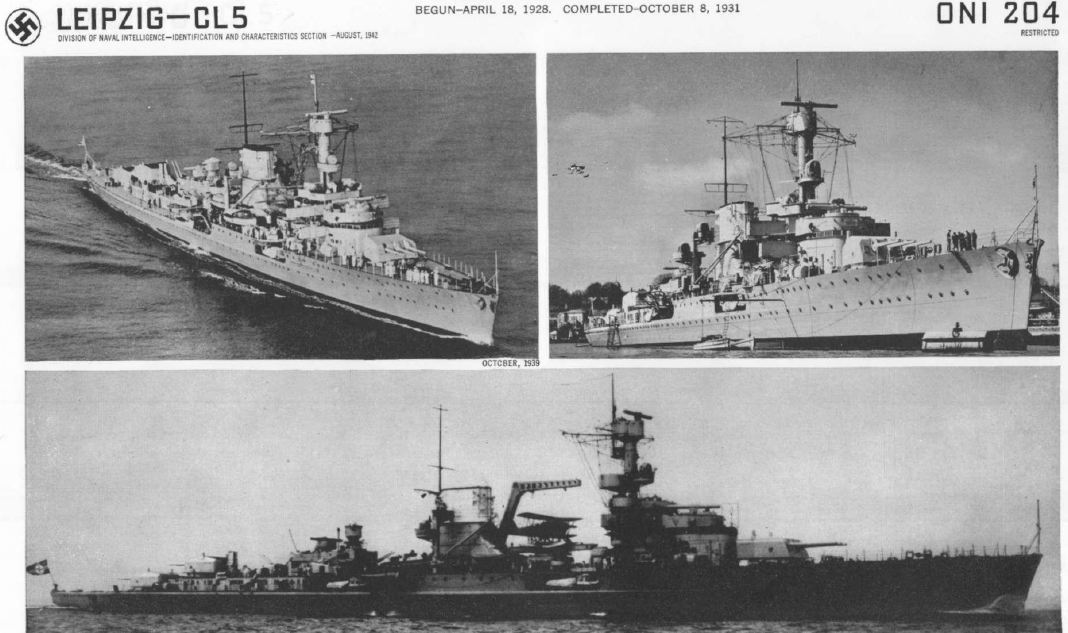

LEIPZIG
Clipper bow, low bridge, exposed pole foremast. Catapult forward of stack. Heavy crane amidships.



JERRY JINGLES



BATTLESHIPS

CRUISERS


Ist dot nicht ein single-stack?
Ja, dot ist ein single-stack
(High in front, low in back)
Dot's a Jerry SINGLE_STACK!

Ist dot nicht ein battleship?
Nein, dot ain't no battleship.
Stack near foremast, easy seen
Dot's der HIPPER or EUGEN!

Ist dot nicht ein funny schmell?
Yah, das ist ein funny schmell.
Schpindle mast, two stacks as well
Must be Jerry's old CL.




Ist dot nicht ein tower-mast?
Ja, dot ist ein tower-mast
(Short und squat. Learning fast!)
Dot's a Jerry TOWER-MAST!

Ist dot nicht ein stein of beer?
Hell, dot ain't no stein of beer.
Turret forward, one in rear
LÜTZOW or der ADMIRAL SCHEER!





Tower-mast, single-stack,
Mast on funnel or in back
Load der guns and let her rip!
Dot's a Jerry BATTLESHIP!!!

Ist dot nicht ein KREUZER craft?
Sure, dot ist ein KREUZER craft.
Turret forward, und two aft
NÜRNBERG-LEIPZIG KREUZER craft.





[Click here for an image of the original]

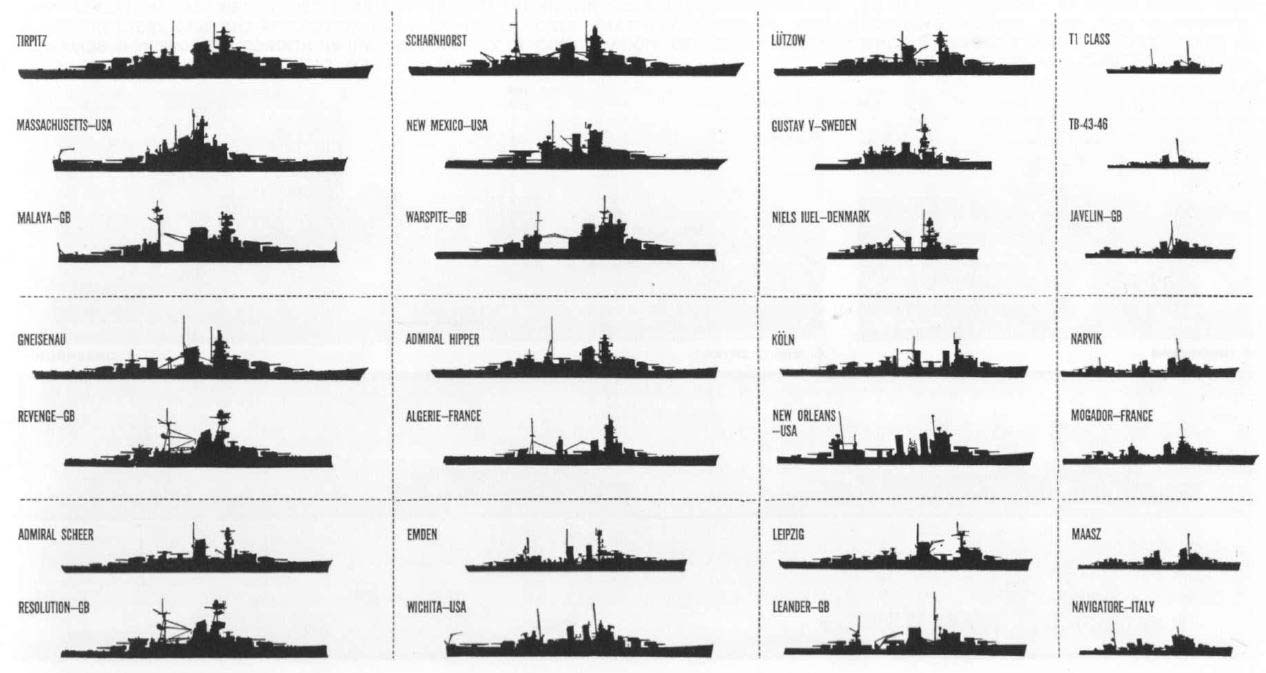

MISTAKEN IDENTITY
DIVISION OF NAVAL INTELLIGENCE - IDENTIFICATION AND CHARACTERISTICS SECTION - OCTOBER, 1942

Timely identification in wartime may often mean the success or failure of an operation. Design similarities present a peculiar problem. This is strikingly illustrated in the case of the German navy, which insofar as its major units are concerned, may be termed a one-stacker navy. Attention is invited to the ONE-STACKER CHART. This page further develops cases of easily mistaken identity by illustrations of types which might easily be confused with the main German naval units by the untrained observer.

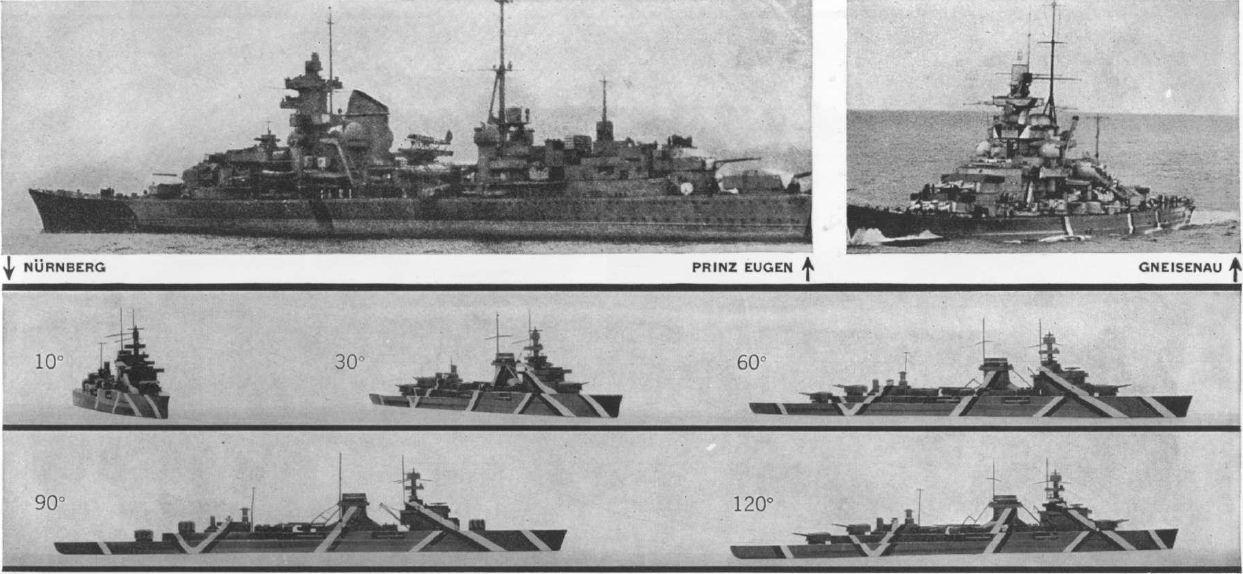

GERMAN CAMOUFLAGE
DIVISION OF NAVAL INTELLIGENCE - IDENTIFICATION AND CHARACTERISTICS SECTION - OCTOBER, 1942

Naval camouflage as practiced by the Germans has been limited entirely to surface deception against close-quarter attack. In every case the application has been made in view of the conditions under which the ships operate - short range sweeps and coastal sorties. The varying techniques illustrated, representing a few of the known cases, are considered as a whole only partially effective and merely a continuation of World War I practice.

The striping adopted for the larger units and illustrated here is considered almost entirely useless. At long range the coloring blends with the silhouette, while at close range the camouflage is not adequate for any target distortion.


The technique applied to the ADMIRAL HIPPER (two top strips) was used earlier in the war and presumably dropped. It is shown here because of its similarity to some British techniques and for whatever training value it may have.

The dazzle painting illustrated by the MÖWE (two bottom strips) is a good application for close range target distortion. The confusion is gained mainly from the false bearing created by painting corners, striping the stacks, etc.


ADMIRAL HIPPER

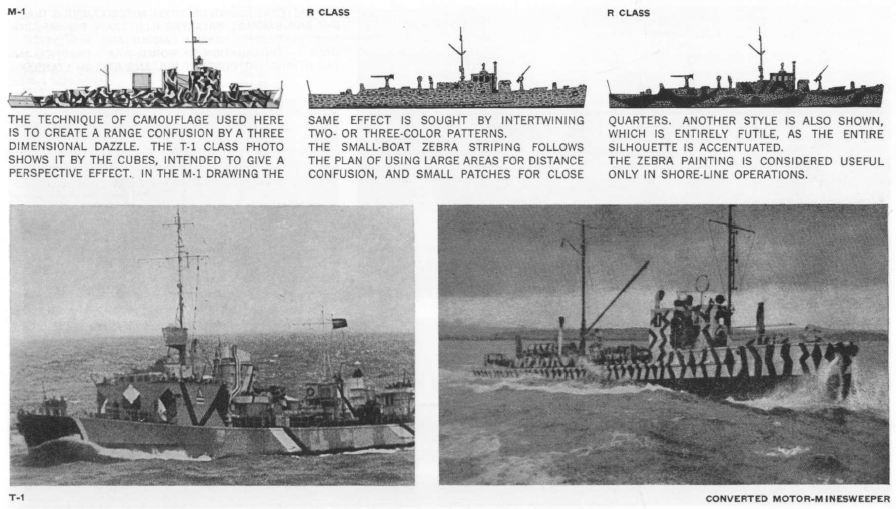

M-1 R CLASS R CLASS

The technique of camouflage used here is to create a range confusion by a three dimensional dazzle. The T-1 Class photo shows it by the cubes, intended to give a perspective effect. In the M-1 drawing the same effect is sought by intertwining two- or three-color patterns.

The small-boat zebra striping follows the plan of using large areas for distance confusion, and small patches for close quarters. Another style is also shown, which is entirely futile, as the entire silhouette is accentuated.

The zebra painting is considered useful only in shore-line operations.

T-1 CONVERTED MOTOR-MINESWEEPER

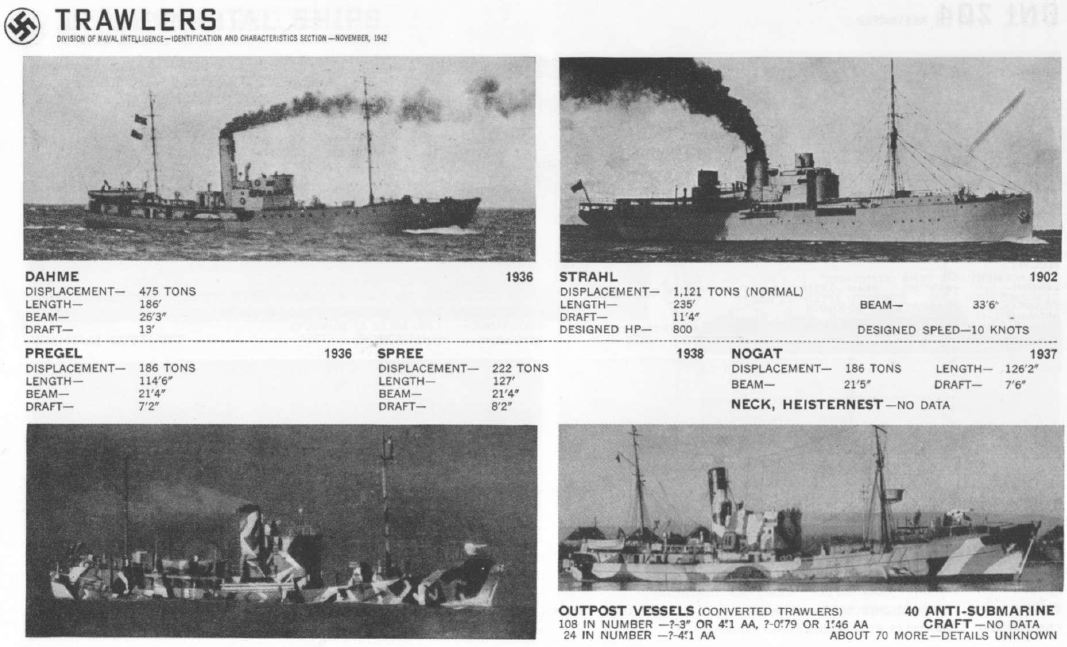

The patterns shown on these miscellaneous trawlers and barrage breakers illustrate perhaps the most successful German camouflage. However, it is only a continuation of World War I practice and far behind the U.S. and British standard.

LIST OF GERMAN NAVAL VESSELS
DIVISION OF NAVAL INTELLIGENCE - IDENTIFICATION AND CHARACTERISTICS SECTION - OCTOBER, 1942



B = BUILDING; ? = DOUBTFUL; * = SUNK

  BB-1 GNEISENAU * DD-18 HANS LÜDEMANN   TB-43 ex-ODIN   XCM-1 COBRA
  BB-2 SCHARNHORST * DD-19 HERMANN KUENNE   TB-44 ex-BALDER   XCM-2 KAISER
* BB-3 BISMARCK   DD-20 KARL GALSTER   TB-45 ex-TOR   XCM-3 ROLAND
  BB-4 TIRPITZ * DD-21 WILHELM HEIDKAMP   TB-46 ex-GYLLER   XCM-4 HANSASTADT
? BB-5 "H" * DD-22 ANTON SCHMIDT
? BB-6 "I"   DD-23 Z-23   OTB-1 T-107   AM-1 M-60
        DD-24 Z-24   OTB-2 T-108   AM-2 M-61
  OBB-1 SCHLESWIG-HOLSTEIN   DD-25 Z-25   OTB-3 T-110   AM-3 M-72
  OBB-2 SCHLESIEN   DD-26 Z-26   OTB-4 T-111   AM-4 M-75
        DD-27 Z-27         AM-5 M-82
  CV-1 GRAF ZEPPELIN   DD-28 Z-28 B CD-1 NYMPHE (ex-TORKENSKJOLD)   AM-6 M-84
? CV-2 "B"   DD-29 Z-29 B CD-2 THETIS (ex-HAROALD HAARFAGRE)   AM-7 M-85
        DD-30 Z-30 B CD-3 ex-EIDSVOLD   AM-8 M-89
  CA-1 ADMIRAL HIPPER   DD-31 Z-31 B CD-4 ex-PEDER SKRAM   AM-9 M-98
* CA-2 BLÜCHER   DD-32 Z-32 B CD-5 ex-HERTOG HENDRIK   AM-10 M-102
  CA-3 PRINZ EUGEN   DD-33 Z-33 ? CD-6 ex-LEMNOS   AM-11 M-104
B CA-4 SEYDLITZ   DD-34 Z-34 ? CD-7 ex-KILKIS   AM-12 M-109
  CA-5 ex-LÜTZOW (sold to Russia)   DD-35 Z-35 B CD-8     AM-13 M-110
  CA-6 LÜTZOW   DD-36 Z-36         AM-14 M-111
  CA-7 ADMIRAL SCHEER   DD-37 Z-37   PG-1 F-1   AM-15 M-115
* CA-8 ADMIRAL GRAF SPEE   DD-38 Z-38   PG-2 F-2   AM-16 M-117
        DD-39 Z-39   PG-3 KÖNIGIN LUISE   AM-17 M-122
  CL-1 EMDEN   DD-40 Z-40   PG-4 F-4   AM-18 M-126
* CL-2 KÖNIGSBERG   DD-40 Z-40   PG-5 F-5 * AM-19 M-129 (six or more others sunk)
* CL-3 KARLSRUHE   DD-41 Z-41   PG-6 HAI   AM-20 M-132
  CL-4 KÖLN   DD-42 Z-42   PG-7 F-7   AM-21 M-133
  CL-5 LEIPZIG   DD-43 Z-43   PG-8 F-8   AM-22 M-134
  CL-6 NÜRNBERG ? DD-44 ex-WICHER   PG-9 F-9   AM-23 M-136
? CL-7 "M"   DD-45 ex-NORWEGIAN #1   PG-10 F-10   AM-24 M-145
? CL-8 "N"   DD-46 ex-NORWEGIAN #2   PG-11 DRACHE   AM-25 M-146
? CL-9 "O"   DD-47 ex-GERHARD CALLENBURG   PG-12 KLAUS VON BEVERN * AM-26 M-157
? CL-10 "P"   DD-48 ex-TJERK HIDDES   PG-13 T-196   AM-27-66 M-1-40 (Some may have been sunk)
B CL-11 ex-ZEVEN PROVINZIEN B DD-49 ex-LE FIER   PG-14 METEOR   AM-67 OXHOFT
B CL-12 ex-EENDRACHT B DD-50 ex-L'AGILE   PG-15 DELPHIN   AM-68 WESTERPLATTE
      B DD-51 ex-LE FAROUCHE   PG-16 FUCHS   AM-69 ex-SOLOVEN
* DD-1 LEBERECHT MAASZ B DD-52 ex-L'ENTREPRENANT   PG-17 ELBE   AM-70 ex-OTRA
* DD-2 GEORG THIELE B DD-53 ex-L'OPINIATRE   PG-18 WESER ? AM-71 ex-ROUMA
* DD-3 MAX SCHULTZ B DD-54 ex-L'AVENTURIER   PG-19 BRUMMER ? AM-72 ex-WILLEM VAN EWIJCK
  DD-4 RICHARD BEITZEN ? DD-55 ex-BASILEUS GIORGIOS I * PG-20 BREMSE ? AM-73 ex-PIETER FLORISZ
  DD-5 PAUL JACOBI       B PG-21     AM-74 ex-ABRAHAM VAN DER HULST
  DD-6 THEODOR RIEDEL   TB-1 MÖWE   AVC-1 WESTFALEN
  DD-7 HERMANN SCHOEMANN * TB-2 ALBATROSS   AVC-2 SCHWABENLAND   AMc-1 R1
* DD-8 BRUNO HEINEMANN   TB-3 GREIF   AVC-3 OSTMARK * PT-7-111
(Plus)
S-7-111 16 and more sunk.
(Plus) Including new design type
* DD-9 WOLFGANG ZENKER   TB-4 SEEADLER   AVC-4 FRIESENLAND
  DD-10 HANS LODY   TB-5 FALKE
* DD-11 BERND VON ARNIM   TB-6 KONDOR ? CM-1 ex-GRYF
* DD-12 ERICH GIESE * TB-7 WOLF   CM-2 ALBTROSS (ex-OLAV TRYGGVASON)
* DD-13 ERICH KÖLLNER   TB-8 ILTIS B CM-3 "A"
  DD-14 FRIEDRICH IHN   TB-9 JAGUAR B CM-4 "B"
  DD-15 ERICH STEINBRINK   TB-10 LEOPARD B CM-5 "C"
  DD-16 FRIEDRICH ECKHOLDT * TB-11 LUCHS B CM-6 "D"
* DD-17 DIETHER VON ROEDER   TB-12 TIGER
        TB-13-42 T-1-30

RANGE TABLE
DIVISION OF NAVAL INTELLIGENCE - IDENTIFICATION AND CHARACTERISTICS SECTION - SEPTEMBER, 1942

Estimation of range by observing the amount of ship seen above or below the horizon.

EXPLANATION - Table of distances of Sea Horizon.

The distance corresponding to the position at which the horizon line cuts the ship profile should be filled in from the table for the observer as follows:

The column "SHIP BEYOND THE HORIZON" should show the sum of the distances of the sea horizon (a) for height of eye, (b) for heights of the respective horizon lines behind the profile.

The column "HORIZON BEYOND THE SHIP" should show the difference of these two distances.

EXAMPLE - The observer's height of eye is 79 feet. A ship is sighted beyond the horizon with the horizon line cutting its profile at a point 15 feet above the waterline.

DISTANCE OF SEA HORIZON FOR 79' = 20,610 YDS.
DISTANCE OF SEA HORIZON FOR 15' =  8,980 YDS.
SUM = RANGE OF SHIP = 29,590 YDS.



HEIGHT
IN FEET
DISTANCE OF
SEA HORIZON
HEIGHT
IN FEET
DISTANCE OF
SEA HORIZON
HEIGHT
IN FEET
DISTANCE OF
SEA HORIZON
HEIGHT
IN FEET
DISTANCE OF
SEA HORIZON
HEIGHT
IN FEET
DISTANCE OF
SEA HORIZON
HEIGHT
IN FEET
DISTANCE OF
SEA HORIZON
1 2,320
2 3,280
3 4,020
4 4,640
5 5,190
6 5,680
7 6,140
8 6,560
9 6,960
10 7,330
11 7,690
12 8,030
13 8,360
14 8,680
15 8,980
16 9,280
17 9,560
18 9,840
19 10,110
20 10,370
21 10,630
22 10,880
23 11,120
24 11,360
25 1,590
26 11,820
27 12,050
28 12,270
29 12,490
30 12,700
31 12,910
32 13,120
33 13,320
34 13,520
35 13,720
36 13,910
37 14,100
38 14,290
39 14,480
40 14,670
41 14,840
42 15,020
43 15,200
44 15,380
45 15,550
46 15,720
47 15,890
48 16,060
49 16,230
50 16,400
51 16,560
52 16,720
53 16,880
54 17,040
55 17,200
56 17,350
57 17,500
58 17,660
59 17,810
60 17,960
61 18,110
62 18,20
63 18,400
64 18,550
65 18,690
66 18,840
67 18,980
68 19,120
69 19,260
70 19,400
71 19,540
72 19,670
73 19,810
74 19,940
75 20,080
76 20,210
77 20,340
78 20,480
79 20,610
80 20,740
81 20,870
82 20,990
83 21,120
84 21,250
85 21,380
86 21,500
87 21,630
88 21,750
89 21,870
90 21,990
91 22,120
92 22,240
93 22,360
94 22,480
95 22,600
96 22,720
97 22,830
98 22,950
99 23,070
100 23,180
101 23,300
102 23,420
103 23,530
104 23,640
105 23,760
106 23,870
107 23,980
108 24,090
109 24,200
110 24,320
111 24,430
112 24,540
113 24,650
114 24,750
115 24,860
116 24,970
117 25,080
118 25,180
119 25,290
120 25,400

SHIP DETAILS

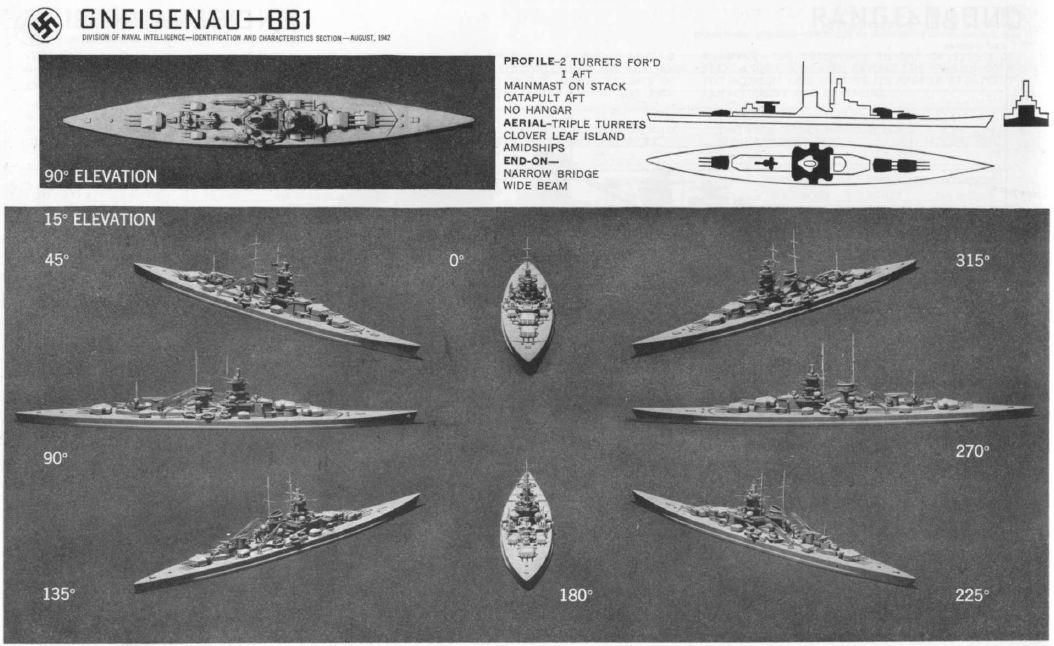

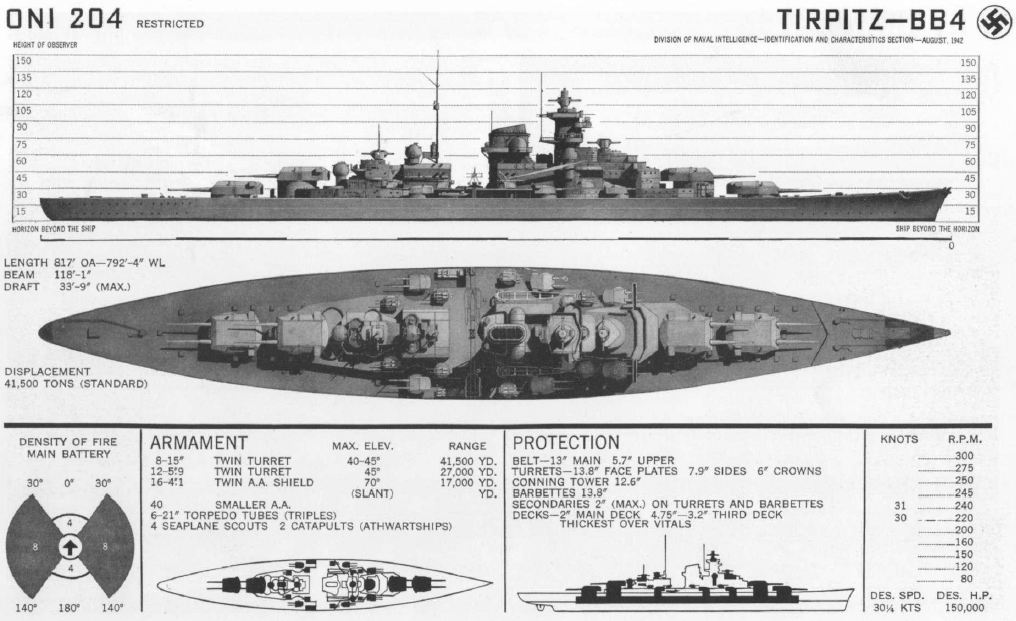

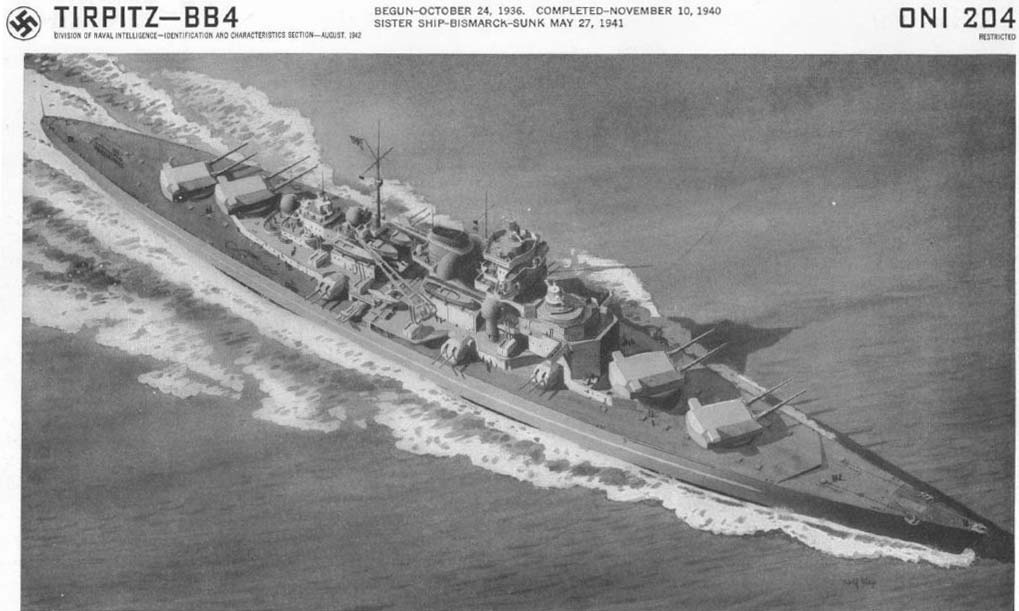

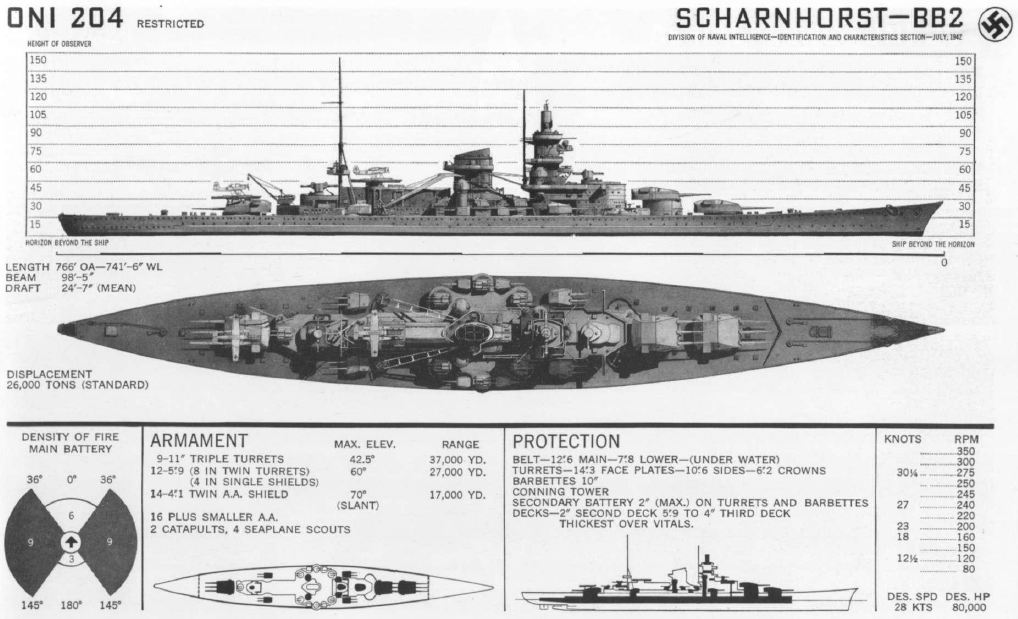

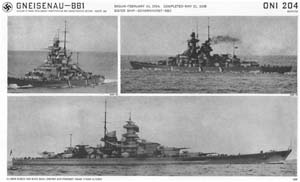

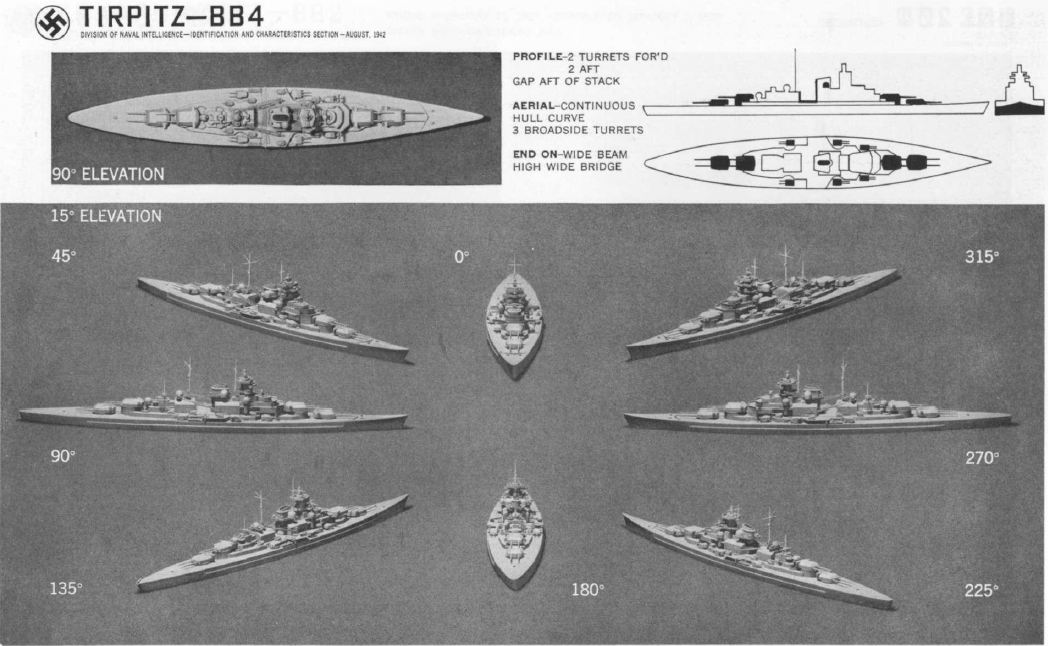

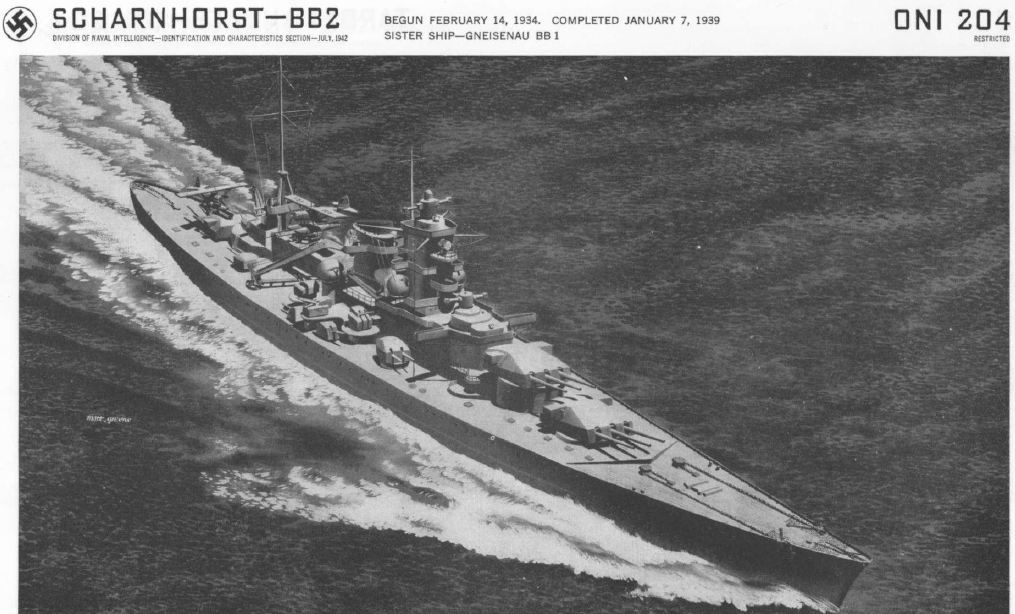

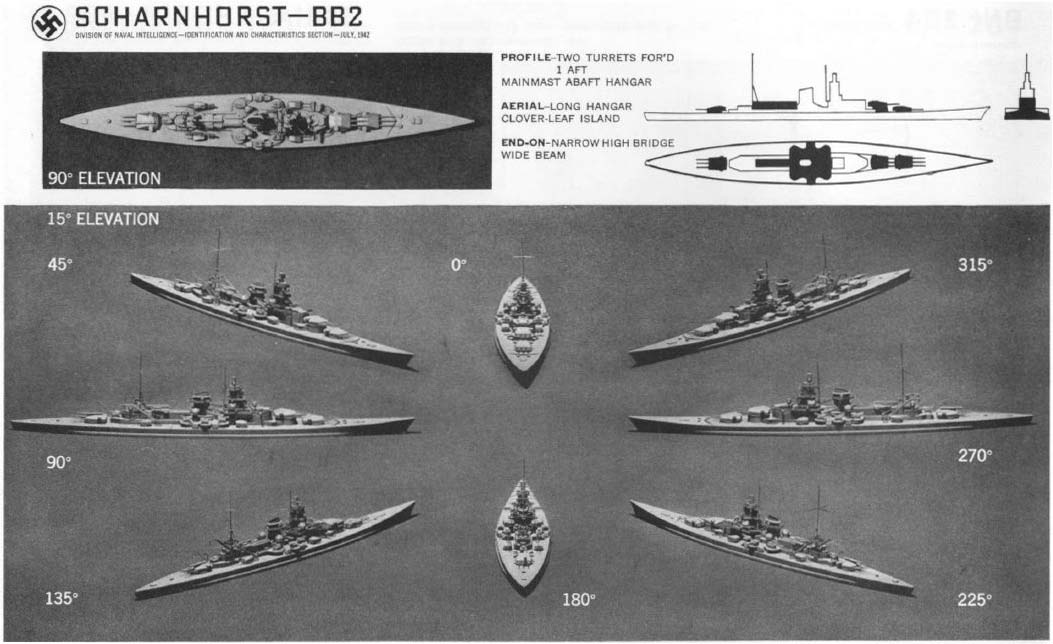

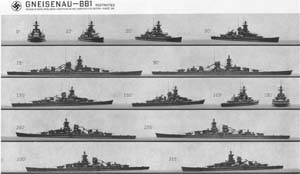

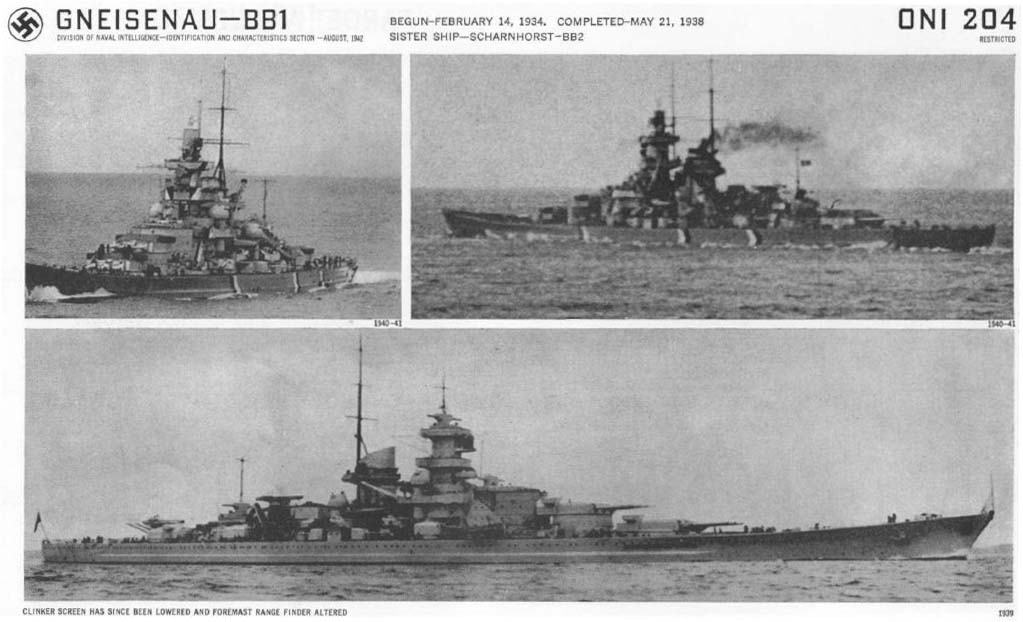

GNEISENAU - BB 1 SCHARNHORST - BB 2 TIRPITZ - BB 4

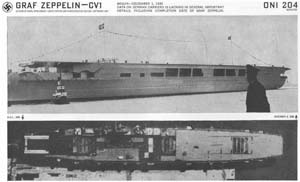

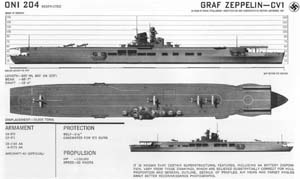

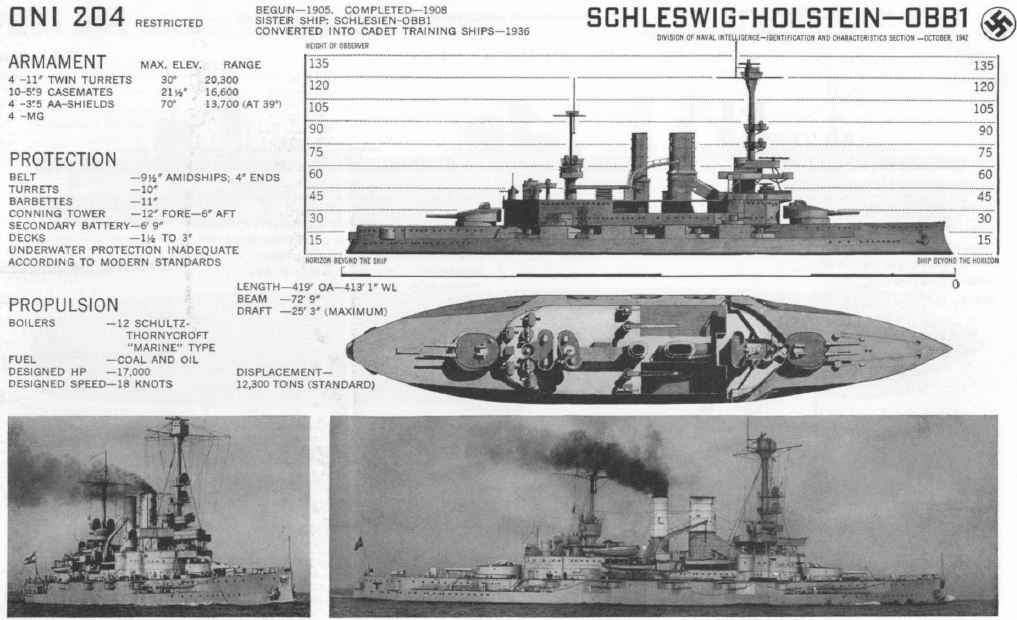

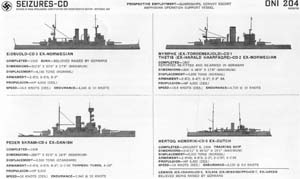

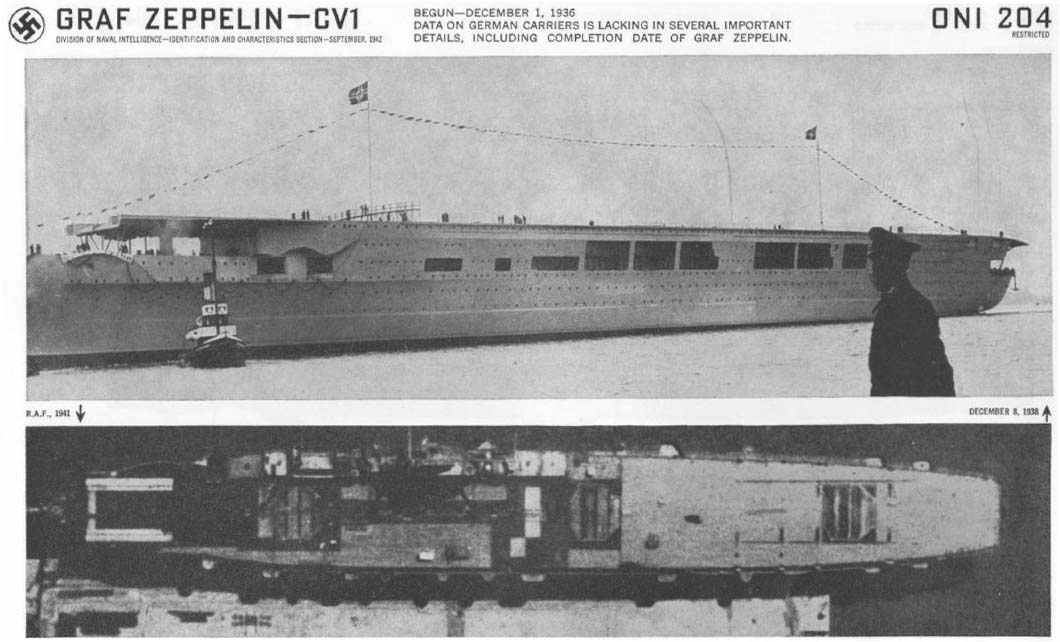

SCHLESWIG-HOLSTEIN - OBB 1 SEIZURES - CD GRAF ZEPPELIN - CV 1

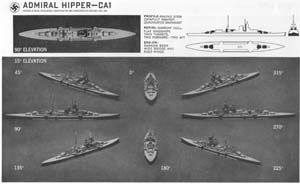

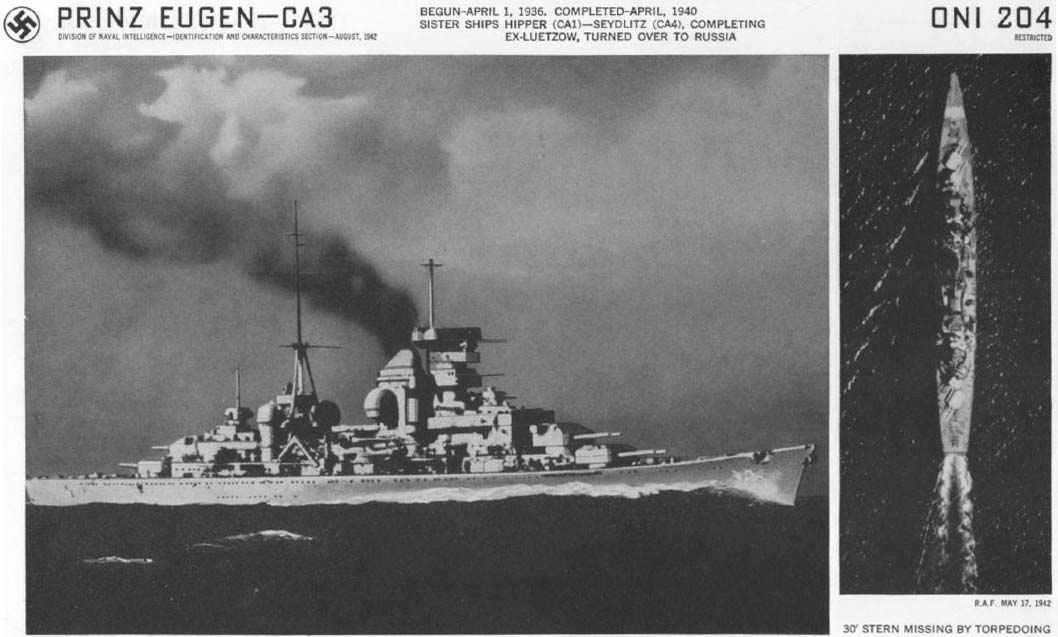

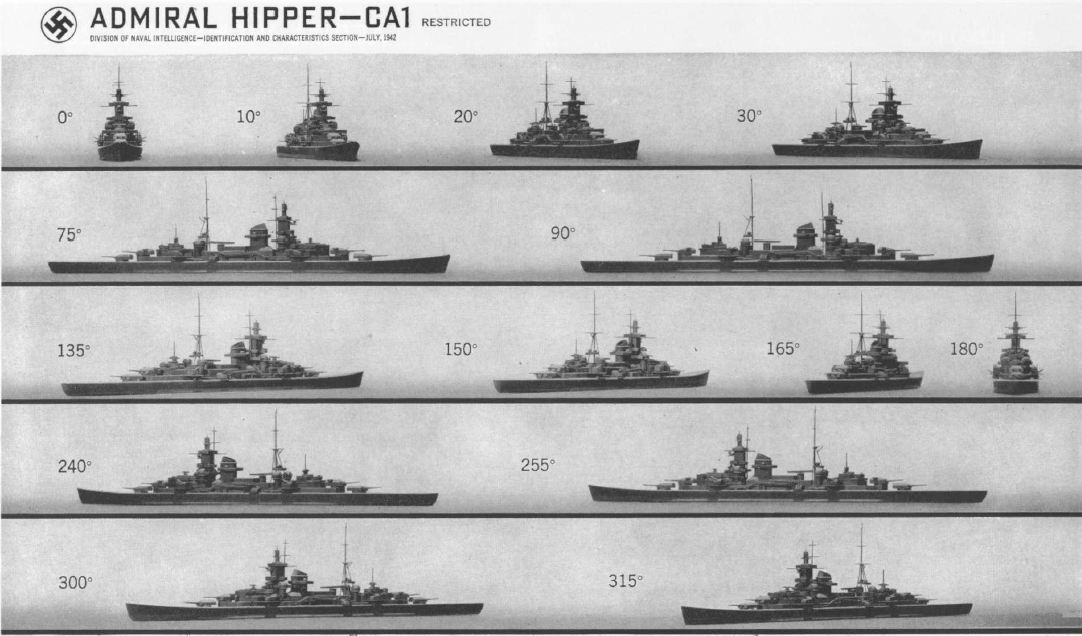

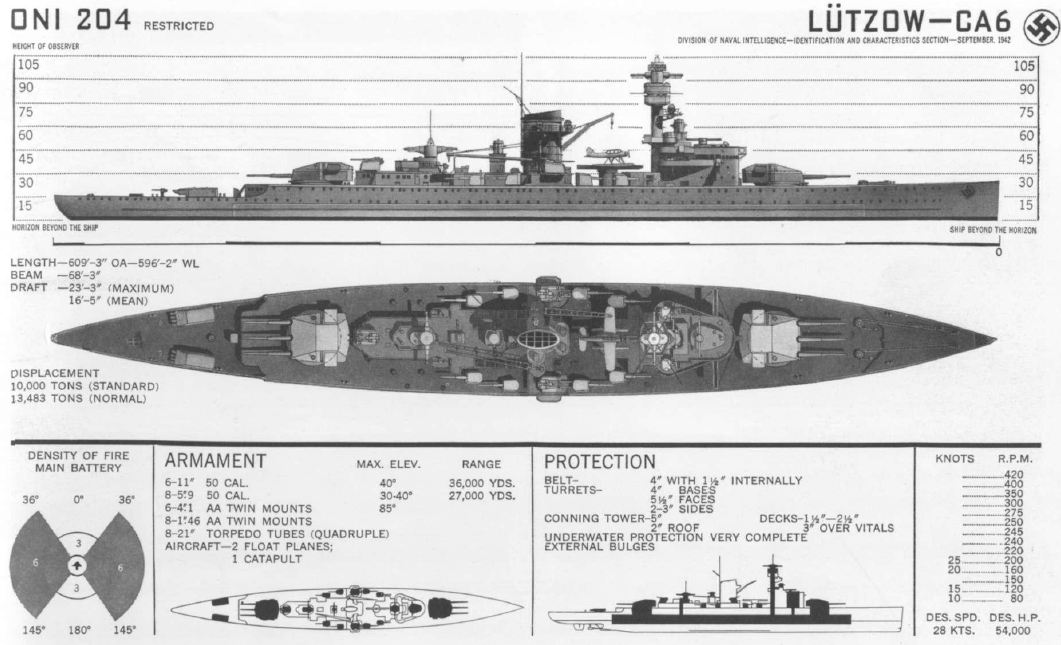

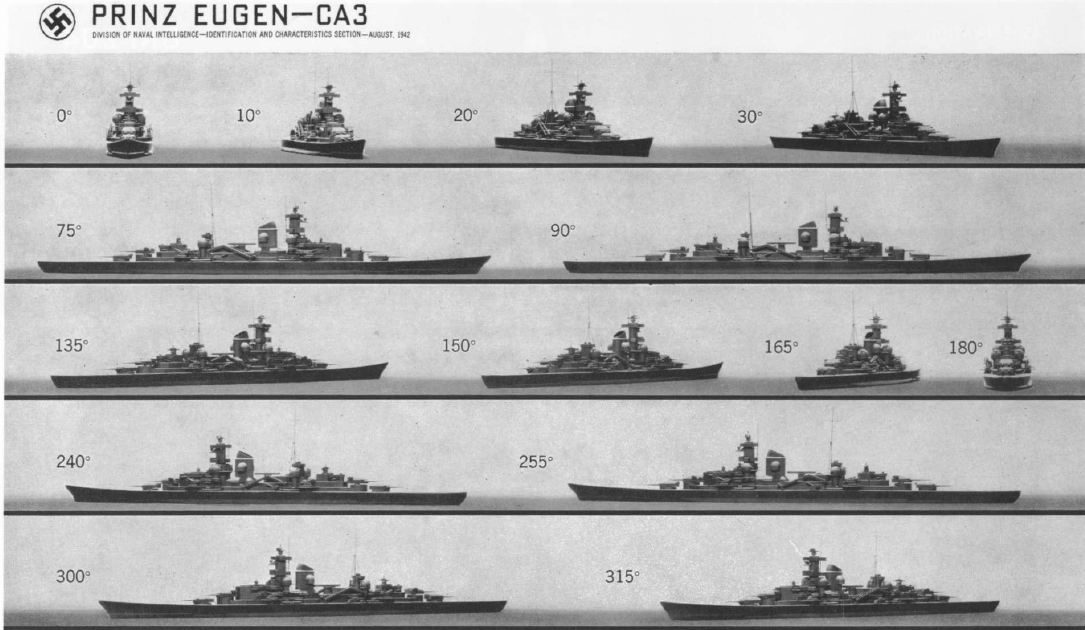

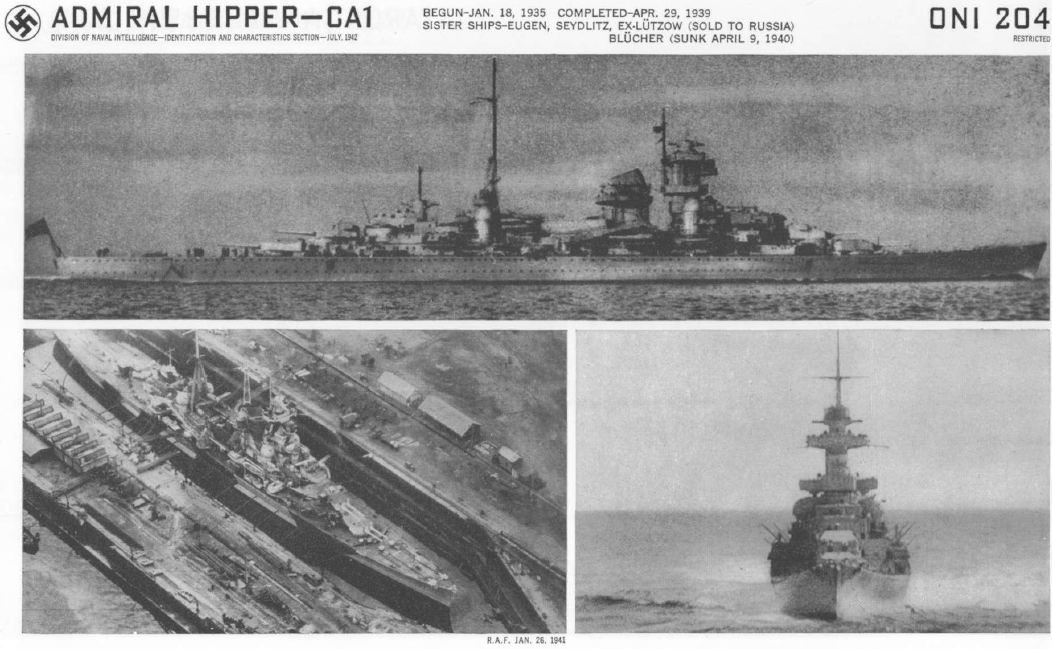

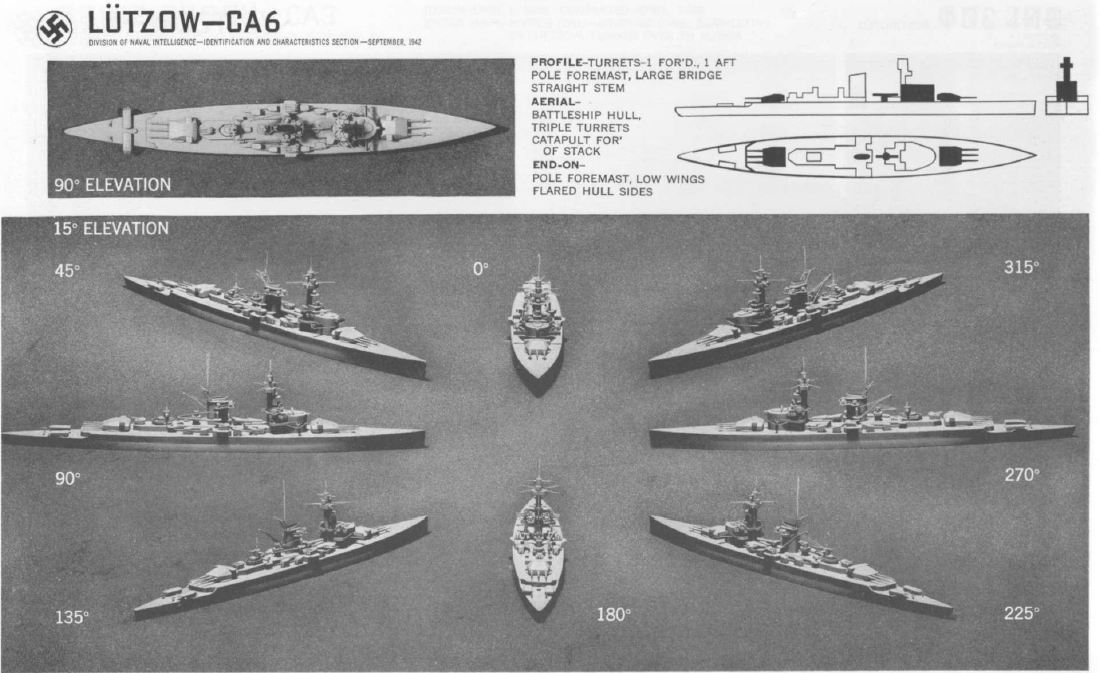

ADMIRAL HIPPER - CA 1 PRINZ EUGEN - CA 3 LÜTZOW - CA 6

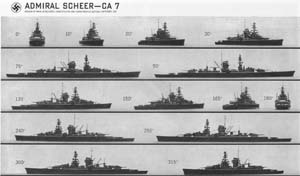

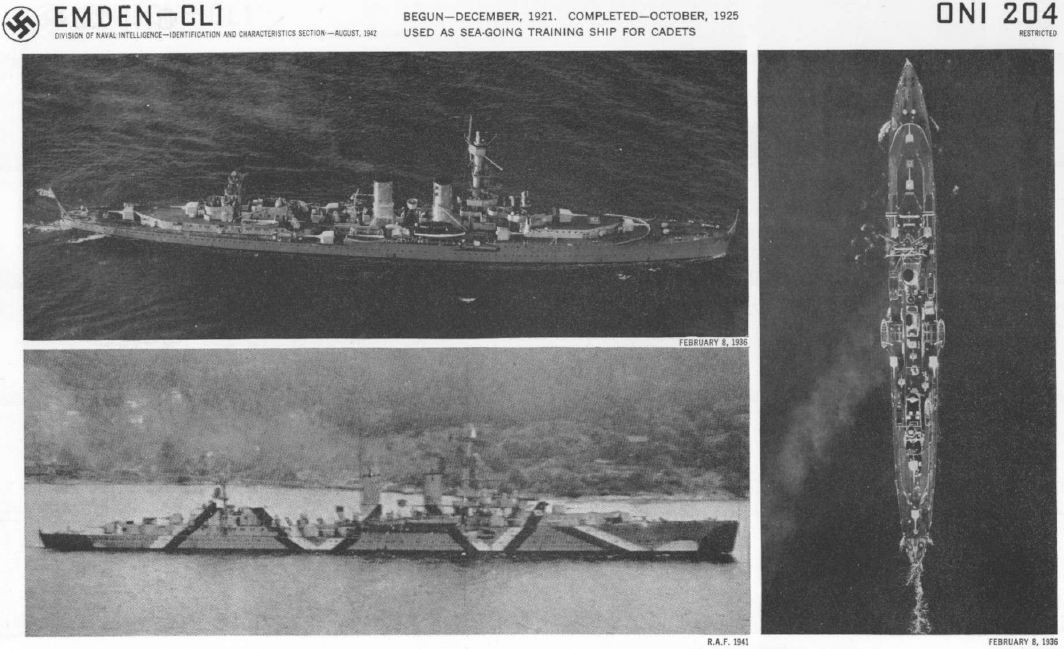

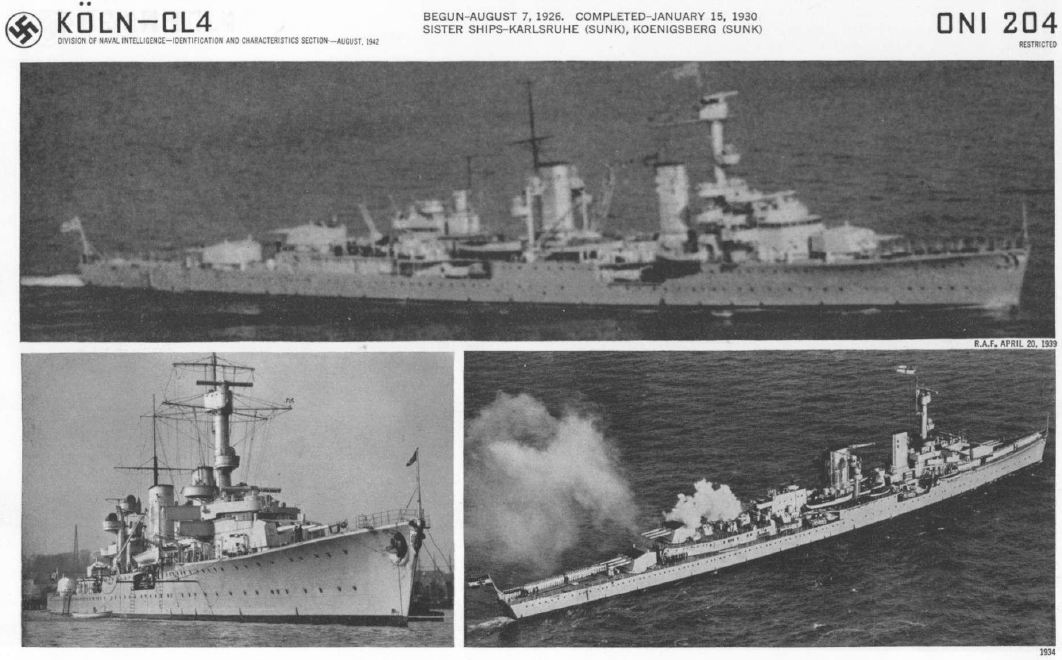

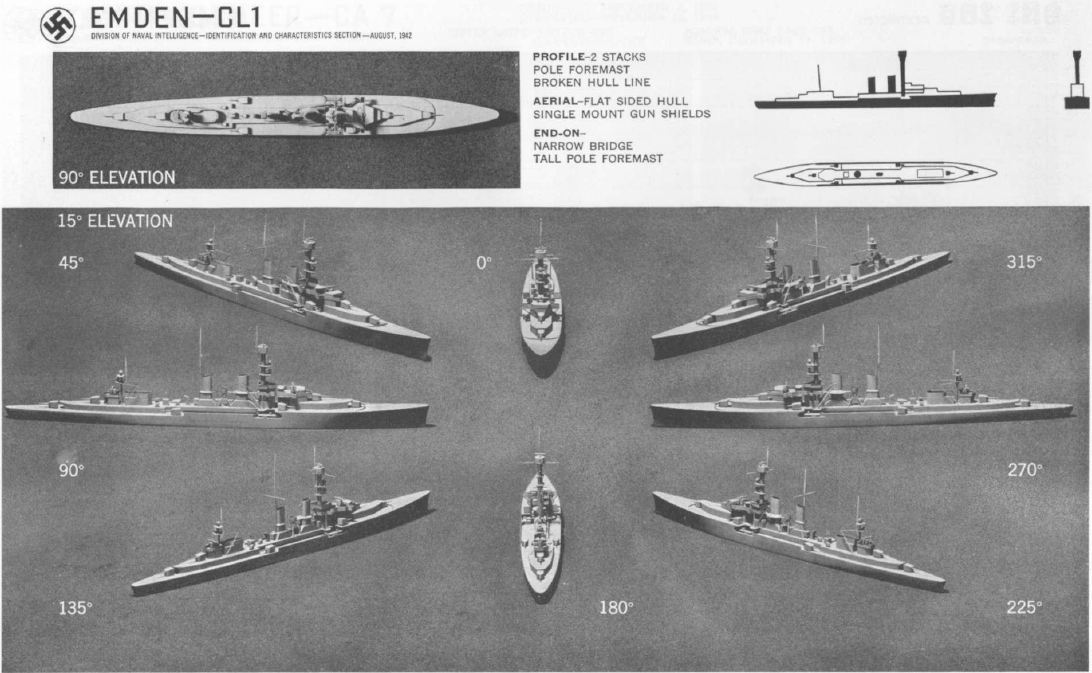

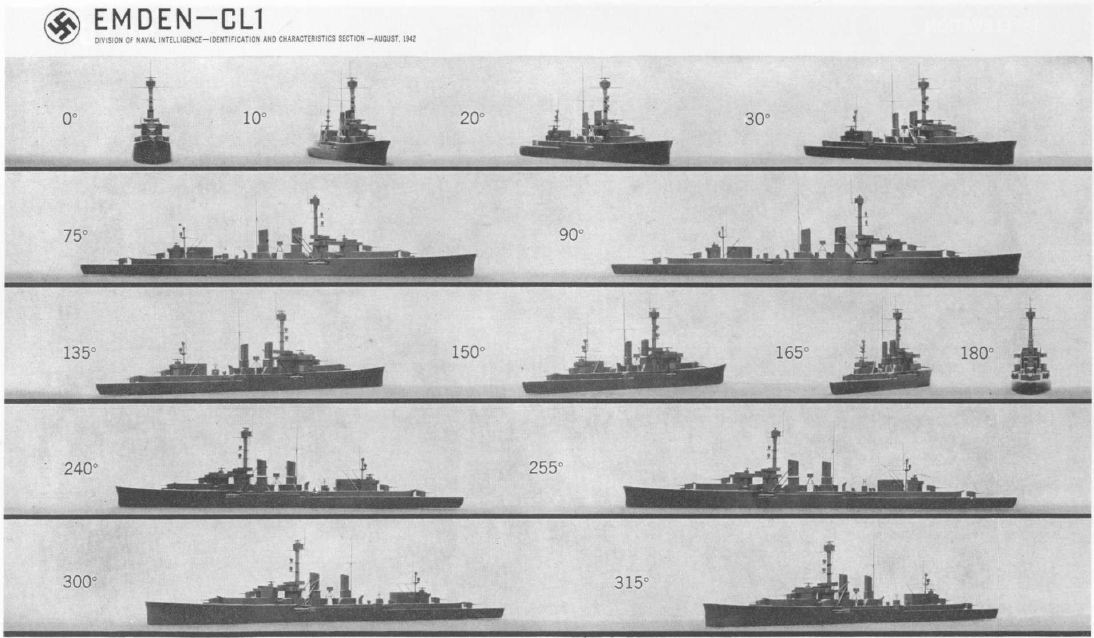

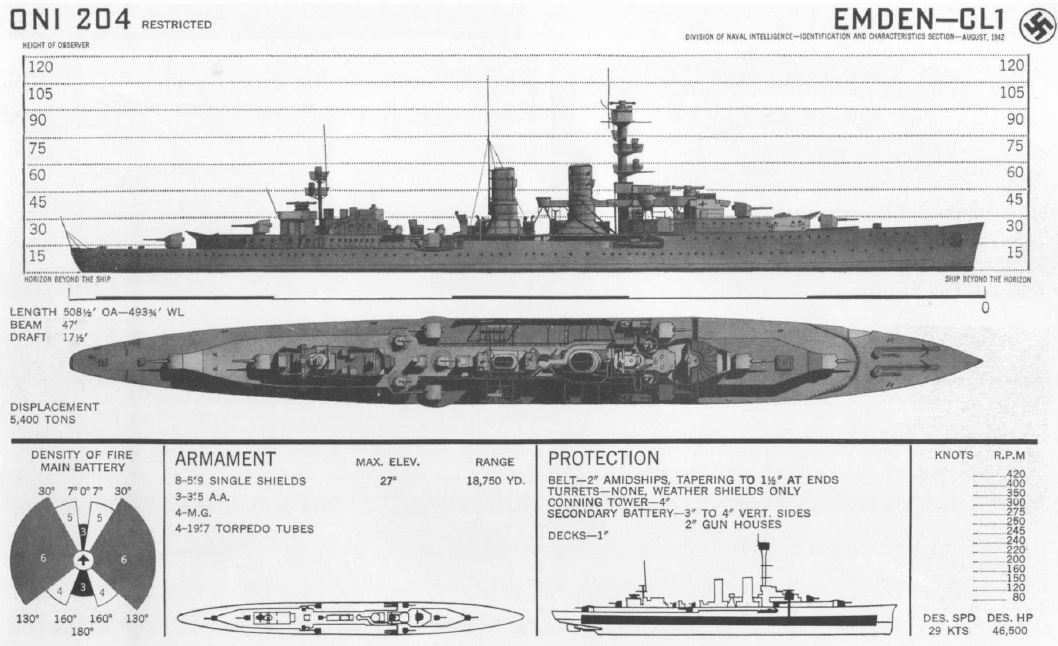

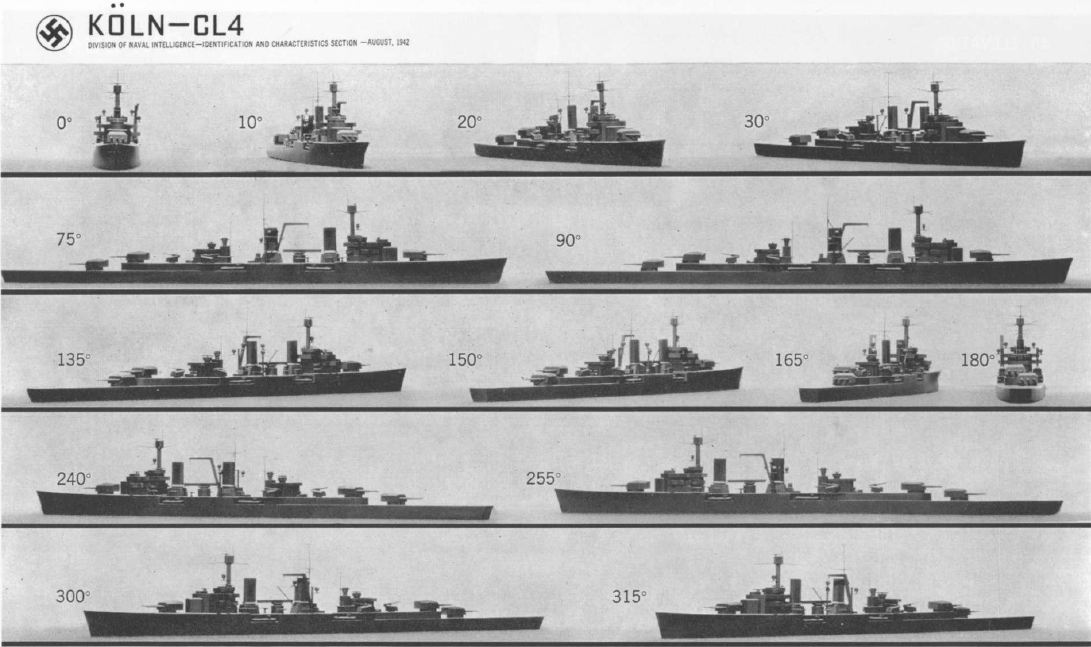

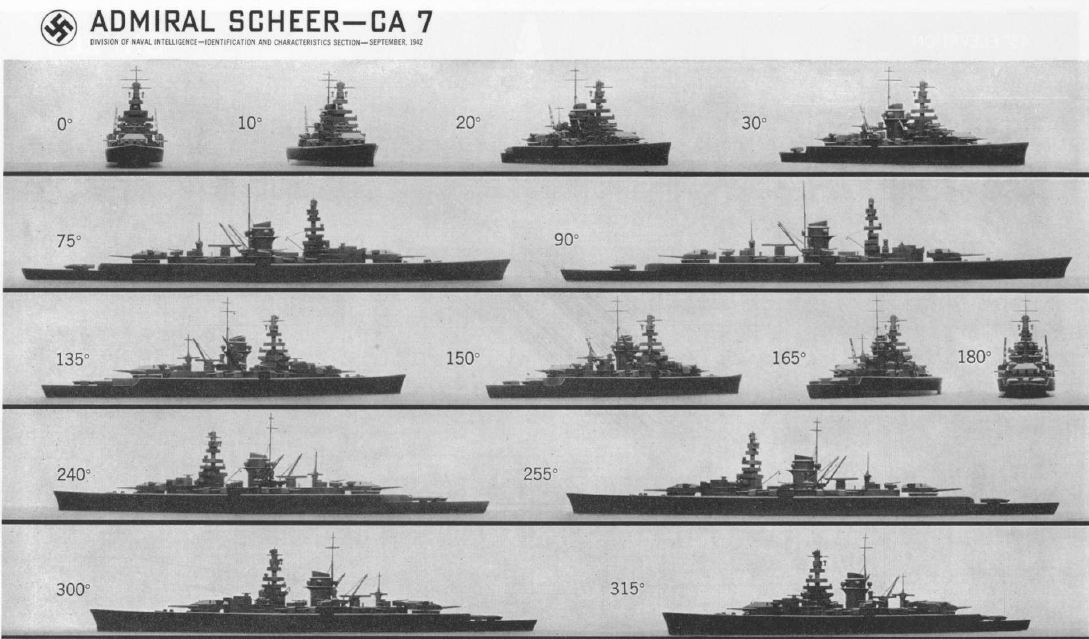

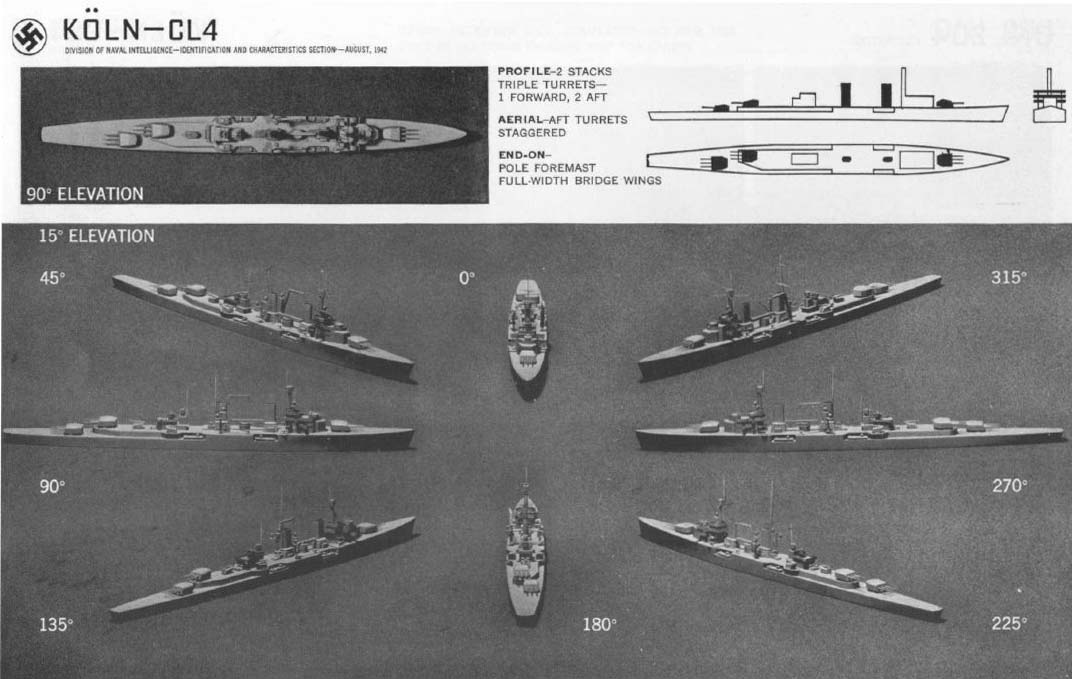

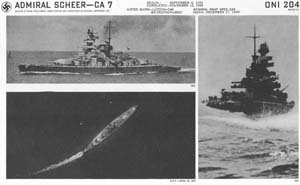

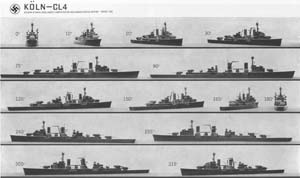

ADMIRAL SCHEER - CA 7 EMDEN - CL 1 KÖLN - CL 4

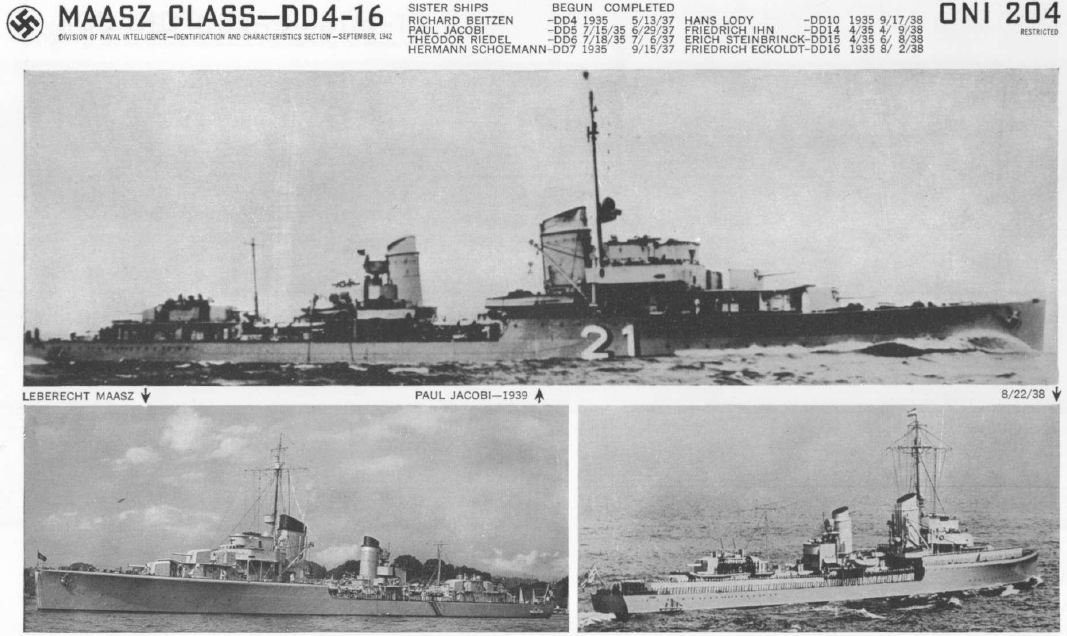

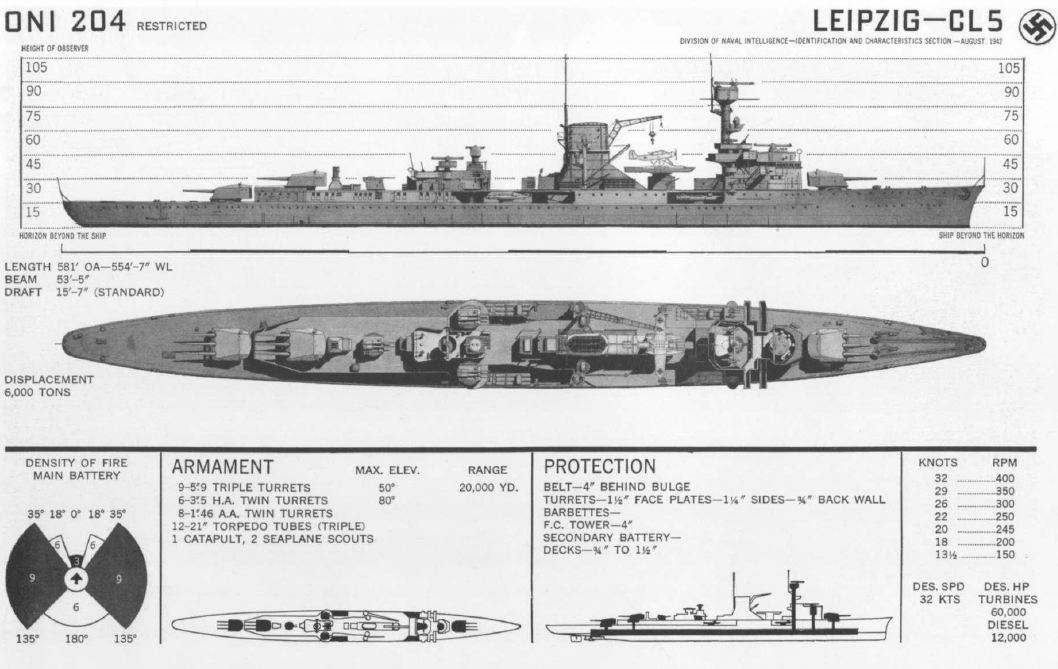

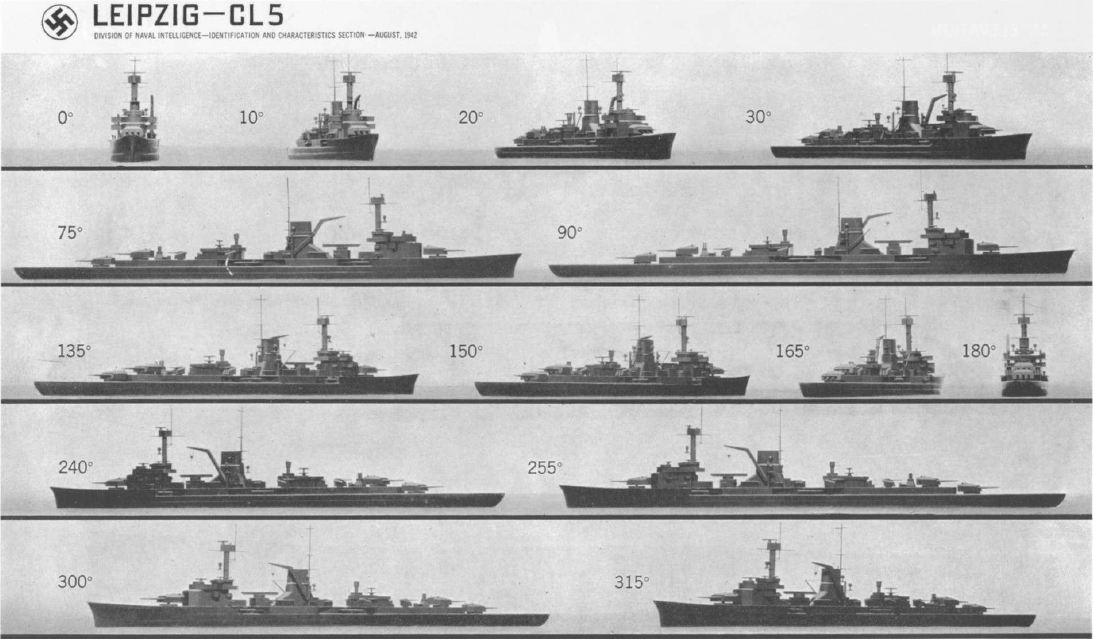

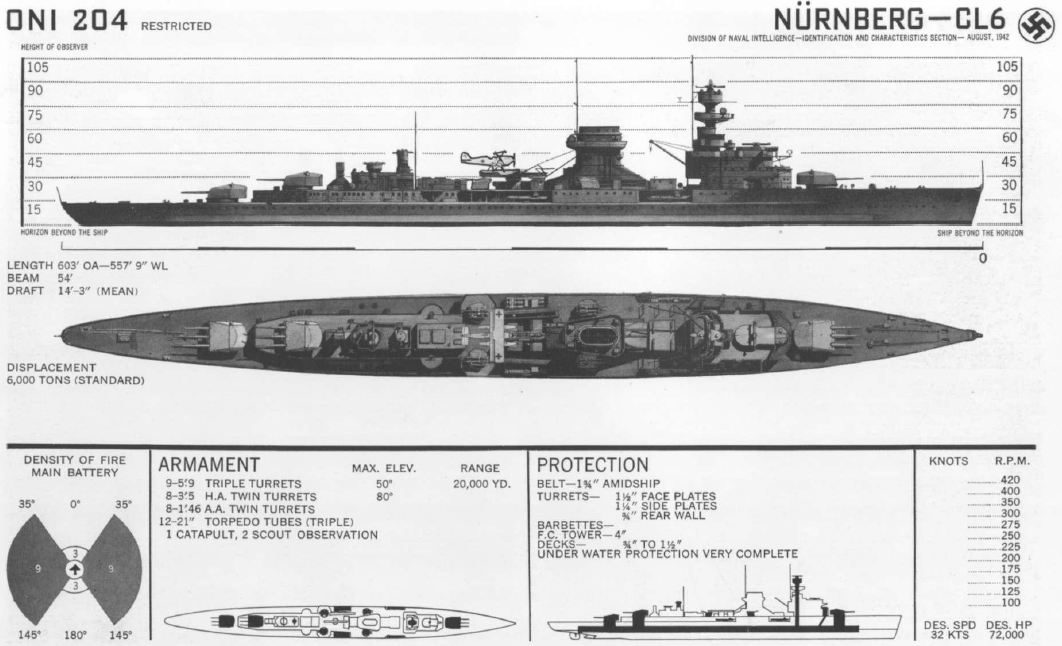

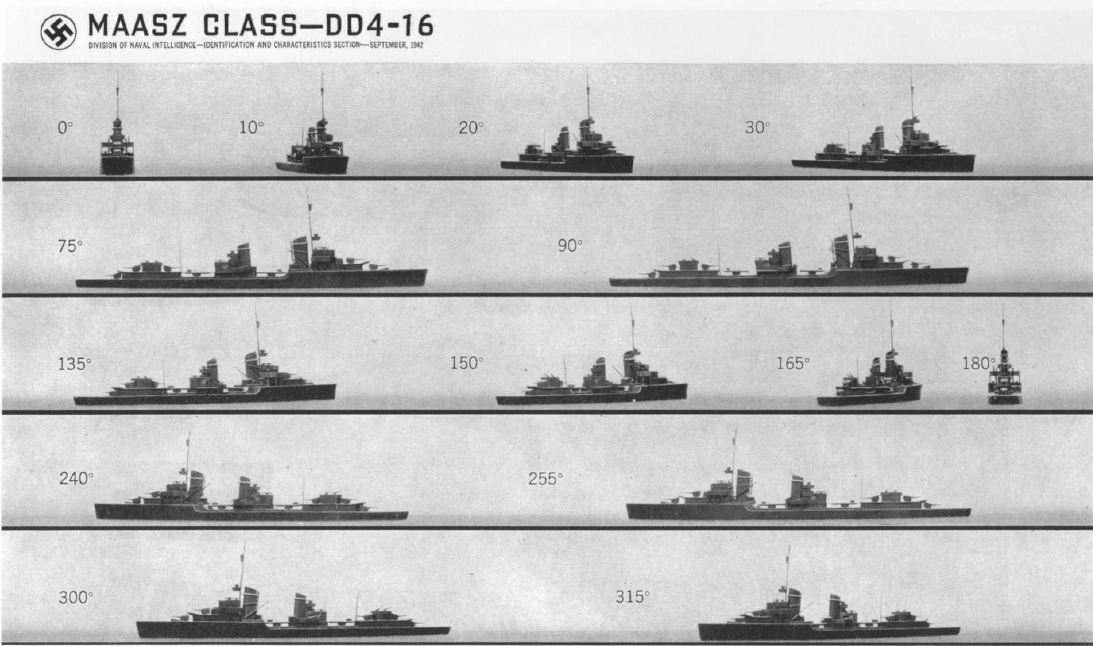

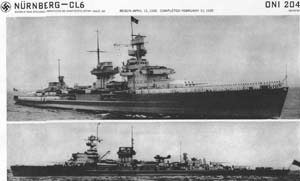

LEIPZIG - CL 5 NÜRNBERG - CL 6 MAASZ CLASS - DD 4-16

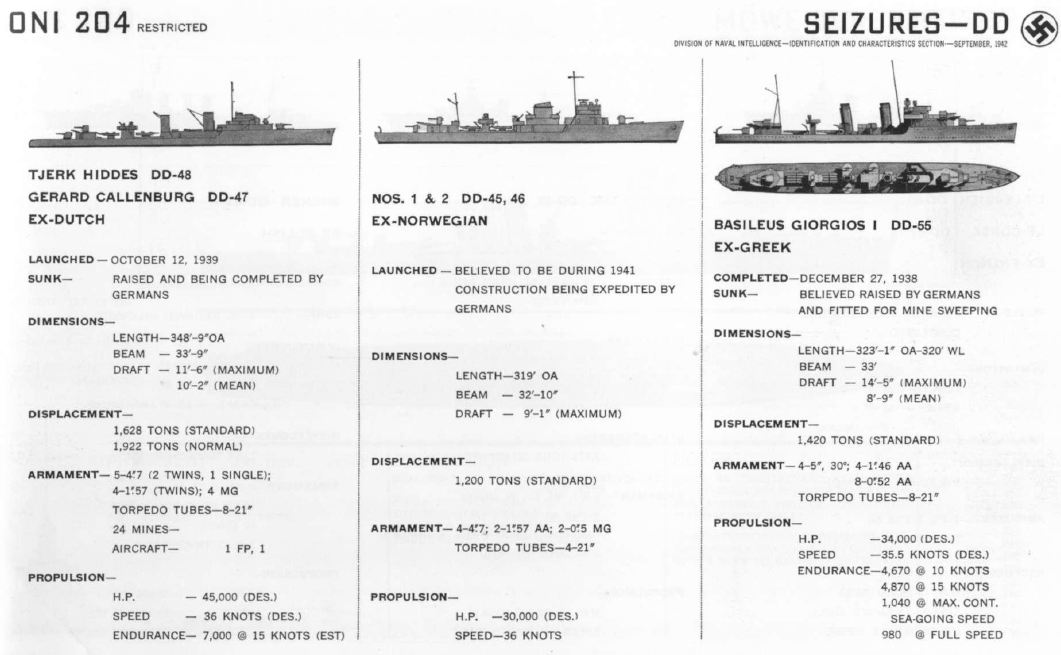

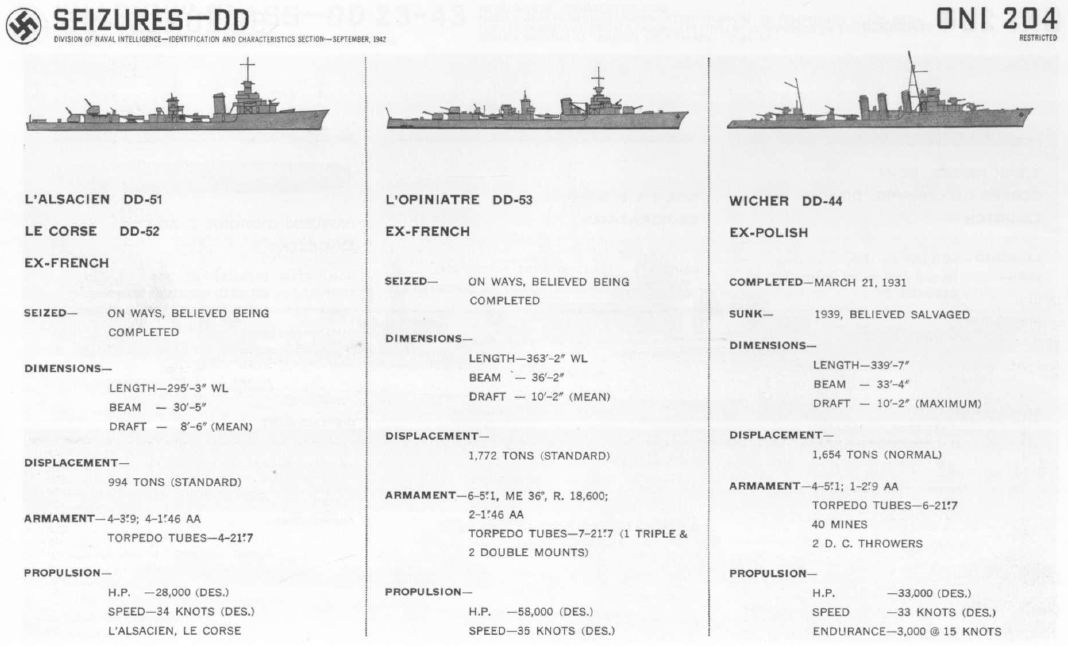

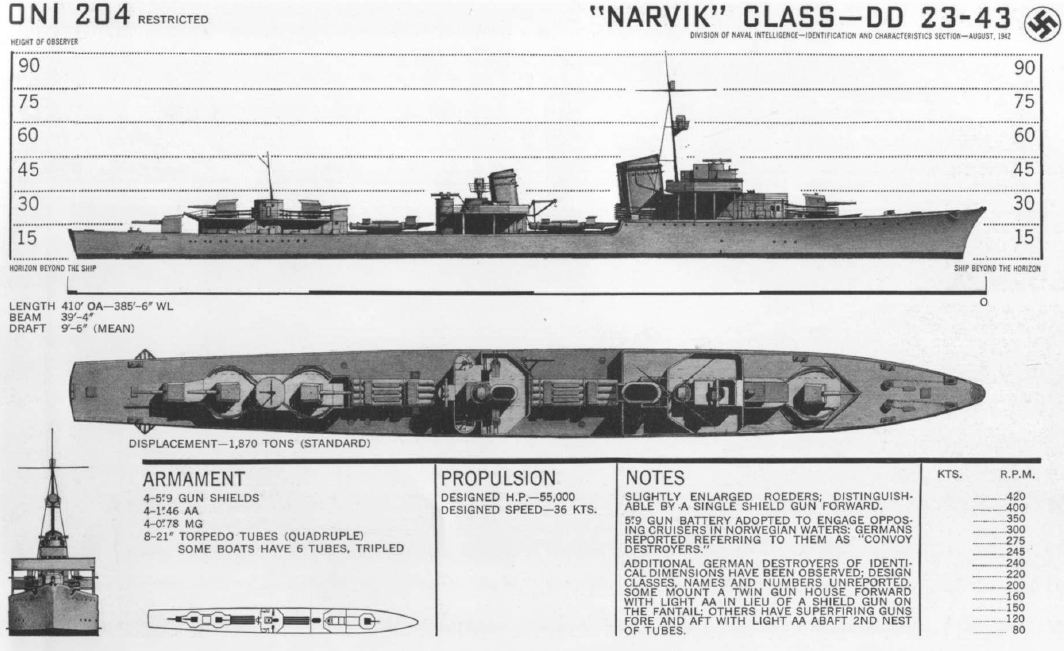

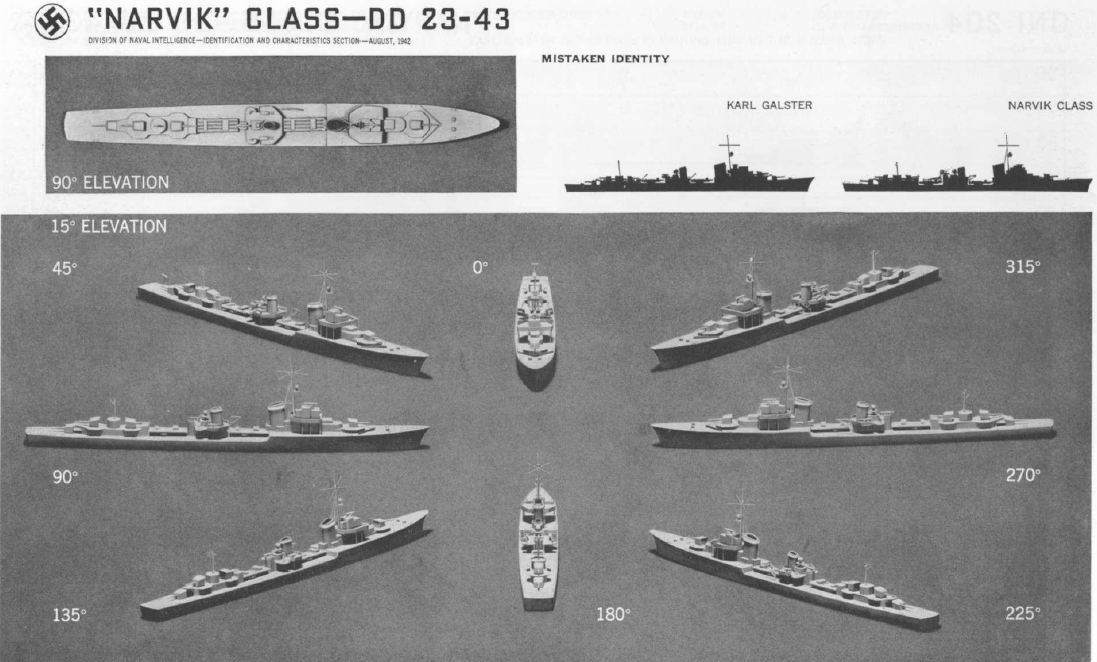

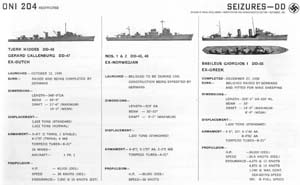

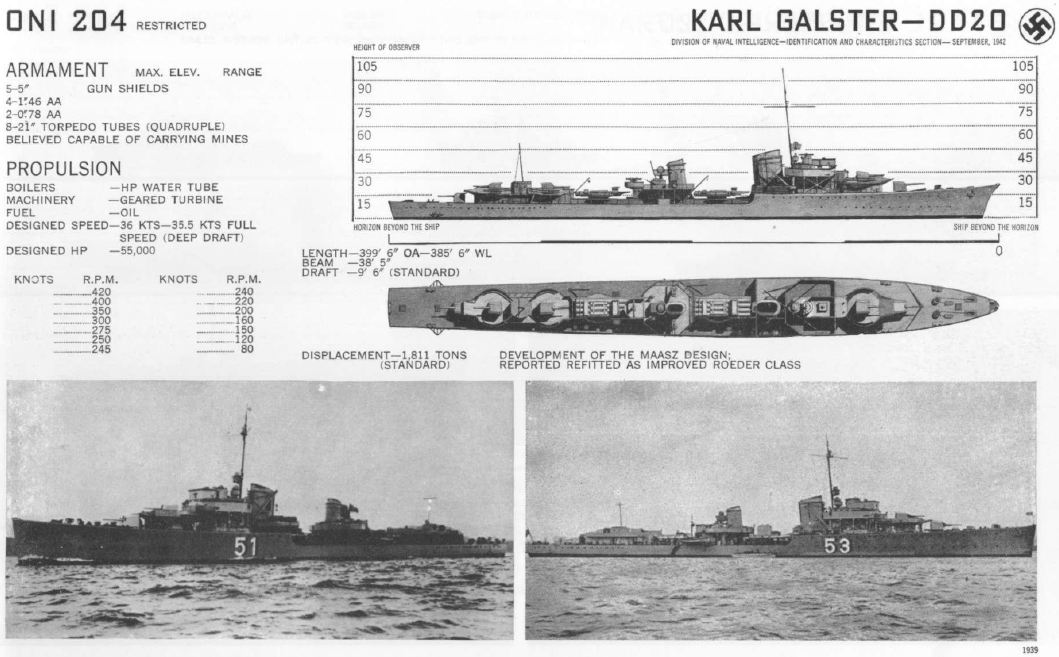

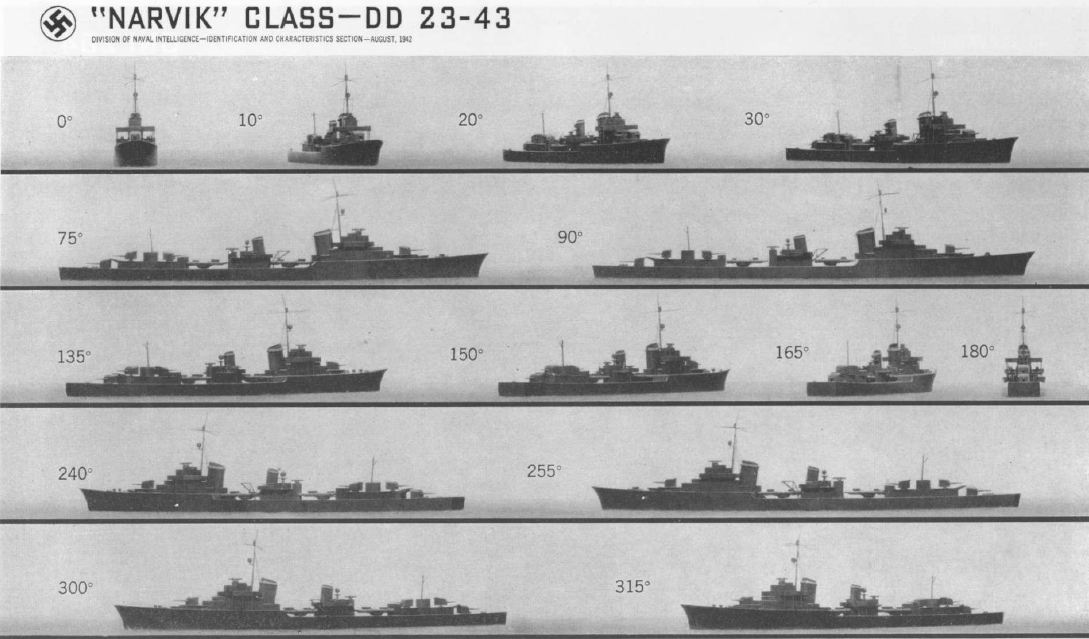

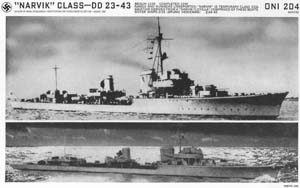

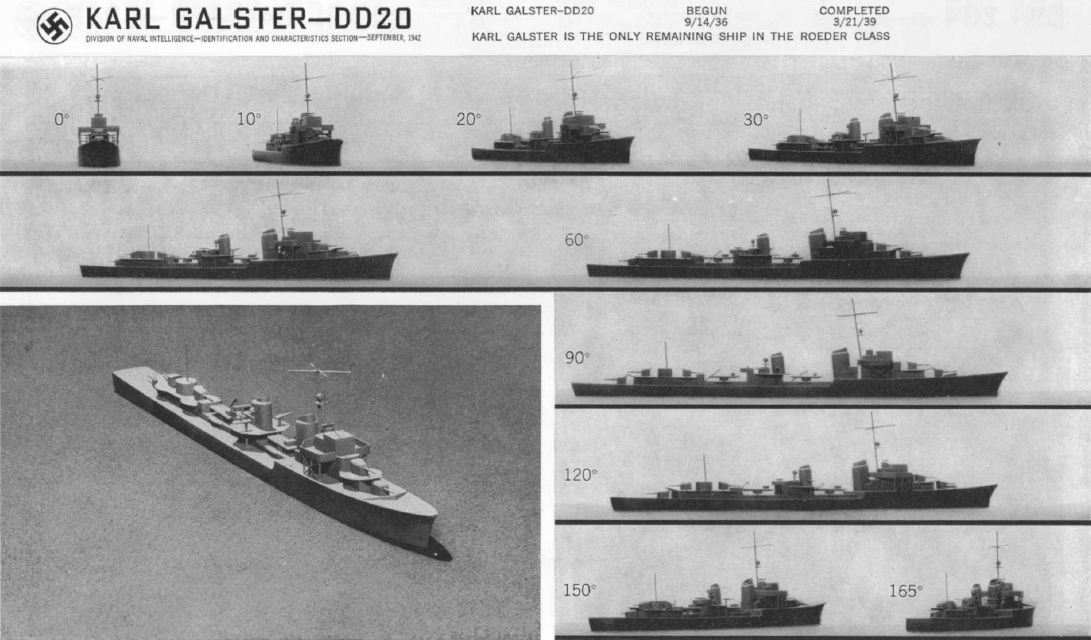

KARL GALSTER - DD 20 NARVIK CLASS - DD 23-43 SEIZURES - DD

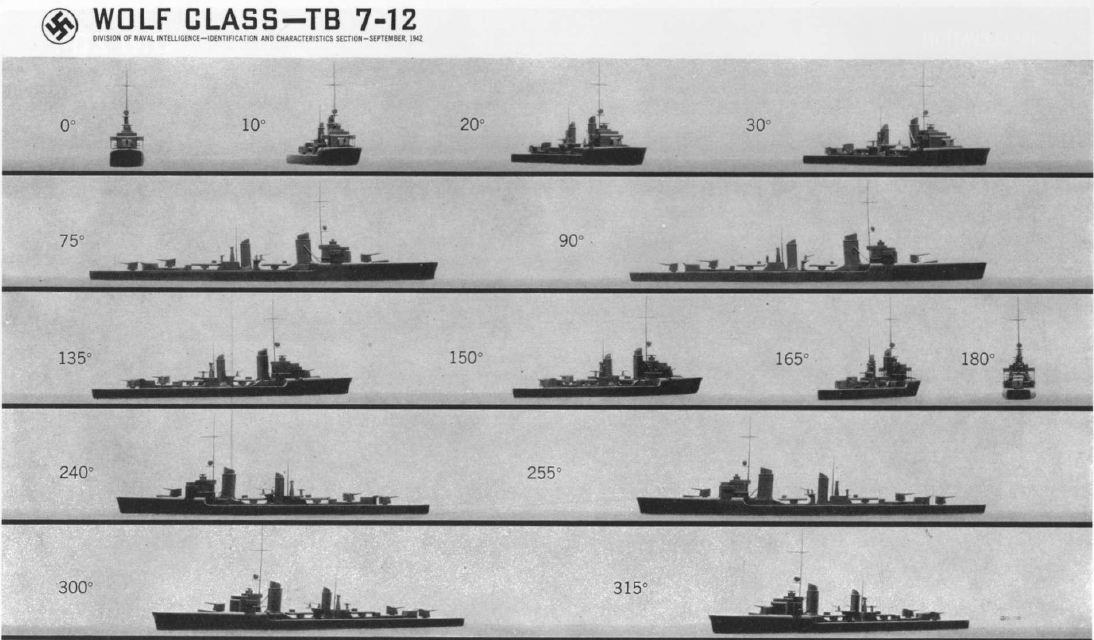

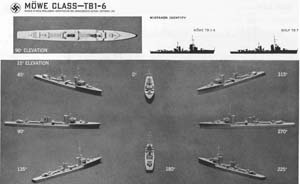

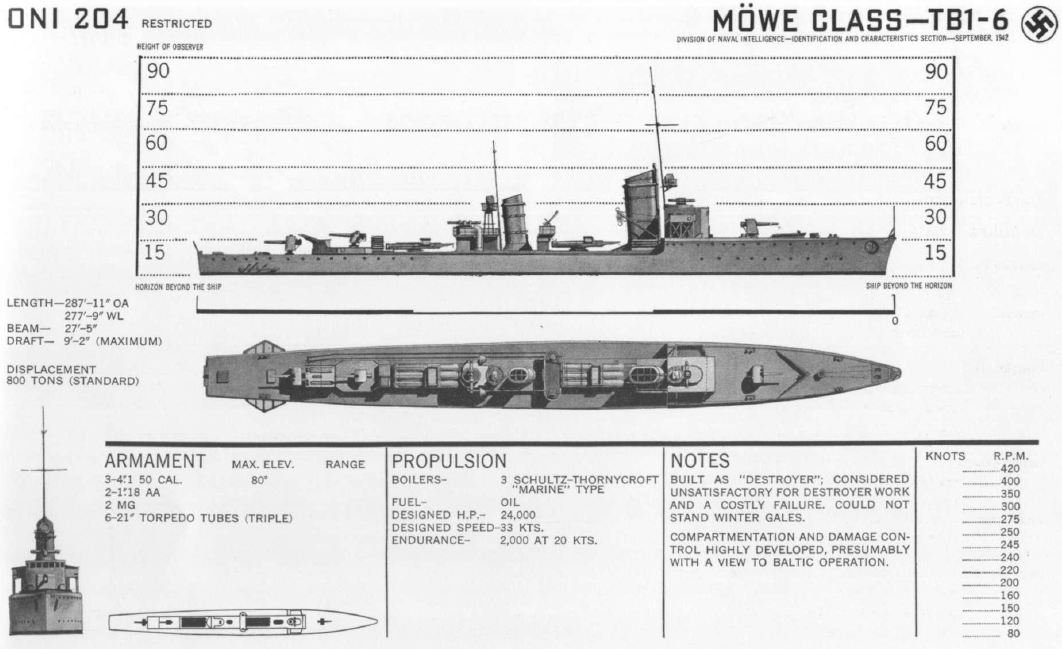

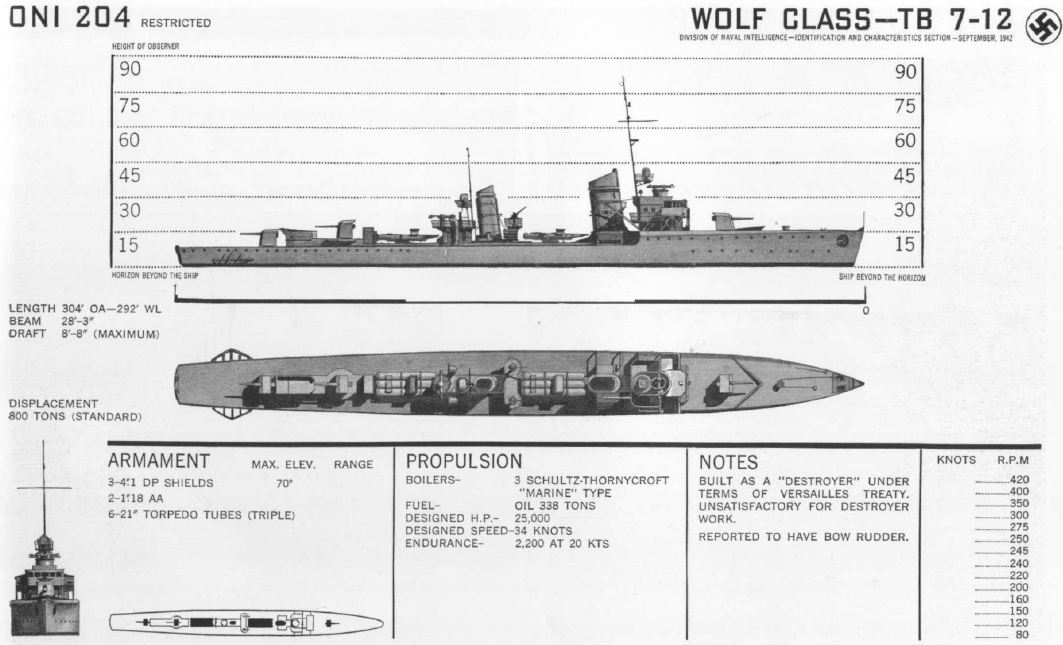

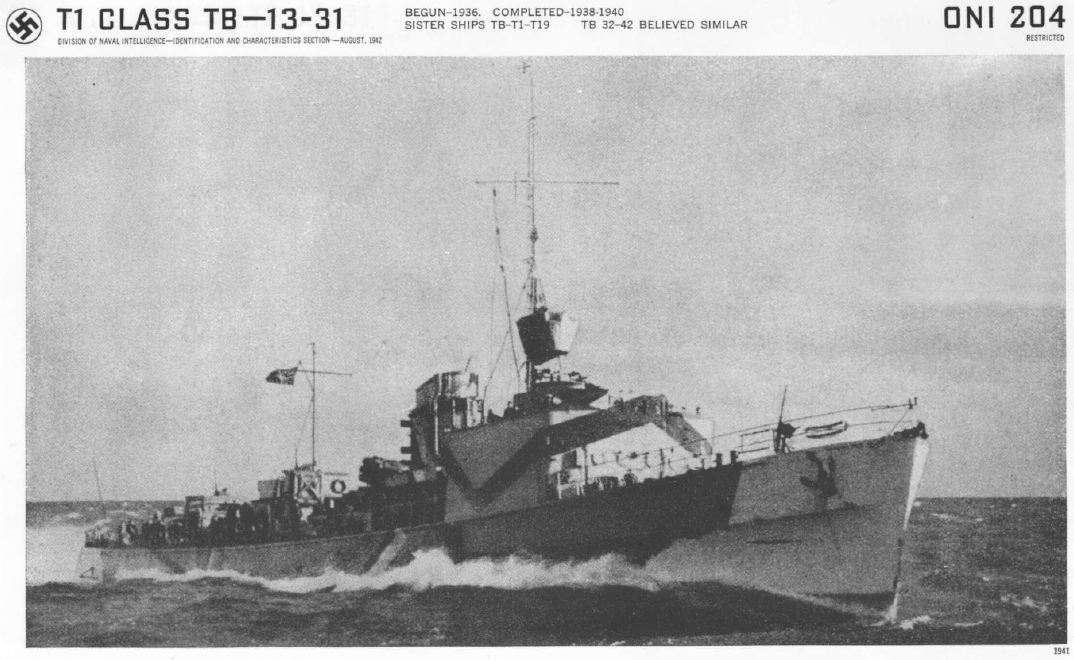

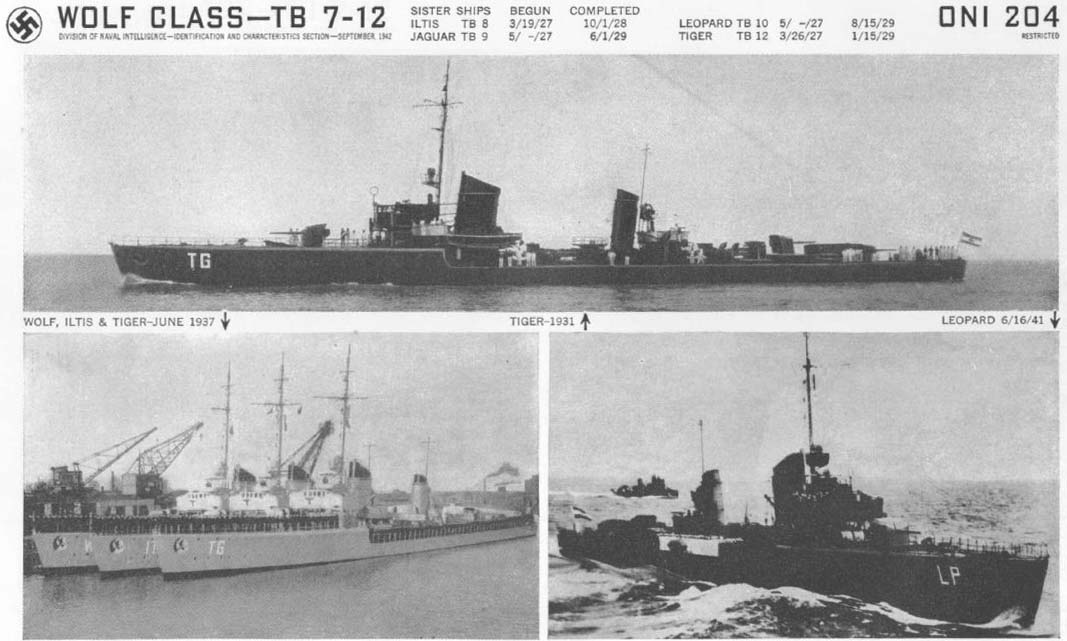

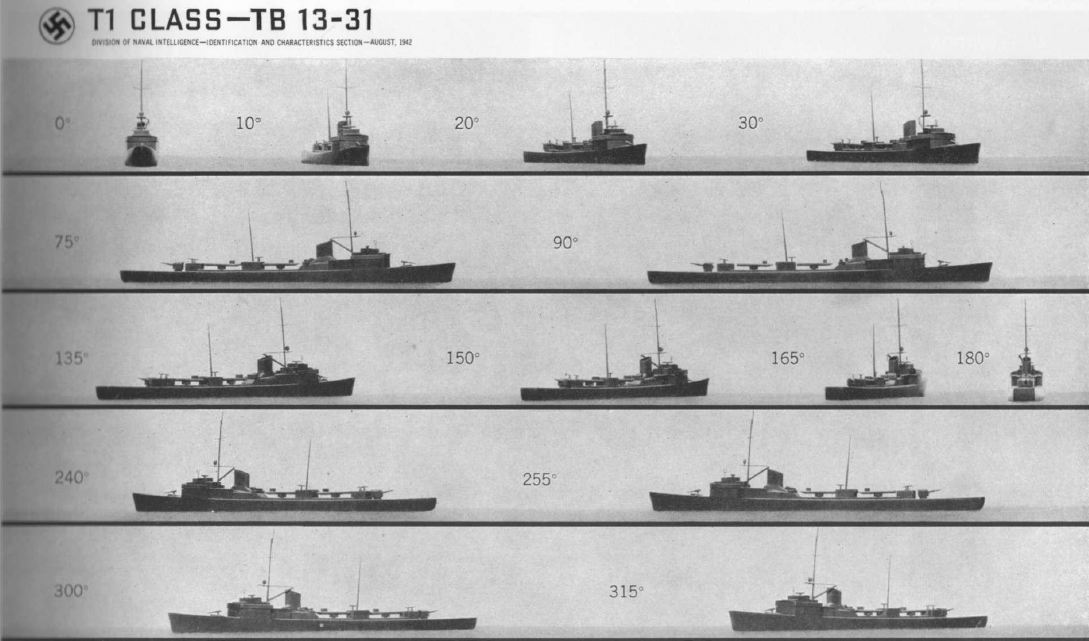

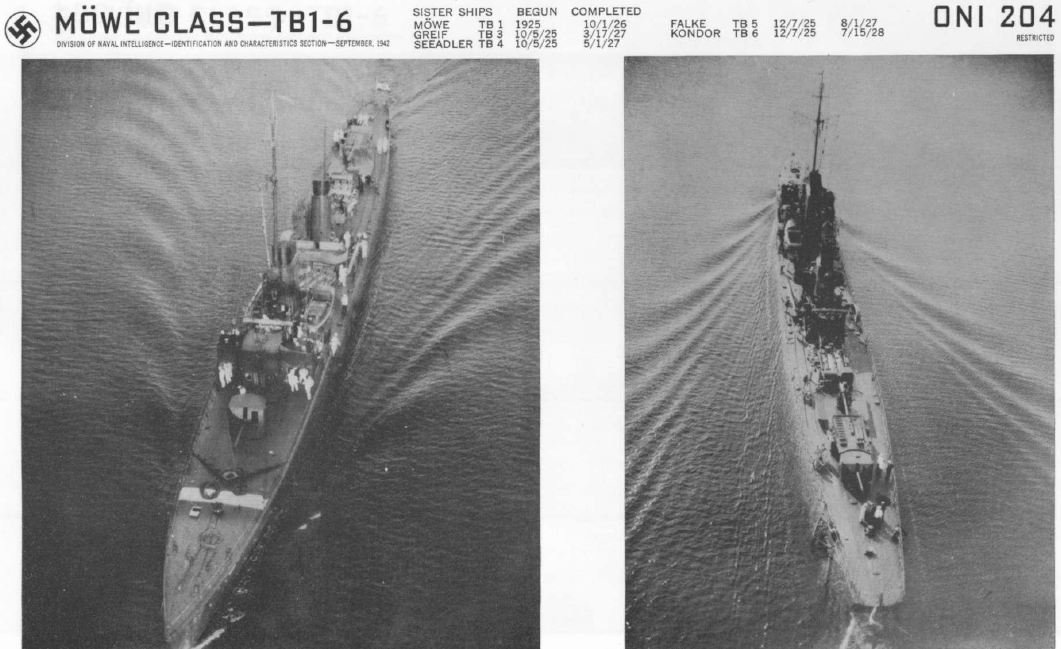

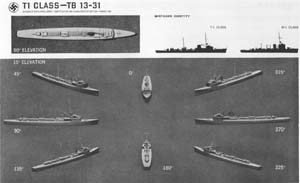

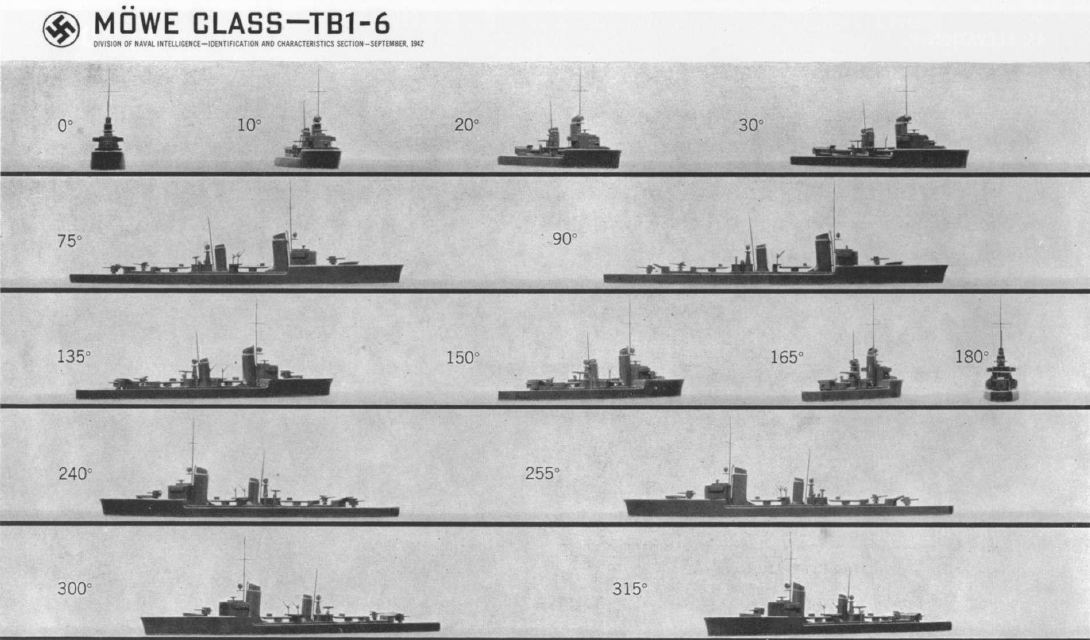

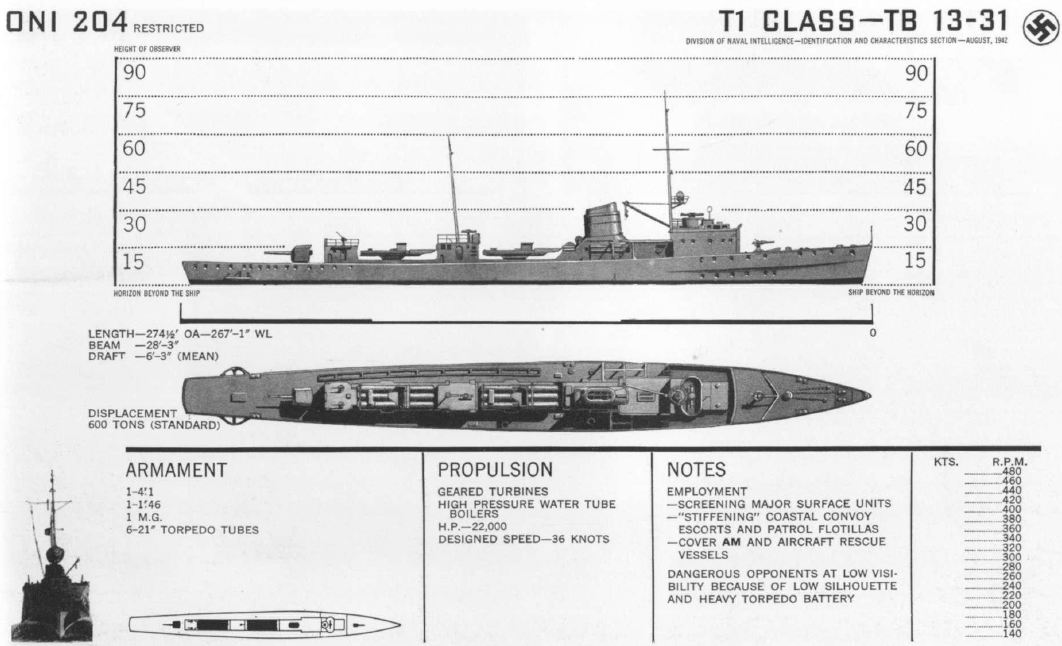

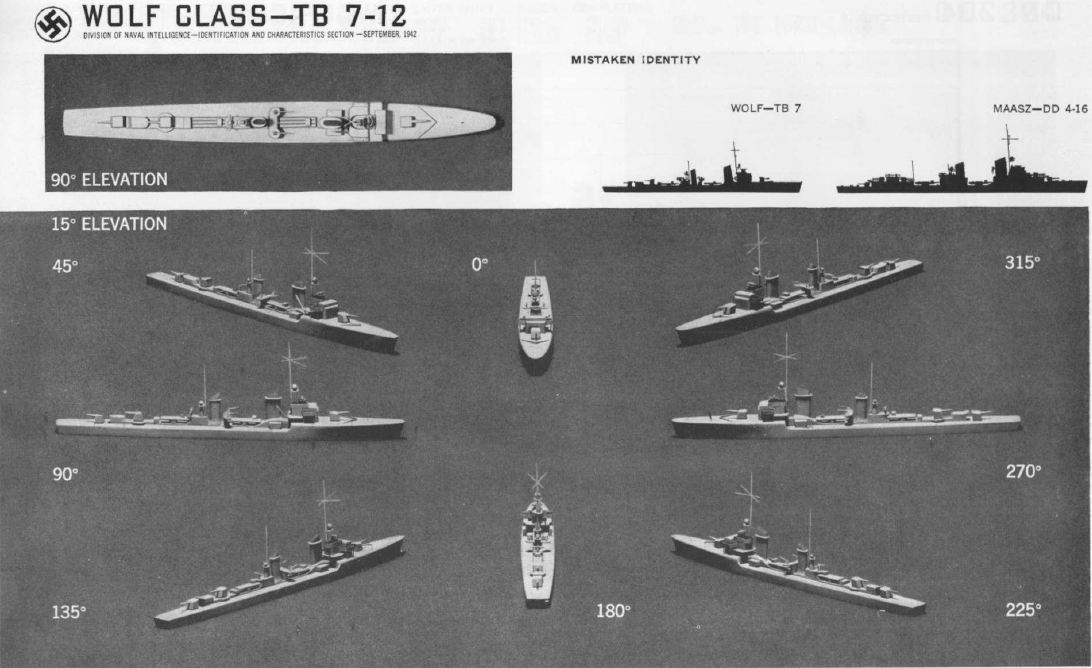

MÖWE - TB 1-6 WOLF CLASS - TB 7-12 T1 CLASS - TB 13-31

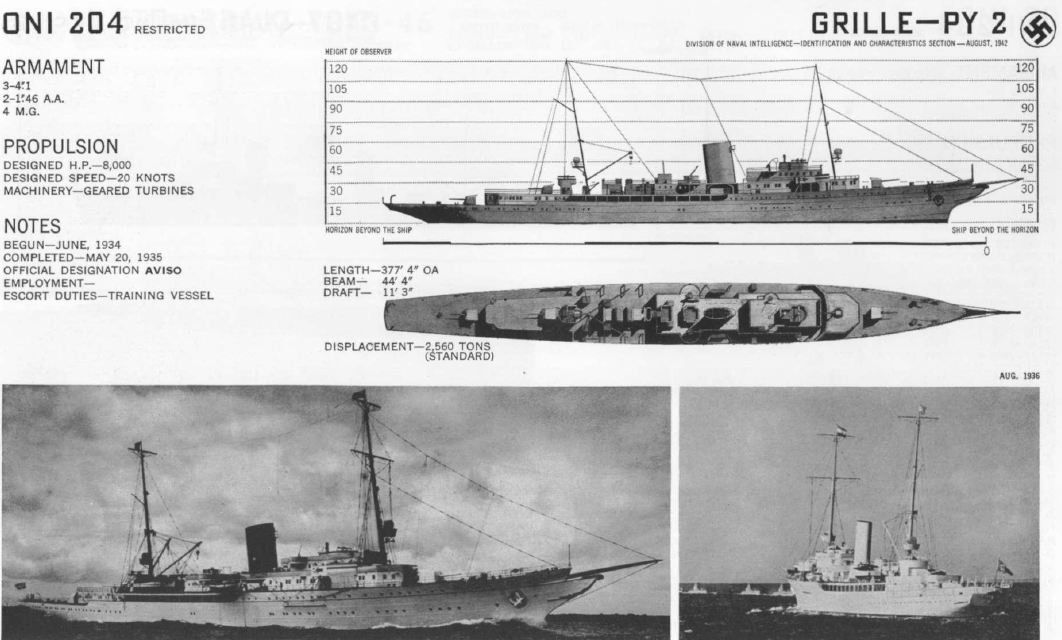

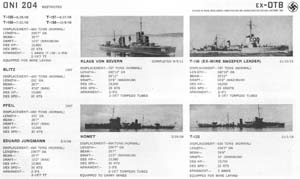

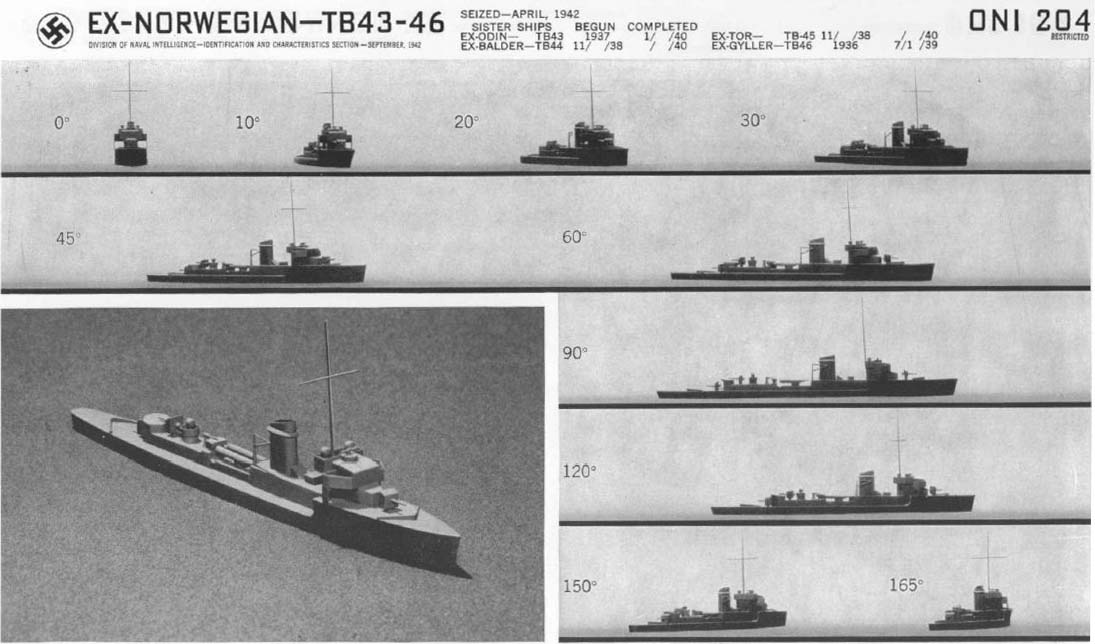

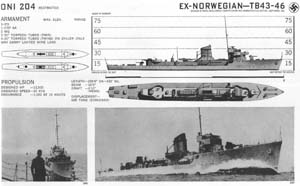

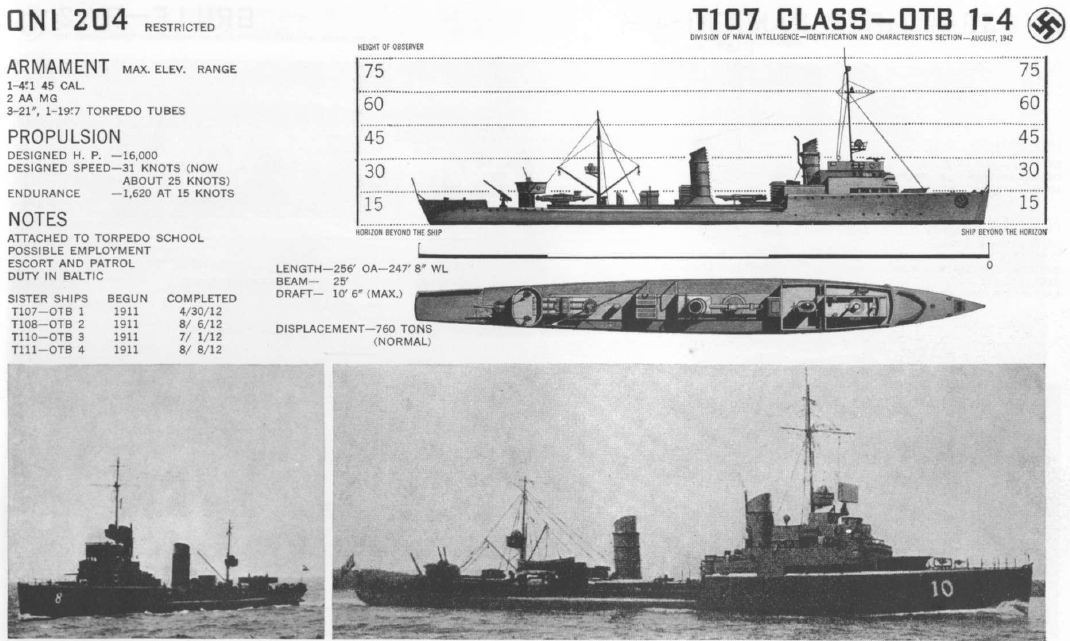

EX-NORWEGIAN - TB 43-46 T107 CLASS - OTB 1-4 GRILLE - PY 2

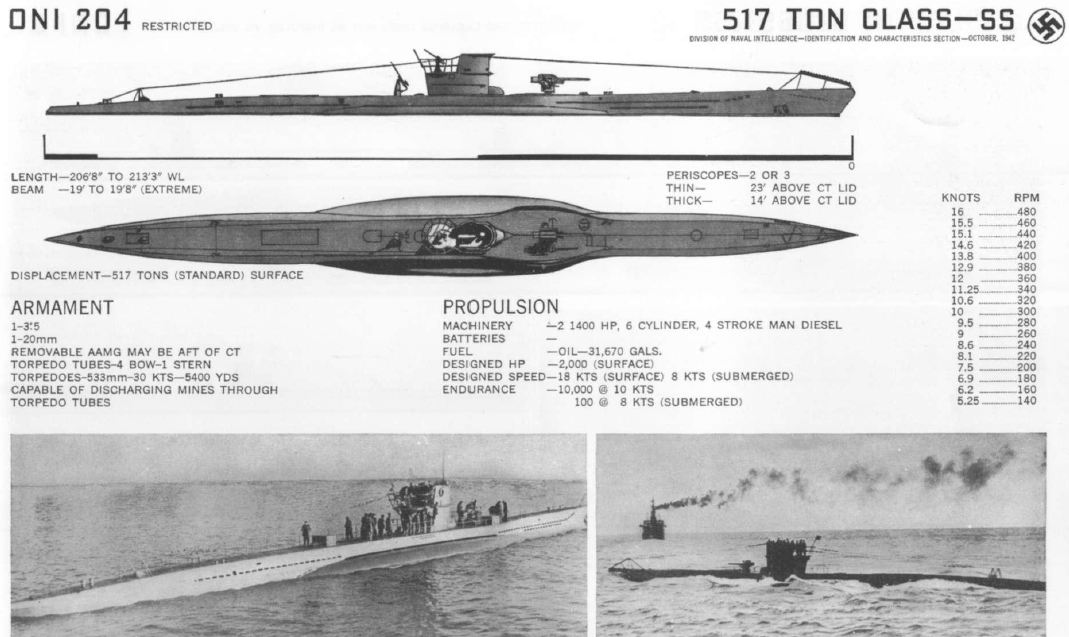

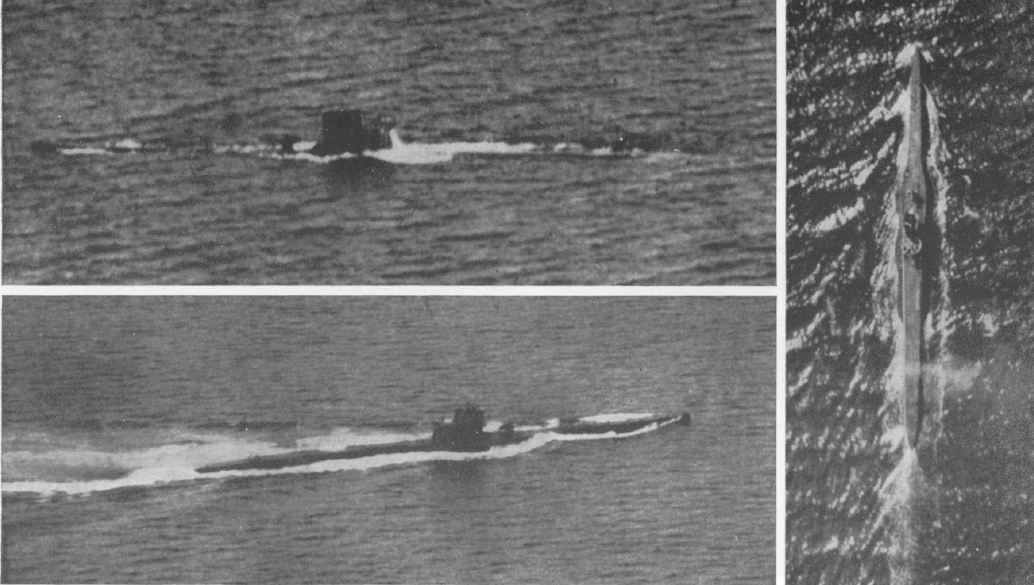

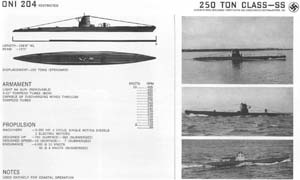

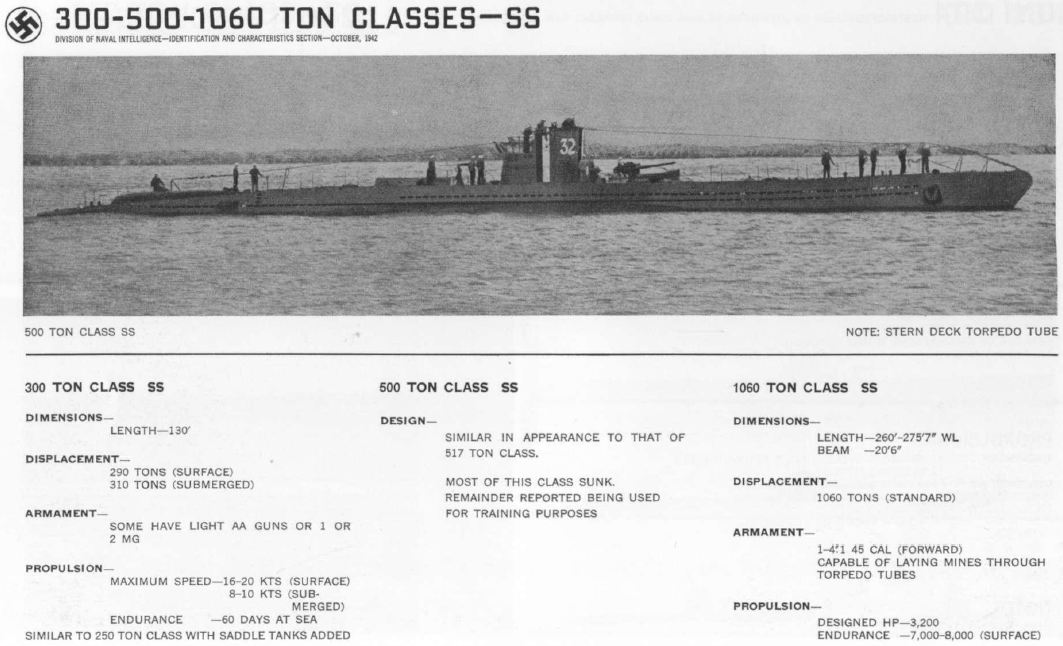

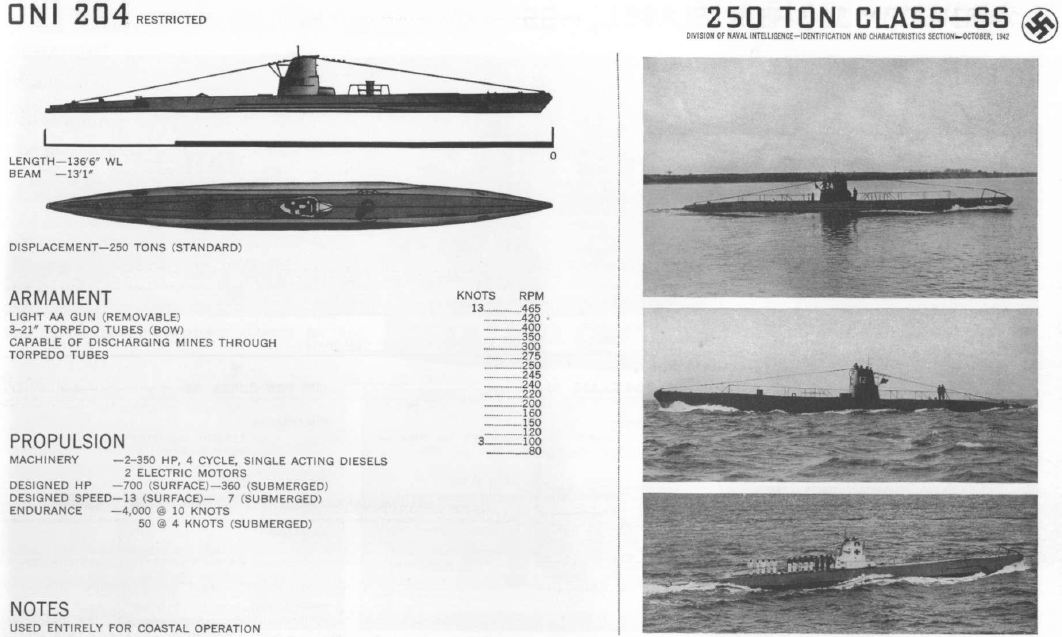

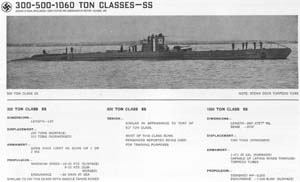

517 TON CLASS - SS 250 TON CLASS - SS 300-500-1060 TON CLASSES - SS

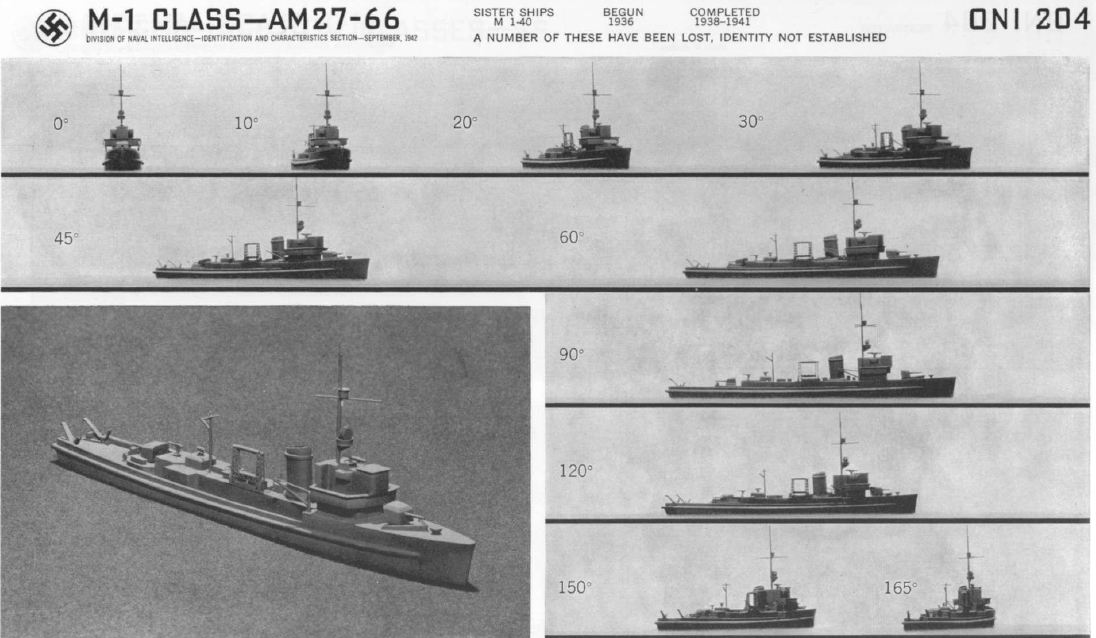

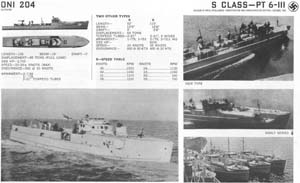

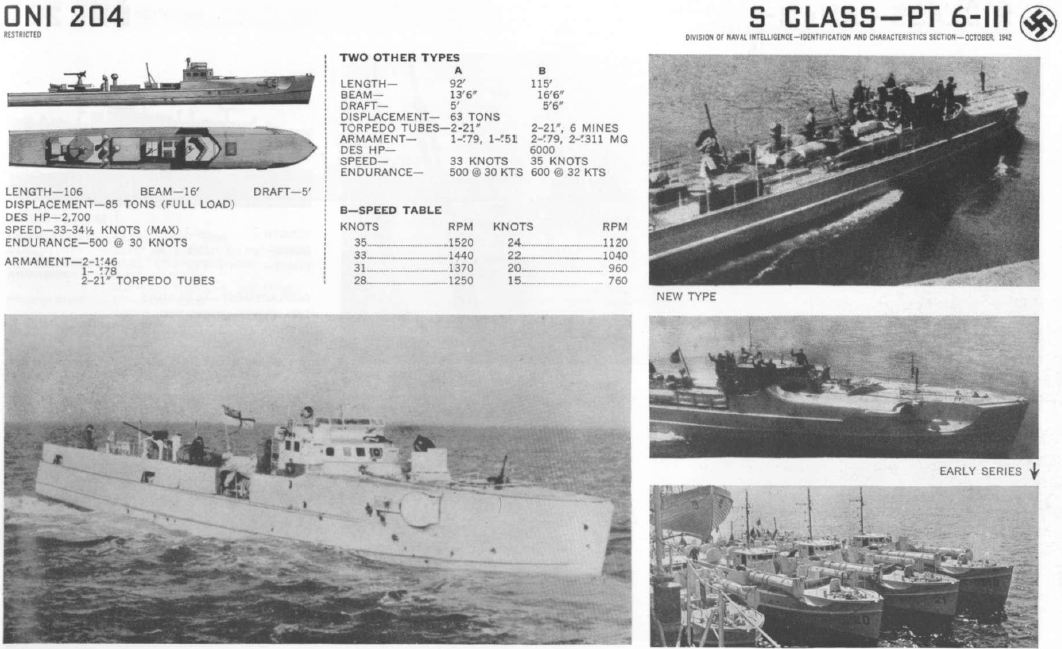

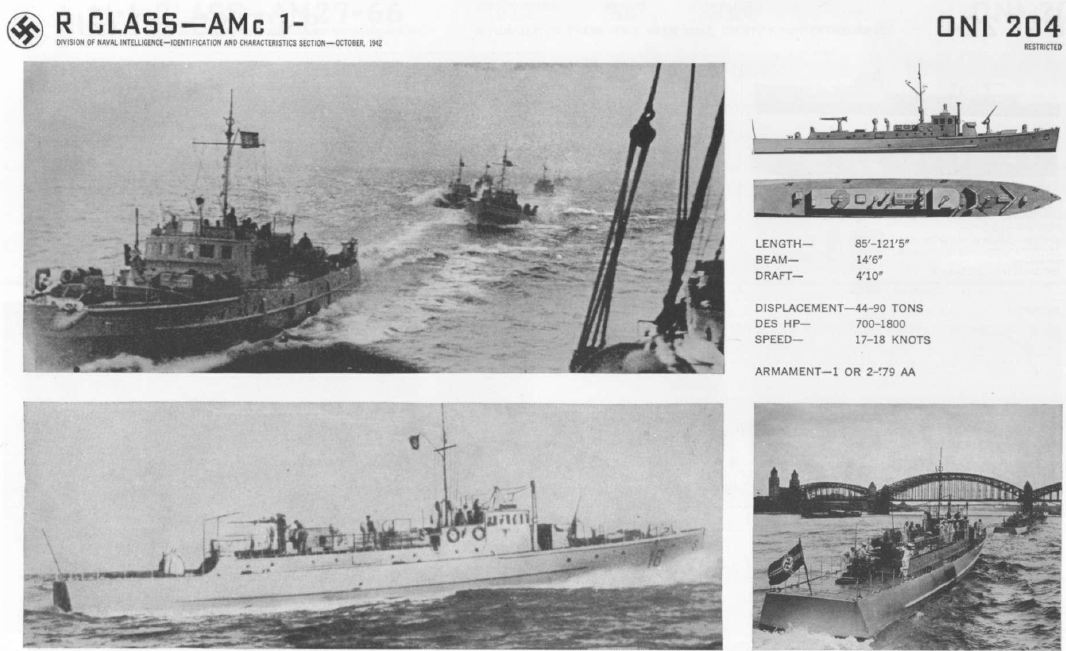

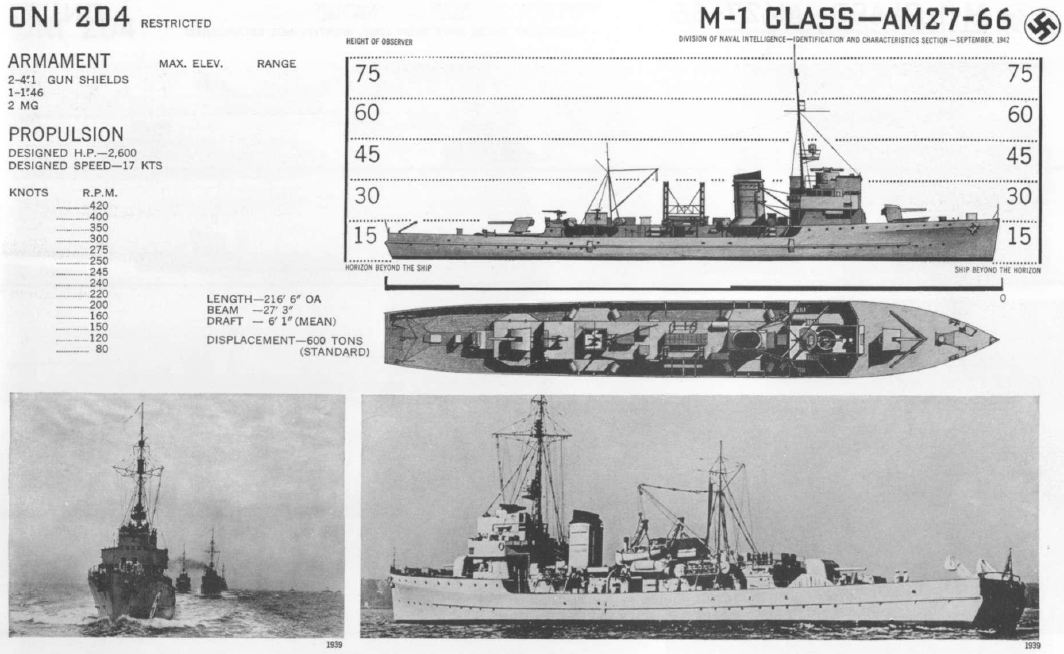

M-1 CLASS - AM 27-66 S CLASS - PT 6-11 R CLASS - AMc 1

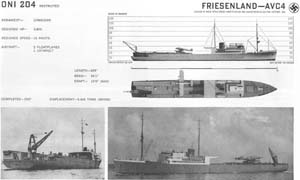

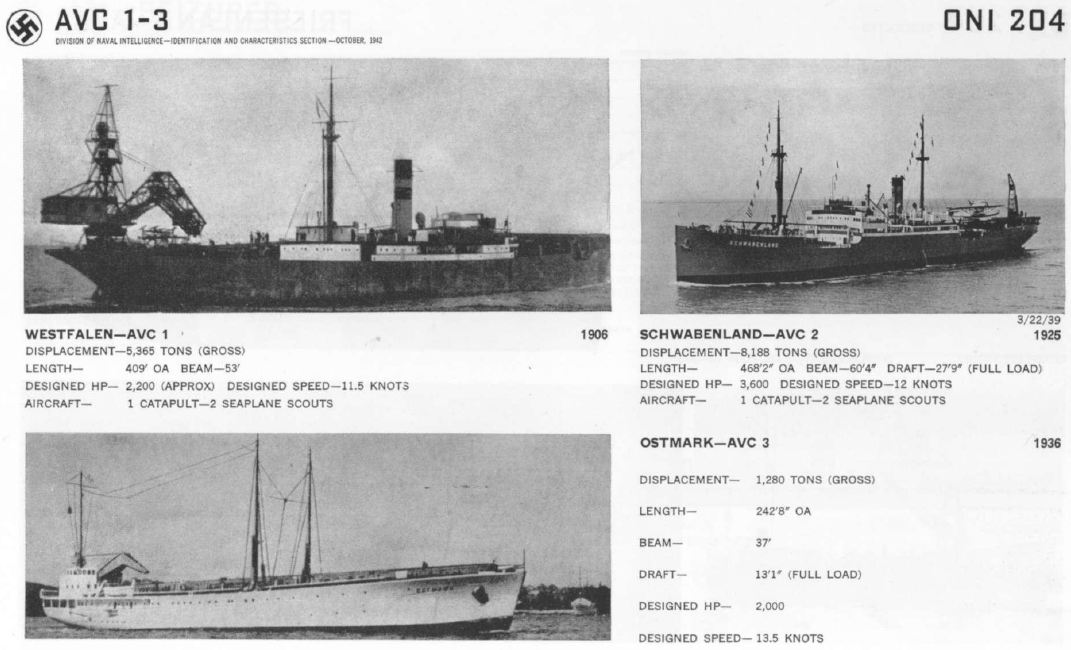

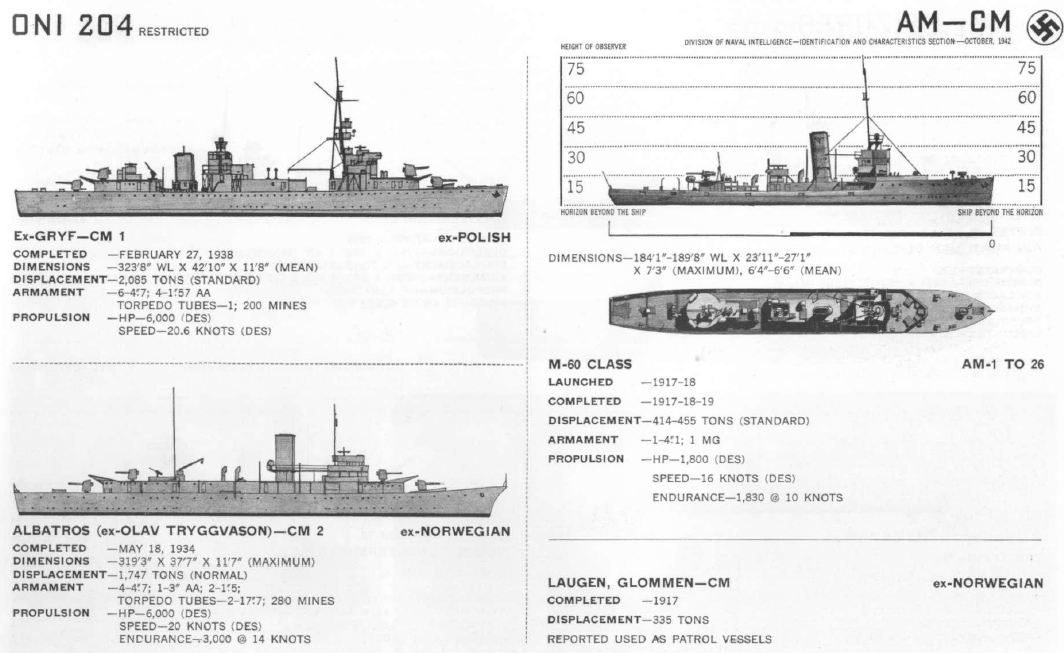

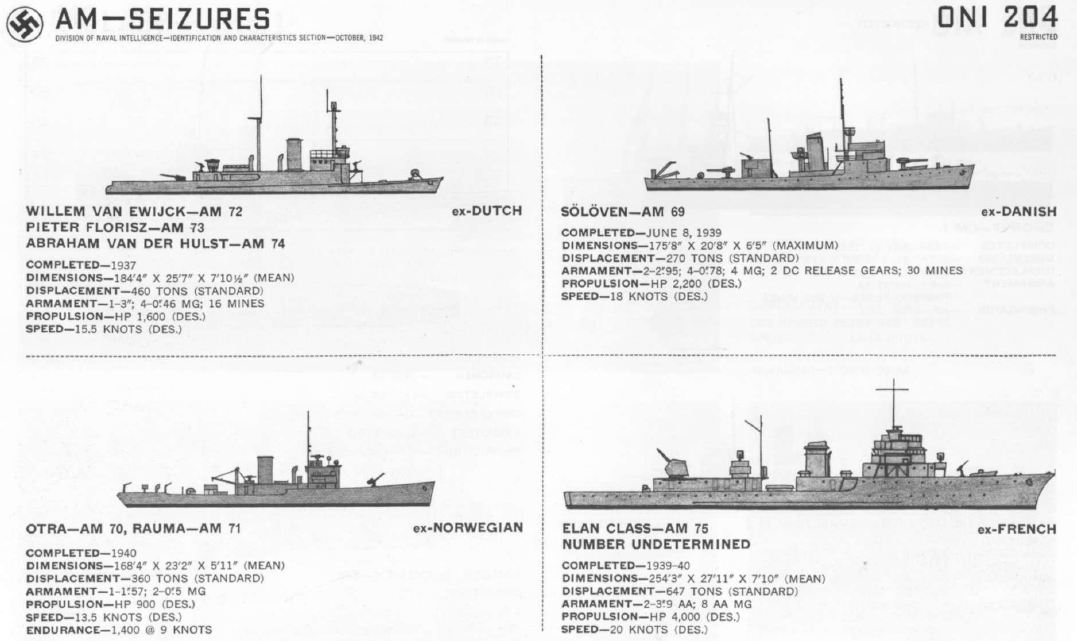

AM-CM AM SEIZURES FRIESENLAND - AVC 4

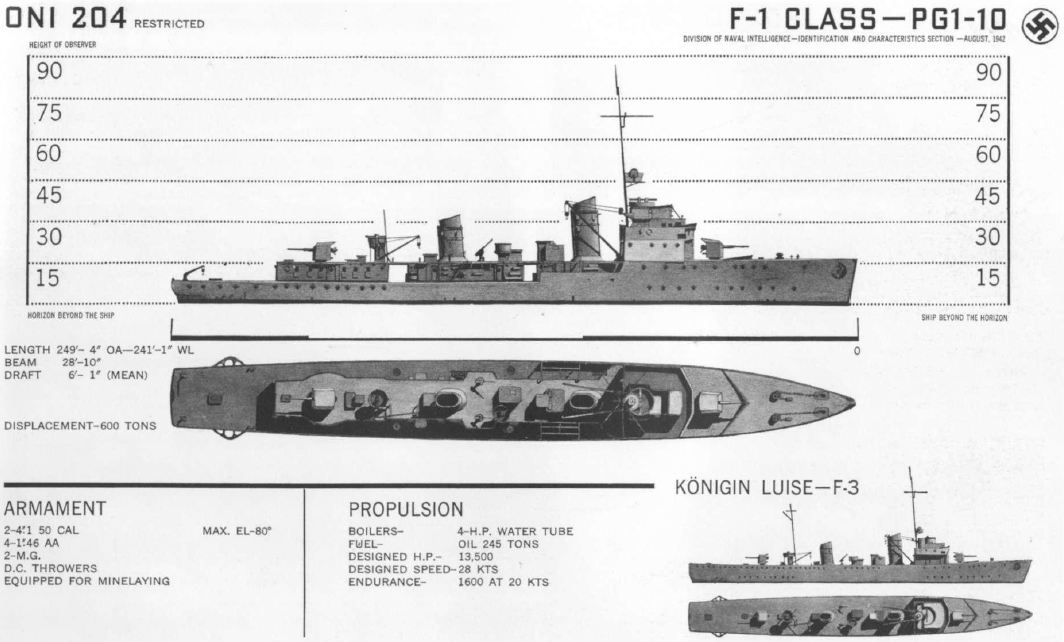

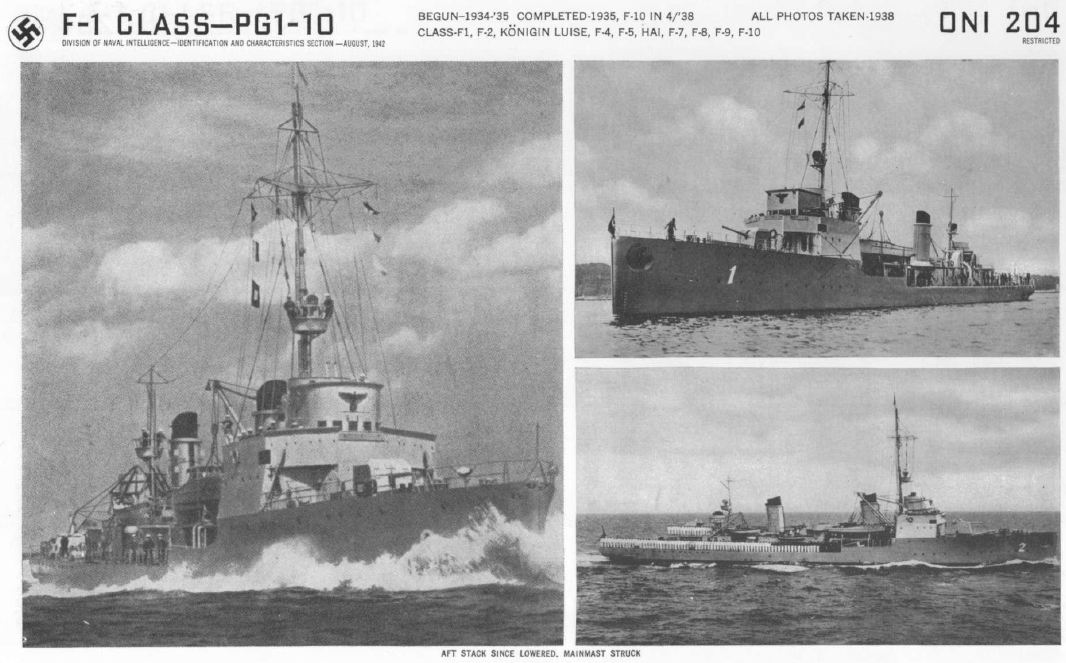

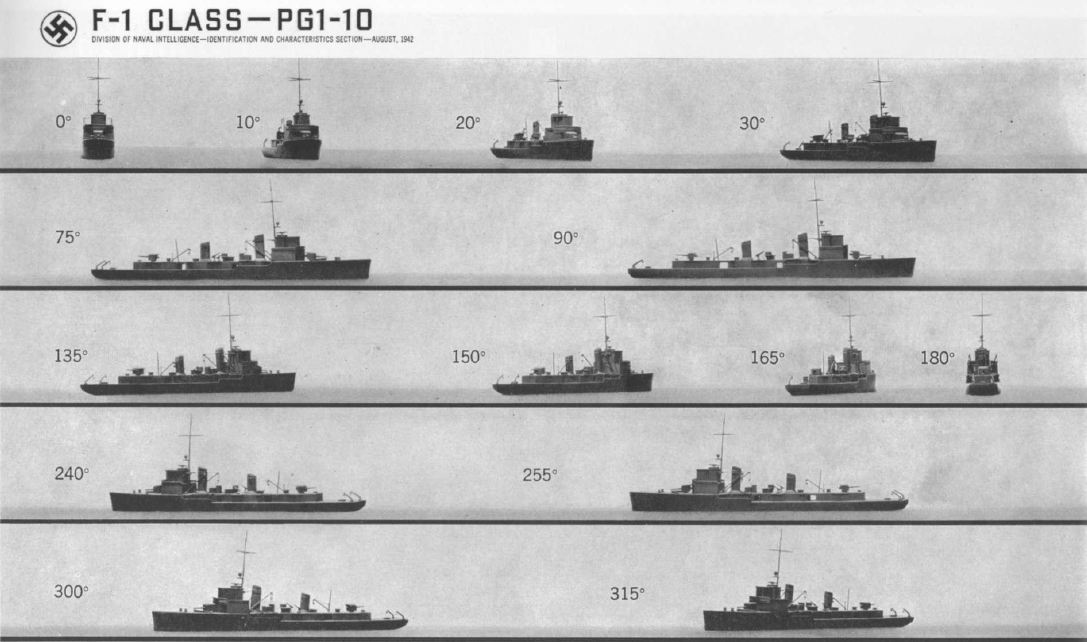

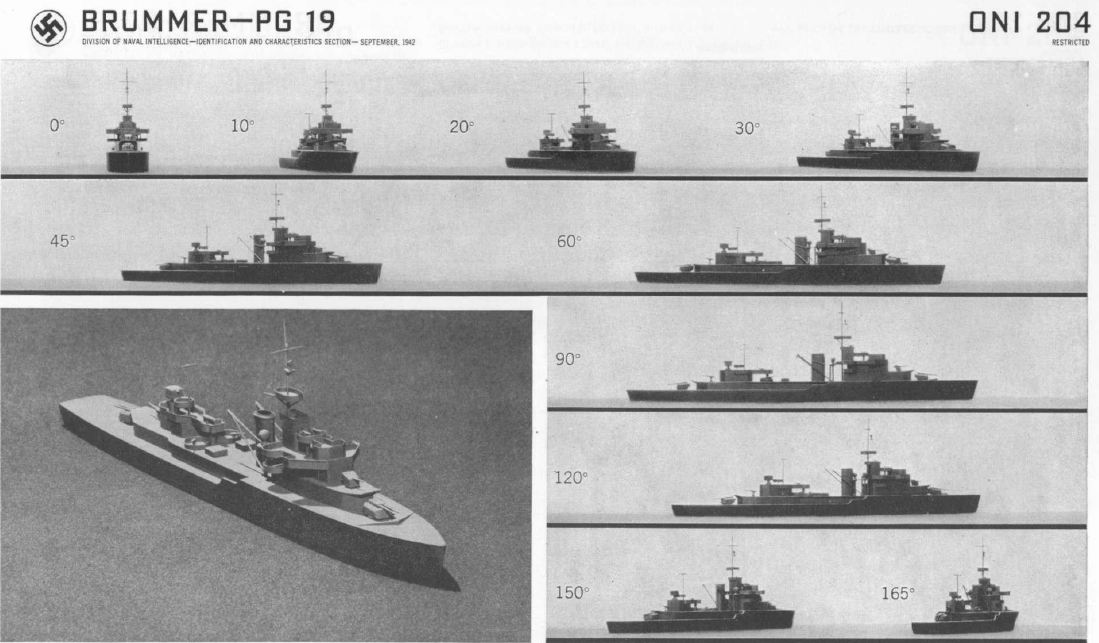

AVC 1-3 F-1 CLASS - TB 43-46 BRUMMER - PG 19
EX-OTB TANK LANDING CRAFT SEAPLANE TENDERS - AVP
AH - HOSPITAL SHIPS EX-M CLASS TRAWLERS
TENDERS-SS & PC AO-AE-AP-ACL MISCELLANEOUS

GNEISENAU - BB 1


SCHARNHORST - BB 2


TIRPITZ - BB 4


SCHLESWIG-HOLSTEIN - OBB 1


SEIZURES - CD

SHIPS SOURCE   SHIPS SOURCE
EIDSVOLD-CD 3 ex-NORWEGIAN NYMPHE-CD 1 ex-NORWEGIAN
THETIS-CD 2 ex-NORWEGIAN PEDER SKRAM-CD 4 ex-DANISH
HERTOG HENDRIK-CD 5 ex-DUTCH LEMONS-CD 6 ex-GREEK
KILKIS-CD 7 ex-GREEK

GRAF ZEPPELIN - CV 1


ADMIRAL HIPPER - CA 1


PRINZ EUGEN - CA 3


LÜTZOW - CA 6


ADMIRAL SCHEER - CA 7


EMDEN - CL 1


KÖLN - CL 4


LEIPZIG - CL 5


NÜRNBERG - CL 6


MAASZ CLASS - DD 4-16

SISTER SHIPS BEGUN COMPLETED SISTER SHIPS BEGUN COMPLETED
RICHARD BEITZEN - DD 4 1935 5/13/37 HANS LODY - DD 10 1935 9/17/38
PAUL JACOBI - DD 5 7/15/35 6/29/37 FRIEDRICH IHN - DD 14 4/35 4/9/38
THEODOR RIEDEL - DD 6 7/18/35 7/6/37 ERICH STEINBRINCK - DD 15 4/35 6/8/38
HERMANN SCHOEMANN - DD 7 1935 9/15/37 FRIEDRICH ECKOLDT - DD 16 1935 8/2/38

KARL GALSTER - DD 20


"NARVIK" CLASS - DD 23-43

"NARVIK" is a temporary class designation derived from a "NARVIK FLOTILLA" comprised of these boats.


SEIZURES - DD

SHIPS SOURCE   SHIPS SOURCE
TJERK HIDDES - DD-48 ex-DUTCH GERHARD CALLENBURG - DD-47 ex-DUTCH
DD-45 ex-NORWEGIAN DD-46 ex-NORWEGIAN
BASILEUS GIORGIOS I - DD-55 ex-GREEK L'ALSACIEN - DD-51 ex-FRENCH
LE CORSE - DD-52 ex-FRENCH L'OPINIATRE - DD-53 ex-FRENCH
WICHER - DD-44 ex-POLISH

MÖWE CLASS - TB 1-6

SISTER SHIPS BEGUN COMPLETED SISTER SHIPS BEGUN COMPLETED
MÖWE - TB 1 1925 10/1/26 FALKE - TB 5 12/7/25 8/1/27
GREIF - TB 3 10/5/25 3/17/27 KONDOR - TB 6 12/7/25 7/15/28
SEEADLER - TB 4 10/5/25 5/1/27

WOLF CLASS - TB 7-12

SISTER SHIPS BEGUN COMPLETED SISTER SHIPS BEGUN COMPLETED
ILTIS - TB 8 1925 10/1/26 LEOPARD - TB 10 5/27 8/15/29
JAGUAR - TB 9 5/27 6/1/29 TIGER - TB 12 3/26/27 1/15/29

T1 CLASS - TB 13-31


EX-NORWEGIAN - TB 43-46

SEIZED - APRIL, 1942

SISTER SHIPS BEGUN COMPLETED SISTER SHIPS BEGUN COMPLETED
Ex-ODIN - TB 43 1937 1/40 Ex-TOR - TB 45 11/38 1940
Ex-BALDER - TB 44 11/38 1940 Ex-GYLLER - TB 46 1936 7/1/39

T107 CLASS - OTB 1-4


GRILLE - PY 2


517 TON CLASS - SS

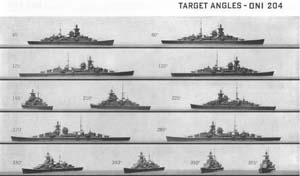

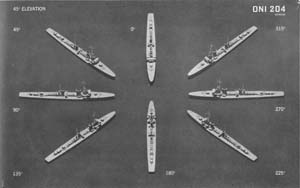

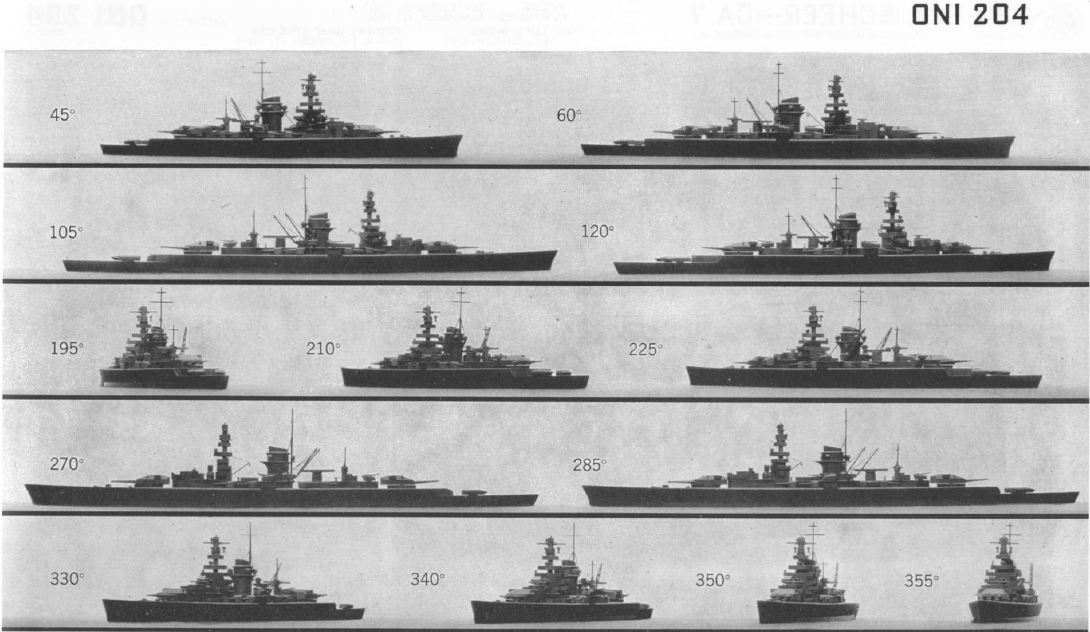

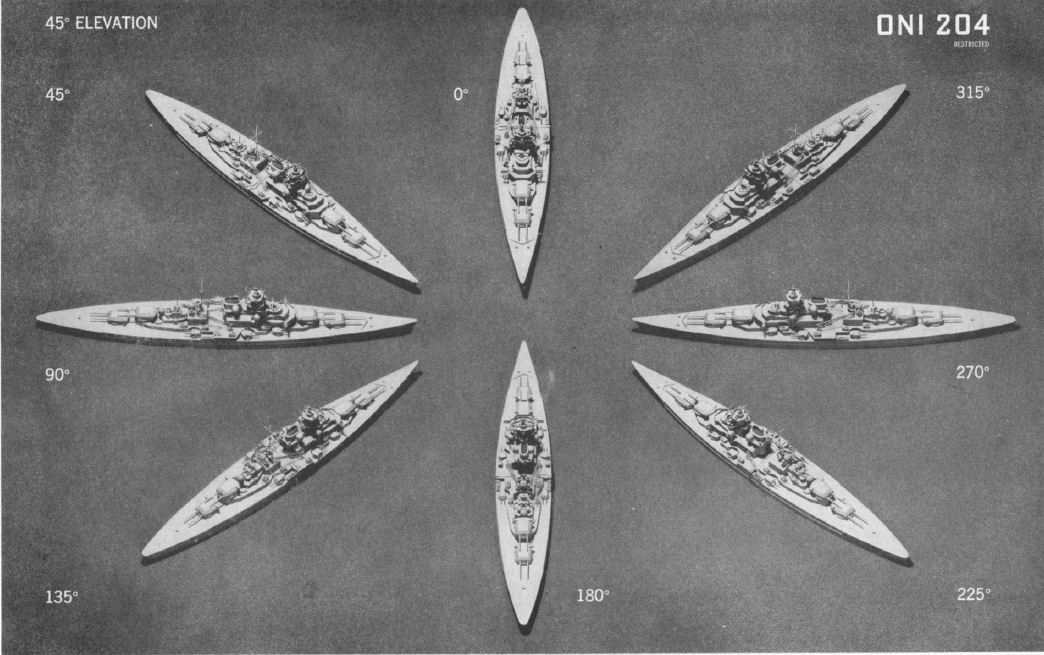

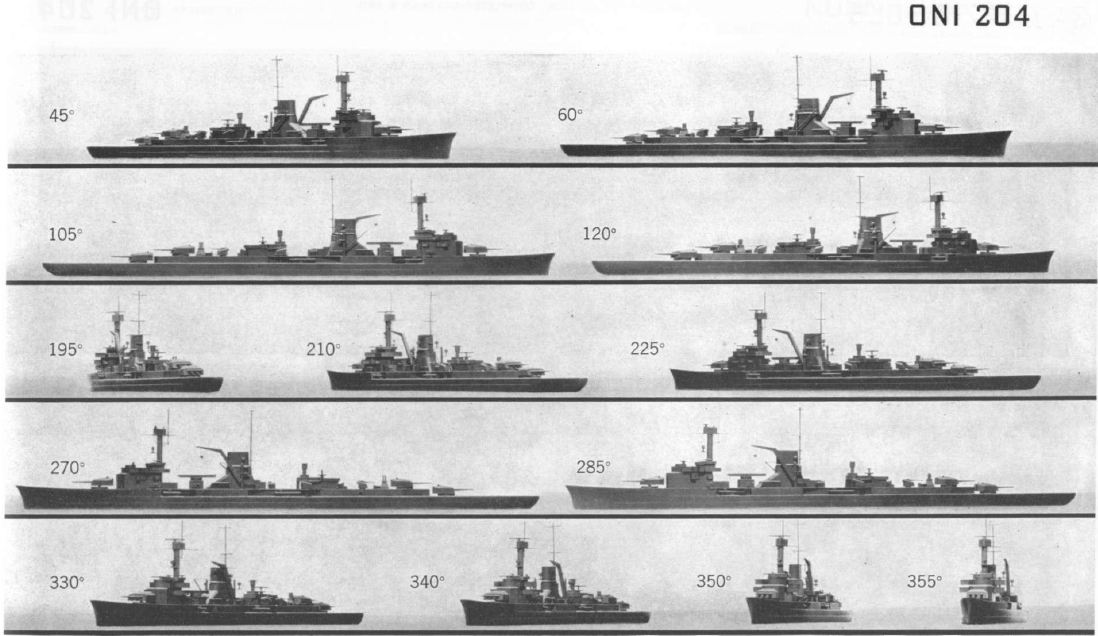

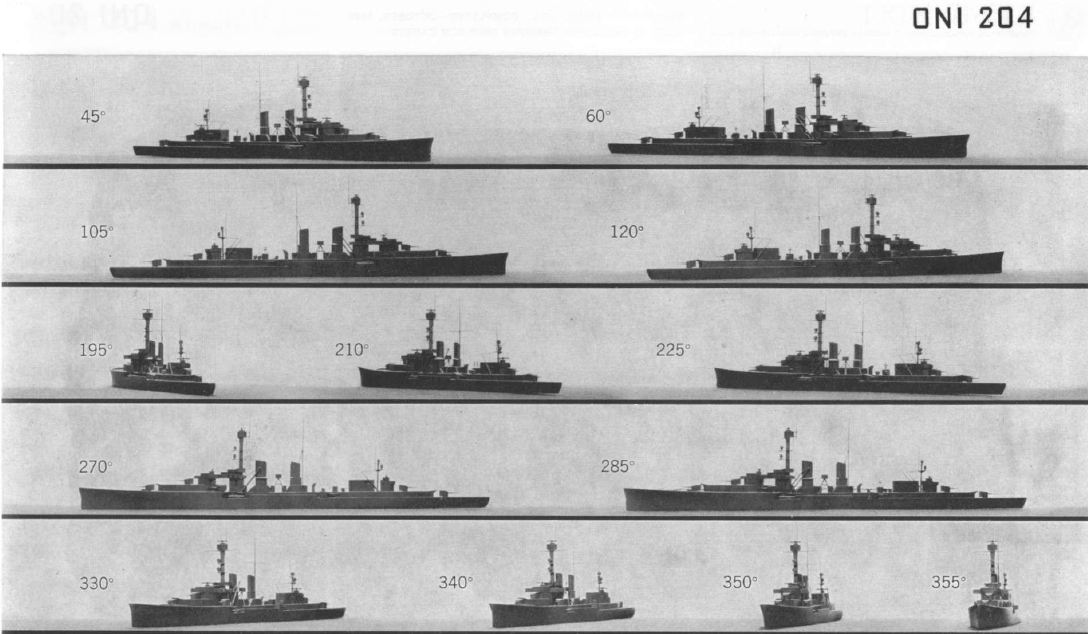

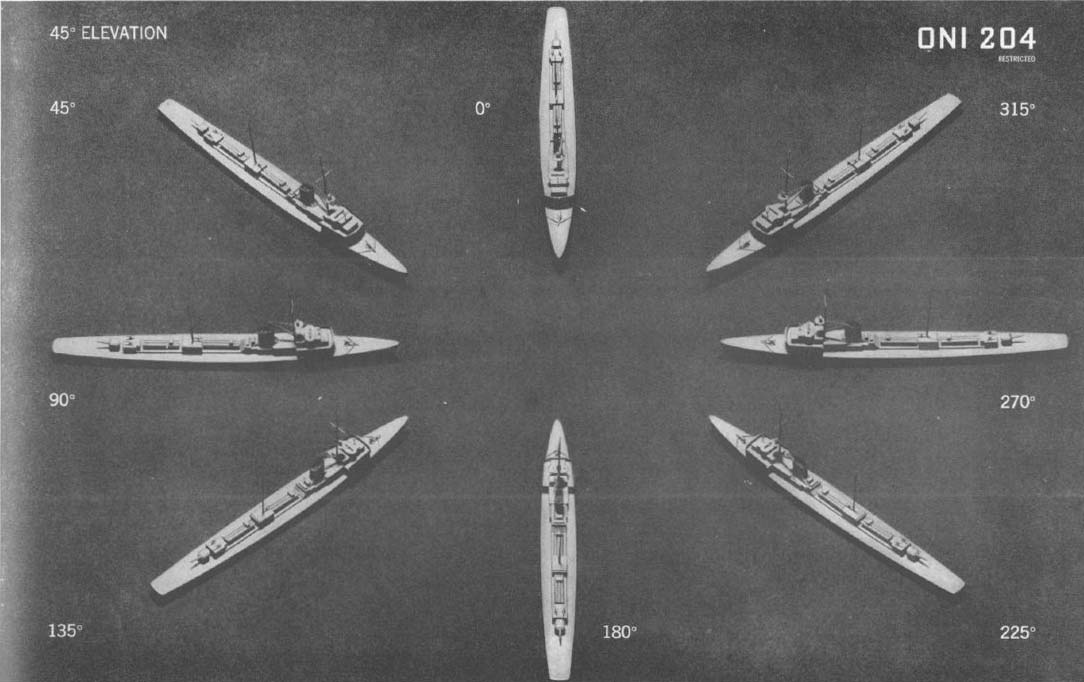

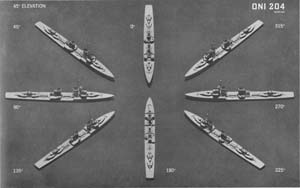

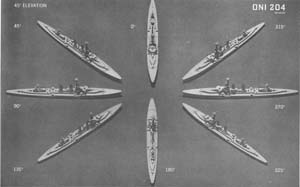

TACTICAL VIEWS


250 TON CLASS - SS


300-500-1060 TON CLASSES - SS


M-1 CLASS - AM 27-66


S CLASS - PT 6-111


R CLASS - AMc 1


AM-CM


AM-SEIZURES

SHIPS SOURCE   SHIPS SOURCE
WILLEM VAN EWIJCK-AM 72 ex-DUTCH PIETER FLORISZ-AM 73 ex-DUTCH
ABRAHAM VAN DER HULST-AM 74 ex-DUTCH SÖLÖVEN-AM 69 ex-DANISH
OTRA-AM 70 ex-NORWEGIAN RAUMA-AM 71 ex-NORWEGIAN
ELAN CLASS-AM 75 ex-FRENCH

FRIESENLAND - AVC 4


AVC 1-3

SHIPS COMPLETED   SHIPS COMPLETED
WESTFALEN-AVC 1 1906 SCHWABENLAND-AVC 2 1925
OSTMARK-AVC 3 1936

F-1 CLASS - TB 43-46


BRUMMER - PG 19


EX-OTB

SHIPS COMPLETED   SHIPS COMPLETED
T-155 6/25/08 T-157 8/27/08
T-156 7/21/08 T-158 10/8/08
BLITZ 1907 PFEIL 1907
EDUARD JUNGMANN 5/9/08 KLAUS VON BEVERN 8/5/11
T-196 11/10/01 KOMET 2/29/08
T-123 11-1-13

TANK LANDING CRAFT

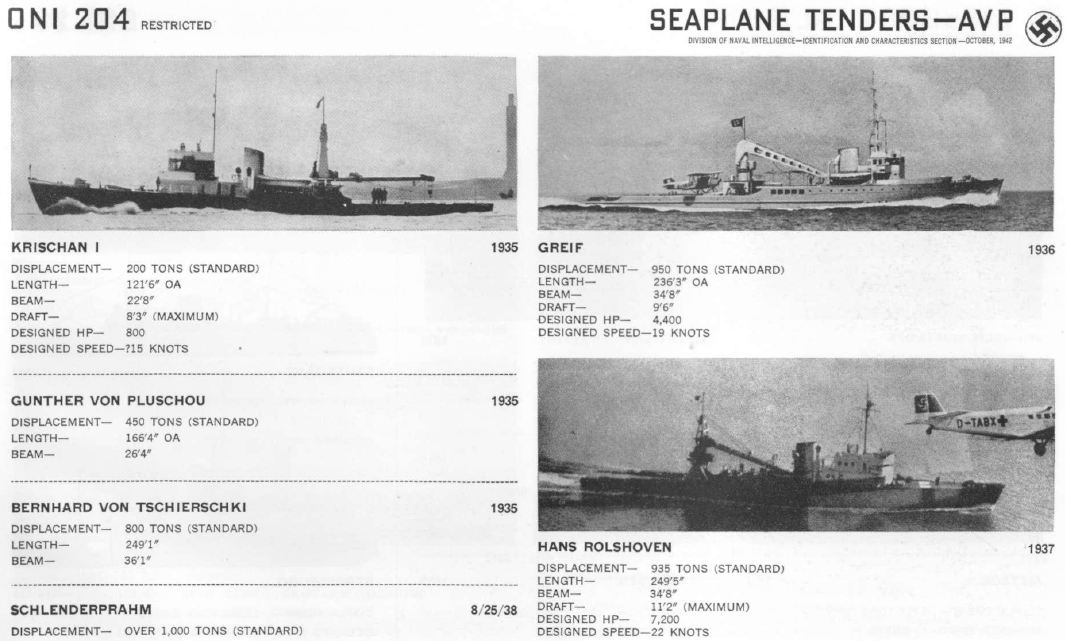

SEAPLANE TENDERS - AVP

SHIPS COMPLETED   SHIPS COMPLETED
KRISCHAN I 1935 GREIF 1936
GUNTHER VON PLUSCHOU 1935 BERNARD VON TSCHIERSCHKI 1935
SCHLENDERPRAHMZ 8/25/38 HANS ROLSHOVEN 1937

AH - HOSPITAL SHIPS

SHIPS COMPLETED   SHIPS COMPLETED
BERLIN 1935 WILHELM GUSTLOFF 1937
ROBERT LEY 1938 GLUCKAUF 1913
RÜGEN 1915 STUTTGART 1923
METEOR 1904 OBERHAUSEN 1939
STRASSBURG 1930

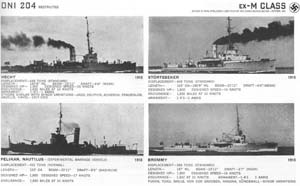

EX-M CLASS

SHIPS COMPLETED   SHIPS COMPLETED
HECHT 1918 STÖRTEBEKER 1918
PELIKAN, NAUTILUS 1918 BROMMY 1916

TRAWLERS

SHIPS COMPLETED   SHIPS COMPLETED
DAHME 1936 STRAHL 1902
PREGEL 1936 SPREE 1938
NOGAT 1937 NECK, HEISTERNEST No Data

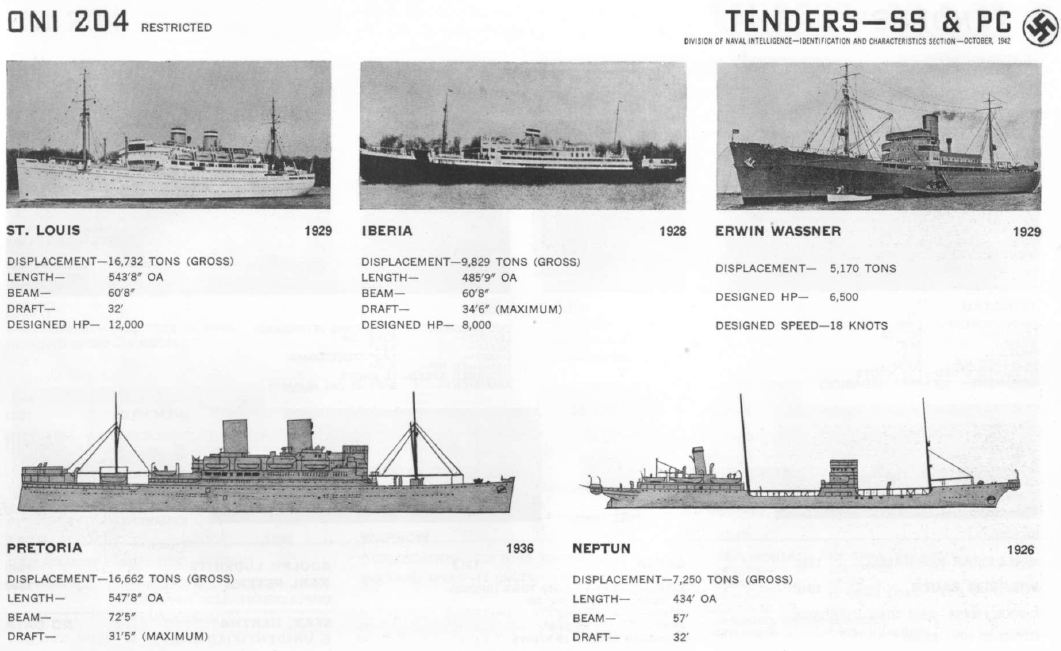

TENDERS - SS & PC - SS

SISTER SHIPS COMPLETED   SISTER SHIPS COMPLETED
ST. LOUIS 1929 IBERIA 1928
ERWIN WASSNER 1929 PRETORIA 1936
NEPTUNE 1926 TSINGTAU 9/24/34
SAAR 1/10/34 TANGA 1/21/39
WEICHSEL 1923 WALDEMAR KOPHAMEL 1940
ILHELM BAUER 1940 SATAN 1912
ADOLPH LÜDERITZ 1940 KARL PETERS 1940
SFAX, HERTHA No Data
MEMEL 1937 MOSEL 1912
ISAR Unknown DONAU 1937
LECH 1930 WARNOW Unknown
ODIN 1912-1916

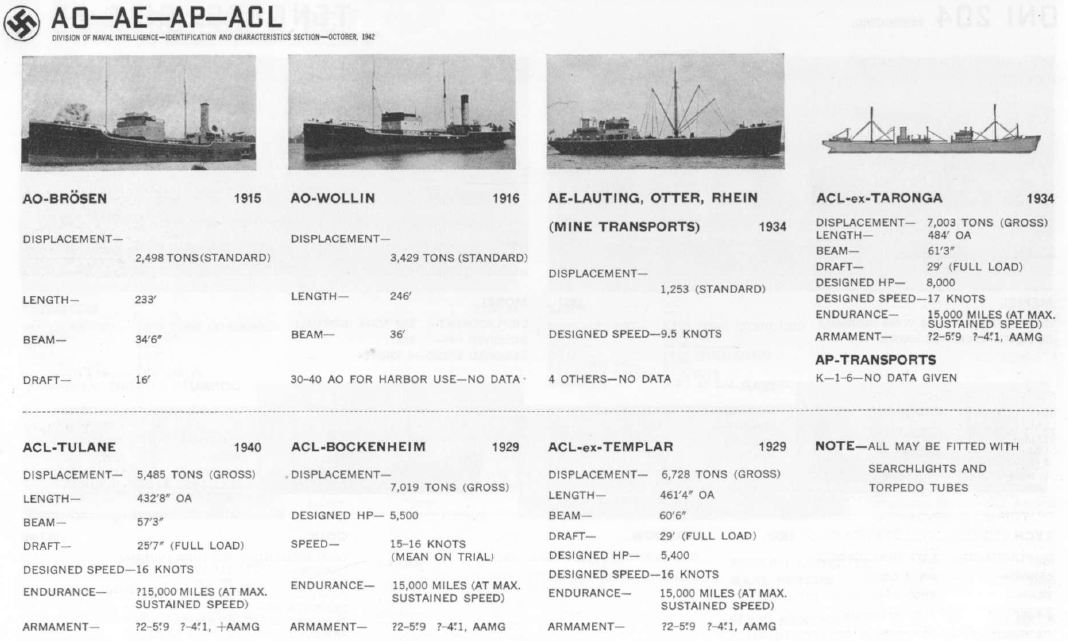

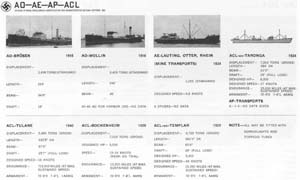

AO-AE-AP-ACL

SHIPS COMPLETED   SHIPS COMPLETED
AO-BRÖSEN 1915 AO-WOLLIN 1916
AE-LAUTING, OTTER, RHEIN 1934 ACL-ex-TARONGA 1934
AP-TRANSPORTS No data ACL-TULANE 1940
ACL-BOCKENHEIM 1929 ACL-EX-TEMPLAR 1929

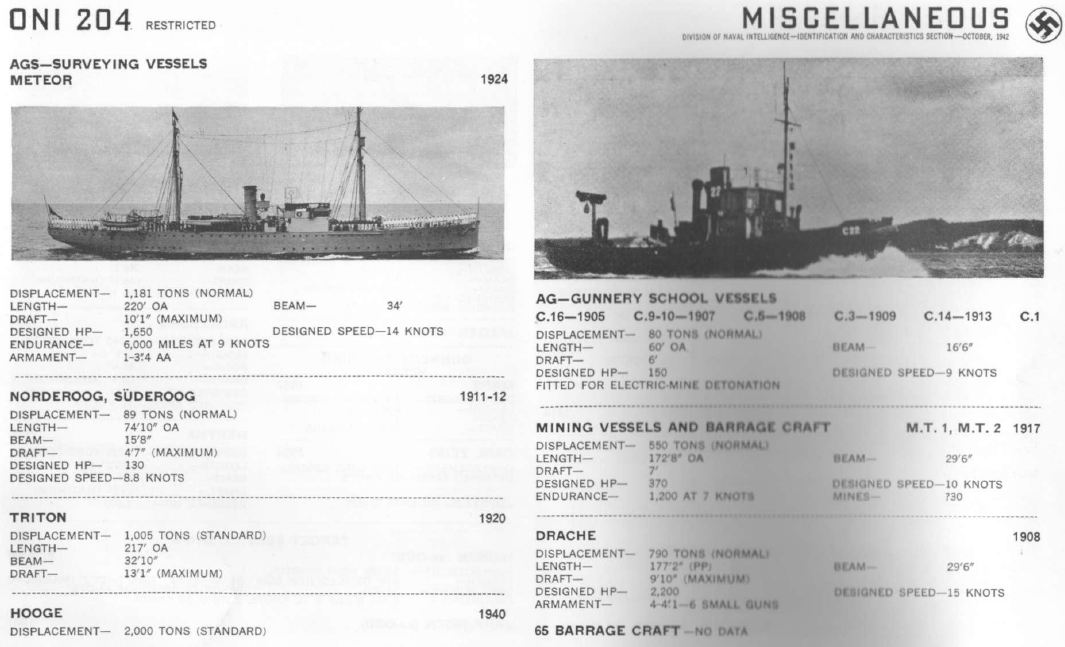

MISCELLANEOUS

TYPE/NAME COMPLETED   TYPE/NAME COMPLETED
AGS - SURVEYING VESSELS AG - GUNNERY SCHOOL VESSELS
METEOR 1924 C.16 1905
NORDEROOG 1911-12 C.9,10 1907
SÜDEROOG 1911-12 C.3 1909
TRITON C.14 1913
HOOGE 1940 MINING VESSELS AND BARRAGE CRAFT
FISHERY PROTECTION VESSELS M.T. 1,2 1917
WESER 1931 DRACHE 1908
ELBE 1931 65 Barrage Craft No Data
GUNNERY SCHOOL VESSELS TORPEDO SCHOOL TENDERS
AMMON 1922 ORKAN 1916
NIXE 1914 JAEGER No Data
SLOOP HELA 1940 GUNNERY TRAINING VESSELS
KREUZER No Data MARS 1937
DAHME No Data CARL ZEISS 1926
TARGET VESSELS JUPITER No Data
AHRENSBURG 1939 TARGET SERVICE SHIPS
ANGELBURG 1938 HESSEN 9/19/05
HERTHA 1905 ZÄAHRINGEN 1901


Transcribed and formatted for HTML by Rick Pitz, HyperWar Foundation
