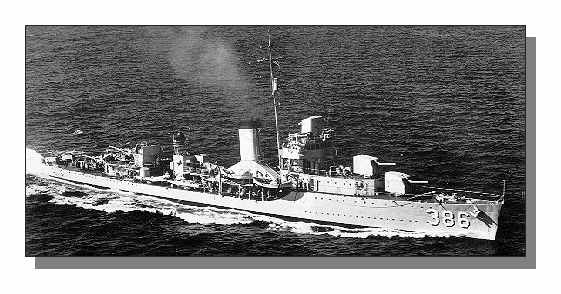

USS BAGLEY (DD-386)
![](DD-386_Bagley2.jpg)
SHIPS DATA
Name: Bagley
Hull Number: DD-386
Displacement: 1,500 tons
Dimensions:
341' 8" Length Overall
36' 2" Maximum Beam
10' 3" Maximum Draft
Armament:
4X5" 38cal (single mounting)
4X1.1"
12X21" Torpedo Tubes (quadruple mounting)
Machinery:
Parsons geared turbines, 42,800 S.H.P.
4 Express type boilers, 650 psi
Maximum Speed: 36.5 knots
Radius: 9000 miles at 15 knots
PHOTO GALLERY
Aerial view, starboard
Stern-view, in dry dock
Close up, Turret One
Close up, Mount Four
Starboard view, large
