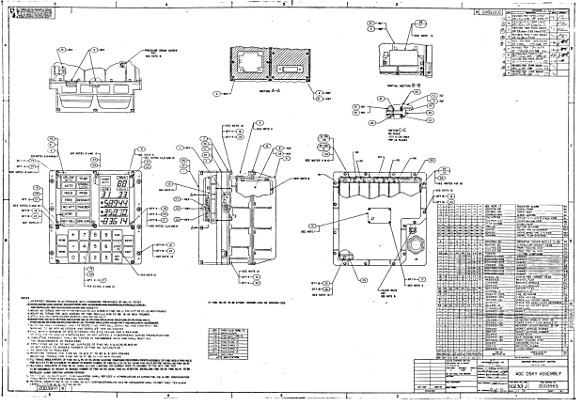

2003985-051,
AGC
DSKY ASSEMBLY
The sub-assembly hierarchy of DSKY p/n 2003985-051 is listed
below. Minor sub-assemblies and individual components that
appear in the drawings but are not listed below may appear in our master engineering-drawing index.
Note
that there is a later revision of the drawing than the one
shown above, but the one shown contains the configuration we need
and is the more legible.
- 2004929-011,
COVER,
FRONT
- 1006316,
INDICATOR, ALARM
- 1006315,
INDICATOR, DIGITAL
- 2003954-011,
MAIN
HOUSING ASSEMBLY, expanded
in more
detail below.
- 2004900,
COVER, REAR
- 1006350,
GASKET, BONDED, RUBBER
- 1006349,
GASKET, BONDED, RUBBER
- 2003901-011,
POWER
SUPPLY ASSEMBLY MODULE D7, expanded in more
detail below.
- 2003909-011,
KEYBOARD MODULE ASSEMBLY D8, expanded in
more detail below.
- 1004260-20,
NAMEPLATE
- 2004959, BRACKET, MODULE
- 2004958, BRACKET, MODULE
- 2003903-031,
FRONT
HOUSING ASSEMBLY, expanded
in more
detail below.
- 2003952-011,
INDICATOR
DRIVER MODULE D1-D6, expanded in more
detail below.
- 2005950,
SIGNAL FLOW DIAGRAM
- 2005951,
INTERCONNECTING DIAGRAM
- 2005957,
SIGNAL PIN ASSIGNMENT
- 2003956,
OUTLINE DRAWING
2003952-011,
INDICATOR
DRIVER MODULE D1-D6
- 2003907-011,
HEADER
ASSEMBLY
- 2003910-011,
RELAY
CIRCUIT ASSEMBLY
- 2004908,
BLOCK, COMPONENT RELAY
- 2004933,
INSULATOR, A
- 2004952,
INSULATOR, B
- 2004916,
INSULATOR
- 2004951, BOARD, INSULATOR
- 2003911-011,
MATRIX
ASSEMBLY
- 1006282-2,
RELAY
- 1010784-11,
RELAY
2005902,
SCHEMATIC. Note:
There is an inconsistency here, in that assemblies 2003908-011
and 2003910-011 call out a different schematic drawing than
their parent assembly, 2003952. Moreover, internally,
schematic 2005902 indicates that it is a child of drawing
2003902 (and vice-versa) rather than of drawing 2003952.
Finally, schematic 2005952, which is what's called out by
drawing 2003952, indicates internally that it is a child of
2003952. All of these facts, collectively and
individually, indicate that drawing 2005952 is the correct
schematic rather than drawing 2005902.
- 2003908-011,
DECODING
CIRCUIT ASSEMBLY
- 2004911, COVER
- 2004956, COVER, REAR
- 2004990-011, INSULATOR, PHOTOMASTER, REAR
- 2004991, INSULATOR, PHOTOMASTER, UPPER LEVEL
- 2004992-011, INSULATOR, PHOTOMASTER, LOWER LEVEL
- 2004993, INSULATOR, PHOTOMASTER, SPECIAL LEVEL
- 2004917,
INSULATOR
- 2005952,
SCHEMATIC. Note: This drawing has been
transcribed into CAD files (see the
explanation), which can
be
found in our CAD schematics repository. There is
also a folder of visual renderings of
those CAD files as images.
2003901-011,
POWER
SUPPLY ASSEMBLY MODULE D7
- 2003921-011,
HEADER
ASSEMBLY
- 2004905, COVER, TOP
- 2004906, COVER, BOTTOM
- 2004934,
INSULATOR, REAR
- 2004901-011,
INSULATOR,
LOWER LEVEL
- 2004902, INSULATOR, UPPER LEVEL
- 2005904,
SCHEMATIC. Note: This drawing has been
transcribed into CAD files (see the
explanation), which can
be
found in our CAD schematics repository. There is
also a folder of visual renderings of
those CAD files as images.
2003903-031,
FRONT
HOUSING ASSEMBLY
- 1006351,
GASKET, PREFORMED
- 2003912-011,
ADAPTER,
PLATE, ASSEMBLY
- 2004919-011,
PLATE,
ADAPTER
- 2003913-011,
CONNECTOR,
PLATE ASSEMBLY
- 2003914-011,
CONNECTOR,
PLATE ASSEMBLY
- 2003915-011,
CONNECTOR,
PLATE ASSEMBLY
- 2004922-011, PLATE, CONNECTOR
- 2003974,
SWITCH, ASSEMBLY, PUSHBUTTON
- 1006353,
CAP, ELECTRICAL, ENGRAVED
- 2003933-011,
HOUSING
ASSEMBLY (MOUNTING)
- 2004949,
HOUSING, SWITCH MOUNTING
- 1006354,
HEADER, HERMETIC SEAL
- 2003934-011,
DISK
ASSEMBLY
- 2003923-011,
SWITCH,
POTTED ASSEMBLY
- 1010901-2,
SWITCH,
SENSITIVE
- 2004957, CABLE, SPECIAL PURPOSE ELECTRICAL
- 2003975-011,
SHAFT
ASSEMBLY
- 2003926-011, HOUSING ASSEMBLY (CAP)
- 1006369, PACKING PREFORM
- 2004944,
SPRING, CAP RETAINING
- 2004941,
SPRING, COMPRESSION
- 2004968-011,
HOUSING,
FRONT
- 2004971, COMB, WIRE
2003954-011,
MAIN
HOUSING ASSEMBLY
- 2003967-011,
IDM
WIREWRAP PLATE ASSEMBLY
- 2004974-011,
PLATE,
IDM
- 2005906, WIREWRAP CARD DECK
- 2003916-011,
CONNECTOR
PLATE ASSEMBLY
- 1000159,
PACKING, PREFORMED, O-RING
- 2004903,
VALVE, PNEUMATIC TANK
- 2003980-011,
WIRING
HARNESS, BRANCHED
- 2004931, RETAINER, VALVE CAP
- 2004927, COMB, WIRE
2003909-011,
KEYBOARD MODULE ASSEMBLY D8
