Use your fingers or mouse to control the model (hold shift key or use mouse wheel to zoom it). Canvas is matched to your browser window.

Two slit interference on 1024×1024 lattice

You see dynamics of the travelling wave packet
    u(r) = exp(-(r - Ro )2/a2) cos kr,     kx = k cos φ, ky =   k sin φ
moving in the k direction.

Boundary conditions

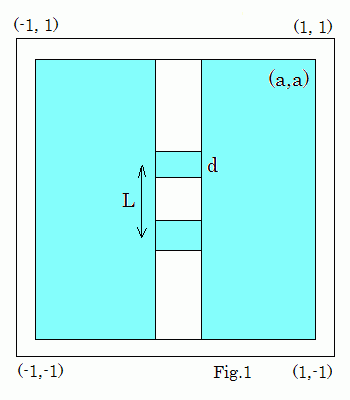

Textures with simple and natural periodic boundaries are used in previous applications (corresponding to periodic grid of fictitious sources). To take into consideration complex boundary it is enough to "draw" corresponding region carefully. Then the boundary values will stay fixed during calculations. The pattern shown to the left is used to simulate two slit interference. Here a = 1 - 2/N,   N = 1024. Corresponding texture coordinates are calculated as Tk = (Rk + 1)/2.

Simulations on GPU
