USS Barnegat (AVP-10), 1941-1958 --
Booklet of General Plans

This page features photographs of a "Booklet of General Plans" of USS Barnegat, originally produced at the Puget Sound Navy Yard under date of 20 November 1940 and "corrected to suit ship" at the Boston Navy Yard on 27 April 1942, 24 February 1943 and 18 June 1943. Original drawing scale is 1/8 inch = 1 foot.

For additional images of USS Barnegat, see:
USS Barnegat (AVP-10), 1941-1958.

If you want higher resolution reproductions than the digital images presented here, see: "How to Obtain Photographic Reproductions."

Click on the small photograph to prompt a larger view of the same image.

Photo #: NH 73788

USS Barnegat (AVP-10)


Plates 1 and 2 of the ship's Booklet of General Plans, corrected through 18 June 1943.
This is the first sheet of eight in this series, and shows the original booklet's cover and data plates.

The original plan has Bureau of Ships plan # 303470.

U.S. Naval Historical Center Photograph.

Online Image: 128KB; 1200 x 525 pixels


Photo #: NH 73789

USS Barnegat (AVP-10)

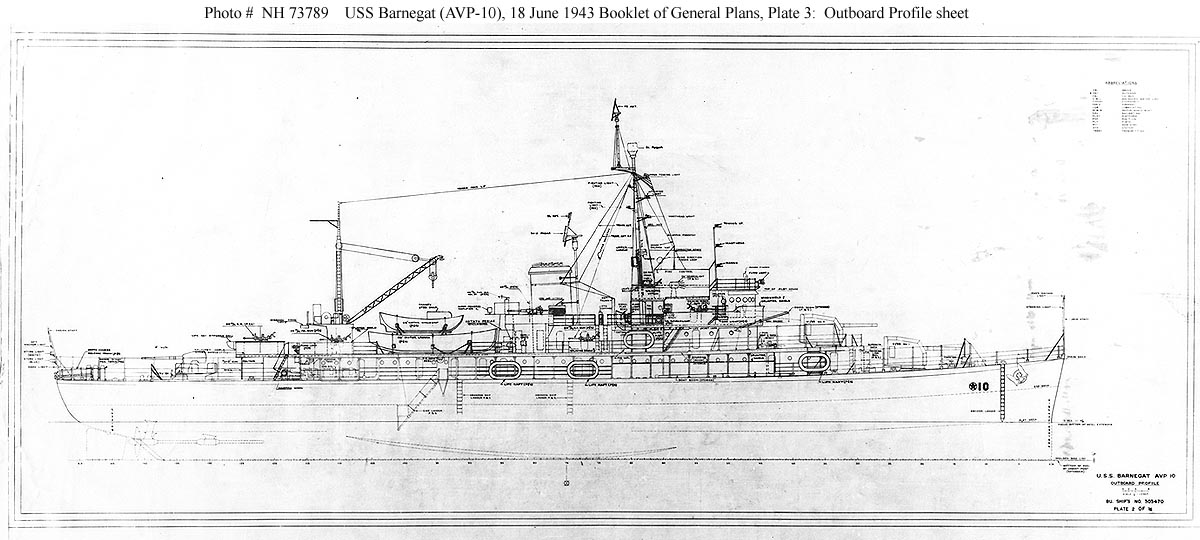

Plate 3 (mislabeled as Plate 2) of the ship's Booklet of General Plans, corrected through 18 June 1943.
This is the second sheet of eight in this series, and shows the ship's outboard profile drawing.

The original plan has Bureau of Ships plan # 303470.

U.S. Naval Historical Center Photograph.

Online Image: 119KB; 1200 x 540 pixels


Photo #: NH 73790

USS Barnegat (AVP-10)


Plate 4 of the ship's Booklet of General Plans, corrected through 18 June 1943.
This is the third sheet of eight in this series, and shows the ship's inboard profile drawing.

The original plan has Bureau of Ships plan # 303470.

U.S. Naval Historical Center Photograph.

Online Image: 137KB; 1200 x 520 pixels


Photo #: NH 73791

USS Barnegat (AVP-10)


Plates 5, 6 & 7 of the ship's Booklet of General Plans, corrected through 18 June 1943.
This is the fourth sheet of eight in this series, and includes drawings of the ships Pilot House Top & Platforms (upper plate), Bridges (middle) and Superstructure Deck (lower).

The original plan has Bureau of Ships plan # 303470.

U.S. Naval Historical Center Photograph.

Online Image: 153KB; 1200 x 775 pixels


Photo #: NH 73792

USS Barnegat (AVP-10)


Plates 8, 9 & 10 of the ship's Booklet of General Plans, corrected through 18 June 1943.
This is the fifth sheet of eight in this series, and shows drawings of the the ship's main, second and platform decks.

The original plan has Bureau of Ships plan # 303470.

U.S. Naval Historical Center Photograph.

Online Image: 316KB; 1200 x 780 pixels


Photo #: NH 73793

USS Barnegat (AVP-10)

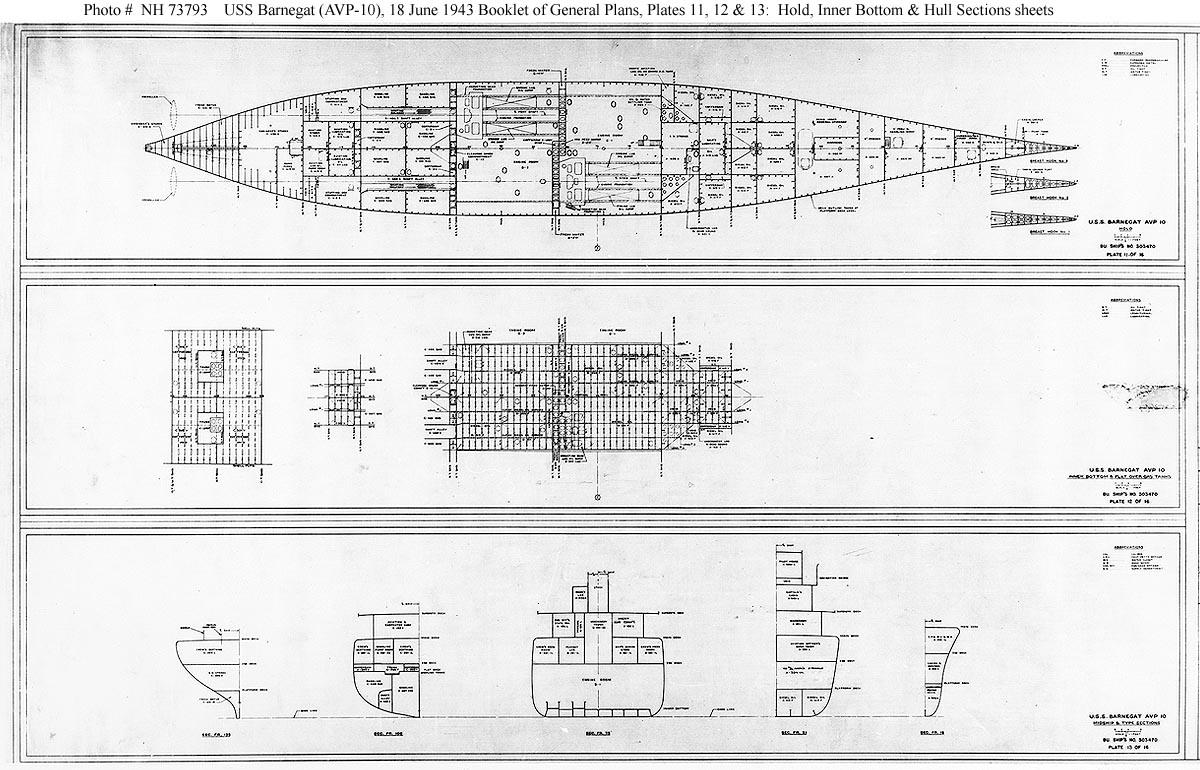

Plates 11, 12 & 13 of the ship's Booklet of General Plans, corrected through 18 June 1943.
This is the sixth sheet of eight in this series, and includes drawings of the ships Hold (upper plate), Inner Bottom & Flat over Gas Tanks (middle), and Midship & Type Sections (lower).

The original plan has Bureau of Ships plan # 303470.

U.S. Naval Historical Center Photograph.

Online Image: 206KB; 1200 x 770 pixels


Photo #: NH 73794

USS Barnegat (AVP-10)

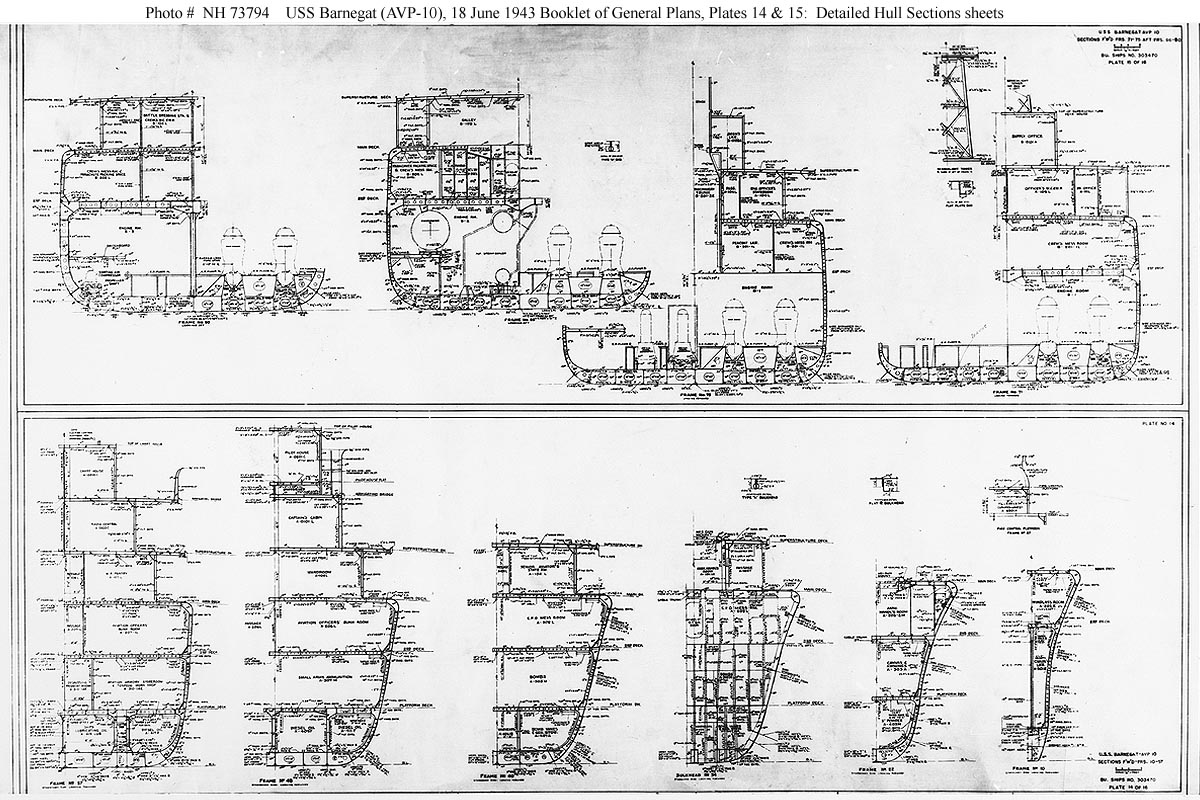

Plates 14 (lower) & 15 (upper) of the ship's Booklet of General Plans, corrected through 18 June 1943.
This is the seventh sheet of eight in this series, and includes drawings of the ship's Hull Sections at (from right, lower plate) Frames 10, 22, 34, 40, 48 & 57; and (from left, upper plate) Frames 71, 75, 86 & 90. Drawings for Frames 86 & 90 are of starboard side, looking aft. Others are of starboard side, looking forward.

The original plan has Bureau of Ships plan # 303470.

U.S. Naval Historical Center Photograph.

Online Image: 275KB; 1200 x 800 pixels


Photo #: NH 73795

USS Barnegat (AVP-10)

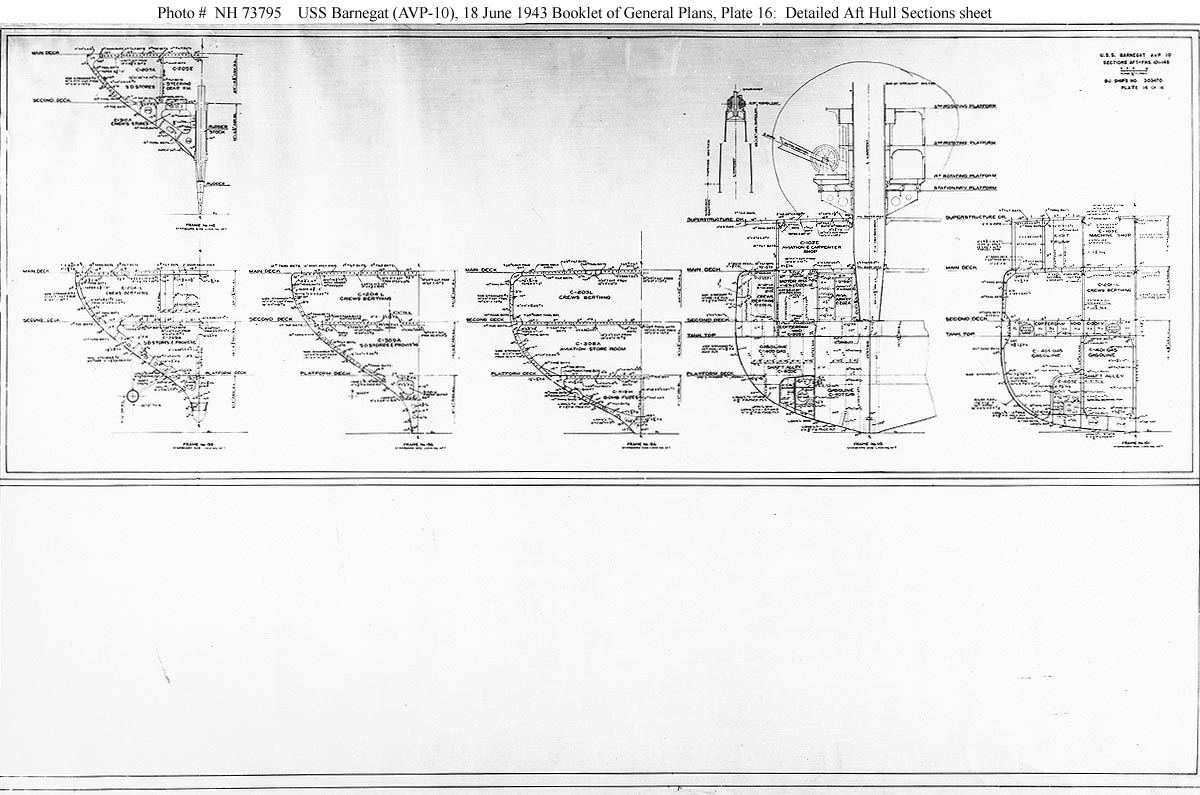

Plate 16 of the ship's Booklet of General Plans, corrected through 18 June 1943.
This is the eighth sheet of eight in this series, and includes drawings of the ship's Hull Sections at (from right) Frames 101, 112, 124, 136 & 139, with the section at Frame 145 in the upper left (all on starboard side, looking aft).

The original plan has Bureau of Ships plan # 303470.

U.S. Naval Historical Center Photograph.

Online Image: 157KB; 1200 x 795 pixels
