Photo # NH 77459:  USS Pike surfacing, off Mare Island, California, 1905

Online Library of Selected Images:
-- U.S. NAVY SHIPS --

USS Pike (Submarine # 6, later SS-6), 1903-1922.
Later renamed A-5

USS Pike was a 107-ton Plunger (later A-1) class submarine, built at San Francisco, California, and commissioned in late May 1903. Following three years of operations out of the Mare Island Navy Yard she was out of commission there between November 1906 and June 1908. She then served along the Pacific coast for four years. Pike was renamed A-5 in November 1911 and, in June 1912 was again placed in reserve, this time at the Puget Sound Navy Yard.

During February and March 1915 the collier Hector transported A-5 to the Philippines. She was recommissioned there in April 1915 and began active service in Philippine coastal waters. Accidently sunk at the Cavite Navy Yard in April 1917, A-5 was raised and reconditioned in time to perform patrols off Manila Bay during the rest of World War I. She remained active after the conflict's end and was designated SS-6 when the Navy formally adopted the hull number system in July 1920. USS A-5 was decommissioned a year later and was subsequently used as a target. She was stricken from the Navy list in January 1922.

This page features all the views we have related to USS Pike (Submarine # 6), which was renamed A-5 in 1911.


If you want higher resolution reproductions than the digital images presented here, see: "How to Obtain Photographic Reproductions."

Click on the small photograph to prompt a larger view of the same image.

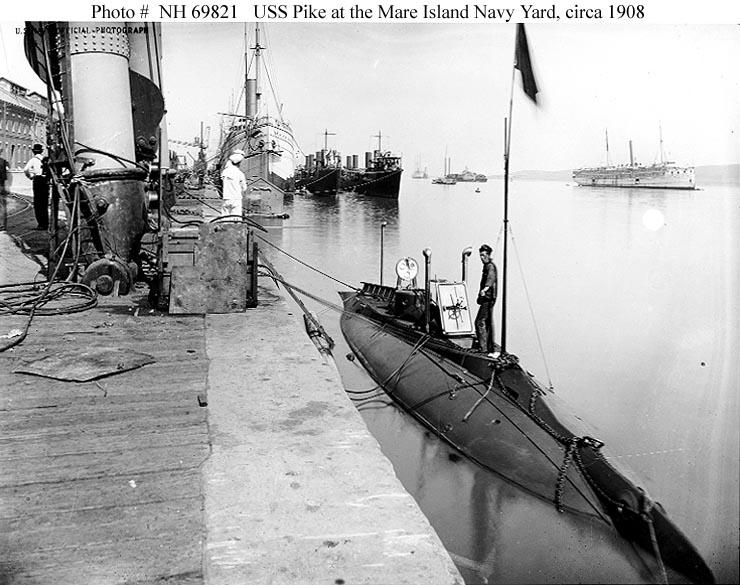

Photo #: NH 69821

USS Pike
(Submarine # 6)

At the Mare Island Navy Yard, California, circa 1908.
Two Paul Jones class destroyers are in the center background. Ship in the right distance is USS Relief (1908-1919).

Courtesy of Donald M. McPherson, 1969.

U.S. Naval Historical Center Photograph.

Online Image: 97KB; 740 x 585 pixels

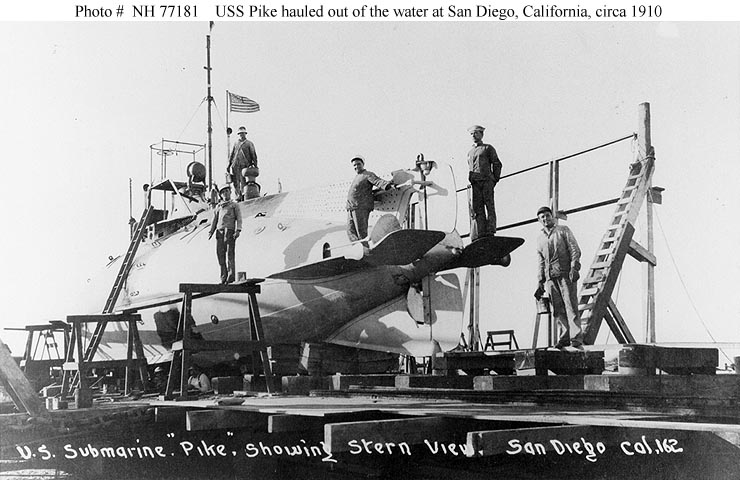

Photo #: NH 77181

USS Pike
(Submarine # 6)

Hauled out on a marine railway, at San Diego, California, circa 1910.

Courtesy of Donald M. McPherson, 1973.

U.S. Naval Historical Center Photograph.

Online Image: 80KB; 740 x 480 pixels

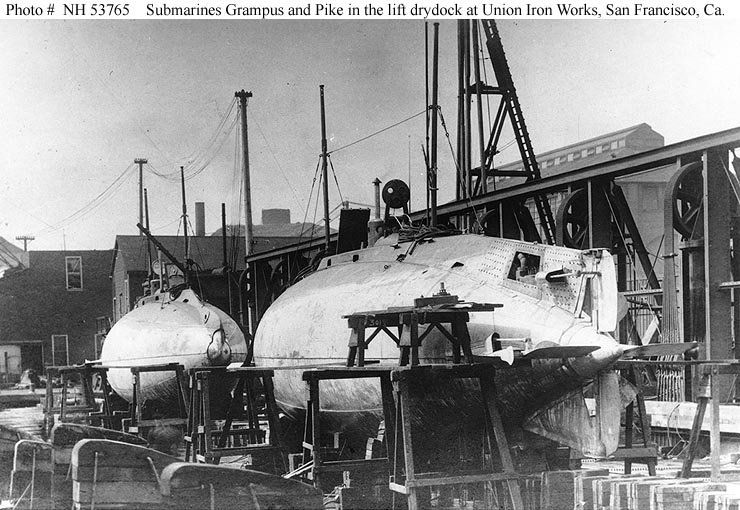

Photo #: NH 53765

USS Grampus
(Submarine # 4)
and
USS Pike (Submarine # 6)

In the hydraulic lift drydock at the Union Iron Works, San Francisco, California, circa 1903.

U.S. Naval Historical Center Photograph.

Online Image: 103KB; 740 x 510 pixels


Photo #: NH 77459

USS Pike
(Submarine # 6)

Surfacing, while operating off Mare Island, California, in 1905.
Photogaph reproduced on a postal card.

Courtesy of Commander Donald J. Robinson, USN(MSC), 1973.

U.S. Naval Historical Center Photograph.

Online Image: 82KB; 740 x 500 pixels


Photo #: NH 65648

USS Pike
(Submarine # 6), at left
and
USS Grampus (Submarine # 4), at right

In drydock at the Mare Island Navy Yard, California, 23 September 1906.
The Army Transport Lawton, freshly painted, is in the center.

U.S. Naval Historical Center Photograph.

Online Image: 164KB; 740 x 610 pixels

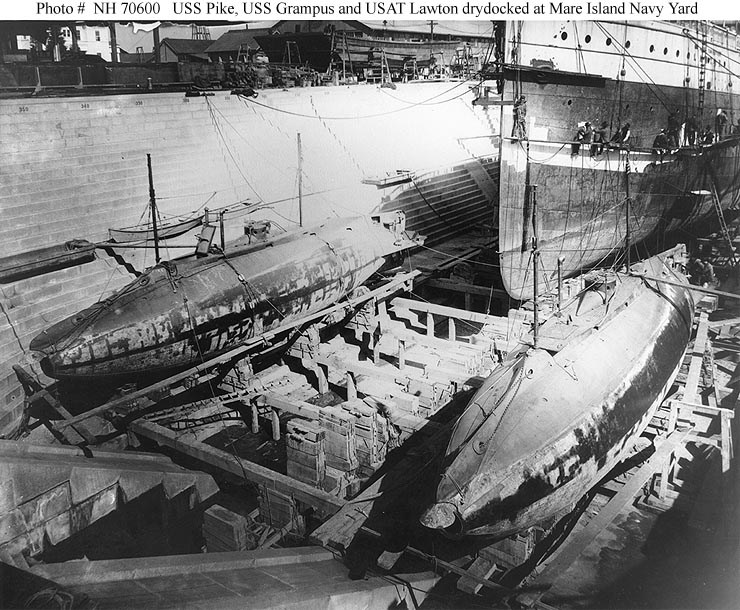

Photo #: NH 70600

USS Pike
(Submarine # 6), at left
and
USS Grampus (Submarine # 4), at right

In drydock at the Mare Island Navy Yard, California. Photograph is dated 19 October 1903.
The Army Transport Lawton is being painted in the right background.

U.S. Naval Historical Center Photograph.

Online Image: 142KB; 740 x 610 pixels


Photo #: NH 98616

Mare Island Navy Yard, California


The Navy Yard Fire Department fights a gasoline fire apparently involving the submarines Grampus (Submarine # 4) and Pike (Submarine # 6), 1909-1910.
One of the submarines can be seen just offshore, in the left center.

Courtesy of the Naval Historical Foundation, Washington, D.C.

U.S. Naval Historical Center Photograph.

Online Image: 77KB; 740 x 530 pixels

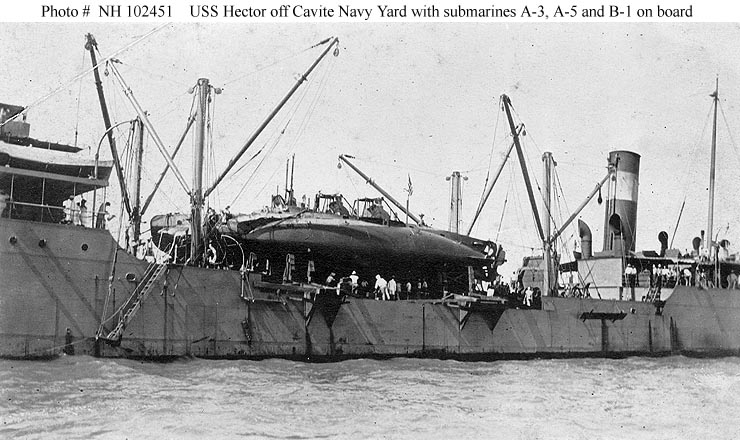

Photo #: NH 102451

USS Hector
(Collier # 7)

Off the Cavite Navy Yard, Philippine Islands, circa March 1915, with submarines A-3, A-5 and B-1 on deck, after transporting them out from the United States.
B-1 is on Hector's starboard side. The two "A" boats are in the center and port side cradles.

Donation of Ted Stone.

U.S. Naval Historical Center Photograph.

Online Image: 91KB; 740 x 440 pixels

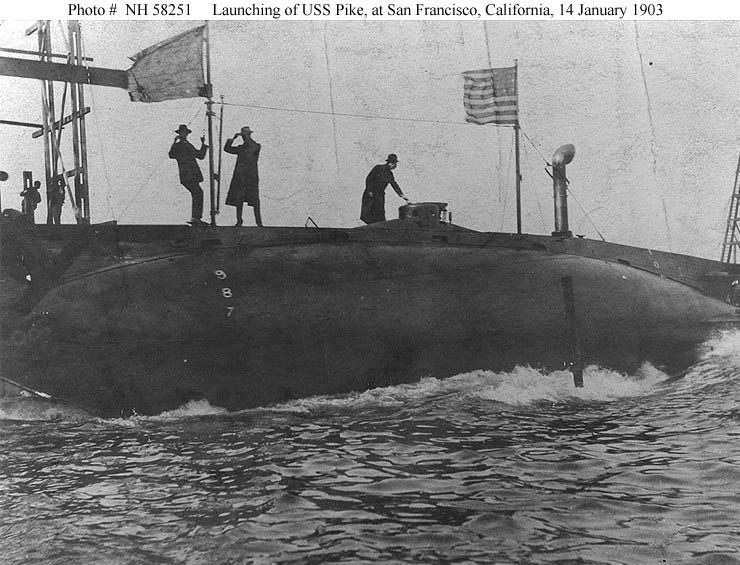

Photo #: NH 58251

USS Pike
(Submarine # 6)

Launching, at the Union Iron Works, San Francisco, California, on 14 January 1903.

Collection of Fleet Admiral Chester W. Nimitz.

U.S. Naval Historical Center Photograph.

Online Image: 103KB; 740 x 565 pixels


Photo #: NH 58252

USS Pike
(Submarine # 6)

Afloat immediately after her launching, at the Union Iron Works, San Francisco, California, on 14 January 1903. Several Navy pulling boats are nearby,

Collection of Fleet Admiral Chester W. Nimitz.
The writing on the print is FAdm. Nimitz'.

U.S. Naval Historical Center Photograph.

Online Image: 105KB; 740 x 530 pixels




The following photograph probably shows Pike, or her sister, USS Grampus (Submarine # 4):

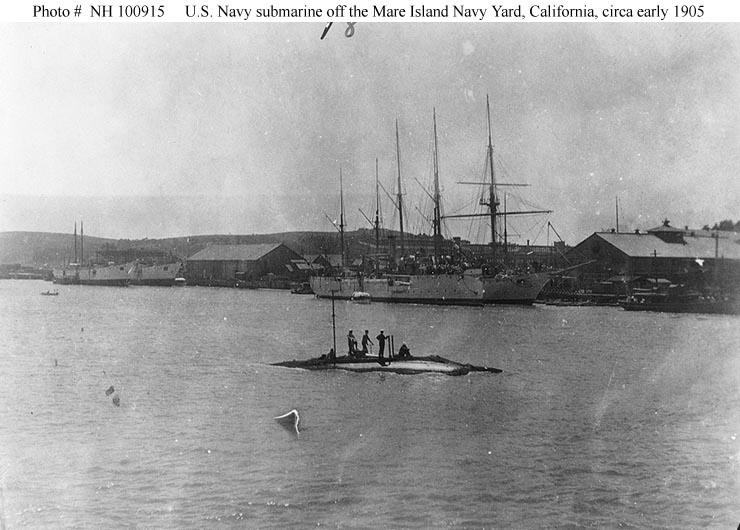

Photo #: NH 100915

Mare Island Navy Yard, California


An early U.S. Navy submarine (probably Grampus or Pike) underway off the yard, circa early 1905.
Gunboats Petrel and Princeton are in the center background. At left are the decommissioned gunboats Annapolis and Vicksburg.

Courtesy of Ted Stone, 1986.

U.S. Naval Historical Center Photograph.

Online Image: 77KB; 740 x 530 pixels
