Photo # 19-N-7-9-3:  USS Wyoming under construction at San Francisco, California, 30 Uune 1900

Online Library of Selected Images:
-- U.S. NAVY SHIPS --

USS Wyoming (Monitor # 10) --
Construction and Miscellaneous Views

Built by the Union Iron Works at San Francisco, California, USS Wyoming was the only one of her four-ship class to be constructed on the West Coast. Her keel was laid on 11 April 1899 and she was launched on 8 September 1900, sponsored by Miss Hattie Warren, daughter of a U.S. Senator from the state of Wyoming. Following outfitting and trials she was placed in commission at the Mare Island Navy Yard on 8 December 1902.

This page features views of the construction of USS Wyoming (Monitor # 10), plus miscellaneous views concerning the ship

For other images related to this ship, see:

  • USS Wyoming (Monitor # 10, later BM-10 and IX-4), 1902-1939. Name changed to Cheyenne in 1909.


    If you want higher resolution reproductions than the digital images presented here, see: "How to Obtain Photographic Reproductions."

    Click on the small photograph to prompt a larger view of the same image.

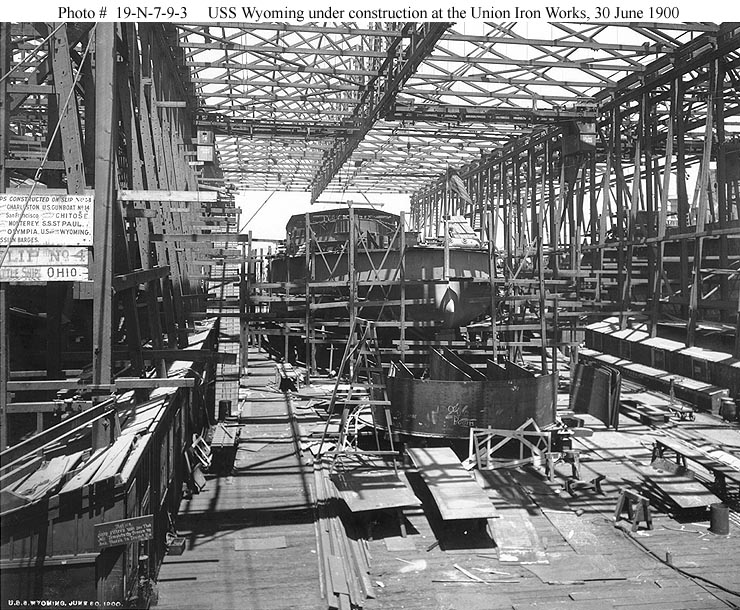

    Photo #: 19-N-7-9-3

    USS Wyoming
    (Monitor # 10)

    Under construction on Slip Number 3 at the Union Iron Works, San Francisco, California, 30 June 1900.
    The sign at left identifies the other ships built on this slip, including the U.S. cruisers Charleston, San Francisco and Olympia; U.S. monitors Monterey and Wyoming; U.S. "Gunboat No. 14" (USS Wheeling); Japanese cruiser Chitose; and the S.S. St. Paul. The adjacent Slip Number 4 was used to build the U.S. battleship Ohio.

    Photograph from the Bureau of Ships Collection in the U.S. National Archives.

    Online Image: 174KB; 740 x 610 pixels

    Reproductions of this image may also be available through the National Archives photographic reproduction system.


    Photo #: NH 75110

    Union Iron Works, San Francisco, California


    Panoramic view of shipways and outfitting area, 1900.
    USS Wisconsin (Battleship # 9) is fitting out at left. Ships on the ways are (from left to right):
    USS Paul Jones (Destroyer # 10);
    USS Perry (Destroyer # 11);
    USS Wyoming (Monitor # 10);
    USS Ohio (Battleship # 12); and the
    S.S. Californian.

    Courtesy of the San Francisco Maritime Museum, 1971. The original print is in the Union Iron Works scrapbook, Volume II, page 157.

    U.S. Naval Historical Center Photograph.

    Online Image: 118KB; 1200 x 410 pixels

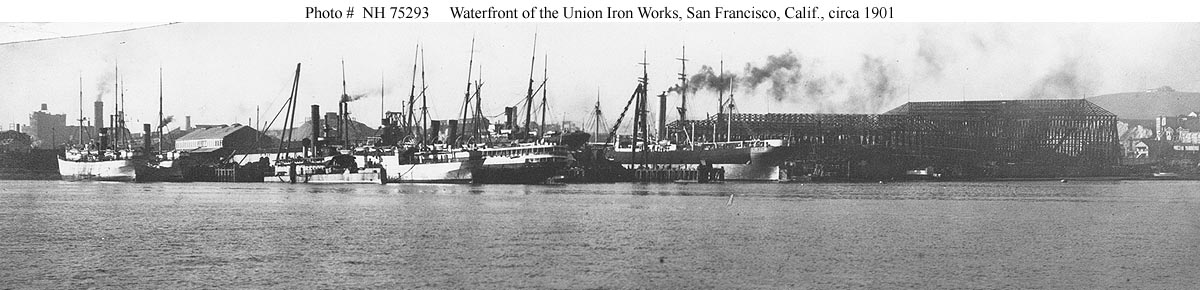

    Photo #: NH 75293

    Union Iron Works, San Francisco, California


    Panoramic view of the shipyard waterfront, circa 1901.
    USS Wyoming (Monitor # 10) is fitting out in the left center.

    Courtesy of the San Francisco Maritime Museum, 1971. The original print is in the Union Iron Works scrapbook, Volume II, page 157.

    U.S. Naval Historical Center Photograph.

    Online Image: 87KB; 1200 x 290 pixels

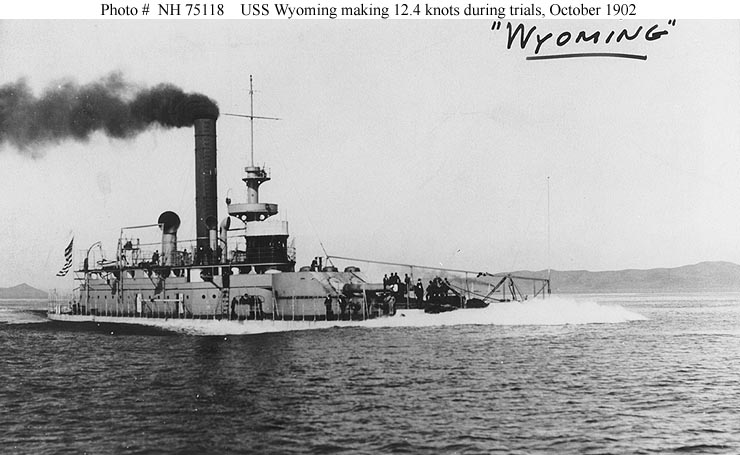

    Photo #: NH 75118

    USS Wyoming
    (Monitor # 10)

    Making 12.4 knots during trials, off San Francisco, California, in October 1902.

    Courtesy of the San Francisco Maritime Museum, 1971. The original print is in the Union Iron Works scrapbook, Volume II, page 166.

    U.S. Naval Historical Center Photograph.

    Online Image: 66KB; 740 x 455 pixels

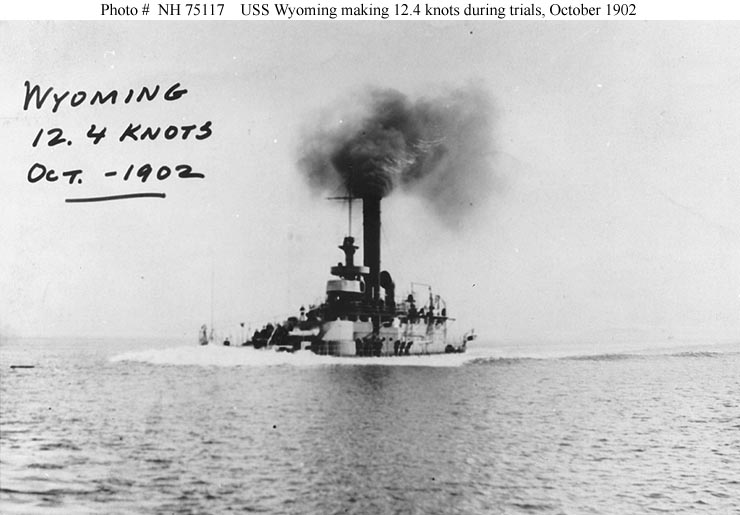

    Photo #: NH 75117

    USS Wyoming
    (Monitor # 10)

    Making 12.4 knots during trials, near San Francisco, California, in October 1902.

    Courtesy of the San Francisco Maritime Museum, 1971. The original print is in the Union Iron Works scrapbook, Volume II, page 166.

    U.S. Naval Historical Center Photograph.

    Online Image: 54KB; 740 x 515 pixels

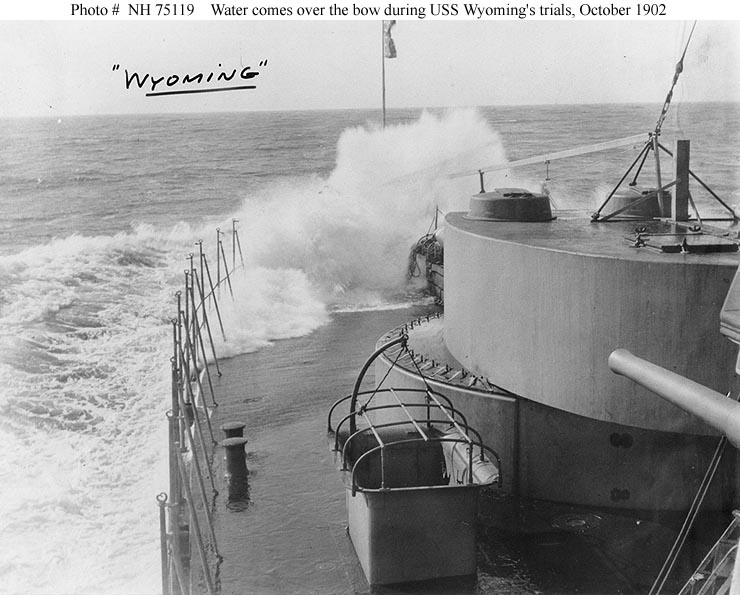

    Photo #: NH 75119

    USS Wyoming
    (Monitor # 10)

    View on board, looking forward, showing water coming over her bow while she was running trials off San Francisco, California, in October 1902.
    Note the ship's twelve-inch gun turret at right.

    Courtesy of the San Francisco Maritime Museum, 1971. The original print is in the Union Iron Works scrapbook, Volume II, page 166.

    U.S. Naval Historical Center Photograph.

    Online Image: 83KB; 740 x 595 pixels

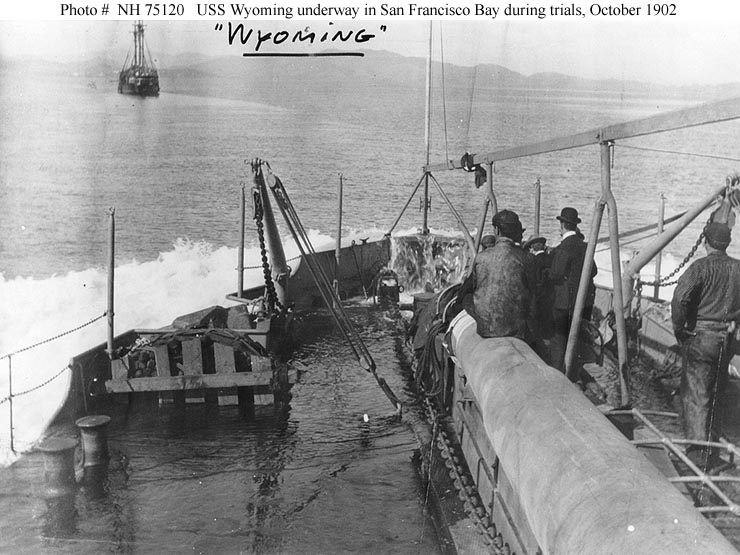

    Photo #: NH 75120

    USS Wyoming
    (Monitor # 10)

    View on board, looking forward, while she was running trials off San Francisco, California, in October 1902.
    Note water pouring over her bow bulwark, and men sitting on the twelve-inch gun at right.

    Courtesy of the San Francisco Maritime Museum, 1971. The original print is in the Union Iron Works scrapbook, Volume II, page 167.

    U.S. Naval Historical Center Photograph.

    Online Image: 92KB; 740 x 555 pixels

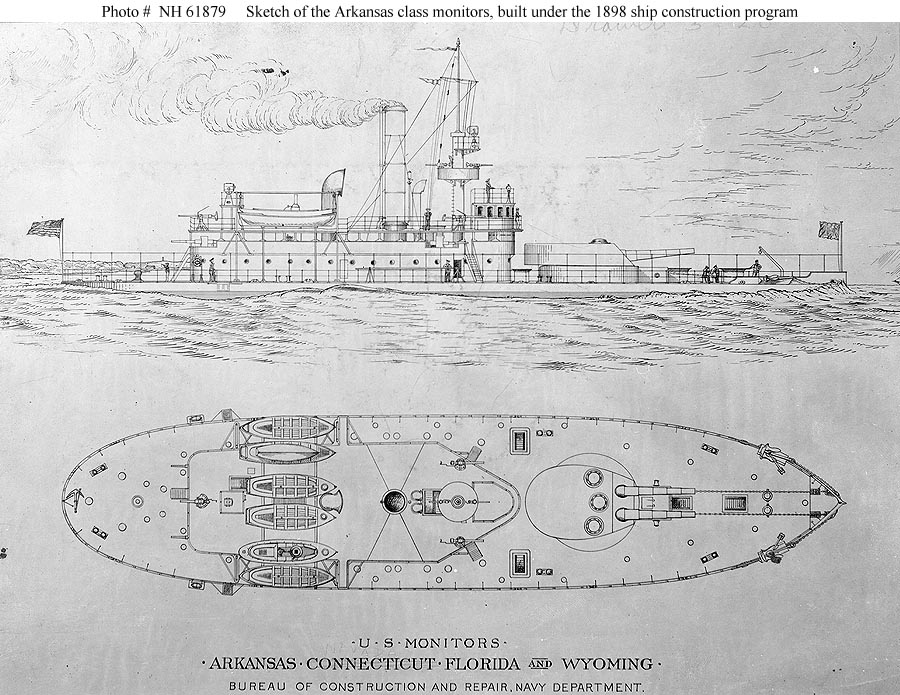

    Photo #: NH 61879

    "U.S. Monitors Arkansas, Connecticut, Florida and Wyoming"


    Pen and ink side elevation and plan view, by the Bureau of Construction and Repair. These monitors (numbers 7-10, respectively) were built under the 1898 ship construction program.
    Connecticut (Monitor # 8) was renamed Nevada in January 1901, after launching but more than two years before completion.

    U.S. Naval Historical Center Photograph.

    Online Image: 177KB; 900 x 695 pixels
