v.delaunay - Creates a Delaunay triangulation from an input vector map containing points or centroids.

KEYWORDS

vector

SYNOPSIS

v.delaunay
v.delaunay help
v.delaunay [-rl] input=name output=name [--overwrite] [--verbose] [--quiet]

Flags:

-r
Use only points in current region
-l
Output triangulation as a graph (lines), not areas
--overwrite
Allow output files to overwrite existing files
--verbose
Verbose module output
--quiet
Quiet module output

Parameters:

input=name
Name of input vector map
output=name
Name for output vector map

DESCRIPTION

v.delaunay uses an existing vector points map (input) to create a Delaunay triangulation vector map (output).


Delaunay triangulation and Voronoi diagram example:

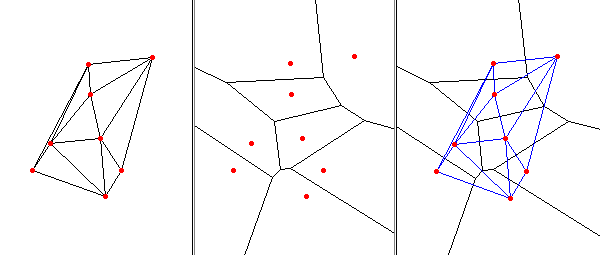

Delaunay Triangulation (left pane), Voronoi diagram (center pane), and both (right pane)

EXAMPLE

Commands used with the Spearfish dataset to create the above figure.
  g.region n=4927250 s=4919400 w=588650 e=594850
  d.frame -c fr=one at=0,100,0,33.3333
  d.frame -c fr=two at=0,100,33.3333,66.6667
  d.frame -c fr=three at=0,100,66.6667,100

  v.delaunay -lr in=archsites out=arch_delaunay
  d.frame -s one
  d.vect arch_delaunay
  d.vect archsites color=red fcolor=red size=5 icon=basic/circle

  v.voronoi -l in=archsites out=arch_voronoi
  d.frame -s two
  d.vect arch_voronoi type=line
  d.vect archsites color=red fcolor=red size=5 icon=basic/circle

  d.frame -s three
  d.vect arch_voronoi type=line
  d.vect arch_delaunay color=blue
  d.vect archsites color=red fcolor=red size=5 icon=basic/circle

REFERENCES

Steve J. Fortune, (1987). A Sweepline Algorithm for Voronoi Diagrams, Algorithmica 2, 153-174.

SEE ALSO

v.voronoi, v.hull

AUTHORS

James Darrell McCauley, Purdue University
GRASS 5 update, improvements: Andrea Aime, Modena, Italy
GRASS 5.7 update: Radim Blazek

Last changed: $Date: 2007-11-14 17:50:31 -0800 (Wed, 14 Nov 2007) $
