r.cost determines the cumulative cost of moving to each cell on a cost surface (the input raster map) from other user-specified cell(s) whose locations are specified by their geographic coordinate(s). Each cell in the original cost surface map will contain a category value which represents the cost of traversing that cell. r.cost will produce an output raster map in which each cell contains the lowest total cost of traversing the space between each cell and the user-specified points. (Diagonal costs are multiplied by a factor that depends on the dimensions of the cell.) This program uses the current geographic region settings. The output map will be of the same data format as the input map, integer or floating point.
r.cost can be run with three different methods of identifying the starting point(s). One or more points (geographic coordinate pairs) can be provided as specified coordinates on the command line, from a vector points file, or from a raster map. All non-NULL cells are considered to be starting points. Each x,y coordinate pair gives the geographic location of a point from which the transportation cost should be figured. As many points as desired can be entered by the user. These starting points can also be read from a vector points file through the start_points option or from a raster map through the start_rast option.
r.cost will stop cumulating costs when either max_cost is reached, or one of the stop points given with stop_coordinates is reached. Alternatively, the stop points can be read from a vector points file with the stop_points option. During execution, once the cumulative cost to all stopping points has been determined, processing stops. Both sites read from a vector points file and those given on the command line will be processed.
The null cells in the input map can be assigned a (positive floating
point) cost with the null_cost option.
When input map null cells are given a cost with the null_cost
option, the corresponding cells in the output map are no longer null
cells. By using the -n flag, the null cells of the input map are
retained as null cells in the output map.
As r.cost can run for a very long time, it can be useful to use the -v verbose flag to track progress.

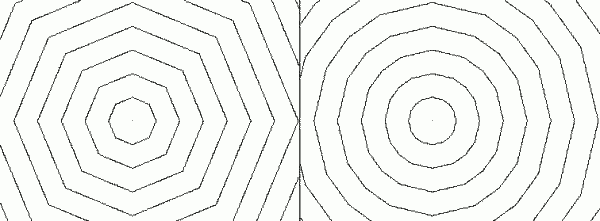

The Knight's move (-k flag) may be used to improve the accuracy of the output. In the diagram below, the center location (O) represents a grid cell from which cumulative distances are calculated. Those neighbors marked with an X are always considered for cumulative cost updates. With the -k option, the neighbors marked with a K are also considered.
. . . . . . . . . . . . . . . . . . K . . K . . . . . . . . . . . . . . . . . . . . K . X . X . X . K . . . . . . . . . . . . . . . . . . . . X . O . X . . . . . . . . . . . . . . . . . . . . K . X . X . X . K . . . . . . . . . . . . . . . . . . . . K . . K . . . . . . . . . . . . . . . . . .
By default null cells in the input raster map are excluded from the algorithm, and thus retained in the output map.
If one wants r.cost to transparently cross any region of null cells, the null_cost=0.0 option should be used. Then null cells just propagate the adjacent costs. These cells can be retained as null cells in the output map by using the -n flag.
Sometimes, when the differences among integer cell category values in the r.cost cumulative cost surface output are small, this cumulative cost output cannot accurately be used as input to r.drain (r.drain will output bad results). This problem can be circumvented by making the differences between cell category values in the cumulative cost output bigger. It is recommended that, if the output from r.cost is to be used as input to r.drain, the user multiply the input cost surface map to r.cost by the value of the map's cell resolution, before running r.cost. This can be done using r.mapcalc. The map resolution can be found using g.region. This problem doesn't arise with floating point maps.
The user generates a raster map indicating the cost of traversing each cell in the north-south and east-west directions. This map, along with a set of starting points are submitted to r.cost. The starting points are put into a list cells from which costs to the adjacent cells are to be calculated. The cell on the list with the lowest cumulative cost is selected for computing costs to the neighboring cells. Costs are computed and those cells are put on the list and the originating cell is finalized. This process of selecting the lowest cumulative cost cell, computing costs to the neighbors, putting the neighbors on the list and removing the originating cell from the list continues until the list is empty.
The most time consuming aspect of this algorithm is the management of the list of cells for which cumulative costs have been at least initially computed. r.cost uses a binary tree with an linked list at each node in the tree for efficiently holding cells with identical cumulative costs.
r.cost, like most all GRASS raster programs, is also made to be run on maps larger that can fit in available computer memory. As the algorithm works through the dynamic list of cells it can move almost randomly around the entire area. r.cost divides the entire area into a number of pieces and swaps these pieces in and out of memory (to and from disk) as needed. This provides a virtual memory approach optimally designed for 2-D raster maps. The amount of map to hold in memory at one time can be controlled with the percent_memory option. For large maps this value will have to be set to a lower value.
Consider the following example:
Input: COST SURFACE . . . . . . . . . . . . . . . . 2 . 2 . 1 . 1 . 5 . 5 . 5 . . . . . . . . . . . . . . . . . 2 . 2 . 8 . 8 . 5 . 2 . 1 . . . . . . . . . . . . . . . . . 7 . 1 . 1 . 8 . 2 . 2 . 2 . . . . . . . . . . . . . . . . . 8 . 7 . 8 . 8 . 8 . 8 . 5 . . . . . . . . . . . _____ . . . 8 . 8 . 1 . 1 . 5 | 3 | 9 . . . . . . . . . . . |___| . . . 8 . 1 . 1 . 2 . 5 . 3 . 9 . . . . . . . . . . . . . . . . Output (using -k): Output (not using -k): CUMULATIVE COST SURFACE CUMULATIVE COST SURFACE . . . . . . . . . . . . . . . . . . . * * * * * . . . . . . . 21. 21. 20. 19. 17. 15. 14. . 22. 21* 21* 20* 17. 15. 14. . . . . . . . . . . . . . . . . . . . * * * * * . . . . . . . 20. 19. 22. 19. 15. 12. 11. . 20. 19. 22* 20* 15. 12. 11. . . . . . . . . . . . . . . . . . . . . . * * * * * . . . . . 22. 18. 17. 17. 12. 11. 9. . 22. 18. 17* 18* 13* 11. 9. . . . . . . . . . . . . . . . . . . . . . * * * * * . . . . . 21. 14. 13. 12. 8. 6. 6. . 21. 14. 13. 12. 8. 6. 6. . . . . . . . . . . _____. . . . . . . . . . . . . . . . . . 16. 13. 8. 7. 4 | 0 | 6. . 16. 13. 8. 7 . 4. 0. 6. . . . . . . . . . . |___|. . . . . . . . . . . . . . . . . . 14. 9. 8. 9. 6. 3. 8. . 14. 9. 8. 9 . 6. 3. 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The user-provided ending location in the above example is the boxed 3 in the above input map. The costs in the output map represent the total cost of moving from each box ("cell") to one or more (here, only one) starting location(s). Cells surrounded by asterisks are those that are different between operations using and not using the Knight's move (-k) option.
g.region rast=roads -p r.mapcalc "area.one=1" r.cost -k input=area.one output=distance start_rast=roads d.rast distance d.rast.num distance #transform to metric distance from cell distance using the raster resolution: r.mapcalc "dist_meters=distance * (ewres()+nsres())/2." d.rast dist_meters
