    What is the
      Gemini Spacecraft Computer (OBC)?

    The Gemini spacecraft computer is, as the name implies, the onboard
    computer of the Gemini spacecraft.  The computer seems to have
    been referred to variously as the "spacecraft computer", the
    "digital computer", or the "On-Board Computer" (OBC).   It
    was the Gemini equivalent of Apollo's AGC, though with more limited
    capabilities and functionality.  Its basic use was in the
    post-launch phases of missions (orbit phase, retrograde phase,
    re-entry phase), because the Titan II rocket which carried the
    Gemini spacecraft into orbit was guided by its own (separate) ACS-15
    guidance computer, but there was provision also for switchover to
    the Gemini computer for backup guidance if the need arose.
    Interestingly, the OBC could be used for automatic attitude control
    of the spacecraft, but not automatic velocity control; rather, it
    performed necessary calculations for maneuvers such as orbital
    insertion or re-entry, and the pilots then performed the manual
    chores of actually adjusting the spacecraft velocity appropriately.

    The OBC was designed and manufactured by IBM's Federal Systems
    Division, in Owego, New York, just as Apollo's Launch
      Vehicle Digital Computer (LVDC) was.  The OBC and the
    LVDC are extraordinarily similar at the CPU level.

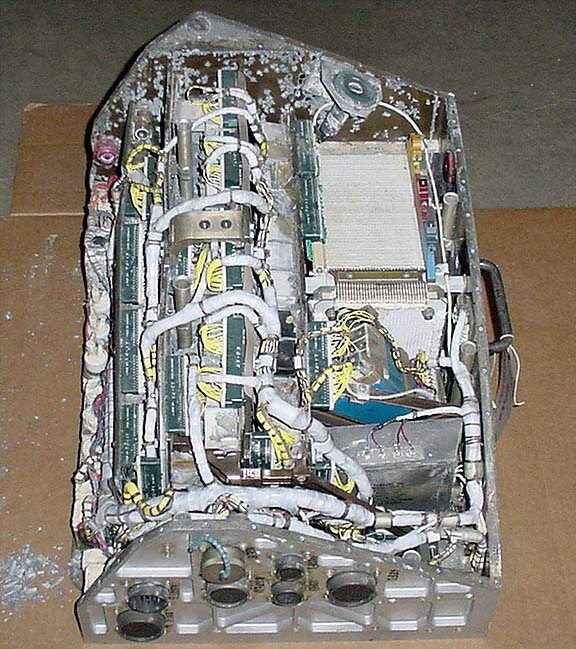

          |  The Gemini VIII OBC, with
              cover removed
 (Smithsonian National Air & Space Museum)

 |
 Location of the OBC in the
              spacecraft

 |



    Peripheral
      Devices
    This section contains a general overview of the OBC's peripheral
    devices, but many of them are discussed in much greater detail in
    later sections.

    From a user standpoint, the most visible of the OBC's peripheral
    device was the Manual Data Insertion Unit (MDIU)—the Gemini
    equivalent of the Apollo DSKY—which
    comprised the Modular Display Keyboard (MDK) and the Modular Display
    Readout (MDR).




          |  Modular Display Keyboard
              (MDK)

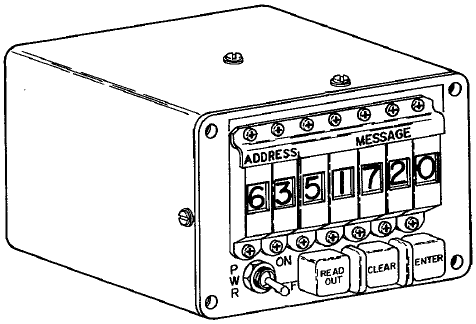

 |  Modular Display Readout

 |

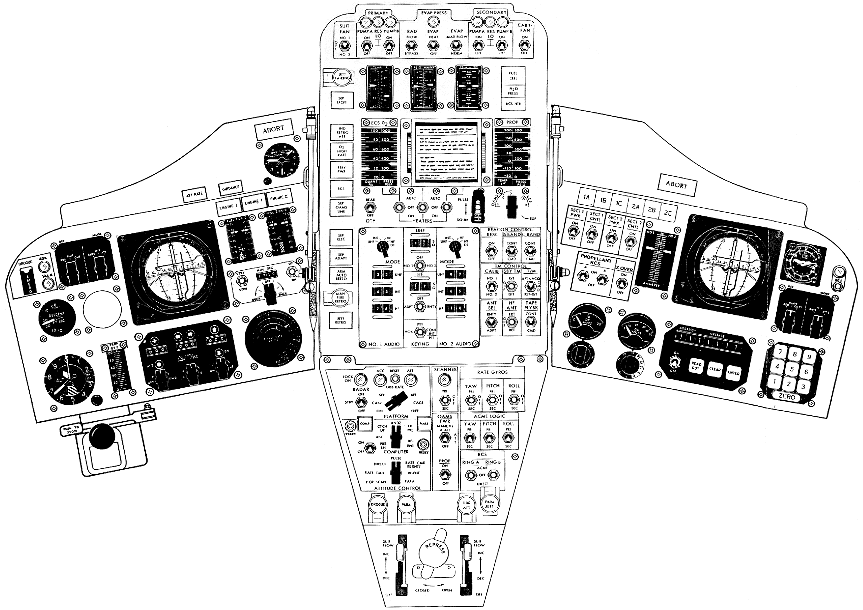

    These were on the Pilot's (as opposed to the Command Pilot's) side
    of the control panel, at the lower right in the drawing below.
    The small image below is from the familiarization manual, but if you
    click on it you'll get a much bigger, much more detailed drawing
    from the Gemini 5 Mission Report.



        A basic inventory of the guidance sub-systems includes:

          - Attitude Control and Maneuver Electronics (ACME), which is
            the sub-system that directly controls the propulsion system.

- Inertial Guidance System (IGS), including the Inertial
            Measurement Unit (IMU) and the OBC itself.

- Horizon Sensors
- Time Reference System (TRS)
        The diagram below shows a very simplified block diagram of the
        guidance system, but if you click it you'll get a (different)
        more-detailed block diagram.




        The IMU is the usual gimballed stable platform with
        accelerometers and angular resolvers as in Apollo, except for a
        key difference that the Gemini IMU had four gimbals rather than
        the three gimbals of Apollo.  This means that it was not
        subject to the phenomenon of "gimbal lock", and hence the
        software used to adjust spacecraft alignment could be simpler
        than with three gimbals.  The value of the 4th gimbal can
        be appreciated when considering incidents like the mishap in
        Gemini VIII in which an uncontrolled roll occurred.  (If
        the IMU had had only three gimbals, my understanding is that
        gimbal lock would have occurred when the roll angle was too
        great.)  On the other hand, at that point the spacecraft
        was under manual control anyway, and I'm sure that the notion
        that the IMU would have to be realigned later would have been
        the least of Neil Armstrong and Dave Scott's worries.

Gemini
      Documentation
    Sadly, documentation we've been able to collect for the OBC lags far
    behind that of the AGC or even that of the Abort Guidance System
    (AGS).  What little survives that we have been able to access
    can be found in our Document Library.
    There's a lot of unique stuff there contributed by original Gemini
    developers.

    Of particular note are the portions of the Gemini Operations
      Handbook, for spacecraft 7 and 10, and especially subsection
    2.5.7 of those handbooks.  These provide user instructions for
    the flight-computer software, and in the case of spacecraft 10 are
    particularly detailed.  For example, in the case of spacecraft
    10, there's a complete list, with explanations, scope, and format,
    of all of the memory variables (addresses 0-162) accessible from the
    MDIU/DCS.
    Evolution of the
      Flight Software ... or, "Everybody Loves Math Flow 7" ... or,
      "What is software, my man?  What is software?"

    Information about the Gemini OBC software is hard to come by.
    Useful information we don't
    have includes any actual OBC software that's contemporary to the
    Gemini project itself, and that's a lot not to know.  But the
    situation isn't all bad, partly because the development method of
    the Gemini OBC software causes us to question what the notion of
    having the original software even means.  I'll explain more
    about that shortly, but there's an important sense in which we
    actually do have significant portions of the software at our
    disposal.

    But before turning our attention to such lofty matters, let's begin
    with some of the more-mundane details.  Firstly, as far as
    naming is concerned, the flight software seems to have been called
    simply the "operational program".   On the subject of
    versioning of the operational program, we have only partial
    information, from the familiarization manual, from James
Tomayko's
      Computers in Spaceflight, Chapter 1, section 4, and from  this short memo.
    (Where there's any discrepancy, I personally believe in the memo.)

    The operational programs were characterized in terms of something
    called the "Math Flow".  In brief, the Math Flow is the
    complete design of the software, expressed in Gemini as a series of
    very detailed flowcharts.  The development of the Math Flow
    eventually went through 7 major versions, designated MF-1 through
    MF-7.  But there were differing revisions for each of the major
    versions as well.

    The overall software design was partitioned into several different
    areas of basic functionality. In math-flow MF-1 through MF-6, these
    functional areas were integrated into a single operational
    program.  (Though for some missions, unneeded functionality
    could be omitted. Thus, Catch-up & Rendezvous were omitted in
    spacecraft GT-3, GT-4, and GT-7.)  In MF-7, the code was
    refactored into 6 different high-level "Program Modules", which
    could be loaded into memory from the Auxiliary Tape Memory
      (ATM) when needed during specific mission phases, though
    Module I was in memory at all times and didn't need to be loaded
    from the ATM.  The modules were as follows:



          | Module
 | Basic Functionality
 |

          | MOD I
 | Executor Pre-Launch
 Diagnostics
 Computational subroutines (SINCOS, SQROOT, etc.)
 ATM-read

 |

          | MOD II
 | Ascent (with abort
            capability) Catch-up (without radar)
 Re-entry for ascent-abort

 |

          | MOD III
 | Catch-up (with radar) Rendezvous

 |

          | MOD IV
 | Touchdown-predict Re-entry
 Re-entry initialization

 |

          | MOD V
 | Simplified functions as
            backup for ATM failure:
  Ascent (without abort
              capability)Catch-up and Rendezvous (without self-test)

 |

          | MOD VI
 | Orbit-predict Orbit-navigation
 Orbit-determination

 |



    And here's a more-detailed breakdown if the evolution and usage of
    these modules on math-flow by math-flow basis:

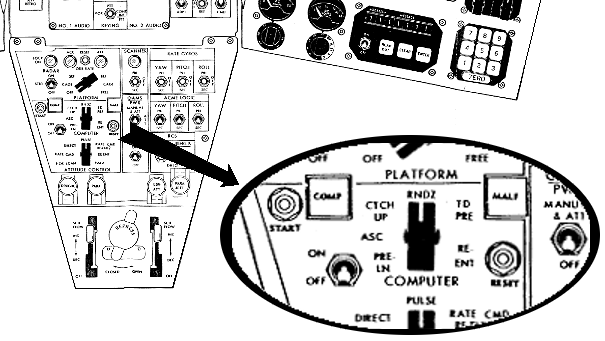

    The astronauts used the Computer Mode rotary switch on the Pilots' Control and Display Panel to select from
    amount the following mission phases to indirectly affect the active
    functionality areas:  Pre-launch, Ascent, Catch-up, Rendezvous,
    or Re-entry.

    All of these functionality areas are self-explanatory, except
    "Executor".  Executor is the interface that interrelates the
    other software modules and allows them to interact with each other,
    as well has implementing certain common functionality among them.

    Here's another breakdown, this time mine:




          |
 Spacecraft

 | Mission Designation

 | Math
            Flow version

 |  Programnumber,

  revision
 |
 Comments

 |

          | GT-1
 | Gemini 1
 | n/a
 | n/a
 | Unmanned mission.
            Since Gemini I was apparently intended principally as a
            structural test of the spacecraft, it may not have had a
            computer onboard.
 |

          | n/a
 | n/a
 | MF-1
 | -
 |
 |

          | n/a
 | n/a
 | MF-2
 | -
 |
 |

          | n/a
 | n/a
 | MF-3
 | 6444540, B | Flowcharts that we have!  Seemingly, one minor revision
            prior to the software flown in the Gemini 2 unmanned
            mission.  You'll notice, though, that the first manned
            missions (Gemini 3 and 4) still used MF-3, though in a later
            minor revision.  It's useful to know that:

              Rendezvous begins on p. 1Gimbal Angle and CLOCK subroutines are on p. 8SINCOS and ARCTAN subroutines are on p. 9
Re-entry begins on p. 10SHIFT, SQRT (also computes arcsin), and LOG
                subroutines are on p. 15MDIU subroutine is on p. 16Ascent guidance begins on p. 17Fast-loop ascent guidance begins on p. 19Root sum subroutine begins on p. 22Executor, Accelerometer, DCS, and DAS are on p. 23MDIU scaling stuff starts on p. 24
AGE is on p. 26Standby, TRS, and I/O subroutines are on p. 27
 |

          | n/a
 | n/a
 | MF-3(?)
 | 62-564-0020, B (Ascent Guidance and
 Fast Ascent Guidance only)

 | Flowcharts that we have!  See pp. 2-3 of the linked
            document.  The document contains a lot of other helpful
            stuff like detailed explanations of the variables, some
            additional theory, and source code of a FORTRAN
            implementation.
 I'm not really clear where this goes in the development
            chronology, merely that it is a few months later than the
            corresponding elements from the Detailed Math Flow in the
            preceding entry.

 |

          | GT-2
 | Gemini 2
 | MF-3
 | 6444541,
            C | Unmanned mission.
 |

          | GT-3
 | Gemini III
 | MF-3
 | 6444566, C | First manned mission.
 |

          | GT-4
 | Gemini IV
 | MF-3
 | 6444909, C
 |
 |

          | n/a
 | n/a
 | MF-4
 | -
 | Work stopped prior to "sell
            off".
 |

          | n/a
 | n/a
 | MF-5
 | -
 | Work stopped prior to release
            or sell off.
 |

          | GT-5
 | Gemini V
 | MF-6
 | 6444871, B
 |
 |

          | GT-6
 | Gemini VI-A
 | MF-6
 | 6444871,
            D
 |
 |

          | GT-7
 | Gemini VII
 | MF-6
 | 6444871, D |
 |

          | GT-8 (backup)
 | n/a
 | MF-6
 | 6444871, E
 |
 |

          | GT-8
 | Gemini VIII
 | MF-7
 | MOD I:
            6449856, C MOD II: not used
 MOD III: not used
 MOD IV: 6449864, B
 MOD V: 6449812, B
 MOD VI: not used

 | The principal difference
            between MF-6 and MF-7 was the reworking of the integrated
            operational program into 6 individual Modules (here referred
            to as MOD I through MOD VI) that were treated as independent
            programs, loadable into main memory at runtime from the new
            Auxiliary Tape Memory (ATM).  One consequence is that
            each of the 6 Modules in MF-7 now had its own individual
            program number and revision.
 |

          | GT-9
 | Gemini IX-A
 | MF-7
 | MOD I: 6449856, C MOD II: not used
 MOD III: not used
 MOD IV: 6449864, B
 MOD V: 6449812, B
 MOD VI: not used
 |
 |

          | n/a
 | n/a
 | MF-7
 | MOD III:

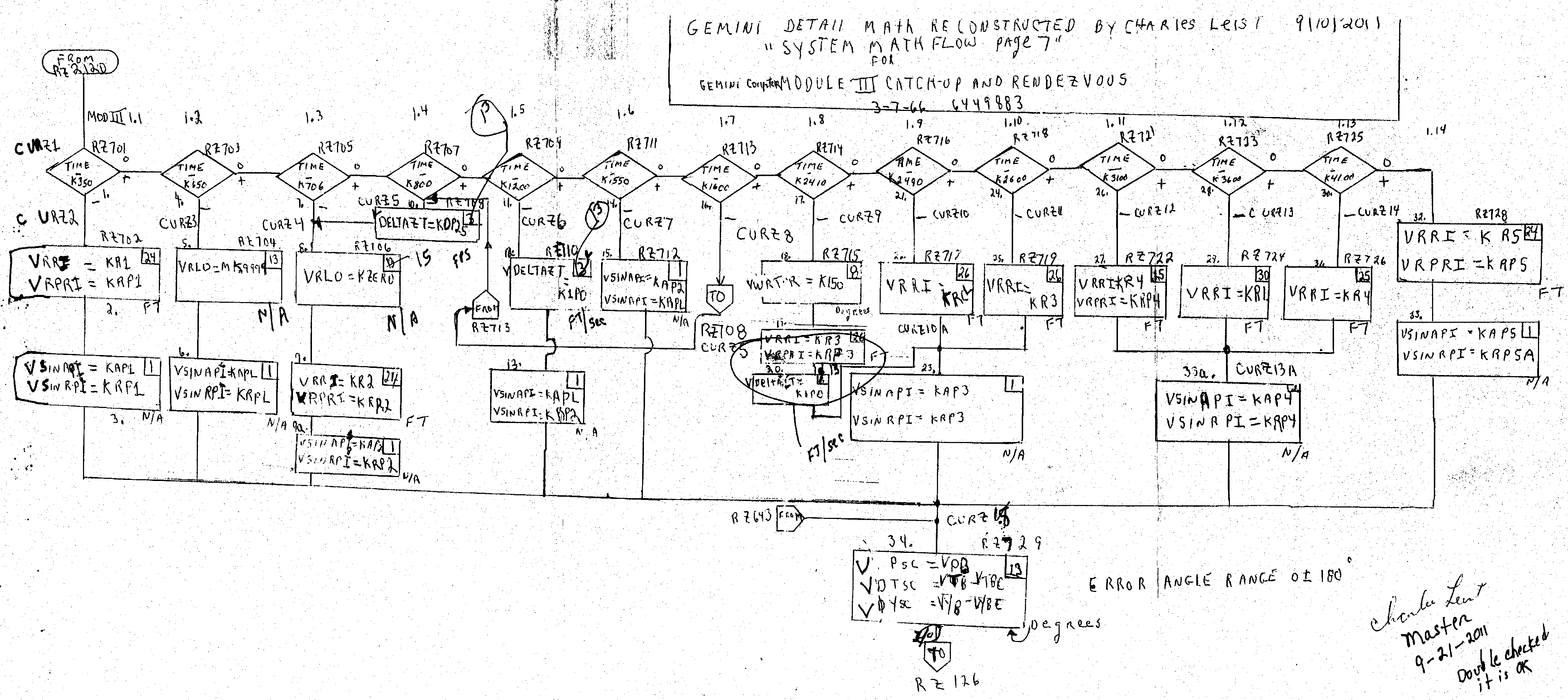

              6449883 | Flowcharts that we have!  Later than any Module III
            flown prior to the ATM, and therefore presumably
            algorithmically mature, but preceding (by some unknown
            number of revisions) the first use of Module III as an
            integrated program loaded from the ATM in Gemini X and
            therefore presumably relatively immature in terms of its
            implementation in OBC assembly language.  But remember,
            we don't have any of the original OBC assembly language, and
            it's only the algorithmic correctness that concerns us.
 Incidentally, this scan derived from a microfilm retrieved
            from a wastebasket prior to the project's move from the
            Washington, D.C., area in mid-1966.  Obviously, we're
            always trying to find better sources of material.  (If
            you happen to have any wastebaskets from that era that are
            still loaded with microfilm, be sure to let us know.)
 |

          | GT-10
 | Gemini X | MF-7
 | MOD I:
            6449856, C (?) MOD II: 6449816, A
 MOD III: 6449895
 MOD IV: 6449864, B (?)
 MOD V: 6449812, B (?)
 MOD VI: 6450027

 |
 |

          | GT-11
 | Gemini XI
 | MF-7
 | ?
 |
 |

          | GT-12
 | Gemini XII
 | MF-7
 | ?
 |
 |



    Finally, let's return to odd question of whether or not we're in
    possession of any of the original flight software.  This
    question is related to the serious if somewhat facetiously-phrased
    question asked in this title's heading, namely:  "What is
    software?"  In the context of the Virtual AGC project --- and I
    think in the minds of most currently-active computer programmers
    (2011) --- the question "What is software?" is very easily
    answered:  If you have the source code of the program (and some
    way of compiling or assembling that code) or if you have the binary
    executable of the program (and some way to execute it), then you
    have the software.  If you have all of the instructions for how
    to compile/assemble it, so much the better.  But the OBC
    software developers had a somewhat different view of this question,
    and their view is bound up in the method used to develop the
    software.

    The most important thing to understand about the
    software-development process for the OBC software is that it was
    very heavily dependent on design as opposed to coding.  What I
    mean by that is the following:

      - Great attention was given to deriving the mathematics needed
        for achieving the objectives, and great attention was given as
        well to verifying the correctness of that mathematics.
- Then (and only then), great attention was given to developing
        the "Math Flow".  To repeat what I said earlier, the Math
        Flow was a series of a flowcharts specifying the algorithms to
        be implemented in very great detail.  The flowcharts
        described the algorithms in such detail that the programmer had
        very few options left open to him in actually coding that
        software into a form that could be compiled or assembled.
- Then (and only then), software was coded.  But the coding
        was almost entirely a slavish detail-by-detail translation of
        the flowchart into computer source-code form.
It was interesting (and at first frustrating) for me to discuss the
    matter of existence of the software with OBC developers, because
    from my point of view the software (source code) seemingly no longer
    existed, while from the point of view of the OBC developers the
    software did still exist to the extent that the flowcharts still
    existed ... because to them the software is the flowchart and not the source code.
    The source code could always be reproduced from the flowchart,
    albeit with great effort, and not necessarily byte-for-byte
    identical to the original.  When viewed from this perspective,
    it makes little difference how the flowchart is translated into
    computer language—whether into FORTRAN as was done for simulation
    purposes or into OBC assembly language for the mission
    computer—because regardless, it's the same flowchart so it's the
    same program.

    Now, in the preceding paragraph I probably exaggerated the OBC
    developers' somewhat in order to make my point, but I think there is
    nevertheless a lot of validity in the viewpoint that was
    expressed:  If we have the Math Flow charts, then we have the
    software.  You'll notice from the table above that we do have
    some of the Math Flow charts, though the validity of what we have
    could be debated.

    I'll leave it as an exercise for the reader to decide whether or not
    we actually have any of the software, or whether or not we're
    rationalizing.
    OBC Architecture and
      Interfacing

    References
    The principal known sources of information about the computer itself
    are the "Guidance and Control" sections (Section VIII) of the Project Gemini Familiarization Manual,
     Volume 1 and  Volume 2, and most
    of the information on this web-page was extracted from those
    sources.  If you find my re-digesting of the material too poor,
    you may want to read the Manual instead.  However, any
    simulation software, assemblers, etc., will be based on my understanding and hence on
    the content of this web-page, so please bring any errors to my
    attention.

    Also, I should state that there's a lot of information on this page
    that comes from personal communications with original OBC
    developers, and can't be found in any other reference that's going
    to be available to the reader ... or probably, to anyone.
    While I present a general acknowledgements and "homage" to the
    original OBC developers in general at the very end of this web-page,
    let me mention here the OBC developers who have been so directly
    helpful to me.  In no particular order:

      - Gene Mertz
- Charlie Leist
- Alden Minnick
- Don O'Neill
General
      Characteristics of the OBC
    The OBC measured 18.9"(H)×14.5"(W)×12.75"(D), and weighed 58.98
    pounds.  OBC power was supplied by the IGS Power Supply, which
    was itself powered from the spacecraft's main +28VDC bus or (for
    very brief main-power outages or brownouts) the Auxiliary Computer
    Power Unit (ACPU).  The OBC required various voltages
    (+27.2VDC, +9.3VDC -27.2VDC, +20VDC, +28VDC, and 26VAC, but the
    existing documentation is inconsistent on the exact voltages used),
    and itself supplied the MDIU (+25VDC, -25VDC +8VDC) and these latter
    three voltages were what was actually used internally by the OBC
    itself.

    The computing characteristics were:

      - 39 bits per memory word.  Each memory word comprised
        three "syllables" (syllable 0, syllable 1, and syllable 2) of 13
        bits each.
- 4096 words of memory, in a ferrite core array.  All of
        this RAM was writable—i.e., there was no read-only memory—but
        the readout of the memory was non-destructive.
- The memory was logically divided into 16 "sectors" of 256
        words each.
- At any given time only 2 sectors are actually accessible, the
        current sector (selectable under program control) and the
        "residual" sector (sector 17 octal).

- The third syllables of memory words were writable by the OBC
        hardware, but this function was disabled after the spacecraft
        left the hangar, so at that point the 3rd syllables were
        effectively read-only.  Consequently, data words always
        needed to be placed into the first two syllables of memory
        words.  The addressing of data by CPU instructions enforced
        this data alignment anyway.

- "Instruction words" were 13 bits each, and "data words" were
        26 bits each, so any given memory word could have had a data
        word and/or several instruction words packed into it.
        There were also provisions for "short" data words of 13 bits,
        but these short data words could be used only for testing
        purposes by Aerospace
          Ground Equipment (AGE), and so were irrelevant for
        software.
- Integer arithmetic was 2's-complement.

- Instruction cycle time was 140 μs and all instructions
        required a single cycle except for MLT and DIV.

Layout
      of Memory Words
    I should make it clear that in this section I'm describing my
    perspective on the organization of OBC memory, in terms of how the
    original OBC programmers would have worked with it, in terms of how
    one would work with it using the tools I've created for this site,
    and in terms of what I think would be the thinking of "modern"
    programmers at the time I'm writing these words (2011).  I'm
    not slavishly reproducing here the material on memory organization
    from the most-complete documentation available to us, namely the
    "Guidance and Control" sections (Section VIII) of the Project Gemini Familiarization Manual,
     Volume 1 and  Volume 2, because
    that documentation seems to me to conflict with what I've been told
    by actual OBC programmers.  The specific area of difficulty is
    bit-ordering within memory words.  You see, the memory was
    accessed by a kind of serial interface, and the natural hardware
    view is in terms of the time-order in which the bits are shifted in
    and out ... whereas the natural software or mathematical view is in
    terms of which bits are the most-significant or least-significant—or
    as normally represented, which bits are on the "left" and which are
    on the "right".  So I'll adopt the latter perspective, but if
    you wish to explore what the documentation says on the topic of
    bit-ordering, feel free to do so.

    In all cases, when I show you binary or octal representations of OBC
    memory, it will use the notation common today, in which the
    least-significant bits or octal digits are on the right and the
    most-significant bits or octal digits are on the left.

    As mentioned earlier, memory words are 39 bits, comprising three
    13-bit "syllables".  In most ways, the syllable is really the
    natural memory unit, and not the word.  Except in one specific
    case, storing and retrieving 26-bit data, syllables within a memory
    word are completely unrelated to (and independent of) each
    other.  So you're really best served by thinking of memory as a
    set of syllables rather than a set of words.

    Not all syllables are created equal.  In the normal operating
    mode of the OBC at mission time, the following rules apply:

      - All CPU instructions which fetch, store, or otherwise operate
        on data stored in memory work only
        with 26-bit (2-syllable) data words in which the
        less-significant syllable is stored in syllable 0 of memory and
        the more-significant word is stored in syllable 1 (in the same
        word) of memory.
- Only syllables 0 and 1 are capable of being modified.
        Syllable 2 is read-only.
- Therefore, as you can imagine, all data other than code is
        allocated in syllables 0 and 1.
- Code is commonly stored in syllable 2 ... though since data
        does not use all of syllables 0 and 1, some code will be stored
        in syllables 0 and 1 as well.
(There's also a less-common operating mode called "half-word mode"
    which has somewhat different rules, but this mode has limited usage
    so we'll return to it later rather than diverting the main
    discussion.)

    Now let's look at some common syllable or double-syllable formats.

    Every CPU instruction consists of a single syllable, in the
    following bit layout:

      PPPPAAAAAAAAA


    where PPPP
    is a 4-bit code identifying the specific CPU instruction (the "op
    code") and AAAAAAAAA is a 9-bit code (3 octal
    digits) identifying (in a way that varies by instruction type) the
    operand for the instruction.  Conventionally, OBC programmers
    name the individual bits like so:

      - OP4
        is the most-significant bit of PPPP and OP1
        is the least-significant.
- A9
        is the most-significant bit of AAAAAAAAA and A1
        is the least-significant.

In most instruction types, A1-A8 select a particular memory
    word.  Since there are only 8 bits, only 256 different words
    are accessible.  Recall, moreover, that memory consists of 16
    sectors of 256 words each of 3 syllables each.  So the
    instruction is able to select a specific word address, but the
    sector containing the word and the syllable within the word can't be
    selected ... those have to be known by other means, which we'll
    discuss later; for now, just realize that at any time there's some
    "current sector" and "current syllable", and that whatever the CPU
    is doing operates within that current selection.  When A1-A8
    is interpreted in this way, A9 can be used to override the
    current sector and instead to do a one-time selection of sector 0,
    which is referred to as the "residual sector".  A9=0
    means to use the current sector and A9=1 means to use the
    residual sector.  But there's no way to select a different
    sector or a different syllable on an individual-instruction basis.

    Several instructions use a scheme in which the field consisting of
    bits A1-A3
    is given the name "X" and A4-A6 are given the name "Y", thus
    giving the instruction two independent parameters.  In those
    cases, A7
    and A8
    are unused, and A9 may or may supply additional
    functionality

    For normal 26-bit data, recall that a standard 2's-complement format
    is used.  OBC programmers conventionally refer to the sign bit
    (i.e., the most-significant bit if interpreting the data as an
    unsigned integer) as S, to the most-significant non-sign
    bit as M25,
    and to the least-significant bit as M1. Therefore, in a word
    containing such data, syllable 1 will contain S and M25-M14;
    syllable 0 will contain M13-M1.

    Numerical data can be interpreted in two different ways, depending
    on the interpretation of the software.  Obviously, the data
    could be interpreted as a simple 2's complement integer.  It
    can also be interpreted as a fractional value with absolute value
    less than 1.0.  In the latter interpretation, there is some
    scaling factor needed to relate the actual value of the number to
    the binary value that's stored in memory. The OBC and its software
    have no method for dealing with scaling factors, and it was up to
    the programmer to understand which interpretation was used, as well
    as to explicitly scale values during computations to avoid overflow
    and loss of significant bits.

    An important variation in which 26 bits of data aren't numerical in
    nature is the so-called "HOP constant".  A "HOP constant" is
    used by a dedicated CPU instruction (HOP)  to change things
    such as the currently-selected memory sector and syllable by loading
    a hidden CPU register that can't be accessed by other means. The
    layout of a HOP constant is as follows:

    xxxxxxxxHxSSxPPPPAAAAAAAAA


    In this scheme:

      - Bits AAAAAAAAA are given names A9-A1
        and are interpreted as described earlier, in that they allow
        selection of a word address (0-255) and provide an override for
        current-sector vs. residual sector.  After the HOP
        instruction executes, this setting persists within the CPU's
        hidden HOP register only for the current instruction and is then
        incremented to the next sequential word (or to some other word
        if a branch occurs).

- Bits SS, respectively given the
        names SYB
        and SYA,
specify
        the current syllable:  00 for syllable 0, 01 for syllable
        1, and 10 for syllable 2.  After the HOP
        instruction executes, this setting persists until another HOP
        instruction changes it.
- Bits PPPP, respectively given the
        names S4-S1,
        specify the current sector.  After the HOP
        instruction executes, this setting persists until another HOP
        instruction changes it, though as we've seen it can be
        overridden to instead use sector 0 on an
        instruction-by-instruction basis using the A9
        feature possessed by some of the CPU instructions.

- H
        selects between "normal" mode (H=0) and "half-word" mode (H=1),
        and this mode persists until another HOP instruction changes
        it.  "Normal" mode is what I've been describing to you up
        to this point.  In half-word mode (HWM), the data comes
        from syllable 2  rather than syllables 0,1, and therefore
        is only 13 bits rather than 26.  When the CPU fetches such
        data from memory, it fills the least-significant 13 bits of the
        CPU's accumulator register, while the most-significant 13-bits
        are all 0.  An interesting consequence of being in the
        half-word mode is that any
        HOP
        instruction will return to normal mode (since H
        is among the higher 13 bits of a HOP constant) and the current
        syllable will always become 0 (since SYB and SYA
        are also among the 13 more-significant bits).  Moreover,
        since the the OBC's ability to write to syllable 2 is disabled
        after the spacecraft has left the hangar, no STO
        or SPQ
        have any effect in half-word mode.

- At power-up, the behavior differed between the early Gemini
        missions without ATM (Auxiliary Tape Memory), and the later ones
        with ATM:
        - Without ATM, it is as if a HOP constant is loaded that puts
          the unit in normal mode (i.e., not half-word mode) at syllable
          0 of word 0 in sector 0.
- With ATM, it is as if a HOP constant is loaded that puts the
          unit into half-word mode at syllable 2 of word 0 in sector 0.

You may wonder what half-word mode is good for?  Well,
    originally, it seems to have been intended for testing
    purposes.  Later, when the flight-program outstripped the size
    of available memory, it became necessary to add the ATM and use it
    to overlay programs at runtime.  In that case, I guess, it's
    useful to be able to run a program entirely within syllable 2 (which
    is read-only) without fear that the ATM can overlay it.  But
    you know, I'm not really sure.
    Instruction
      Sequencing
    You may naïvely suppose (I did!) if you did not read the preceding
    section in great detail, that the everyday usage of the words "word"
    and "syllable" applies similarly in stepping through the OBC
    instructions.  In proceeding through a sentence of natural
    language like English, you use up all of the syllables in a word
    before proceeding to the next word.  So you might suppose that
    OBC instructions would sequence in a manner something like the
    following:  word N syllable 0, word N syllable 1, word N syllable 2, word N+1 syllable 0, word N+1 syllable 1, and so
    on.  In fact, this is not the case at all, and (as you may
    infer from the instruction definitions in the following section)
    would have caused insuperable difficulties.  So get the naïve
    interpretation right out of your head!

    Instead, the instruction
    sequencing was like this:

      word 0 syllable N
       word 1 syllable N
       word 2 syllable N
       etc.


    so that the syllable number never changed automatically as you
    progressed through the program.  But you could always change
    the syllable manually by executing an instruction (HOP)
and
    a HOP constant specifically designed to change the syllable
    number.

    In retrospect, from an outsiders point of view, it would perhaps
    have been less confusing in terms of instruction sequencing if the
    OBC hardware designers had used the word "paragraph" rather than
    "syllable".  Alas! it's a bit late to worry about that
    now.  The OBC programmers I've consulted seem to think that
    this is a perfectly natural scheme, and don't seem to have
    experienced any confusion over the concept of "syllables".
    CPU
      Instructions
    If you're interested in Gemini, you may not be very interested in
    Apollo's LVDC instruction
    set.  But there are so many similarities between the two that
    I'll probably not be able to resist the temptation to point out some
    of the differences as I proceed.  A difference not pointed out
    in the table below is that the LVDC instructions MPH, XOR,
    and CDS,
    EXM
    are not present in the OBC.

    Note that in what follows, a name representing a location of memory
    holding an instruction is called a "left-hand symbol" in the
    parlance of the Gemini OBC programmers, and I will continue to call
    it that (or LHS for short) rather than adopting more-current
    terminology.

    Finally, when I talk below about the assembly-language syntax of the
    instructions, I'm referring to the syntax supported by my own yaASM assembler presented as a
    download on this website.  This syntax is very similar to the
    original OBC assembler's syntax but we can't be sure it's identical
    because no documentation for the original assembler has been located
    up to this point in time.




          |
 Mnemonic

 | Opcode (OP1-OP4)
 in octal

 | Timing (140 μs
 cycles)

 |
 Description of the instruction

 |

          | HOP
 | 00
 | 1
 | This instruction combines
            an unconditional jump instruction with various other
            configuration options, such as memory-sector
            selection.  The way it works is that the address A1-A9
            points to a memory word that contains a "HOP constant", and
            the HOP instruction transfers
            that HOP constant into the HOP register.  Recall that
            A1-A8 select the offset within a 256-word sector, and A9 is
            the "residual bit" that selects between the current sector
            and the "residual sector".  There is no provision for a
            partial HOP constant, and the full HOP constant needs to be
            given every time a HOP instruction is
            used.  See also TRA.
 However ... the fact that HOP operates on HOP
            constants rather than on the left-hand symbols that are the
            labels for locations in the code as actually understood by
            the programmers, is not very convenient.  The simple
            act of HOPping to a location would have to look something
            like this:


 HTARGET   HOPC
                   TARGET    # Set up a HOP
                constant for the target location....
 HOP     HTARGET   # HOP to
                the target location
 ...
 TARGET
                ...
#
                Location we want to HOP to.

 This is pretty cumbersome.  The assembler therefore
            provides a special feature in that if the operand of a HOP
            is a left-hand symbol for a code location, which would
            otherwise be illegal, the assembler silently allocates and
            initializes a HOP constant of the same name, but enclosed in
            parentheses, and then it pretends that the operand of the
            HOP was really the newly-created HOP constant.
            Therefore, in assembly language, the following becomes legal
            even though seemingly illegal in machine code:




                HOP      TARGET   #
                HOP to the target location...
 TARGET
                ...
#
                Location we want to HOP to.

 But what the assembler really outputs in this case is the
            same as in the first example (with the HOP constant named "(TARGET)"
            instead of "HTARGET").

 The assembler performs a similar service for the CLA
            and STO instructions (see
            below). There are some drawbacks to this special feature as
            well, namely:


              Fortunately, there's no drawback here that can't be worked
            around by explicitly defining any troublesome HOP constants
            needed, as in the first example.Any left-hand symbols used as targets of HOPs in this
                way must be 6 characters or less rather than 8.The assembler always creates the implicit HOP
                constants in the residual sector 17, syllable 0.Since there are no explicit allocations for the
                implicit HOP constants, it's easy for the programmer to
                overlook that they're being created, and therefore to be
                less aware of the rate at which memory is being used up.There's no provision for half-word mode.
 |

          | DIV
 | 01
 | 1 (results
 available
 after 6)

 | This is the division
            instruction.  The contents of the accumulator are
            divided by the operand pointed to by the address A1-A9
            embedded within the instruction to produce a 24-bit
            quotient.  Recall that A1-A8 select the offset within a
            256-word sector, and A9 is the "residual bit" that selects
            between the current sector and the "residual sector".
            The quotient is available via the SPQ instruction
            from the 5th instruction following the DIV.
In
            other words, 4 other instructions not involving
            multiplication or division can be performed in the interval
            between DIV and SPQ.
 To illustrate the assembly-language syntax, let's divide the
            integer 56 by 3 and store the result in a variable:


 RESULT
#
                Allocate variable for output.K56
                DEC
                56        # Provide
                dividend as a constant.
 K3
                DEC
                3         #
                Provide divisor as a constant.
 CLA
                K56       # Load divisor
                into accumulator.
 DIV
                K3        # Start the
                division.
 NOP
#
                The result won't be available
 NOP
#
                for a while, so kill some time.
 NOP
 NOP
 SPQ
#
                Fetch quotient into accumulator.
 STO     RESULT    #
                Save it!

 |

          | PRO
 | 02
 | 1
 | Inputs or outputs an i/o
            "signal" into or from the accumulator.  (In the AGC
            these are called "channels".  In current terminology,
            we'd probably usually refer to them as "ports".)
            Whether or not an input or an output is performed depends on
            the particular signal chosen.  The X (A1-A3) and Y
            (A4-A6) operand fields are used for signal selection.
            A9 is used as well.  For an output operation, it
            determines if the accumulator should be cleared after the
            output (A9=1) or preserved (A9=0).   For an input
            operation, it determines if the data should be loaded into
            the accumulator (A9=1) or logically OR'd with the
            accumulator (A9=0).  A table of the i/o signals vs.
            addresses is given in the following section.
            (The PRO instruction is
            essentially equivalent to the LVDC PIO
            instruction, but the selection of i/o signals is different.)
 The documentation does not explain this, but I think that
            when the PRO instruction is
            accessing a single-bit signal, only the accumulator's sign
            bit is used as the output or the input.  (I'm not sure
            what the effect on other bit-positions should be on input.)

 There are several allowable assembly-language syntaxes for
            this instruction:


 PRO    YX    # If
                A9=0(Or, you could just look at it as having a literal octal
            constant as operand, and that constant was placed directly
            into the bits A9-A1.)  For example, to read MDIU
            keystroke data, X=3
            and Y=4, soPRO
                0YX   #
                Same as "PRO YX"
 PRO
                4YX
                # If A9=1




 PRO    43
 |

          | RSU
 | 03
 | 1
 | Same as SUB (see below),
            except that the order of the operands in the subtraction is
            reversed.
 Assembly-language example to compute RESULT=3-56:


 RESULT
#
                Allocate variable for output.ARG1     DEC
                56
 ARG2     DEC     3
 CLA     ARG1
 RSU
                    ARG2
 STO     RESULT
 |

          | ADD
 | 04
 | 1
 | Adds the contents of the
            accumulator with the contents of the address embedded within
            the instruction and places the result in the
            accumulator.  Recall that A1-A8 select the offset
            within a 256-word sector, and A9 is the "residual bit" that
            selects between the current sector and the "residual
            sector".
 Assembly-language example to compute RESULT=56+3:


 RESULT
#
                Allocate variable for output.ARG1     DEC
                56
 ARG2     DEC     3
 CLA     ARG1
 ADD
                    ARG2
 STO     RESULT
 |

          | SUB
 | 05
 | 1
 | Subtracts the contents of
            a word pointed to by the address embedded within the
            instruction from the accumulator, and puts the result back
            into the accumulator.  Recall that A1-A8 select the
            offset within a 256-word sector, and A9 is the "residual
            bit" that selects between the current sector and the
            "residual sector".  See also RSU.
 Assembly-language example to compute RESULT=56-3:


 RESULT
#
                Allocate variable for output.ARG1     DEC
                56
 ARG2     DEC     3
 CLA     ARG1
 SUB
                    ARG2
 STO     RESULT

 |

          | CLA
 | 06
 | 1
 | Store a value to the
            accumulator, from the memory word at the address embedded
            within the instruction.   Recall that A1-A8 select
            the offset within a 256-word sector, and A9 is the "residual
            bit" that selects between the current sector and the
            "residual sector".
 Assembly-language example to load the accumulator with
            decimal 56:


 K56
                    DEC     56CLA
                K56

 Note that as with the HOP instruction, the
            assembler allows seemingly meaningless usages like "CLA
              LHS", where LHS is the left-hand symbol
            of a code location rather that the name of a variable or
            constant.  What the assembler does in this case is
            automatically, silently to create a HOP constant in memory
            called "(LHS)", and then to
            substitute the "CLA (LHS)" for the original
            instruction.  See the notes accompanying the HOP
            instruction for full details.

 |

          | AND
 | 07
 | 1
 | Logically ANDs the
            contents of the accumulator with the contents of the address
            embedded within the instruction and places the result in the
            accumulator.  Recall that A1-A8 select the offset
            within a 256-word sector, and A9 is the "residual bit" that
            selects between the current sector and the "residual
            sector".
 Assembly-language example to compute RESULT=037&052
(i.e.,
            to logically AND together octal 37 and octal 52):


 RESULT
#
                Allocate variable for output.ARG1     OCT     37
 ARG2     OCT     52
 CLA     ARG1
 SUB
                    ARG2
 STO     RESULT
 |

          | MPY
 | 10
 | 1 (results
 available after 3)

 | This is a multiplication
            instruction.  It multiplies two 24-bit numbers to
            produce a 26-bit product.  The accumulator provides the
            address of one multiplication factor, and the address
            embedded in the instruction points to the other
            factor.  Recall that A1-A8 select the offset within a
            256-word sector, and A9 is the "residual bit" that selects
            between the current sector and the "residual sector".
            In both cases, the most-significant 24-bits of the operands
            are used, and the least-significant 2 bits of the operand
            are ignored.  The result is available via the SPQ instruction on
            the 2nd instruction following MPY.  Any
            other instruction not involving multiplication or division
            can be performed between the MPY and the SPQ.
 To illustrate the assembly-language syntax, let's multiply
            the integer 56 by 3 and store the result in a variable:

 RESULT
#
              Allocate variable for output.
 K56
              DEC     56
 K3
              DEC     3
 CLA     K56
 MPY

              K3        # Start the
              multiplication.
 NOP
#
              The result won't be available
 NOP
#
              for a while, so kill some time.
 SPQ
#
              Fetch product into accumulator.
 STO     RESULT    #
              Save it!

 |

          | TRA
 | 11
 | 1
 | This is an unconditional
            jump instruction, which branches to the address embedded in
            the instruction.  Bits A1-A9 of the embedded address
            represent the new offset within either the
            currently-selected sector or the residual sector.  Note
            that the syllable remains the same, so if (for example) the
            TRA is itself in syllable 1 of the current program counter,
            then the next instruction executed will be at syllable 1 in
            the new program counter.  (This differs from the
            behavior of the corresponding LVDC instruction, in
            that the LVDC instruction allows selection of the target
            syllable via A9, but does not allow the new program counter
            to be in the residual sector.)
 See also the description of shorthands
for
              various instructions.

 Assembly-language examples:


 # Branch from location
                START to location FINISH.START    TRA
                FINISH
 ...
 FINISH
                ...
 # Branch from location START2 to FINISH2, but use
 # relative addressing rather than the left-hand
 # symbol FINISH2.  The NOP instructions below
 # could be anything --- the point is simply that
 # FINISH2 is 3 words in memory after START2.
 START2   TRA     *+3
 NOP
 NOP
 FINISH2  ...

 The operand for TRA is either an existing
            left-hand symbol for an instruction (rather than for a
            variable or constant), or else an expression of the form "*+N" or "*-N", where N is any number from 1
            to 7.

 |

          | SHF
 | 12
 |
 | Performs a logical shift
            operation on the accumulator.  For this instruction,
            only bits A1-6 are actually used, as follows:




                  | X (A1-3)

 | Y (A4-6)

 | Description of operation

 |
                  | 1
 | 2
 | Shift "right" one
                    position
 |
                  | 0
 | 2
 | Shift "right" two
                    positions |
                  | X
 | 3
 | Shift "left" one
                    position |
                  | X
 | 4
 | Shift "left" two
                    positions |
                  | (Other)
 | Clears the
                    accumulator
 |  But what do "left" and "right" mean?  Fortunately,
            "left" implies multiplication by powers of two, and "right"
            division by powers of two, just as modern programmers are
            accustomed to.

 For the left-shifts, 0 is shifted into the least-significant
            bit at the right.  For the right-shifts, the sign-bit
            is duplicated into the most-significant bit at the left.

 For illegal X,Y combinations, the accumulator is zeroed.

 Note that this instruction is similar to the corresponding LVDC instruction,
            but differs in details.

 See also the description of shorthands
for
              various instructions.

 There assembly-language syntax for this instruction is:


 SHF    YX(Or, you could just look at it as having a literal octal
            constant as operand, and that constant was placed directly
            into the bits A6-A1.)  For example, to shift right one
            position, X=1 and
            Y=2, so



 SHF    21
 |

          | TMI
 | 13
 | 1
 | This is a conditional
            jump instruction, which branches to the address embedded in
            the instruction if the accumulator is less than zero, but
            simply continues to the next instruction in sequence if the
            accumulator greater than or equal to zero.  Bits A1-A9
            of the embedded address represent the new offset within the
            currently selected 256-word instruction sector or the
            residual sector.  See also TNZ.  (This
            differs from the behavior of the corresponding LVDC instruction, in
            that the LVDC instruction allows selection of the target
            syllable via A9, but does not allow the new program counter
            to be in the residual sector.)
 Assembly-language examples:


 # Branch from location
                START to location FINISHThe operand for TMI is either an existing
            left-hand symbol for an instruction (rather than for a
            variable or constant), or else an expression of the form "*+N" or "*-N", where N is any number from 1
            to 7.  The usage of the latter relative-addressing
            forms isn't illustrated in the code example for TMI,
            but you can look at the code example for TRA
            instead; it works exactly the same for TMI.# because VALUE is negative:
 VALUE    DEC     -129
 START    TMI     FINISH
 ...
#
                Never gets here!
 FINISH
                ...
#
                But does get to here!
 # Don't branch from START2 to FINISH2, because
 # VALUE2 is not negative:
 VALUE2   DEC     127
 START2   TMI     FINISH2
 ...
#
                Comes to here!
 TRA     BAILOUT
 FINISH2
                ...
#
                Never comes to here!
 BAILOUT  ...



 |

          | STO
 | 14
 | 1
 | Stores the contents of
            the accumulator in the word indicated by the address
            embedded within the instruction.  Recall that A1-A8
            select the offset within a 256-word sector, and A9 is the
            "residual bit" that selects between the current sector and
            the "residual sector".   The accumulator retains
            its value.
 Assembly-language example:


 RESULT
#
                Allocate a variableSTO
                RESULT   # Store accumulator value in the
                variable.

 Note that as with the HOP instruction, the
            assembler allows seemingly meaningless usages like "STO
              LHS", where LHS is the left-hand symbol
            of a code location rather that the name of a variable or
            constant.  What the assembler does in this case is
            automatically, silently to create a HOP constant in memory
            called "(LHS)", and then to
            substitute the "STO (LHS)" for the original
            instruction.  See the notes accompanying the HOP
            instruction for full details.

 |

          | SPQ
 | 15
 | 1
 | Store a product or
            quotient (computed with MPY or DIV)
            into the word indicated by the address embedded within the
            instruction.  Recall that A1-A8 select the offset
            within a 256-word sector, and A9 is the "residual bit" that
            selects between the current sector and the "residual
            sector".   The accumulator retains its
            value.  (This instruction is somewhat similar to the LVDC instruction CLA
              0775, though quite different in detail.)
 For assembly-language examples, see MPY
            or DIV above.

 |

          | CLD
 | 16
 | 1
 | A discrete input (i.e., a
            single bit) selected by the operand address is read into the
            accumulator.  The entire accumulator is overwritten so
            that every bit position has the value of the discrete input
            bit, and consequently will be either 000000000 or else
            377777777 octal.  A test of either TMI
            or TNZ thereafter can thus
            branch on the basis of the bit value.  A table of the
              allowed discrete inputs follows later.  (This
            instruction does not exist in the LVDC.)
 See also the description of shorthands
for
              various instructions.

 There assembly-language syntax for this instruction is:


 CLD    YX(Or, you could just look at it as having a literal octal
            constant as operand, and that constant was placed directly
            into the bits A6-A1.)  For example, to read the MDIU
            data-ready bit, X=1
            and Y=0, so



 CLD    01 |

          | TNZ | 17
 | 1
 | This is a conditional
            jump instruction, which branches to the address embedded in
            the instruction if the accumulator is not zero, but simply
            continues to the next instruction in sequence if the
            accumulator is zero.  Bits A1-A8 of the embedded
            address represent the new word address within the sector,
            while bit A9 selects between the current sector vs. the
            residual sector.  (In the LVDC, A9 instead selects the
            syllable within the current sector, which is possible since
            the LVDC has only 2 syllables.) See also TMI.
 Assembly-language examples:


 # Example 1: Branch to
                location IS129 if accumulator isThe operand for TNZ is either an existing
            left-hand symbol for an instruction (rather than for a
            variable or constant), or else an expression of the form "*+N" or "*-N", where N is any number from 1
            to 7.  The usage of the latter relative-addressing
            forms isn't illustrated in the code example for TNZ,
            but you can look at the code example for TRA
            instead; it works exactly the same for TNZ.# equal to 129 and to ISNOT129 if accumulator is not
 # equal to 129:
 K129     DEC     129
 SUB     K129
 TNZ
                ISNOT129
 TRA     IS129
 ...
 IS129    ...
 ...
 ISNOT129 ...
 # Example 2: A simple loop with 10 iterations:
 LOOPCTR
#
                Variable for counting loop iterations.
 K1
                DEC     1
 K10
                DEC     10
 CLA
                K10       # Setup for the
                loop.
 STO     LOOPCTR
 LOOP
                ...
#
                Do stuff
 CLA     LOOPCTR   #
                Decrement and test loop counter
 SUB     K1
 TNZ     LOOP
 ...
#
                Done!



 |



    I/O Signals (For PRO
      Instruction)

    Note that in assembly language, in the operand for a PRO
    instruction, the Y operand field would proceed the X operand
    field.  So, for example, if X=3 and Y=4, the instruction would
    be PRO43.
That's
    the opposite of present ordering of the columns in the table below
    and could be confusing, for which I apologize, but I'm too lazy to
    completely rewrite the table.




          | Operand
 | Input / Output

 | Signal
 | Comment
 |

          | X
            (A1-A3)
 | Y
            (A4-A6)
 |

          | 0
 | 0
 | In
 | Digital
            Command System shift pulse gate
 | Causes a 24-bit word
            buffered in the Digital Command System
            (DCS) to be read into bits M1-M24 of the accumulator.
            Or, reads data from the Rendezvous
              Radar (if any).
 |

          | 0
 | 1
 | Out
 | Data
            Transmission System control gate
 | Used to output a data word
            to the Instrumentation System (IS)
            for digital downlink.
 |

          | 0
 | 2
 | In/Out
 | Time
            Reference System data and timing pulses
 | The action of this signal
            seems pretty complex.  Please read the section on the Time Reference System
            (TRS) for my conclusions as to what it's actually supposed
            to do.
 |

          | 0
 | 3
 | Out
 | Digit
            magnitude weight 1
 | Used in conjunction with
            "Digit magnitude weight 2", "Digit magnitude weight 4", and
            "Digit magnitude weight 8" to write a particular digit to an
            MDR position
            previously selected using the "Digit select weight X" outputs.  The
            weights derive from a BCD value of the digit whose display
            is desired.
 I haven't seen any explanation of how to clear a digit so
            that it's blank ... perhaps there was no such feature,
            though it seems to me that it would make data-entry very
            confusing if so.  There are a number of ways this might
            have been done.  Until I understand it better, the yaPanel MDIU emulator
            handles this as follows:


              Using any combination of magnitudes that doesn't form
                a BCD (i.e., something in the range 0-9) will clear the
                selected digit to be blank.Pressing the MDR's CLEAR button will make all of the
                digits blank.
 |

          | 0
 | 4
 | Out
 | Reset
            data ready, enter, and readout
 | When zeroed, signals the MDIU to reset its
            internal buffer so that a numerical keystroke subsequently
            be collected.  It is unclear if this needs to be
            returned to a non-zero state later.  The CLD
            inputs associated with the ENTER and READ OUT keys also are
            cleared as a result.
 |

          | 0
 | 5
 | Out
 | Digit
            select weight 1
 | Used in conjunction with
            "Digit select weight 2" and "Digit select weight 4" to
            select the next digit position to which a display value will
            be output to the MDIU.
            It is not really explained how these work, but I think that
            they are used to form an index from 0-7 in the obvious way,
            and that the leftmost address digit is 0, the 2nd address
            digit is 1, the leftmost message digit is 2, and so on. |

          | 0
 | 6
 | Out
 | Memory
            strobe
 | I believe that this signal
            is used only in
            conjunction with the AGE for testing
            purposes.  When the accumulator is negative, it seems
            to enable a hardware mode called "marginal early" may help
            in determining how robust the memory access is with respect
            to marginal timing.  When the accumulator is positive
            or zero, it disables this diagnostic feature.
 |

          | 1
 | 0
 | Out
 | Computer ready
 | Signal to the Digital Command System (DCS) that the
            OBC wishes to read a buffered uplinked data word.  Also
            used to tell the Rendezvous
              Radar, if any, that radar data is required.  In
            the latter case, a 20 ms. delay must occur afterward before
            polling the radar-ready discrete input (CLD00).
 |

          | 1
 | 1
 | Out
 | Drive
            counters to zero

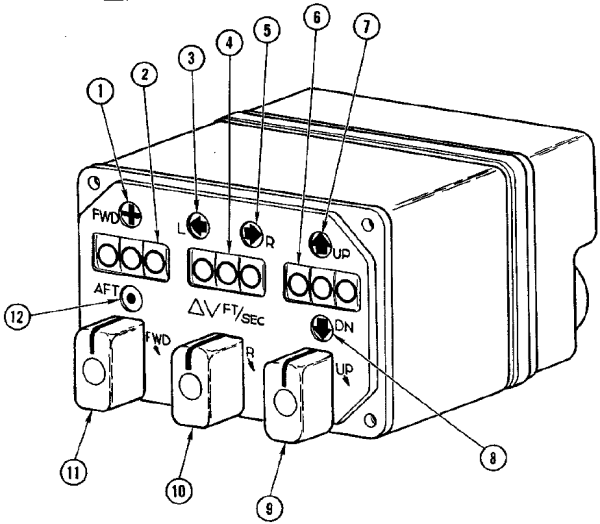

 | For setting a delta-V
            display on the IVI to zero.  First
            do PRO11 with the accumulator
            negative, then (see "Select X counter") select the X, Y, or
            Z axis, then do PRO11 with the accumulator
            positive or zero to return to the normal state.  CLD31,
            CLD25,
            and CLD26 can be subsequently
            used for feedback that the displays are actually at zero.
 |

          | 1
 | 2
 | Out
 | Enter
 | When inactive, the Time Reference System
            (TRS) is capable of receiving timing data (like TR
            or TX) from the ODC.  When
            active, the ODC can receive timing data (like ET or TR)
            from the TRS. |

          | 1
 | 3
 | Out
 | Digit
            magnitude weight 2
 | See Digit magnitude
            weight  1
 |

          | 1
 | 4
 | Out
 | Display
            device drive
 | The "display device
            drive", as far as I can see, is what's used to turn the
            physical wheel on which the MDIU
            display-digits are inscribed to the proper position for
            display.  In other words when the drive is off (i.e.,
            PRO41 output a zero) the last-selected digit continues to be
            displayed, while when the drive is on (PRO41 output
            non-zero) the display wheel will be turned if
            necessary.  Therefore, the drive is normally off, but
            is turned on briefly when a digit is being changed.
            The full procedure is as follows:

              Use the digit-select weights to choose the
                display-position which is supposed to be changed.Turn on the display device drive.Use the digit-magnitude weights to determine what
                digit is driven into the selected display position.Wait 0.5 seconds.Turn off the display device drive.
 |

          | 1
 | 5
 | Out
 | Digit
            select weight 2
 | See Digit select weight 1
 |

          | 1
 | 6
 |
 | Autopilot scale factor
 |
 |

          | 2
 | 0
 | Out
 | Pitch
            resolution
 | Controls the range switch
            for Pitch Error (or down range error) output.  If the
            sign bit is positive, then there is a 6-to-1 attenuation
            applied; if the sign bit is negative, there is no
            attenuation.
 |

          | 2
 | 1
 | Out
 | Select
            X counter
 | Used along with "Select Y
            counter" to select one of the IVI's
            delta-V displays to receive additional commands, as follows:

              X-axis:  PRO12 with accumulator
                negative, PRO13 with accumulator
                positive or zero.Y-axis:  PRO12 with accumulator
                positive or zero, PRO13 with accumulator
                negative.Z-axis:  PRO12 with accumulator
                negative, PRO13 with accumulator
                negative. |

          | 2
 | 2
 | Out
 | Aerospace Ground Equipment data link
 | For outputting a single
            data bit to the dedicated AGE data link.
 |

          | 2
 | 3
 | Out
 | Digit
            magnitude weight 4
 | See Digit magnitude
            weight  1 |

          | 2
 | 5
 | Out
 | Digit
            select weight 4
 | See Digit select weight 1
 |

          | 2
 | 6
 | In
 | Reset
            start computation
 | From the PCDP's
            RESET switch.
 |

          | 3
 | 0
 | Out
 | Yaw
            resolution
 | Controls the range switch
            for Yaw Error (or cross-range error) output.  If the
            sign bit is positive, then there is a 6-to-1 attenuation
            applied; if the sign bit is negative, there is no
            attenuation. |

          | 3
 | 1
 | Out
 | Select
            Y counter
 | See "Select X counter".
 |

          | 3
 | 2
 | Out
 | Aerospace Ground Equipment data clock
 | Provides a data clock, one
            pulse at a time, for reading data on the dedicated AGE data link.
 |

          | 3
 | 3
 | Out
 | Digit
            magnitude weight 8
 | See Digit magnitude weight
            1
 |

          | 3
 | 4
 | In
 | Read
            Manual Data Insertion Unit insert data
 | Reads a keystroke that has
            been buffered in the MDIU.
            This operation should be done only in response to a separate
            discrete "Data ready" input via CLD.  The BCD
            value of the digit is stored into bits M1-M4 of the
            accumulator.  A PRO40 should be performed
            afterward to clear the MDIU buffer and allow the next
            keystroke to be collected, and additional PRO
            instructions should be used to display the digit on the
            MDIU.
 |

          | 3
 | 6
 | Out
 | Reset
            radar ready
 | Sent to the Rendezvous Radar, if any, to
            reset its discrete input buffer.
 |

          | 4
 | 0
 | Out
 | Roll
            resolution
 | Controls the range switch
            for Roll Error output.  If the sign bit is positive,
            then there is a 6-to-1 attenuation applied; if the sign bit
            is negative, there is no attenuation. |

          | 4
 | 1
 | Out
 | Elapsed
            time control and Time Reference System control reset / ATM
            wind-rewind reset
 | Signal to the Time Reference System
            (TRS) that the data about to be fetched from the TRS with PRO20
            commands is the elapsed time (ET).  This output should
            persist for 9-15 ms. before being returned to the normal
            state.  It also apparently acts to reset the TRS
            control circuitry.
 (Units with ATM only.)
            It has additional functionality for the Auxiliary Tape Memory
            (ATM), in that it commands the ATM to stop winding or
            rewinding.  I believe that it also turns off the ATM
            ERROR lamp.  (I don't know how to select between the
            TRS/ATM functions, or if it always performs both
            simultaneously.)

 |

          | 4
 | 3
 | Out
 | Computer malfunction
 | To the PCDP's
            MALF light.
 |

          | 4
 | 4
 | Out
 | ATM
            verify/repro command
 | Send a command to the Auxiliary Tape Memory
            (ATM) to begin data output.  I assume that the
            accumulator is negative to begin the output and zero or
            positive to end it.
 |

          | 4
 | 6
 | TBD
 | Second
            stage engine cutoff
 | TBD
 |

          | 5
 | 0
 | Out
 | Computer running
 | To the PCDP's
            COMP light.
 |

          | 5
 | 1
 | In?/Out
 | Time to
            start re-entry calculations control / ATM wind command
 | The use for "time to start
            re-entry calculations" is TBD.
 (Units with ATM only.)
            Initiates winding of the ATM.
            I assume that the value in the accumulator should be
            negative, however, I don't think that outputting a positive
            or zero value stops the winding.  Instead, use PRO14.  (I
            don't know how to select between the timing and ATM
            functions, or if it always performs both simultaneously.)
 |

          | 5
 | 2
 | Out
 | Time to
            reset control / ATM rewind command
 | Signal to the Time Reference System
            (TRS) that transfer of time-to-equipment-reset (TX)
            data is desired.  This output should persist for 9-15
            ms. before being returned to the normal state.
 (Units with ATM only.)
            Initiates rewinding of the ATM.
            I assume that the value in the accumulator should be
            negative, however, I don't think that outputting a positive
            or zero value stops the rewinding.  Instead, use PRO14.
            (I don't know how to select between the TRS/ATM functions,
            or if it always performs both simultaneously.)
 |

          | 5
 | 3
 | Out
 | Write
            output processor
 | For incrementally
            adjusting the delta-V displays of the IVI.
            First, the X, Y, or Z display is selected (see "Select X
            counter" above).  No more than 1 ms. later, PRO35
            is used to begin the update.  The value in the
            accumulator comprises the sign bit and M1-M12, so the
            maximum change is -4096 to +4095.  Since the displays
            are actually -999 to +999, in theory the adjustment range is
            more than full.  In practice, only very small
            adjustments would be made.  My understanding of what
            the hardware actually does is to increment or decrement the
            displays by 1 every 21.5 ms., and that it will not be ready
            to process another delta-V until the count has reached
            zero.  For example, trying to change the display by 25
            would take about half a second, and no other outputs to the
            IVI should take place in that interval.  The "Velocity
            error count not zero" discrete (CLD22) can be
            polled to determine when the increment/decrement pulses have
            all been sent to the display and the counter has reached
            zero. |

          | 5
 | 4
 | In
 | Read
            delta velocity
 | This port is used to read
            the change in velocity from the platform electronics, and to
            zero the reference velocity for the next readings.
 A single PRO45 instruction reads the
            ΔV from all three
            axes into the accumulator.  Documentation is unclear as
            to how the data appearing in the accumulator is packed, but
            my nearest guess as to what it's trying to tell us is that
            each of the X, Y, and Z axis readings is a 4-bit
            2's-complement value (thus being in the range -8 to +7), and
            that they are packed into the accumulator as follows:


 XXXXYYYYZZZZ00000000000000
 Even if correct, the units are TBD.
 |

          | 5
 | 5
 | TBD
 | Input
            processor time
 | TBD
 |

          | 5
 | 6
 | Out
 | Time to
            retrofire control
 | Signal to the Time Reference System
            (TRS) that transfer of time-to-retrograde (TR)
            data is desired.  This output should persist for 9-15
            ms. before being returned to the normal state. |

          | 6
 | 3
 | In
 | Read
            pitch gimbal
 | These ports
            are used for reading gimbal angles from the inertial
            platform.  The units used are TBD, as the documents
            discussing them speak only of phase-shifted 400 cps voltages
            rather than true angles.
 15-bit values are provided, including the sign bit and the
            14 most-significant bits.  The 11 least-significant
            bits are zeroed.  Each of the PRO
            commands associated with these ports both reads a
            previously-measured value and begins accumulating a new
            measurement, so these ports must be accessed in a very
            specific procedure to get a complete set of readings, as
            follows:

 ... at least 5 ms. from
                last read of gimbals ...PRO36    # Must ignore the first value
                received.
 ... wait >= 5 ms. ...
 PRO46
 STO PITCH
 ... wait >= 5 ms. ...
 PRO56
 STO ROLL
 ... wait >= 5 ms. ...
 PRO36
 STO YAW
 # The total time must be <=30 ms.

 |

          | 6
 | 4
 | In
 | Read
            roll gimbal
 |

          | 6
 | 5
 | In
 | Read yaw
            gimbal
 |

          | 7
 | 0
 | Out
 | Pitch
            error command
 | For the
            re-entry mode, the outputs are down-range error rather than
            pitch error, and cross-range error rather than yaw error.
 These are values which are expected to be output at
            intervals of 50 ms. or less, and feed into a 7-bit
            digital-to-analog converter for driving the Flight Director
            Indicator (FDI).  The output comes from the accumulator
            sign bit and from bit-positions M8-M13.  The analog
            outputs also feed into range switches which can attenuate
            the signals, and are controlled by PRO02,
            PRO03,
            and PRO04.

 |

          | 7
 | 1
 | Out
 | Yaw
            error command
 |

          | 7
 | 2
 | Out
 | Roll
            error command
 |


    Discrete Inputs
      (For CLD
      Instruction)
    Note that in assembly language, in the operand for a CLD
    instruction, the Y operand field would proceed the X operand
    field.  So, for example, if X=3 and Y=4, the instruction would
    be CLD 43.
    That's the opposite of present ordering of the columns in the table
    below and could be confusing, for which I apologize, but as I said
    above, I'm too lazy to rewrite the table.




          | Operand
 | Signal
 | Comment
 |

          | X
            (A1-A3)
 | Y
            (A4-A6)
 |

          | 0
 | 0
 | Radar
            ready
 | Indicates that data from
            the Rendezvous Radar (if
            any) is ready.
 |

          | 0
 | 1
 | Computer mode 2
 | From the PCDP's
            COMPUTER mode selector rotary dial.  The rotary dial
            has 7 positions, encoded onto 3 discrete inputs, "Computer
            mode 1", "Computer mode 2", and Computer mode 3".  The
            encoding is:




                  | Computer Mode 1

 | Computer Mode 2

 | Computer Mode 3

 | Mode
 |
                  | 0
 | 0
 | 0
 | TBD
 |
                  | 0
 | 0
 | 1
 | Pre-launch
 |
                  | 0
 | 1
 | 0
 | Ascent
 |
                  | 0
 | 1
 | 1
 | Catch-up
 |
                  | 1
 | 0
 | 0
 | Rendezvous
 |
                  | 1
 | 0
 | 1
 | Re-entry
 |
                  | 1
 | 1
 | 0
 | TBD
 |
                  | 1
 | 1
 | 1
 | TBD
 |  |

          | 0
 | 2
 | Spare
 |
 |

          | 0
 | 3
 | Processor timing phase 1
 |
 |

          | 0
 | 4
 | Spare
 |
 |

          | 1
 | 0
 | Data
            ready
 | From the MDIU.  It
            indicates that a digit-keystroke has been buffered within
            the MDIU and is ready to be read.
 |

          | 1
 | 1
 | Computer mode 1
 | See "Computer mode 2". |

          | 1
 | 2
 | Start
            computation
 | From the PCDP's
            START switch
 |

          | 1
 | 3
 | X zero
            indication
 | Indicates that the IVI's X-velocity display is at zero.
 |

          | 1
 | 4
 | ATM
            clock
 | (Units with ATM only. Otherwise, spare.)
            See the ATM
            section.
 |

          | 2
 | 0
 | Enter
 | From ENTER key of MDIU
 |

          | 2
 | 1
 | Instrumentation System sync
 | From Instrumentation
              System (IS), to trigger beginning of a new downlink
            cycle every 2.4 seconds.
 |

          | 2
 | 2
 | Velocity error count not zero
 | From the IVI.
            It is an indicator that a prior "Write output processor" (PRO35)
            has reached completion.
 |

          | 2
 | 3
 | Aerospace Ground Equipment request
 | From the AGE.
            Becomes active (accumulator negative) when a word is
            available on the dedicated AGE data link.
 |

          | 2
 | 4
 | Spare
 |
 |

          | 3
 | 0
 | Readout
 | From READ OUT key of MDIU
 |

          | 3
 | 1
 | Computer mode 3
 | See "Computer mode 2". |

          | 3
 | 2
 | Spare
 |
 |

          | 3
 | 3
 | ATM on
 | (Units with ATM only. Otherwise, spare.)
            See the ATM
            section. |

          | 3
 | 4
 | ATM data
            channel 2
 | (Units with ATM only. Otherwise, spare.)
            See the ATM
            section. |

          | 4
 | 0
 | Clear
 | From CLEAR key of MDIU
 |

          | 4
 | 1
 | ATM mode
            control 1
 | (Units with ATM only. Otherwise, spare.)
            See the ATM
            section. |

          | 4
 | 2
 | Simulation mode command
 |
 |

          | 4
 | 3
 | ATM end
            of tape
 | (Units with ATM only. Otherwise, spare.)
            See the ATM
            section. |

          | 4
 | 4
 | ATM data
            channel 3
 | (Units with ATM only. Otherwise, spare.)
            See the ATM
            section. |

          | 5
 | 0
 | Time to
            start re-entry calculations
 | This is a signal from the
            Time Reference System
            (TRS) that its TR (time to retrograde) counter
            has reached zero.
 |

          | 5
 | 1
 | ATM mode
            control 2
 | (Units with ATM only. Otherwise, spare.)
            See the ATM
            section. |

          | 5
 | 2
 | Y zero
            indication
 | Indicates that the IVI's Y-velocity display is at
            zero. |

          | 5
 | 3
 | ATM data
            1
 | (Units with ATM only. Otherwise, spare.)
            See the ATM
            section. |

          | 5
 | 4
 | Spare
 |
 |

          | 6
 | 0
 | Digital
            Command System ready
 | This is a signal from the
            Digital Command System (DCS)—i.e., the
            digital uplink from ground control—that data is available
            for the OBC to read.  In general, it is expected that
            this signal be polled at 50 ms. intervals or shorter. |

          | 6
 | 1
 | Fade-in
            discrete
 | From the PCDP's
            FADE-IN.  This is a signal from a relay, but anything
            beyond that is TBD.
 |

          | 6
 | 2
 | Z zero
            indication
 | Indicates that the IVI's Z-velocity display is at
            zero. |

          | 6
 | 3
 | Umbilical disconnect
 |
 |

          | 6
 | 4
 | Spare
 |
 |

          | 7
 | 0
 | Instrumentation System request
 |
 |

          | 7
 | 1
 | Abort
            transfer
 | From the PCDP's
            ABORT switch.  The software should poll it during
            ascent mode, and switch from ascent mode to re-entry mode if
            the input becomes active.
 |

          | 7
 | 2
 | Aerospace Ground Equipment input data
 | Reads a single data bit on
            the dedicated AGE
            data link.
 |

          | 7
 | 3
 | Spare
 |
 |

          | 7
 | 4
 | Spare
 |
 |


    Subroutines
    As weird as it may seem in modern terms, the Gemini OBC CPU had no mechanism for easily
      implementing subroutines.  Further, the
    assembly-language source code for the OBC slavishly implemented what
    is basically a state machine, using the separately designed "math
    flow" as a pattern.  Therefore the OBC software developers had little need for
      subroutines.  You may think I'm wrong about this, but
    I've pursued this question with several OBC developers to an extent
    they probably consider tiresome—fortunately, they've been very
    patient!—and I think that this is an inescapable conclusion.
    Therefore, while the OBC may have been a splendid mechanism for
    developing state machines, it would have been very tiresome for
    developing general-purpose software without any easy subroutine
    mechanism.

    Now, there were a few
    subroutines, but they weren't created willy-nilly during development
    as we often do today.  Indeed, the full list (give or take a
    few due to errors), including some explanation of how to set up the
    inputs and retrieve the outputs of the subroutines, can be found in
    the Gemini Programming Manual.  In modern terms, we'd probably
    think of these as library routines, but in Gemini they were the only subroutines.  I'll
    return to this topic of library routines at the end of the section.

    Naturally, since there were some subroutines, there had to be some
    software workaround for the fact that the CPU itself didn't support
    subroutines, and it seems to have been this:

      - Before calling a subroutine such as SQROOT, the calling
        program would load the accumulator with the HOP constant of the
        location to which the subroutine was supposed to return, and
        then HOP to the subroutine.
- While we don't actually have any of the math subroutines to
        look at, presumably the math subroutine would have to:
        - Save the accumulator in a variable.
- Do whatever computations it was supposed to do.
- HOP to the saved return address.
In terms of the native capabilities of the machine code, it's
    actually very cumbersome to accomplish all of this, since it's
    necessary to set up several HOP constants (one for the subroutine
    entry point and one for each potential return address), each of
    which has names that must be distinct from the names of the
    subroutine and return points themselves.  But you may have
    noticed from the earlier descriptions of the HOP, CLA,
    and STO
    instructions that the assembler implements a feature for them in
    which left-hand symbols can be used as their operands (which would
    otherwise be illegal), and the assembler simply automatically
    creates HOP constants as necessary.  Therefore, even though
    what's going on behind the scenes is somewhat more complex, the
    assembly language for the subroutine linkage as described above
    simply looks like this:


        CLA    RETADR    # Set up the
        return address.
                HOP
        SUBROU    # HOP to the subroutine.
        RETADR  ...
              # Subroutine returns to here.
                ...
        RSUBROU
             # Variable to hold SUBROU's return
        address.
        SUBROU  STO    RSUBROU   # Enter
        SUBROU, store return address.
                ...
                  # Do stuff
        inside of SUBROU.
                HOP
        RSUBROU   # Return from SUBROU.


    There are several HOP constants used here ("(SUBROU)"
    and "(RETADR)"),
but
    the assembler creates them transparently, and the programmer doesn't
    have to know about them unless he suddenly finds himself out of
    memory.  In this example, RSUBROU also holds a HOP constant,
    but is nevertheless just a normal variable that hasn't been handled
    in any special way by the assembler.  (A construct like "CLA *+2"
    seems like it would be useful here, since it would have eliminated
    the need to explicitly define the symbol RETADR. But the OBC
    developers haven't mentioned doing anything like that, so I haven't
    bothered to implement it.  This makes sense in light of the
    Math Flow diagrams from which the code was created, because they
    include the detail of setting up the return addresses.  Hence
    to conform to the Math Flow, the coders would have explicitly set up
    the return addresses anyway.)

    I suppose I should make it clear that I'm not honestly sure that the
    original OBC assembler worked in this way.  But multiple OBC
    developers have made it clear to me that this is the way they recall
    handling subroutines, even though the explanation of why it was legal to do so (in light of the
    contradictory machine-code characteristics) has been lost in the
    ensuing decades.  So I see little alternative to supposing that
    the original assembler did indeed have a similar feature.

    Before leaving the subject of subroutines, let me just briefly
    return to the list of existing subroutines on pages 21-24 the  Gemini Programming
      Manual that I mentioned earlier.  One of the most
    important subroutines is I/O, which seems to be rather
    mysterious and we're unfortunately told little about it; it appears
    to be an exception in that no return address was supposed to be
    supplied to it.  The most complete information is available for
    the subroutines listed on page 22 of the manual, since for those
    routines there's actually some documentation about how to set up the
    inputs and how to fetch the outputs of the subroutines.  I've
    collected a little additional information on some of those routines
    not covered by the manual, and will present that info here just for
    the sake of completeness:

      - ROOTSUM
        computed the square root of the squares of its two arguments.
- SQROOT
        seemingly accepted its input in the variable ALPHA1
        and output the square root in variable ALPHA3.
        The input variable ALPHA2 was a first guess at the
        result, to speed up the computation.

- SINCOS,
        listed in the manual as "SIN COS" is a single routine that
        returns both the sine and cosine.  The input was in units
        of degrees.

- ATANGM,
        computed the arctangent, probably
        of the ratio GAMMA1/GAMMA2
        of the input variables.  The output is thought to be in
        units of radians.

- There was also a routine to compute the tangent, even though
        it's missing from the tables.
- LOG
        is the base 10 logarithm.

Sadly, I'm not aware of what most of the other routines actually
    did.  Though not a subroutine as such, the code identified as
    the "Executer" was very important and deserves some special
    attention.  Also known as the
        executive program (commonly called Hard Core), it was assigned
        to sector 00 and contained code common to all mode programs (Pre-Launch, Ascent, Catch-up, Rendezvous,
        Re-entry), such as:


      - resetting discrete outputs
- reading time programs
- subroutines
- timing programs
- go-nogo-go routine
- setting computer malfunction light
- AGE routine
- logic to jump to the mode programs

The Executer and whatever mode program
        happened to be active functioned somewhat like coroutines.
        After each pass through a mode program, there was always a
        return to the beginning of the executive program, where the
        discrete outputs were set, time was read again, and so
        forth.  After the Executer pass, control was passed back to
        the mode program again, and this process of cycling back and
        forth between the Executor and the mode program continued.

           There's also a little information
    available on placement of some of these subroutines (and other
    programs) in memory ... though, other than the Executer and MDIU
    programs, I'm told that the placement of the various subprograms in
    memory may not have been terribly important.  As of early 1963,
    prior to the ATM and in-flight swapping of programs in and out of
    memory, the following is known about memory placement (thanks to
    notes by Alden Minnick):




          | Program
 | Starting
            address
 |

          | Rendezvous
 | 01-2-007
            ... but I've also been told 02-2-105, 01-2-105, 06-2-007,
            03-2-306.
 |

          | Catch Up
 | 01-2-105
 |

          | Reentry
 | 06-2-000
 |

          | Sin Cos
 | 05-2-000
 |

          | Square
            root, Arcsine
 | 05-2-325
            ... but I've also been told 05-2-000
 |

          | MDIU
 | 11-0-060
 |

          | Ascent
            Guidance
 | 13-2-002
 |

          | Executor
 | 00-0-000
 |

          | Standby
 | 00-1-023
 |



    But I suspect these allocations changed a lot after that as, for
    example, I'm also told that at some point the MDIU was assigned to
    sector 17 (octal) rather than 11 (octal).
    Telemetry

    Uplink

    It was possible to digitally uplink data from ground control to the
    OBC, via the Digital Command System (DCS).  The procedure for
    fetching a single word from the DCS is as follows:

      - Poll CLD06 at intervals of 50 ms. or
        less to determine if data is ready.

- When data is ready:
        - PRO01
          to tell the enable the DCS to send the data.
- PRO00
          to fetch the 24-bit data word into the accumulator bits
          M1-M24.

In the fetched word, bits M1-M18 contain a data value, while bits
    M19-M24 contain an address in the range 000-077.  The flight
    software is expected to store the data at the specified address.

    The obvious limitations here are that full 26-bit data words are not
    provided and that the address-range covered is limited.  As a
    variation, there is an "extended" protocol that transmits word pairs
    rather than single words.  The extended protocol allows 26-bit
    data words and slightly extends the covered address range.  It
    works as follows:

      - Consecutive command words are transmitted to address 20
        followed by address 21.
- Rather than writing to either address 20 or 21, the two 18-bit
        data fields are combined into a 36-bit structure.
- A full 26-bit data field and up to 10 address bits can be
        extracted from the 36-bit structure.  The locations of
        these fields are TBD.

- The 26-bit data is actually written to the 10-bit address, if
        the 10-bit address was in the range 000-117 octal.
Downlink
    Conversely, telemetry data could be digitally downlinked from the
    OBC to ground control.  The flight software output 21 data
    words to the Instrumentation System (IS) for downlinking every 2.4
    seconds.  The flight software would snapshot the values of 21
    memory locations (dependent on the operational mode) into a memory
    buffer, and then to output the contents of that buffer for
    transmission.  Specifically, the way it works is that:

      - CLD07
        is polled at 50 ms. or less intervals.  When it becomes
        active (accumulator negative), the steps below are taken.
- CLD12
        is tested.
        - If the accumulator is negative, then the software should
          snapshot the mode-dependent 21 memory locations into the
          buffer and output the first buffer word with a PRO10
          instruction.
- If instead the accumulator positive or zero, then the
          software should output the next buffer word in sequence using
          a PRO10
          instruction.
Rendezvous
      Radar
    For those spacecraft having a Rendezvous Radar, the following
    procedure is used to fetch data from it:

      - PRO63
        is used to reset the radar's discrete input buffer.
- PRO01
        is used to tell the radar that the OBC wants data.
- Wait 20 ms.
- Test if data available using CLD00.
- If data is ready (i.e., if accumulator is negative), perform a
        code-sequence like the following:
PRO00
        STO     RANGE   # 15 BITS
        PRO00
        STO     SINAZI  # SINE OF AZIMUTH, 10
        BITS
        PRO00
        STO     SINELEV # SINE OF ELEVATION, 10 BITS


    The Range data is positive (being a magnitude),  and is stored
    in accumulator bits M8-M24.  The least-significant bit (M25) is
    thus not used.  If M8-M11, the 4 most-significant bits, are all
    1, then the data should be discarded.  The two sine values are
    stored in M15-M24.
    Aerospace Ground
      Equipment (AGE)
    The AGE provides a dedicated data link from the OBC to (as implied
    by the name) aerospace ground equipment, and provides a way of
    performing tests or other diagnostic activities by connecting
    special equipment.  The technique of reading a word from the
    AGE is as follows:

      - Poll CLD32 until active (accumulator
        negative).
- Fetch an 18-bit word by repeating the following 18 times:
        - PRO23
          with accumulator negative.  (Starts a pulse on the AGE
          data clock.)
- Wait 2.5 ms.
- PRO23
          with accumulator positive or zero.  (Ends the clock
          pulse.)
- Wait 1.5 ms.
- CLD27.
(Reads
          the data bit.)
- Wait 1.5 ms.

Assuming that what the software does with this data is to pack it
    into bits M1-M18 of a data word, with the first bit read going into
    M1 and so forth, M4-M1 will contain an operation code. The
    operation-code bits specify the requested operation as follows:




          | Mode Bits
 | Mode
 |

          | M4
 | M3
 | M2
 | M1
 |

          | 0
 | 0
 | 0
 | 0
 | None
 |

          | 0
 | 0
 | 0
 | 1
 | Read
            words from memory.  (See below.)
 |

          | 0
 | 0
 | 1
 | 0
 | Set
            marginal early.  The software should use PRO60
            to enable the "marginal early" memory-accessing mode.
 |

          | 0
 | 0
 | 1
 | 1
 | Set
            computer malfunction on.  The software should use PRO34
            to turn the MALF light on.  (It's unclear how the MALF
            light gets turned off.  Probably the astronaut is
            supposed to do it manually by pressing the RESET button on
            the PCDP.)
 |

          | 0
 | 1
 | 0
 | 0
 | Set
            marginal late.  The software should use PRO60
            to disable the "marginal early" memory-accessing mode. |

          | 0
 | 1
 | 0
 | 1
 | Set pitch
            ladder output.  (See below.)
 |

          | 0
 | 1
 | 1
 | 0
 | Set yaw
            ladder output.  (See below.) |

          | 0
 | 1
 | 1
 | 1
 | Set roll
            ladder output.  (See below.) |

          | 1
 | 0
 | 0
 | 0
 | Set all
            ladder outputs.  (See below.) |



    As you can see, one of these commands causes a memory word to be
    read and reported back through the interface, while the others are
    supposed to trigger the OBC software to perform some operation.

    When data is being read back (operation 0001), the data word read
    from the AGE link is interpreted as follows:  M5-M12 will
    contain a data address (A1-A8), M13 (A9) will contain a bit related
    to AGE internal clock pulse timing, M14-M17 will identify the sector
    (S1-S4) of the requested data, and S5 will identify the syllable of
    the requested data.  (By selecting S5=0, the data is taken from
    syllables 0,1.  By selecting S5=1, the data is taken from
    syllable 2 with an implied but fictitious syllable 3 that is
    entirely 0.)  The first bit transmitted is the most-significant
    bit of higher selected syllable and the last bit transmitted is the
    least-significant bit of lower selected syllable.  The actual
    transmission technique is to repeat the following 26 times, in
    most-significant to least-significant bit order:

      - Load the accumulator so that the bit to be sent is the sign
        bit.
- PRO22
        to output the bit.
- Wait 2.5 ms.
- PRO23
        with accumulator negative.  (Start AGE data clock pulse.)
- Wait 2 ms.
- PRO23
        with accumulator positive or zero.  (End clock pulse.)
- Wait 2 ms.
- PRO22
        with accumulator positive or zero.  (Put AGE datalink line
        back to its normal resting state.)
- Wait 1 ms.
(The manual states that specifically that "there is a delay of 4.5
    ms. between resetting clock 18 and setting clock 19".  I cannot
    fathom any meaning in this statement, so I simply report it as
    written.)

    As far as the "Set XXX ladder outputs" operations are concerned
    (0101, 0110, 0111, and 1000), the data word read from the AGE is
    interpreted as a sign bit at M18 and a 6-bit data word (D1-D6) at
    M12-M17.  What is done with this data is TBD.

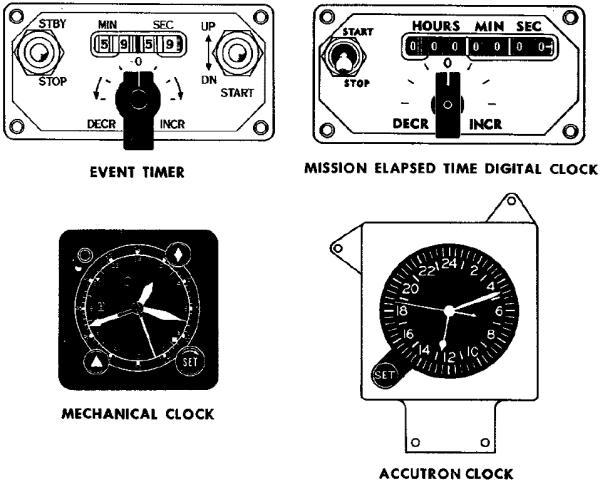

    Time Reference System (TRS)
    The Time Reference System (TRS) keeps track of elapsed time from
    lift-off, and provides count-down times to retrograde and to
    equipment reset.  It counts in 1/8-second increments.  The
    timings being tracked can be transferred to the OBC or set from the
    OBC, and they can be set by other means such as manual entry and
    digital uplink from the ground.

    The TRS can be accessed by the OBC in one of two modes:
    "readout mode", which is activated by PRO21 with the accumulator
    negative, and "enter mode", which is activated by PRO21
    with the accumulator positive or zero.  In readout mode, the
    elapsed time (ET), the time until retrograde (TR) or the
    time until equipment reset (TX) is transferred from the
    OBC to the TRS.  In enter mode, the transfer is instead from
    the TRS to the OBC.  If TR reaches zero, then a
    discrete from the TRS which can be read with CLD05
    becomes active, and the software is generally expected to poll this
    discrete so that it can know when to begin retrograde.

    The TRS has three internal 24-bit counter-buffers in which times are
    counting upward or downward, and a separate 24-bit buffer used to
    transfer data to/from the OBC.

    In order to make sense of the procedures documented in the
    familiarization manual, the PRO21 instruction must have some
    unusual behavior, such as the following:

      - It places the accumulator's M25 bit onto the output line to
        the TRS.
- It places the signal from the input line from the TRS into the
        accumulator's M1 bit.
- It generates a clock pulse for the TRS.

Readout Mode
    Here's how the OBC can write data to the TRS.

      - PRO21
        with accumulator negative to select readout mode.
- Load the accumulator with 24-bit data for the TRS.  The
        data should be in accumulator bits M2-M25.
- Repeat the following 24 times:
        - PRO20
          to output accumulator's M1 to the TRS.
- SHR1
          to discard M1 from the accumulator and move the other
          accumulator bits downward.
- With the accumulator negative use (only) one of PRO14,
        PRO65,
        or PRO25
        to strobe the TRS transfer buffer into one its ET, TR,
        or TX counter, respectively.
- Delay 9-15 ms.
- Use the same PRO instruction from step 4,
        but with the accumulator zero or positive.

Enter Mode
    Here's how the OBC can read data from the TRS.

      - PRO21
        with accumulator zero or positive to select enter mode.
- With the accumulator negative use (only) one of PRO14,
        PRO65,
        or PRO25
        to load the TRS ET, TR, or TX counter
        value, respectively, into its transfer buffer.
- Delay 9-15 ms.
- Use the same PRO instruction from step 2,
        but with the accumulator positive or zero.

- 25 repetitions of the following steps.  (Yes, that's 25
        repetitions, even though only 24 bits are involved.)

        - PRO20
          to get the next bit from the TRS into the accumulator's M1
          bit.

- SHR1
          to logically right-shift the accumulator by one place.

- Notice that after the 25th step above, the first bit that was
        read will have been shifted out of the accumulator entirely, so
        only the bits from the 2nd through 25th reads will remain.

Auxiliary Tape Memory (ATM)
    At some point in the evolution of the operational program, feature
    creep caused the size of the operational program to overrun the
    total amount of memory provided by the ferrite array.  For
    Gemini VIII through XII, the approach taken was to modularize the
    software in a way that allowed it to be reloaded into the OBC during
    the mission with software that was specialized for the current phase
    of the mission.  So even though we talk (for example) about the
    "software for Gemini X", the software for Gemini X was really
    several different programs that were loaded just during the mission
    phases in which they were used.  The programs were stored in
    the Auxiliary Tape Memory
    (ATM) and then transferred to the OBC.  We are told by the Gemini
      Familiarization Manual that


      The Auxiliary Tape Memory (ATM) is a self-contained magnetic
        tape recording system. It is used in spacecraft eight through
        twelve to provide additional program storage for the digital
        computer. It has a total storage capacity of over 85,000
        thirteen-bit words. This is about seven that of the computer
        core memory. The ATM is mounted on a cold plate in the adapter
        section of the spacecraft ...
    From the Familiarization Manual's ATM specifications, we can figure
    out about how long a program load from the ATM into the OBC must
    have taken.  With a total tape length of 525 feet and a
    read/write speed of 1.5 inches/second, the total tape could be read
    or written in 525×12/1.5 = 4200 seconds = 70 minutes.  (If a
    tape rewind were needed, the full operation would also require a
    rewind at 8× speed, adding a maximum additional 8.75 minutes to the
    total operation.)  Since the tape has a 7× capacity relative to
    the OBC core-memory capacity, any individual load, ignoring tape
    wind/rewind, would then be about 70/7 = 10 minutes.  Since not
    all of the memory could be overwritten, and since syllable 2 of the
    39-bit memory words couldn't be changed in flight anyway, the actual
    loads would have taken less time, and is estimated at about 7
    minutes.

    Loading software from the ATM into the OBC is actually a software
    operation rather than a hardware-only operation, so it requires that
    some software—namely, the software that does the software
    loading—remain always in the OBC without being overwritten.
    That invariant portion of the software is known as "Module I".
    There were six modules in all, and I've already described them above.

    I can't tell you (yet) how many separate software loads occurred
    during the missions, nor which modules were loaded during these
    loads, but that is probably information we can find or deduce at
    some point in the future.  I believe, however, that loads
    occurred during the pre-launch phase after diagnostics had been
    completed, in orbit prior to rendezvous, and after rendezvous but
    prior to re-entry.

     The
documentation
    does not precisely describe how data is read from the ATM.  But
    the following is my best guess as to how the actual OBC/ATM
    interface works.
The
documentation
    does not precisely describe how data is read from the ATM.  But
    the following is my best guess as to how the actual OBC/ATM
    interface works.

    Various of the PRO/CLD instructions mentioned
    below are repurposed from interfacing to other peripherals like the
    TRS.  The image at right, showing the pilot controls for the
    ATM, came from the
      Gemini XII Mission Report. (I was obliged to replace all of
    the text to make it legible for presentation here.)  In the
    AUTO mode, it appears as though data could be written to the tape
    using the Aerospace
      Ground Equipment (AGE), but only the STDBY, REWIND, WIND, and
    PROG modes seem to have been useful during the mission.

      - The position of the ATM mode switch can be read by combining
        the two bits from CLD14 and CLD15.
I
        assume that being in
        STDY or not is what affects the repurposing of the PRO/CLD
        instructions I mentioned earlier and that the remaining 4
        positions are what is reported as the mode.  I don't know
        what numerical codes are associated with which modes.

- The ATM is commanded by the computer to wind (fast forward),
        rewind, or to stop winding/rewinding with the PRO15,
        PRO25,
        or PRO14
        instructions, respectively, on the basis of the positioning of
        the ATM mode switch.  Wind and rewind occur at about 12
        inches per second, whereas reading or writing occurs at 1.5
        inches per second.

- The ATM is commanded to verify/reprogram (i.e., to output
        actual data or, I assume, to pause playback) with the PRO44
        instruction.
- CLD33
        is used to determine that the ATM has reached the proper speed
        for reading (or writing) data from (to) it, and become active
        roughly 5 seconds after the tape drive has been set in motion.

- When the ATM is outputting data, the data is provided in 3-bit
        frames at a rate of 200 frames per second.
- A new 3-bit data frame is ready to be used when CLD41
        becomes active.
- The 3-bit frame's data is retrieved using the commands CLD44,
        CLD43,
        and CLD35
        to get the individual bits-positions of the frame.
- The end or beginning of the tape is detected with CLD34.
The ERROR lamp seems to have been directly controlled from the ATM
    rather than from the OBC.  The 3-bit data frames mentioned
    above were actually 4 bits each, with the 4th bit being a parity
    bit, so the ERROR lamp was lit when a parity error was
    detected.  Moreover, the data was triply redundant as well, so
    a voter circuit could detect an error if there was a mismatch
    between the redundant data.  Finally, the data checks occur
    even during wind/rewind operations, so the ERROR light can
    potentially be lit during those activities.  On a similar note,
    it may have been possible to read data from the ATM during a tape
    wind/rewind operation, but I have no data on that subject.  I
    believe that a PRO14 will extinguish the lamp if
    it is lit.

    The RUN lamp is also controlled directly by the ATM, and indicates
    that the tape is in motion; it lights 5 seconds after receiving any
    command that sets the tape in motion.  It will be automatically
    extinguished if the beginning or end of the tape is reached.

    During an ATM search operation, the IVI was used
    to show the tape position (in 13-bit words) on the left/right
    display, and the module words on the fore/aft display.

    As far as how the data is actually encoded on the tape—i.e., how the
    3-bit frames are recombined into 39-bit memory words, and where
    those words are placed in memory—I have, as of yet, found no clue in
    the documentation.
    OBC
      Assembly Language
    I've given a number of examples of OBC assembly-language above,
    particularly where describing the various CPU instructions, but I'd
    like to devote this section and its sub-sections to describing the
    assembly language and its syntax a little more generally.  I'll
    try to describe the original language used by the OBC developers to
    the extent possible, but since no documentation of the language or
    the assembler other than the names of the instructions is known to
    survive, nor any examples of OBC assembly-language contemporary to
    Gemini, you can't assume that my description is completely
    correct.

    On the other hand, my information has been gleaned from a lot of
    communications with OBC developers, and by some rather extensive
    modern (2011) recreations of sample code by OBC developers.
    You can find the sample code here:

    This sample code was produced with the intent of showing the coding
    style that was employed, and was developed similarly to the way that
    the original OBC code was developed: namely, by "slavishly"
    duplicating the extremely detailed flowcharts known as the "math
    flow".  (I got the description "slavish" here from OBC
    developer Don O'Neill, who was in charge of the assembler
    program.)  So I think that there's a pretty high degree of
    authenticity.  On the other hand, you have to recognize that
    the sample code was developed 45 years after the end of Gemini, and
    that Alden and Charlie had (at the time of creating the samples)
    neither an assembler nor an OBC simulator, so you have to expect
    that there's going to be some degree of inconsistency and
    unavoidable error as well.  Charlie has passed along the
    following additional brief notes that he wrote while creating his
    own code snippet that I think give a much fuller picture not merely
    of the production of the sample code, but of the method by which the
    original OBC software was produced ... not that all of the original
    developers necessarily worked the same way, of course!

    Here also is a far briefer sample and explanation by Charlie of
    coding a simple formula in OBC assembly language, slightly massaged
    by me for typos:




          | I will start
                  out with a simple equation like: Y=MX + B. Here goes:

 Let's assume
                  the numbers are small as that we won't have to do any
                  fixed point scaling.

 Let's define
                  B as a constant with the decimal value of +3. The 24
                  bit memory in binary word would be as. (0 00 000 000
                  000 000 000 000 011) There is no actual spaces between
                  the binary zeros - it makes it easier for me count the
                  bits and look at the sign bit! The sign bit was the
                  most significant bit while the the least significant
                  bit was the 1.

 Let's also
                  assume the program is in sector (00) - in octal
                  (zero). There were 16 sectors in octal that you could
                  program in. To change sectors you had to execute a HOP
                  instruction.The first bit of
                constant (+3) in memory is the sign bit of zero which
                represents a positive number. A negative number would
                have a 1 bit.



 The Gemini symbolic instructions on punch
                  cards fed in to the Assembler would look like this:

 CLA X
                      Variable Comment MPY
                  M       Slope Comment SPQ Temp1
                    Store the product in a memory location Temp1
                  comment ADD
                  B       Constant (+3)
                  comment
              STO Y       Store result in
                    Variable Y memory location |



    To a certain extent, I have tried to get around some of the problem
    of having no feedback for detecting coding errors by developing a recreated version of the
      OBC assembler, which I call yaASM,
    and an OBC CPU emulator,
      which I call yaOBC.
    At this point, these programs are very much works in progress, and I
    don't claim that they are fully debugged or even that they will run
    on your computer.  For this reason, they have not made their
    way into the official Virtual AGC software source or binary
    distribution.  But for now you can download the cutting-edge
    binaries from the temporary Gemini download
      section on this page.

    Finally, before starting, let me note that in contemplating the
    original OBC assembly language, there was a small set of features
    which (from a modern standpoint) seem to be absolutely necessary to
    the language, but which don't seem to have existed originally;
    perhaps they truly existed in some form but have simply been
    forgotten over time.  In those cases, I have taken the liberty
    of adding those features to yaASM
    and to the assembly-language syntax.  In the description that
    follows, I have color coded
      in this brown color any aspects of the language that seem to me to
      be newly-added and not to have existed in this exact form in the
      original OBC assembly language.
    General format
    The format of an individual line of code, corresponding to a single
    punch-card from the point of view of the original OBC developers or
    to a line of a source file from the current perspective, is

    LHS OPERATOR OPERAND COMMENT


    Note that these fields are not aligned on an particular column, and
    are simply separated by white space of any kind.  The total
    number of characters in a line was originally limited to punch-card
    length (80 characters), as the assembler did not allow for
    continuation cards, but the
      current assembler extends that limit to 132 characters.
      Moreover, since it's a little easier to compose source-code these
      days (without having to use punch-cards), with newly-written code
      I think it's nicer to align the columns attractively.

      - LHS
        an optional symbolic name for the memory address at which the
        line of code or variable/constant allocation is located.
        (The reason I call this "LHS" is that the OBC developers
        referred to the symbolic name for a location holding a CPU
        instruction as a "left-hand symbol".  They didn't use that
        term for names of variables or constants, though for the purpose
        of describing syntax I'll symbolize all such things as LHS.)
        LHS
        is limited to 8
          characters or less, and may contain any character which
        is not white-space.  I believe
        that the original OBC assembler accepted only up to 6
        characters, and I further believe that the original OBC
        developers conventionally used only upper-case characters and
        digits.  yaASM
          also treats all words defined by the language itself (such as opcodes) as reserved, and doesn't
          allow  LHS to be a reserved word.
- OPERATOR
        is either an opcode or else a pseudo-op.

- Not all instructions have an OPERAND.  Where
        required, though, the nature of OPERAND differs by OPERATOR
        type.  The descriptions of the individual OPERATOR
        types elsewhere on this page also list the allowed OPERAND
        types for them.

- The optional COMMENT is any string of
        characters whatever.  It is unclear if the original assembler required the
          comment to be preceded by any special character, and yaASM does not require it.
          However, for convenience purposes,yaASM does ignore any text from a
          '#' character to the end of line, and following this
          convention has the advantages both of allowing a full-line
          comment and of allowing the assembler to detect certain syntax
          errors that would otherwise be undetectable.  In fact,
          for yaASM I
          arbitrarily disallow comments in without leading '#' in
          variable allocations since such comments would
          indistinguishable from misspelled OPERATORs.  A full line containing only white-space is
          also treated as a comment.  The following additional
          conventions related to comments are also useful, though not
          enforced in any way:
        - A comment made by the developer of the code should be
          preceded by a single '#'.
- A comment made by a downstream editor of the code (such as
          the maintainer of this website) should be preceded by "##".
The original OBC developers, I told, formatted the code for
    submission to the assembler as follow:

      - A list of all variables used, where a "variable" is the name a
        memory location whose value can be changed at runtime.  In
        these lines, LHS is present but OPERATOR
        and OPERAND
        are not.  yaASM treats
          such a line as an allocation for an uninitialized variable
          named LHS, as the original OBC assembly
          language doesn't seem to have had any other method of making
          such an allocation.  I'm not sure, but I think
        that lines of the form "LHS SYN REFLHS COMMENT" might
        be included in this section.
- A list of all constants used, where a "constant" is the name
        of a memory location assigned a value at assembly-time.
        They're not really "constant", though, since there's nothing to
        stop the runtime program from changing the values later.
        In modern terms, it's probably best to think of these as
        allocations of initialized variables.  To my understanding,
        the OBC programmers used a naming convention in which if the
        name of the constant began with 'K', the program was not
        supposed to alter the value.  (Interestingly, the original
        assembler did not have a concept of a symbolic constant that was
        used only at assembly time without corresponding to a memory
        location.  The pseudo-op EQU which would be used for
        that purpose in many current assembly languages is, in fact,
        used for something else.)  In section, OPERATOR
        is generally DEC, OCT, EQU,
        or  HOPC.

- Instructions.
Curiously, I've been unable to ascertain how the original
        assembler was told what areas of memory were to be used for
        assembly of instructions or data.  Perhaps each memory
        region was assembled separately, along with job-control
        directives giving the memory region, and all of the little
        pre-assembled chunks were merged together later into a single
        executable image.  At any rate, to overcome this, I've found it necessary to
      invent my own syntax for such things. The following directives for that
      purpose are completely new in yaASM and didn't exist in this form originally:




          | Directive
 | Description
 |

          | HALF
 | Tells the assembler that the
            half-word memory access mode is in effect in following block
            of code.  This remains in effect until a NORM
            directive is encountered.
 |

          | NORM
 | Tells the assembler that the
            normal memory access mode is in effect in following block of
            code.  This remains in effect unti a HALF
            directive is encountered that overrides it.
 |

          | CODE M-PP-S-WWW
 | Tells the assembler that the
            next instruction encountered should be assembled at address
             M-PP-S-WWW, where  M is the module,   PP represents two octal
            digits giving the memory sector,  S
            is the syllable, and  WWW
            represents three octal digits giving the word number.
            The word number is incremented by the assembler on each
            successive instruction encountered, but assumptions about
            the selected sector and syllable are never changed until
            another CODE directive is
            encountered.
 The term "module" (M)
            refers to the program modules (I, II, III, IV, V, and VI)
            that can be loaded at runtime from the Auxiliary Tape Memory,
            thus overlaying each other.  Module I, however, was
            intended to always be present.  yaASM allows 8 modules
            numbered 0-7.  Module 0 corresponds to program module
            I, 1 corresponds to II, and so on.

 yaASM expects to
            assemble a complete set of program modules as a single
            operation, rather assembling the program modules separately
            and merging them afterward ... which, I gather, was the
            original procedure in Gemini itself.  This makes it
            easier for all program modules to be aware of the same set
            of global variables. As a consequence of this feature,
            however, yaASM
            requires that program modules do not redefine left-hand symbols or
            variable/constant names from one module to the next.
            So (for example) if you had a variable named X
            in module I, you couldn't define a different variable X
            in module II, even though you could continue using X
            from module I within module II, as long as module II hadn't
            actually overlaid the portion of module I where X
            was defined.  yaASM
            has no way of detecting runtime problems where code or data
            are accessed that aren't actually loaded, so it is the
            responsibility of the programmer to avoid it.

 One situation that may arise is that some memory location
            may be used as a variable with two different interpretations
            in two different modules, and therefore it's desirable to
            assign two different symbolic names to it.  For
            example, we might desire a specific address to be the
            variable PHI in module II and the
            variable EPSILON in module
            III.  Using multiple names for the same address causes
            no problems if module II and module III use the same region
            of memory and hence don't coexist.  In this case, the SYN
            pseudo-op could be used to define PHI and EPSILON
            as synonyms; module II would use only the symbol PHI
            and module III would use only the symbol EPSILON.
The
            same situation could occur with left-hand symbols as well;
            for example, if there were two modules for the exact same
            area of memory, and the entry points for both were at the
            same address, then two different left-hand symbols would
            refer to the same address but in two different
            modules.  But generally in this latter situation, the
            left-hand symbols are all defined naturally just by
            assembling the code, and therefore no explicit SYN
            is needed.

 |

          | DATA M-PP-S-WWW
 | Tells the assembler that the
            next variable or constant declaration encountered should be
            assembled at address  M-PP-S-WWW.
            See the CODE directive for more
            detail.
 |



    These directives, with
      whatever operands they may have, are expected to be placed on
      lines by themselves, without any left-hand-symbol or
      comment.  However, any desired white-space can be added to
      make them look pretty.   Note that CODE
      and DATA
      are completely separate and independent, so that they can
      logically be use together or separately.  I'd think that the
      most normal usage, though, would be to issue both directives
      together, like so:


    CODE M-PP-2-000
      DATA M-PP-0-000
      ... all of the code, variables, and
          constants for sector PP ...


      Because of the existence of these directives, yaASM has no need to enforce the
      original-OBC division into sections (VARIABLE/CONSTANT/CODE)
      described earlier, and expects that variable- and
      constant-specifications can be intermixed at random with
      instructions.  However, it is required that blocks of source
      code be preceded by the appropriate directives HALF/NORM/CODE/DATA
      describing the memory being used.  It's very important to
      understand that the directives only affect the assembler's
      assumptions, but don't have any effect at runtime.  While the
      assembler can help to keep the assemble-time assumptions
      consistent with the runtime conditions, it's still possible for
      the programmer to fool the assembler and generate code that won't
      actually execute. For example, for HOP constants generated with
      HOPC, the runtime effect of a HOP will generally be consistent
      with the assembler's assumptions about memory use; for HOP
      constants generated instead by OCT, there's no such
      expectation.  It's ultimately up to the programmer to insure
      consistency.

    In order to allow relatively
      clean organization of source code, yaASM allows an OBC source file to include the
      complete contents of another OBC source file within it by placing
      the name, preceded by the character '$', by itself on a line, like
      so:


    ...
      $IncludeThisFile.obc
      ...


    Multiple include-files can be
      used in a single source file, and include-files can include other
      files.  This feature could be used, for example, to organize
      a program in terms of pages in its math-flow diagram by putting
      each page in a separate source file.
    Shorthands for some
      instructions




          | Shorthand
 | Description
 |

          | SHR 1
 | Same as an SHF
            with X=1, Y=2. |

          | SHR 2
 | Same as an SHF
            with X=0, Y=2. |

          | SHL 1
 | Same as an SHF
            with Y=3.  The value of X doesn't matter in this case,
            but our assembler will use X=0. |

          | SHL 2
 | Same as an SHF
            with Y=4.  The value of X doesn't matter in this case,
            but our assembler will use X=0. |

          | NOP
 | A no-operation instruction
            that simply advances to the next instruction in
            sequence.  The assembler translates this to "TRA
              *+1".  The existence of NOP. |



    In discussions or in documentation you'll often see references to
    things like "SHR1" or "PRO43" — in other words, to things that look like SHR, SHL, SHF, PRO, or
    CLD
    instructions+operands, but without any space between the operator
    and operand.  Indeed, you'll find references like that on this
    web page.  It remains
      unclear to me whether the original OBC assembler accepted
      constructs of this kind, but the yaASM assembler does not: yaASM expects the instruction and
      operand to be delimited by space(s) in all these cases.  Until/unless actual OBC
      source code is found so that it can be fed into the assembler, the
      point is (of course) not of overwhelming concern.
    Pseudo-ops



          | Pseudo-op
 | Description
 | Example
 |

          | DEC
 | Assembles a decimal
            constant into memory.  It can assemble either integer
            values or else fractional values.  The allowed range of
            values is -33554432≤Operand≤+33554431.  As with
            all data, in normal mode the data was stored in syllables
            0,1, while in half-word mode it was stored in syllable 2.
 If the literal decimal constant is an integer (i.e., if it
            has no decimal point in it), then it is converted much as
            you might expect: for example, a decimal 3 is stored as a
            binary 11.

 But in converting fractional values in which the literal
            decimal constant contains a decimal point, the value is
            auto-scaled by whatever power-of-2 is required to make the
            most-significant data bit (other than the sign) 1; in other
            words, the value is left-shifted to maximally fill the range
            -1.0<ScaledOperand<+1.0.
There
            is no convention for storing values in memory with the
            binary point at any location other than fully to the left or
            fully to the right of all the bits; it's up to the
            programmer to understand these conventions and explicitly
            apply scaling to deal with it as the computation progresses.


 | ANINT
              DEC -12345678 PI DEC 3.14159

 |

          | OCT
 | Assembles an octal
            constant into memory.  Its operand is a set of octal
            digits.  The allowed range of values is 0 to
            377777777.  As with all data, in normal mode the data
            was stored in syllables 0,1, while in half-word mode it was
            stored in syllable 2. | ANOCT
              OCT 1234567
 |

          | SYN
 | Creates a symbol referring to
            the same memory address as a different symbol ... i.e.,
            causes symbols to be synonyms for each other.  This is
            useful in cases where different programs which never run
            simultaneously are sharing the same memory locations for
            variable storage. Since the different programs would have
            different interpretations for these same memory locations,
            they'd naturally want to assign different symbolic names to
            them. (I believe that the OBC programmers referred to such
            variables as "timeshared" variables.)  In yaASM, SYN can be used to create a synonym for
              instruction left-hand-symbols as well, though I'm not sure
              if that feature was present in the original assembler or
              would have had any use there.
 | A
              SYN B
 |

          | EQU
 | Creates a variable having the
            same initial value as a different variable (presumably
            created by OCT or DEC).
In
            the example shown at right, two variables (A
            and B) are allocated, each
            having the same initial value of 21, but they're at two
            different memory locations and may have different values
            later in the program's execution.
 | A
              DEC 21 B EQU A

 |

          | HOPC
 | Creates a HOP constant from an existing left-hand symbol for
            an instruction.  The constant is stored in the
            currently-active DATA section at the
            position where the HOPC pseudo-op is
            encountered, but the constant itself is constructed using
            the CODE and HALF/NORM
            settings which exist at the location of the left-hand symbol
            being targeted, which is exactly what's required to make the
            constant usable.  It's possible alternatively to create
            a HOP constant manually using OCT, but it's
            frankly difficult and error-prone to do so, and creates a
            constant that's easily broken by future code changes.
 Because of the assembler's feature of implicitly creating
            HOP constants when it finds code left-hand symbols used as
            operands for HOP, CLA,
            or STO instructions, it
            actually turns out that there's little need to explicitly
            use HOPC except in odd cases
            which the assembler would handle implicit HOP constants
            incorrectly, like half-word mode.

 | HLAB
                HOPC LAB ...
 LAB
                ... code ...

 |


    Software
      Examples
    Above, you've seen various code snippets of OBC assembly-language
    generated by me or original OBC developers in the absence of any OBC
    programming manual or actual
    examples of OBC code contemporary to Gemini to work from.  You
    may also find the short
      programming example created by John Pultorak
    instructive.  (In John's document, "SGSC" refers to a
    Gemini-related project of his own, and not to anything that actually
    existed in the true Gemini project.)  Unfortunately, John is in
    the same boat as I am, and is working without genuine code or code
    samples.

    Our "Modern" OBC
      Development Tools

    In the foregoing sections I've talked about the characteristics of
    the Gemini OBC itself.  In this section I discuss simulation
    software provided by the Virtual AGC project to process OBC source
    code and emulate the OBC.  Some of the software discussed below
    exists, but some of the description below is speculation about
    software that I might
    create in the future, and how I might go about doing it. I apologise
    for that.  Nevertheless some significant software is available
    already.
    Downloads
    As mentioned earlier, I have created a new version of the
      OBC assembler, which I call yaASM,
    and an OBC CPU
      emulator, which I call yaOBC.


    In brief, yaASM is a
    command-line tool which:

      - Reads OBC source code from a file
- Creates a file called yaASM.bin to hold the assembled OBC
        program executable
- Outputs an assembly listing to the console, where you can pipe
        it into a file

while yaOBC is a
    command-line tool which:

      - Reads the yaASM.bin OBC executable file created by yaASM
- Reads the assembly listing created by yaASM
- Emulates the behavior of the OBC CPU, so that the OBC program
        can be executed

More-detailed explanations are available in the sections
    specifically devoted to yaASM
    and yaOBC below, but at its
    most basic, here are the commands you'd use to assemble the test OBC
    assembly-language source-code file, using sample OBC code provided
    in the file Test.obc, and then run the assembled program in the
    emulator/debugger from the command-line in Windows:

    yaASM --input=Test.obc >Test.lst
      yaOBC
        --binary=yaASM.bin --symbols=Test.lst


    The commands above will present you with a debugger interface in
    which you can do things like examine or modify OBC memory, set
    breakpoints, run or single-step through the OBC test program,
    etc.  You can also view the assembly listing, Test.lst, in any
    convenient text editor you happen to have handy, such as Notepad or
    Wordpad.

    By the way, I follow the convention that OBC source files have names
    of the form *.obc, OBC executables have names of the form *.bin, and
    OBC assembly-listings have names of the form *.lst.  These
    conventions are not enforced by yaASM
    and yaOBC, though, and
    you're free to do as you like.

    The Gemini Catch-Up
      and Rendezvous Simulation Program
    Background

    This is an actual existing
      program described in this
      report, with the full FORTRAN source code in Appendix A of the
    report.  The program was used by the original Gemini developers
    to verify algorithms for the catch-up and rendezvous flight
    phases.  It is a behavioral simulation of the flight code,
    rather than being flight code itself.  The actual flight code
    was apparently developed by handing the validated FORTRAN source
    code to programmers, who recoded it to something usable directly in
    the Gemini OBC.  It is therefore the closest thing we have at
    the present time to actual flight code.  The report was
    contributed by Gemini developer Eugene Mertz, and scanned by his son
    Dave.  Thanks, Gene and Dave!

    Although the report is dated slightly after the Gemini 7/6 mission,
    Gene recollects that it was actually prepared a few weeks before the
    mission, which was the first rendezvous maneuver of manned
    spacecraft.  In other words, it's reasonable to suppose that
    the FORTRAN code corresponds to the Gemini 7/6 mission.

    Gene comments, "The FORTRAN code
        seems to be complete since it had to simulate the flight
        code.  The coding style is archaic, to say the least.
        Today's techniques (and newer languages) would produce better
        code!  But, hey, the system worked to perfection despite
        problems that cropped up in equipment other than the computer
        (example:  the plug falling out at 2 inches off the pad!).  I believe the version was FORTRAN IV since
        this was the language of choice at the time for the IBM
        7094.  I recall one problem that we had running the binary
        deck after it sat dormant for several months.  The problem
        arose because one of the FORTRAN programmers used an
        'undocumented instruction' that IBM decided to change to make it
        better.  I put one chad in the offending hole and
        duplicated the deck.  The chad stayed in long enough to
        read the 'fix' into memory.  After that, no problem!
        (Also, no voting machine was involved.)"

    Two separate application programs are actually provided, though
    using much of the same underlying machinery.  Both a
    batch-oriented program (capable of receiving a bunch of input data
    and quickly generating corresponding output data for the mission)
    and a dynamic simulation program that operates in real-time are
    provided.
    Source Code
    The source code for Report #4 described above has been extracted
    from the report and is available in the Virtual AGC software source
    tree under the directory yaAGC/GeminiCatchUpandRendezvousProgram/.

    The original program was really combined FORTRAN II and IBM
    7090/7094 assembly-language.  Both the original FORTRAN II and the assembly code
    did things which simply cannot be performed with any modern version
    of FORTRAN, so the original source wouldn't have been directly
    compilable and (if somehow it compiled) the executable would not
    have worked as expected on any computer other than an IBM
    7090/7094.  The theory of
      operation section explains some of the problems
    involved.  Therefore, the source code in the Virtual AGC source
    tree has necessarily been modified from the original to be buildable
    and portable.

    In general, the following modifications have been made:

      - Every effort has been made to keep the FORTRAN source
        identical to the original, in files with names of the form
        *.f.  The very minimal differences from the original which
        could not be avoided are clearly marked, and would have compiled
        and worked properly with the original compiler.
- The IBM 7090/7094 assembly-language is provided (in files
        named *.s) but does not participate in the build.  Instead,
        complete replacements are provided (in files named *.c).
Building the
      Catch-Up and Rendezvous Simulation Program
    In a general Virtual AGC program build, the catch-up and rendezvous
    simulation program is built automatically.  But if you just
    want to build the Gemini simulation and none of the rest of Virtual
    AGC, you can do this:

     cd
      yaAGC/GeminiCatchUpandRendezvousProgram
      make


    This requires:

      - GNU make
- GNU gcc
- GNU gfortran
- GNU sed

Although the Makefile has provisions for using the earlier GNU g77 in place of gfortran, but it's best not to
    use it because I've found that with g77 the program will appear to compile but the
    executable will not be fully functional.  If you adapt for
    other compilers, let me know the details.  Note: At build-time, the
    Makefile dynamically transforms the FORTRAN II to a more-modern
    FORTRAN dialect (*.f → *.for), since the FORTRAN II code cannot be
    directly compiled with a modern compiler.  This transformation
    behavior must therefore also be mimicked if changing to a different
    toolset.
    Running the
      Catch-Up and Rendezvous Simulation Program
    The batch-oriented simulation program, referred to in Report #4 as
    the "static environment", is created as the executable named BENCH7.  The dynamic
    simulation program, referred to in Report #4 as the "dynamic
    environment", is created as MAIN7.
    Neither has any command-line arguments, but both expect input files
    to be available.  (The nature of the input files and output
    files is discussed in the next section.)

      - BENCH7:  Receives
        input on file-descriptors 5 and 6, and outputs on
        file-descriptor 9.  Therefore, in a UNIX-type runtime
        environment, it would be reasonable to run the program with the
        command "BENCH7 5<Infile1
        6<Infile2 9>Outfile".

- MAIN7:  Receives
        input on file-descriptor 5, and outputs on file-descriptors 9
        and 14.  Therefore, in a UNIX-type runtime environment, it
        would be reasonable to run the program with the command "BENCH7
        5<Infile 9>Outfile1 14>Outfile2".
Both programs may also print some status messages on stderr, due to
    my alterations rather than to any intention of the original
    programmers.
    Data for the
      Catch-Up and Rendezvous Simulation Program
    The input-data files needed to run the simulation program(s) are
    described in Report #4.  Actually generating such data is TBD.

    Gene's comments: "The problem is that
        there is no 'environment' FORTRAN program to generate the radar
        inputs to the OBC (range, azimuth, and elevation to the target),
        the platform inputs to the OBC (gimbal angles and
        accelerations), horizon sensor angles, and astronaut inputs
        (thrusting, switch position selections, etc.) required for a
        complete simulation of rendezvous flights.  Without that,
        the executable just loops through the equations and logic
        waiting for dynamic inputs to arrive.  As I recall, the
        'environment' simply had the target moving in a constant,
        'circular' orbit around an oblate Earth whose gravitational
        field was defined by a six-term series potential function.
        Time (one second increments) was common to both the
        'environment' and the OBC FORTRAN programs.  I believe the
        astronaut switch inputs were originally simulated using the 7090
        (or 7094) console keys.  Today, mouse clicks would do the
        trick.  Thrusting and attitude were
        closed-loop from the OBC results using rates approximating the
        actual spacecraft capability.  The 'environment'
        development is being left to the student at this time.
        Data were communicated between FORTRAN programs through
        judicious use of COMMON arrays."
    Theory of
      Operation and Porting-Problems for the Catch-Up and Rendezvous
      Simulation Program
    As mentioned above, the original source code from Report #4 is
    incompatible with modern FORTRAN—or indeed, any modern high-level
    computer language—in various fundamental ways.  Therefore,
    significant code alterations had to be made to produce a portable,
    working program; yet, every attempt was made to preserve the
    original source in as much detail as possible, and to preserve its
    "look and feel" otherwise.  Those problems and fixes are
    described in this section, along with some theory of operation of
    the original code in order to understand the nature of the problems.

    TBD
    yaOBC, the OBC CPU
      Emulation
    Invoking
      yaOBC

    yaOBC is a software-based
    emulator for the OBC CPU.  It is simply a command-line program
    for Linux, Windows, or Mac OS X.  It has no user-interface as
    such, except for a debugger interface which can be used to perform
    such operations as examining emulated memory, single-stepping
    through instructions, setting breakpoints, and so on.  However,
    it can optionally be used to connect to other programs like yaPanel (not yet available!) which do
    provide a user interface; if not so connected, it simply uses the
    CPU instructions PRO and CLD (which would otherwise
    be used to communicate with peripheral devices) to read and write to
    a dedicated memory area separate from the regular OBC memory, and
    therefore remains usable for software debugging even without
    peripheral devices.

    The command-line syntax for yaOBC
    is as follows:

    yaOBC [OPTIONS]


    By default, yaOBC treats
    OBC memory as persistent, and thus to have the same contents
    whenever yaOBC starts as it
    had on the last occasion yaOBC
    stopped.  It accomplishes this by means of an auxiliary file it
    creates called yaOBC.bin, but in order to do this effectively
    requires an orderly shutdown process by means of the debugging
    interface it provides, in order to insure that yaOBC.bin is actually
    saved.  (More on this later.)  However, if no such file as
    yaOBC.bin exists, it instead requires a replacement file—generally
    created by yaASM, since
    both programs use the same file format—to be specified by means of
    its OPTIONS.

    The presently-accepted OPTIONS
    are:

    --help
     Displays the available OPTIONS and exits.


    -v
     Increases the verbosity of messages
      displayed by yaOBC.
      Multiple -v switches can be used.  At present, the maximum
      verbosity that has any observable effect is "-v -v -v -v -v -v".


    --binary=Filename
     This specifies the name of a binary
      file containing the complete contents of memory/ATM at startup,
      along with the starting value of the HOP constant.
      Typically, this file would be created by yaASM, but it could be a
      snapshot of the OBC system status created earlier by yaOBC as well.  If
      present, it overrides the default yaOBC.bin file.


    --symbols=Filename
     This is the name of a listing file
      produced by yaASM.
      If this option is used, then it gives yaOBC knowledge of the source code and symbol
      table associated with the OBC binary being used, and allows
      symbolic debugging of the OBC program ... i.e., it allows memory
      to be inspected or modified by variable/constant name rather than
      just addresses, allows breakpoints to be put at left-hand symbols
      rather than just addresses, allows source code to be displayed
      when single-stepping or reaching a breakpoint (merely than being
      disassembled from the contents of memory), and so on.


    --run
     By default, yaOBC starts in a paused state
      at the starting HOP constant specified by the input binary
      file.  In other words, by default, no OBC instruction will be
      executed until explicitly commanded via the debugging
      interface.  If the --run switch is used, it instead causes
      OBC program execution to begin in real time without further
      intervention.


    --ports=Port
     Specifies the port number of a
      network socket by which additional emulation programs such as yaPanel can connect to the CPU
      emulation and interact with it.  By default, we use
      "--port=19653" ... because the first Gemini mission was in March
      1965 (in case you wondered).  Because network sockets are
      used, peripheral-emulating programs such as yaPanel can reside on entirely
      different computers from the one running yaOBC, as long as there's a
      network connection between them.


    --method=Peripheral,Driver
     This switch relates to the method
      by which emulated or physical peripheral devices connect to the
      emulated CPU. In essence, it allows different types of device
      drivers to be used for different
 XY ranges
      for the
PRO
      and
CLD
      instructions of the CPU.  The
Peripheral field selects the
 XY range by the designator of a
      specific peripheral device, as follows:

        - Peripheral=ALL
          applies the Driver choice to the complete  XY range.
- Peripheral=ACME
- Peripheral=AGE
- Peripheral=ATM
- Peripheral=DCS
- Peripheral=FDI
- Peripheral=IMU
- Peripheral=IS
- Peripheral=IVI
- Peripheral=MDIU
- Peripheral=PCDP
- Peripheral=RR
- Peripheral=TRS
      The
Driver field
      specifies the the data-transport method for the
 XY ranges associated with
Peripheral, as follows:

        - MEM, meaning that there is no emulated or physical
          peripheral of type Peripheral,
          and so PRO/CLD are simply supposed
          to read/write to a special memory buffer maintained by
          yaOBC.  This choice would typically be used when doing
          pure debugging OBC software.
- SOCK, meaning that a network socket (as with the --ports
          switch described above) are used.  This choice would be
          used for emulated peripherals provided directly by the Virtual
          AGC project, such as yaPanel.
- COM1, COM2, etc., meaning that the RS232 port or
          USB-to-RS232 converter converter designated as COM1, COM2,
          etc., is used.  (Note that these are designations used by
          Windows and not by Linux or Mac OS X, so in those cases you
          need to additionally use one or more of the --com1, --com2,
          ..., switches described below to link designations like COMn to an actual comport as
          understood by those operating systems.)  This choice
          might be used (for example), if you had constructed a physical
          simulation of an MDIU or IVI.
- CUSTOM, meaning that a custom driver (of a type not
          otherwise supported by Virtual AGC) is used.  This choice
          would be used if you were doing something I didn't know how to
          help you with or had not otherwise envisaged.  In
          particular, I think this is the method that would be used to
          interface yaOBC to the Orbiter spacecraft-simulation system.

 The default is
      "--method=ALL,MEM".  Note that regardless of the driver type,
      all PRO/CLD
      ends up in the memory array, so all drivers ultimately build atop
      the MEM driver.


    --io=Filename
     When the MEM driver (see --method
      above) is used, the dedicated memory area used for emulating the PRO/CLD
      instructions defaults to being all zeroes at startup, or else is
      populated with values from the preceding run of yaOBC.  It's possible
      instead to load that area with different values using the --io
      switch.  Filename
      represents a simple ASCII file that can be created in any text
      editor.  The file has 128 lines, each of which is of the form
      "PRO yx value" or "CLD yx value".  The first 64
      lines are for PRO and the last 64 are for CLD.
      Each of the two areas is in YX order: 00, 01, 02, ..., 77.
      So while it may appear
      that you can rearrange the lines of the file however you like, you
      actually cannot: the "PRO yx"
      and "CLD yx" portions of
      the lines are present simply to make it easier for you to know
      which value is which,
      but cannot actually be changed and only the value fields should be
      edited.  The easiest way to get such a file to edit is to
      start from the yaOBC.io file of a prior yaOBC run, since such a file is automatically
      created when yaOBC shuts
      down.  (This is the file which is loaded, if it exists, at yaOBC startup unless
      overridden by --io.)  You can also manually create such a
      file during a yaOBC run
      via the COREDUMP command debugging interface as described below.


    --com1=ComportName, --com2=ComportName, etc.
     Optionally used with the --method
      switch.  The defaults are "--comN=COMN",
      but those defaults are meaningful only in Windows.  On Linux,
      the comport names are generally one of the following
      instead:  /dev/ttyS0, /dev/ttyS1, ..., /dev/ttyUSB0,
      /dev/ttyUSB1, .....  So in Linux, you'd need switches like
      "--com1=/dev/ttyS3", "--com2=/dev/ttyUSB1", and so forth,
      depending on your setup.  I don't know what they're typically
      called in Mac OS X, but they'd be /dev/something as well.


    Debugging Interface of
      yaOBC
    General Information About the yaOBC Debugger

    The yaOBC debugging
    interface is a method of controlling, examining, or altering the
    emulation process at runtime by entering textual commands from a
    command-line.  The debugging interface is always present,
    whether or not you choose to use it.  By default, yaOBC starts in a paused state,
    so that the emulation won't even start unless you manually start it
    with (for example), the debugger's RUN command; however, you can
    override this behavior and start yaOBC
    in a running state by using its "--run" command-line switch.
    If you do the latter, and if there are physical or emulated
    peripheral devices attached to the the CPU, you never need to use
    the debugging interface at all.  Conversely, if you have no
    attached peripheral devices, you can never observe the behavior of
    the emulation unless you use the debugger.

    At startup in a paused state, the yaOBC
    command line will display something of this nature:

    HOP=000100000 (ADR=0-00-2-000 HWM=0
        VAL=06400)  ACC=000000000  PQ=000000000 (TMR:0)
      Cycles=0
        (0.00000 seconds)
      0-00-2-000
START
        CLA
        KZERO
            # Get 0 into accumulator
      OBC
        debugger paused>


    It may not look exactly like this, but I'll describe some of what's
    here just to give you the general idea.  The first line shows
    the values of various CPU registers:

      - HOP register, in octal form.  The HOP register is also
        parsed into its constituent parts, namely the address ("0-Sector-Syllable-Word") and
        half-word-mode bit.  The leading "0-" is present, because
        the debugger always includes the program module in the address,
        but that field isn't present in the HOP register and hence will
        always be 0.  The "VAL" that's shown in the example above
        is the 13-bit octal value stored in the memory location pointed
        to by the HOP register.  If that location happens never to
        have been written to either by the assembler or the emulated
        program, it will have the illegal value 77777.

- Accumulator, in octal form.
- PQ register, in octal form.  The PQ register is used for
        forming results of MPY and DIV
        operations, and in the real OBC had the property that the
        results weren't valid for several machine cycles after the
        operation started.  yaOBC
        makes the result available immediately, but implements a small
        countdown timer that is set to a non-zero value when the
        multiplication or division commences and counts down by one for
        every instruction thereafter until a value of 0 is
        reached.  In other words, while the results become
        available immediately, they wouldn't have been valid in a real
        OBC until the counter reaches 0.  It's the value of that
        counter that's shown as "TMR" above.
The second line shows the total number of instructions executed so
    far, and the amount of real time those instructions would have
    taken.  Realize that yaOBC
    cannot maintain the exact timing of 140 μsec. of the original OBC,
    since even though the computer on which it is running is far, far
    faster than the OBC, it is nevertheless not an embedded system and yaOBC must share resources with
    other software running on the computer.  So yaOBC merely tries to maintain
    the same average instruction rate in a manner that's hopefully
    transparent to the user.  Under normal circumstances, the total
    time listed by the debugger should correspond closely with the
    actual real time consumed, except when the emulator is explicitly
    commanded to run the emulation faster or slower than real time.

    The third line shows the source code of the line at which the
    emulation is currently paused.  This source line is taken from
    the yaASM listing file,
    where available, in which case it will be include left-hand symbols,
    show the operand by name, and show comments.  If the listing
    file is not available, or the location is somehow absent from the
    listing file, what will instead be shown is a disassembly of the
    current location, which in the case of this example would be:

    0-00-2-000
               CLA  400

    Another interesting factoid about source-code lines is that since
    the complete OBC software consists not only of program modules
    loaded into main memory, but also program modules residing on the
    ATM but not yet loaded, the source-code line associated with any
    given address in memory is ambiguous: several different program
    modules may use the same addresses for different purposes and
    associate different source code with them.  Unfortunately, the
    debugger has no way of knowing which program modules are loaded or
    are associated with which addresses.  So it tries to match the
    value stored at the address with the value that each of the program
    modules think should be stored at that address, and then displays
    the first source-code line that actually matches.  But this
    method can still be wrong and the wrong source-code line could be
    displayed sometimes.  The address printed with the source line
    will show the module which the debugger thinks the source line is
    from (for example "1-00-2-000") even though the code is actually
    being run from main memory ("0-00-2-000") rather than from the ATM
    directly.

    Finally, the fourth line is the debugger's prompt, and which is
    where commands you input would appear.  If yaOBC starting in a running
    state instead of a paused state, you'd have only this prompt, and wouldn't
    have any of the other three lines.  (By the way, any user input
    to the debugger discards anything from an '#'  character to the
    end of the line.  This isn't of much interest under normal
    circumstances, but can be useful if input is piped into the debugger
    from the command line from a prewritten script, since it allows the
    addition of comments to such scripts.)

    When the emulation is in a running state, any command (legal or illegal, or even just
    hitting the Enter key) at the debugger prompt will pause the
    emulation.  The emulation remains paused until commanded
    otherwise.
    Commands Recognised by the yaOBC Debugger

    The commands which can be entered at the prompt are the
    following.  Items in brackets (like so: [Stuff]) are optional.  The
    commands themselves are not case-sensitive.

      - HELP or MENU or ? — display a list of available commands.
- QUIT or EXIT — exits yaOBC,
        saving the current state so that the emulation can be resumed
        from where it stopped if yaOBC
        is run again later.  Resuming the emulation exactly is
        really only feasible if using the MEM driver (see --method
        switch above) for peripherals, because a physical or emulated
        peripheral will have its own internal state not necessarily
        accessible or controllable by yaOBC.

- RUN or CONT or R — stop pausing and begin running the
        program.  The program will then run until encountering one
        of the following conditions, in which case the emulation will
        again pause:
        - Reaching an instruction having a breakpoint
- Modifying a memory location having a watchpoint
- Encountering an illegal runtime condition such as executing
          past the end of memory
- Detecting user input from the debugger prompt
- STEP [N] or NEXT [N] or S [N] or N [N] — executes the next N assembly-language
        instructions.  If N
        is omitted, then it defaults to 1.  As a convenience, if
        the previous command
        was STEP/NEXT/S/N, then simply hitting the Enter key without
        inputting any command at all will do a "NEXT 1", so you can
        simply advance through the program step-by-step by repeatedly
        hitting the Enter key.  The Enter key by itself has no
        effect if the previous command was something other than
        STEP/NEXT/S/N.

- BREAK Location — set
        a breakpoint at a memory location, CPU register, or PRO/CLD YX.  See the section
          below on parsing the Location
          field. Notice that a breakpoint can be set not only at an
        instruction, but also at locations containing data (thus
        corresponding to what some debuggers call a "watchpoint").
        The behavior of a breakpoint is that it pauses emulation
        whenever the debugger detects one of the following two
        conditions:
        - The next instruction to be executed would come from a
          location marked with a breakpoint; or
- The next instruction would access a data-location marked
          with a breakpoint.  The exact meaning of "access" depends
          on the global WATCHMODE setting (see below).
- WATCHMODE Mode —
        This global setting determines what kinds of accesses of a data
        location trigger a break.  The behavior of breakpoints for
        code locations is not affected.  The choices for Mode are:
        - ANY  —  Trying either to read or write the data
          location with the breakpoint triggers a break.
- WRITE — Trying to write the data location with the
          breakpoint triggers a break.
- CHANGE — (Default) Trying to change the value stored at the data location
          triggers a break.  For example, writing 0 to a location
          already containing 0 would not trigger a break, but changing
          it to 1 would.  This concept only applies to memory; for
          breakpoints on registers or PROYX or CLDYX,
          Mode=WRITE is used
          even if CHANGE is selected.

- BREAKPOINTS — display all currently-defined breakpoints.

- DELETE [Location] —
        delete the breakpoint from the designated Location, or delete all
        watchpoints and breakpoints if no Location is specified.  See
          the section below on parsing the Location field.
- PRINT Location —
        displays the value stored at Location.
        See
          the section below on parsing the Location field.  Note that program
        modules on the ATM but not loaded into memory can be accessed by
        this method.  See the section
          below on program modules.

- EDIT Location Value
        — modifies the value stored at Location.  See
          the section below on parsing the Location field.  Note that program
        modules on the ATM but not loaded into memory can be accessed by
        this method.  See the
          section below on program modules. Note also that this
        command does little or no consistency checking, so you can
        easily cause memory locations to be loaded with values that make
        no sense contextually at all, such as loading the HOP register
        from a variable.  Value
        is one of the following:
        - An octal number if it has a leading 0 and consists entirely
          of octal digits.
- A decimal number if it consists entirely of decimal digits,
          an optional decimal point, and optional leading plus- or
          minus-sign.  Also:
          - If there is no decimal point, then the value is treated as
            an integer and is stored as-is.
- If there is a decimal point, then the value is scaled to
            have absolute value less than 1.0 but to retain the maximum
            possible number of significant bits—i.e., so that the
            most-significant bit other than the sign bit is 1 unless the
            value is exactly 0.
- An existing left-hand symbol, in which case the value is
          assembled as a HOP constant formed from that left-hand symbol.
- An existing variable-name or constant-name, in which case
          the value is the value
            stored in that variable or constant.
- An address of the form "Module-Sector-Syllable-Word",
          in which case a HOP constant is formed with the half-word mode
          flag reset to 0.  (The value of Module is ignored, since the OBC HOP
          constant has no field associated with it.)
- An address of the form "H-Module-Sector-Syllable-Word",
          in which case a HOP constant is formed with the half-word mode
          flag set to 1.

- COREDUMP Filename [IoFilename] — creates a
        snapshot file of the OBC into the file Filename.  The snapshot contains all
        memory and CPU registers.  These snapshot files can be
        loaded into yaOBC at startup via the --binary command-line
        switch.  Optionally, if IoFilename
        is present, the dedicated memory areas which the MEM driver (see
        the --method switch) uses to emulate the PRO/CLD
        instructions will be written out as well, and can be reloaded
        into yaOBC later with the --io command-line switch.
        However, this will have little or no effect in recreating the
        states of the peripheral devices if drivers other than MEM are
        used.
- ATM Module — Loads a
        given program module from ATM into memory.  Only values in
        the range 1-7 are sensible.  See the
          program-modules section below.  What this command
        does is to overwrite all of main memory, but only for those
        addresses in which the selected Module has an initialized value —i.e., an
        instruction or a constant.  Variables and unused memory
        locations are not initialized by the assembler, so any contents
        of main memory at such locations remain intact.  Other than
        ignoring uninitialized locations, there is no provision for
        loading subsets (such as restricted address ranges) from Module into main memory.

Notice that while no way is provided to directly do something like
    jump to a given location and begin executing there, you can
    indirectly achieve that by doing things such as "EDIT HOP ExistingLeftHandSymbol" and
    then "RUN".
    Treatment of
      Program Modules by the Debugger
    The assembler, yaASM,
    expects to assemble a complete set of program modules as a single
    operation, and hence the binary file loaded by yaOBC contains not only the
    contents of main memory but also the contents of all program modules
    on the ATM but not yet loaded into main memory.  This is why
    the debugger treats full addresses as being of the form "Module-Sector-Syllable-Word".
A
    numbering system is used in which Module=0
    corresponds to Program Module I, Module=1
    corresponds to Program Module II, and so on.

    However, this idealized numbering scheme pertains only to the
    situation immediately after assembly and before any ATM modules have
    been loaded into main memory, because the debugger really interprets
    Module=0 as being "the
    contents of main memory" and not merely as Program Module I.
    Therefore, as time progresses and various program modules are loaded
    from ATM into main memory, Module=0
    becomes a mashup of not only Program Module I, but also a lot of
    other program modules as well.  However, Module=1-7 will always continue
    to be the pure contents of ATM.
    Location-Field Parsing by the
      Debugger
    Several of the debugger's commands (BREAK, DELETE, PRINT, EDIT) have
    a Location field that
    represents a location at which an operation is supposed to be
    performed.  For simplicity, the debugger uses the same parser
    for this field in all cases, whether or not all possibilities
    necessarily make sense for all commands.  The Location field can be any of
    the following:

      - An existing left-hand symbol.
- An existing constant's name.
- An existing variable's name.
- An address of the form "Module-Sector-Syllable-Word",
        with all fields being octal numbers, accesses a 13-bit value at the specified
        address.  Module
        is in the range 0-7, Sector
        is in range 0-17 octal, Syllable
        is in the range 0-2, and Word
        is in the range 0-377 octal.  See the section on program
          modules above for more info on Module.

- An address of the form "D-Module-Sector-0-Word" is used to access a
        26-bit value in Syllable
        0.

- "HOP", for the HOP register.
- "ACC", for the Accumulator register.
- "PQ", for the PQ register.
- "PROYX", where YX is a 2-digit octal
        number.  This is meaningful only for the MEM driver of the
        yaOBC "--method"
        command-line switch.

- "CLDYX", where YX is a 2-digit octal
        number.  This is meaningful only for the MEM driver of the
        yaOBC "--method"
        command-line switch.
Communications Protocol for
      yaOBC
    If, perchance, you are familiar with the socket protocol use for
    Apollo-related software provided by the VirtualAGC project, such as
    yaAGC, yaAGS, yaDSKY, etc., you'll find the
    protocol and external tools used for the Gemini-related software
    very different.  There's no particular reason for this, other
    than present convenience for me, though the new method does have
    some points in its favor as compared to the old.

    As mentioned above, yaOBC
    supports both network sockets or comports (RS-232, USB) for
    connecting the emulated CPU to emulated or physical
    peripherals.  The protocol I envisage is basically the same in
    either case, and is as follows:

      - Messages are 7-bit ASCII text.
        - For comports, messages are delimited by a line-feed (LF) or
          carriage-return (CR) character, and empty messages are
          discarded.  Therefore, software can terminate messages
          using newline characters from any of the major computing
          platforms (CR-LF for Windows, CR for Mac, LF for Linux/UNIX)
          without affecting the interpretation of the message by its
          receiver.  (If anyone
            was really going to use this for comports, it might be
            worthwhile to add CRC to the ends of the messages.  I'm
            not going to worry about this for now, since at the moment I
            visualize it as extra complexity for a usage case that's not
            terribly likely.)

- For sockets, messages are interchanged via the cross-platform
            enet library,
          and are "packets" as understood by that library. CR or LF
          terminations are not expected to be present within the
          messages.  In this situation, the CPU emulator yaOBC acts as an enet server listening on
          the port defined by its command line switches (defaulting to
          "--port=19653), while peripheral emulators such as yaPanel act as enet clients connecting on
          the defined port.  I also provide a utility program (enetHost) which can be
          used either as a client or server, and hence can be used for
          debugging or experimenting with the interface.

- The following message types are defined:
        - "R X" is a message
          in either direction between the peripheral and CPU; if the CPU
          receives the message from a peripheral, it relays it to all
          peripherals.  The message is a command to adjust the
          passage of emulated time with respect to real-time by factor X, with X being a floating-point
          number.  If X==1.0
          (the default at startup), then emulated time is nominally
          identical to real time.  If X==2.0, then emulated time progresses twice
          as fast as real time, and so on.  If emulated time is
          paused (for example, while OBC execution is paused at a
          debugger prompt), then X==0.0.
- "S C" is a message
          from the server to peripherals, instructing them to
          synchronize their internal timers to a nominal value of count
          C (decimal).
          The synchronization is merely nominal, because it may need to
          be adjusted for the delays in sending and interpreting the
          command itself, and because the software's grasp of time is
          only nominal anyway.  C
          is actually the current number of OBC instructions executed by
          yaOBC since startup,
          and during debugging operations like single-step (when "R 0.0"
          is in effect), the "S" message is updated after every
          instruction.  When "R 0.0" is not in effect, an "S"
          message is sent to any newly-connected peripheral, but "S"
          messages are sent only at several-second intervals thereafter.

- "DYXB C" is a
          message from a peripheral emulator to the CPU emulator which
          provides the current state of a discrete input.  In this
          case, Y and X are octal digits which
          are the same as would be used in a "CLD YX" CPU
          instruction, while B
          is either 0 or 1.  C
          is the timestamp (see the "S C" command above) at which the data is
          valied.  These messages are sent asynchronously, whenever
          the peripheral wishes to change the state of the input.
          yaOBC buffers the
          message appropriately, and only makes the result available to
          the CPU's actual CLD instruction when the appropriate
          timestamp C is
          reached.  If C
          is 0, it is interpreted as the current time and the data is
          used immediately; this feature is primarily intended for
          debugging using the enetHost
          program mentioned above, and shouldn't be used by the CPU or
          peripherals in most cases.

- "PYX D C" is a
          message in either direction between the peripheral and the
          CPU, representing a "PRO YX" CPU instruction input in one
          case and an output in the other.  D is a set of up to 9
          octal digits representing the data and C is the timestamp at
          which the data is valid.  These messages are sent
          asynchronously, and the receiving device is supposed to buffer
          it until the time indicated by the timestamp has been
          reached.  If C
          is 0, it is interpreted as the current time and the data is
          used immediately; this feature is primarily intended for
          debugging using the enetHost
          program mentioned above, and shouldn't be used by the CPU or
          peripherals in most cases.
- "A C" (comports
          only) is a message in either direction to repeat all messages
          from timestamp C
          onward, and would presumably be used in case a corrupted
          message had been detected.  (I don't intend actually implementing this
            until/unless somebody asks me for it, since I don't
            presently think that comports are a likely usage case.)
- The full set of messages which need to be sent over new
        connections between the CPU and peripherals is presently
        TBD.  I'm not sure that there is any good answer to this
        question.

For example:  Part of the process of downlinking telemetry data
    is outputting a data word via "PRO 10" to the Instrumentation System (IS).  For the
    sake of argument, we'll suppose that the word in the accumulator is
    octal 123454321, and that the PRO instruction will be the 666'th
    instruction executed.  The message emitted by the CPU is "P10
    123454321 666".

    The optional usage of the enetHost
    program is very simple:  To start a server, do "enetHost
    --server"; only one server can be running on any given port, so if yaOBC or another instance of enetHost is running on the same
    port, this operation will fail.  To start a client, just
    "enetHost" (or "enetHost --client", if you prefer).  Up to 32
    clients can connect to one server, as presently configured.
    The switch "--port=PortNum"
    can be used to select a port other than the default 19653.
    Message data which is supposed to be sent is accepted on stdin,
    without any supplemental data.  Received-message data is output
    on stdout, accompanied by some helpful information:

      - A leading field consisting of the number of characters in the
        message.
- A field uniquely identifying the sender of the message, by IP
        address and dynamically-assigned port number.
- The message itself is in double-quotes.
Additional information of a less-useful nature, like information on
    connects and disconnects, user prompts, and so on, is output on
    stderr.  In theory, one could construct a Gemini peripheral
    emulator from a language with no bindings for the enet library, such Tcl/Tk or
    some other interpreted language, by using enetHost as a backend and redirecting/interpreting
    stdin/stdout/stderr appropriately.
    yaASM, the OBC
      Cross-Assembler
    yaASM has been discussed
    above quite a bit, but a few unexplored details remain.  This
    program is presently functional for OBC, though not necessarily
    debugged or tested.

    yaASM is an assembler for
    Gemini OBC assembly language files, outputting a binary executable
    suitable for being used with yaOBC simulation
    software.  The assembly language for OBC is as defined above.

    By convention, but not by any requirement of the assembler, Gemini
    OBC source-code files have the filename extension .obc.  This
    convention arises from the existence (or potential existence) of
    CPU-specific syntax highlighters when viewing such source
    code.  The assembler does not care what the filename extensions
    are.

    Note that at present, yaASM
    simply aborts with an error message upon the first source-code error
    it detects.  I personally don't like that behavior—I'd like to
    get a complete list of all errors—but I may or may not be too lazy
    to ever change it.

    The command-line syntax for yaASM
    is as follows

    yaASM [OPTIONS]
          --input=SourceFilename
            >OutputListing


    The assembled executable binary is always put into a file called
    yaASM.bin.

    The presently-defined OPTIONS
    are:

    --help
     Displays the available OPTIONS and exits.


    --hwm
     Equivalent to putting the directive
      HALF
      at the top of the input source file to set half-word mode.
      The default is NORM to set normal mode
      instead.  The --hwm switch (or lack thereof) can be
      overridden by the directives within the source file itself.


    --code=M-PP-S-WWW
     Equivalent to putting the directive
      "CODE M-PP-S-WWW" at the top of the
      input source file.  The default for OBC is "CODE
      0-00-2-000".  Can be overridden by the directives within the
      source file itself.


    --data=M-PP-S-WWW
     Equivalent to putting the directive
      "DATA M-PP-S-WWW" at the
      top of the input source file.  The default for OBC is "DATA
      0-00-0-000".  Can be overridden by the directives within the
      source file itself.


    The format of the binary output file is as follows:

      - The binary file consists of a sequence of 16-bit integers.
- Most of the output integers contain a 13-bit syllable, aligned
        at the least-significant bit of the 16-bit word.
- The output words are ordered so that the first word is for
        syllable 0 of address 0 of sector 0 of module 0.
- Successive output words increment first the word number (0 to
        255) next the syllable number (0,1,2), then the sector (0 to
        15), then the module number (0 to 7).
- At the end are the following additional 32-bit integers:
        - The contents of the HOP register.  The starting HOP
          constant defaults to 0-00-2-000 with HWM=0, as far as yaASM is concerned, but
          can be changed within the source code:  Just make sure
          there's a constant named OBCENTRY defined like "OBCENTRY
            HOPC LHS", where LHS is an existing left-hand symbol
          for where you want the program execution to start.
- The contents of the accumulator register.  This is
          always 0 for files created by yaASM.
- The contents of the PQ register (which is what's accessed by
          the instruction SPQ).  This is always 0
          for files created by yaASM.
There's no attempt by the assembler to make this binary file
    portable to other computers, so if you assemble such a binary file
    on a computer with a little-endian format (such as so-called 'x86
    CPUs have) and try to emulate it on a computer with a big-endian
    format (such as PowerPC), or vice-versa, you will find that it
    doesn't work.  However, if you stay within the 'x86 family of
    computers, there should be no problem passing such files around
    among Linux, Windows, and Mac OS X computers at will.
     yaPanel, the
      Control Panel Emulation
yaPanel, the
      Control Panel Emulation
    Unlike the Apollo spacecraft (plural), the Gemini spacecraft had a
    simple enough control panel that it makes sense to simulate the
    complete control panel on a single computer screen.  Of course,
    since we won't simulate all of the Gemini peripherals, many of the
    controls and readouts won't be functional.  Recall
    that the MDIU comprises the MDR readout unit and the MDK keypad
    unit, as seen in the photo at right, to provide a simple display and
    keypad interface to the OBC.

      yaPanel software would provide a simulated MDIU interface
    to the yaOBC simulated-OBC
    software ... if yaPanel
    existed.  Right now, it's merely a fairly-distant gleam in my
    eye.

    Operation of the OBC via the MDIU follows a simple set of
    conventions, as follows:

      - Command/data entry into the computer is performed by entering
        a 7-digit string of numbers.
- The first two digits are an "address" (01-99), and the final
        five digits are a "message" (octal or decimal, depending on
        context).  Note that the MDR has a 7-digit readout, which
        is parsed into a 2-digit field followed by a 5-digit field.
- The digit '9' serves a dual purpose, in that if it is the
        leading digit of the 5-digit message field it is treated as a
        minus-sign.
- If the astronaut makes a data-entry error in using the MDIU
        (see the procedures listed just below), the MDR display shows
        all 0 to indicate that an error occurred.
- When entering digits, pressing the CLEAR key on the MDR will
        erase all of the digits so that entry can be restarted.
- When entering digits, it's necessary to wait until a digit is
        displayed before entering the next digit.

Control of the OBC via the MDIU is very similar to control of the Apollo AGS via its DEDA.  Here are the
    operations which can be performed by the astronaut using the MDIU:

      - The astronaut can control the OBC by inserting data into OBC
        memory addresses using the MDK and MDR.  The procedure for
        doing so is as follows:
        - Press the CLEAR button on the MDR.

- Enter 7 digits using the numerical keypad on the MDK.
          The first two digits are the address, and the last five digits
          are the data.

- Press the ENTER button on the MDR to actually perform the
          operation.
- The astronaut can verify data previously stored in the OBC as
        follows:
        - Press the CLEAR button on the MDR.

- Enter just the 2 address digits on the MDK.
- Press the READ OUT button on the MDR.
- The requested data will be displayed and updated at
          half-second intervals.
 The
    relationship of the "addresses" 1-99 to actual physical memory
    addresses is TBD.  (There is no reason logically why they can't
    map to any 99 memory locations.  However, for efficiency of
    coding, it's reasonable to suppose that they were actually
    contiguous.  It's also reasonable to suppose that they resided
    in the residual sector, so that they could be immediately accessed
    by code in any memory sector.)
The
    relationship of the "addresses" 1-99 to actual physical memory
    addresses is TBD.  (There is no reason logically why they can't
    map to any 99 memory locations.  However, for efficiency of
    coding, it's reasonable to suppose that they were actually
    contiguous.  It's also reasonable to suppose that they resided
    in the residual sector, so that they could be immediately accessed
    by code in any memory sector.)

    As another example, yaPanel would provide a
    simulated Pilots' Control and Display Panel (PCDP).  The
    additional controls provided by the PCDP are:

      - The COMPUTER mode selector—selects between the different
        sub-programs the computer can run, such as "pre-launch",
        "ascent", and so on.

- The START switch—tells the computer to actually begin
        executing the computation selected by the COMPUTER selector.
- The COMP light—lit while the computation is in progress.
- The MALF light—to indicate a malfunction.
- The RESET switch—to reset the computer after a malfunction.
- The ON-OFF switch.



     Then too, consider the Incremental Velocity Indicator
    (IVI) from the command-pilot's control panel, as depicted at
    right.  The IVI has a set of three 3-digital displays that show
    the current velocity of the spacecraft relative to a previously-set
    zero reference.  (It can also be used to show data related to
    the Auxiliary Tape Memory, if any.)  The OBC sends pulses to
    the IVI that increment or decrement the displays whenever the
    velocity changes.
Then too, consider the Incremental Velocity Indicator
    (IVI) from the command-pilot's control panel, as depicted at
    right.  The IVI has a set of three 3-digital displays that show
    the current velocity of the spacecraft relative to a previously-set
    zero reference.  (It can also be used to show data related to
    the Auxiliary Tape Memory, if any.)  The OBC sends pulses to
    the IVI that increment or decrement the displays whenever the
    velocity changes.

      - Forward-direction indication lamp.  When lit, indicates
        that the delta-V value shown on the forward-aft display device
        (2) is in the forward direction.

- Forward-aft display device.  Displays the magnitude of
        the forward or aft delta-V from the previously-set zero point,
        in ft./sec.
- Left-direction indication lamp.  When lit, indicates that
        the delta-V value shown on the left-right display device (4) is
        in the left direction.
- Left-right display device.  Displays the magnitude of the
        leftward or rightward delta-V from the previously-set zero
        point, in ft./sec.

- Right-direction indication lamp.  When lit, indicates
        that the delta-V value shown on the left-right display device
        (4) is in the right direction.
- Up-down display device.  Displays the magnitude of the
        upward or downward delta-V from the previously-set zero point,
        in ft./sec.
- Up-direction indication lamp.  When lit, indicates that
        the delta-V value shown on the up-down display device (6) is in
        the up direction.
- Down-direction indication lamp.  When lit, indicates that
        the delta-V value shown on the up-down display device (6) is in
        the down direction.
- Down-up rotary switch.  Can be used to manually zero or
        otherwise adjust the up-down display device (6).
        Spring-loaded to return to the neutral position.

- Left-right rotary switch. Can be used to manually zero or
        otherwise adjust the left-right display device (4).
        Spring-loaded to return to the neutral position.
- Aft-forward rotary switch. Can be used to manually zero or
        otherwise adjust the forward-aft display device (2).
        Spring-loaded to return to the neutral position.
- Aft-direction indication lamp.  When lit, indicates that
        the delta-V value shown on the forward-aft display device (2) is
        in the aft direction.
yaPanel also provides some
    simulated control-panel indicators related to the Time Reference
    System (TRS), which relate to passage of real time rather than being
    controlled by the OBC.  These displays include three separate
    clocks and a stop-watch function.  We don't provide a simulated
    TRS as such, but yaPanel is
    obviously aware of the passage of real time, and consequently it can
    provide these simulations itself.  The operation of these
    simulated devices should be pretty self-explanatory.





        Plea for Data
        As you will have noted if you've read this far, there are some
        pretty serious gaps in the publicly-accessible data about the
        Gemini computer and its software.  If you know where to
        find any more information, please tell me about it.
        Examples of some of the things that would be interesting to have
        include:

          - Source code, source code, source code.  Any computer
            source code—or for that matter, binary code—that ran on the
            Gemini computer would be useful:
            - Flight software.
- Preflight software.
- Test & checkout software.
- Even sample code.
- Manuals explaining the syntax of Gemini assembly-language.
- Any documents missing from the Document
              Library.
- Developers' notes.
        Another interesting possibility is to locate a tape from the
        Gemini Aux Tape Unit.  Since the Aux Tape Unit was used to
        load software for some mission phases in flight, it is possible
        such a tape could still hold actual executable OBC software.

Reminiscences
          and Factoids from the Original Developers
        In this section, I provide distilled/edited material from
        personal correspondence I've had (directly or indirectly) with
        original OBC developers.  The following are thus not direct
        quotes, and you should attribute errors to me rather than to my
        correspondents.


From Eugene Mertz:




                | I
                        worked on the Gemini project at IBM in Owego,
                        NY, and Bethesda, MD, from about 1962 through
                        1968, basically from the beginning to the end of
                        the project, and was responsible for the
                        in-orbit software applications of the onboard
                        computer system.  The Gemini software team
                        was organized by function (ascent, rendezvous
                        and in-orbit navigation, and reentry).  My
                        responsibilities encompassed the rendezvous and
                        in-orbit, autonomous navigation functions.
                        Our rendezvous group consisted of five
                        people:  two analysts, two simulation
                        programmers, and one on-board computer
                        programmer.  The other groups were
                        similarly organized.
 Many
                        things were new in the 50s, 60s and 70s.
                        In the late 50s, I participated in a panel
                        discussion on local TV to explain to the public
                        what space, satellites, Sputnik, Vanguard, etc.,
                        were all about.  Looking back on that
                        experience, I believe it was done to alleviate
                        small-town public fear that something bad was
                        about to happen soon.  I'm not sure we
                        succeeded.
 The
                        transcendental equations of relative motion
                        between the Gemini spacecraft and its target
                        vehicle included a series expansion of the
                        Earth's gravitational field (without the South
                        Atlantic Anomaly).
 The
                        transcendental equations were written by an IBM
                        engineer, Connie
                                McClure, who
                        was a professor formerly at GW University (I
                        believe) in Washington, DC.  He
                    also taught orbital
                        mechanics to the team very early in the
                        project.  It was a tough course.
                        I wish I had kept all his notes.
                        The series expansion was verified and derived by
                        a number of analysts at IBM, other contractors
                        and sub-contractors, and probably NASA.
                        As I recall, the values of the constants were
                        determined by tracking satellites that were
                        already in orbit.  The constants were to
                        change from time to time but finally settled
                        down to those selected in the OBC.
                        All equations were checked and re-checked by
                        project members several times to be sure they
                        were accurate.  Some equations were adapted
                        to the in-orbit Autonomous Navigation
                        function.  Many computer hours were
                        expended on IBM mainframes (7090/7094)
                        simulating all mission aspects to "man-rate" the
                        Gemini system.Our
                      mainframe Fortran simulator had a converter that
                      allowed plugging in the actual Gemini flight code
                      to replace the Fortran version in the 7094
                      simulation.  This, of course, was used to
                      check the actual flight code for closed-loop
                      timing or other problems.  A Mylar punched
                      tape was used to load the Gemini computer memory
                      itself (except for the programs that were stored
                      on the Auxiliary Tape Unit) prior to launch.
                      I recall a situation where the tape reader was
                      lifted up the outside of the launch tower,
                      connected to the Gemini computer (which was
                      already installed in the spacecraft), and a
                      program fix loaded to correct a radar hardware
                      problem.  This would NEVER be done today!

 We
                      started out with FORTRAN II running on the 7090,
                      but when our computer was upgraded to the 7094, I
                      believe we quickly switched to FORTRAN IV.
                      IBM was never shy when they pushed for adopting
                      standards.  After all, if their version of
                      the standards was adopted, they had a foot in the
                      door.  The switch from FORTRAN II to FORTRAN
                      IV occurred, but it could have been as early as
                      1963-64, in time for Gemini 7/6.  Our
                      facility was always on the forefront of
                      technology.  I don't recall the exact date of
                      the switchover.  The version used for the
                      catch-up and rendezvous simulation program could
                      have been FORTRAN II.  The key is whether or
                      not there are no "machine-dependent features"
                      included in the listing.  I can't tell for
                      sure.  I know we used punched cards for
                      loading the program, a 1401/1403 for printing, and
                      a special plotter on the "other side of the wall"
                      to show relative trajectories.  Wow!
                      What power. [Ed.:
                        There are machine-dependent features, it seems,
                        so the program must either have been FORTRAN II
                        or a mix of II and IV.]

 The 7094
                        rendezvous simulator could also accept telemetry
                        data to drive the guidance in open-loop fashion
                        (post flight) to show what really (?) happened
                        during the mission.  Closed-loop computer
                        control in flight proved to be the most
                        efficient mode (only 5% above maneuvering fuel
                        plan).

 Here
                      are a few tidbits which I believe are accurate:



                    I'm
                      beginning to learn things about the Gemini memory
                      I wish I had known in the 1960s.  For
                      example, after many divide instructions were
                      executed in a row (I don't know how many), the
                      memory cores heated up and you would get the wrong
                      answer in the accumulator.  This problem was
                      controlled by inserting a no-op instruction
                      between the divides, thus keeping the cores cool
                      enough to always give the right answer.
                      Wow!  If I had known this, maybe I would have
                      structured the guidance equations
                      differently.  But we had smart OBC
                      programmers who could figure out ways to get
                      around hardware problems, both in the OBC and in
                      external equipment (such as the on-board
                      radar).  There were lots of lessons learned
                      in the early days of space flight.  And there
                      wasn't much time to spend figuring out how to fix
                      problems.A
                          translator was used to generate the flight
                          computer code which was then punched into wide
                          (2-inch?) Mylar tape for use in a memory
                          loader.  But I don't recall
                          exactly what the translator encompassed.
                      Perhaps
                          someone else will come forward with
                          clarification.A
                          lot of coordinate system transformations were
                          performed, especially during rendezvous.Changing
the
                          flight software required a big shoehorn.
                          Installing a code change might have meant
                          using 300 memory locations.  Subsequently
                          removing the change would save only 200.
 The
                      MARS [type of memory element used] inventor was
                      probably Al
                        Vinal.  I
                      recall the core device as being called
                      Multi-Aperture Reluctance Switch.Making the MARS devices was
                                an art, not a science.  They were
                                made using an "aspirin press"
                                and fired in an oven, a tray at a time.

 The
                      OBC code listings were run through a detailed
                      manual check by a team of OBC programmers and
                      hardware experts, instruction by
                      instruction.  All team members had to agree
                      100%.

 I recall (?) there was a processing module that
                      used input from OBC compiled instructions and
                      created a punched Mylar output tape.  This
                      tape was run on the memory loader [6' x 19" rack
                      of equipment!] to program the OBC.

 (On finding a memo
                        describing the three-term
                      gravitational potential function describing the oblate Earth while
                        looking for material for this website.)It surprised me to
                      find the equation. Three
 terms were used
                      for the rendezvous mode, two terms used for the
                      orbital navigation
                      mode, and up to six terms were used for the
                      "environment"simulation and accuracy comparisons.
                      Obviously (?), the OBC couldn't handle six terms along with
                      everything else in memory, or the speed required.
                      We needed
the
                      power of a modern TV remote.:-)

 (On the subject of recreating the complete OBC
                        assembly-language source code from Math Flow
                        diagrams.) Charlie Leist, Alden Minnick,
                      and I discussed the possibility of recreating the
                      complete reentry and rendezvous modules but, as a
                      group, rejected the idea because the effort to do
                      so would have been too great.  Instead, Alden
                      and Charlie each chose a section of code they felt
                      comfortable (?) coding.  Comfort was relative
                      because neither was sure he could recall all the
                      details.  A lot of reading of the programming
                      manual and discussion was necessary to recall what
                      it all meant.  That's why it took so long to
                      complete the snippets.  Further, the I/O
                      other subroutines were missing.  They would
                      have had to be "reinvented."  We just had the
                      names of the subroutines, not the actual code.

 Consider
this
                      \96 the OBC was the first attempt (to my
                      knowledge) by the company to develop a digital
                      computer to fly men into space.  The memory
                      device, the same as was used in OAO, was designed
                      basically for collection of data from the
                      telescope, storing it until it could be sent via
                      telemetry to a ground station.  No real
                      computer involved — until Gemini.

 I met Wally Schirra in Washington, DC, almost 25
                      years to the day after the historic first
                      rendezvous on December 16, 1965.  I recall
                      his words, "I remember you."  The mission was
                      Gemini 7/6.

 The photos below have nothing to do with
                      Gemini.  They depict a Vanguard tracking
                      station using a MiniTrack Mark II
                      installation.  I am the middle figure, and to
                      the left and right are L. Passage and K. Watson,
                      respectively.  To my knowledge, they were not
                      involved in Gemini.  The right-hand photo
                      shows a partially completed half of the antenna,
                      which consisted of two 8-dipole arrays spaced 500
                      feet apart.  It was all, including frequency
                      converters, etc., constructed by hand by
                      volunteers.  Yes, that is snow on the ground.
                      The photos were taken about four years prior to
                      the Gemini project (following the first successful
                      launch of Vanguard 1 on March 17, 1958).  We
                      worked together on some terrestrial projects in
                      the 1950s.  Many of us were members of the
                      radio club, K2ERQ, and we tracked sightings for
                      Echo (100-foot Mylar balloon) and other
                      satellites.  The tracking program was written
                      in FORTRAN by unknown persons at Brown
                      University.  We ran the program on an IBM 650
                      computer (drum machine, probably FORTRAN I).
                      I believe the club's interest in satellite
                      tracking and space in general announced that the
                      company was ready, willing, and able to enter the
                      space development.  At least, we believe so
                      (according to club lore).





                        |
 |
 |
 |




        From Charlie Leist:




                |  The ATM magnetic tape was 550
                        feet long and about 1 inch wide. The magnetic
                        tape was loaded using test equipment run in the
                        IBM Owego test lab that read a 2000 ft mylar
                        tape with punched holes that contained the
                        memory load information for each program module.
                        The operational program modules had to be
                        placed on the magnetic tape twice in sequence
                        just in case there was a malfunction in loading
                        a program module. The second half of the
                        magnetic tape contained the same memory load
                        information as the first half of the tape. The
                        tape header for each program module was unique
                        so there would be no confusion on what program
                        module to load into the Gemini computer memory.

  It was my job to generate the
                        2000 ft punch tape after each module programmer
                        had tested and peer code inspected their
                        operational program module. I do not
                        remember ever having to change a magnetic
                        tape from wear or breakage on a tape unit
                        for any of the flight programs in the test
                        lab. This tape unit was sealed and the magnetic
                        tape not easily changed.

  The peer code inspection
                        included a scheduled meeting in a conference
                        with the appropriate system engineers and
                        operational programmers.

  The inspection process included
                        the following reviews:

                    A
                          comparison of every block on a system math
                          flow diagram (developed by the system
                          engineer) with every
                          corresponding block on a detailed math
                          flow diagram (developed by a programmer).A
                          comparison of every program instruction
                          (assembly listing generated on the IBM
                          7090 computer by the programmer) with
                          every block on the detail flow
                          diagram.  When no errors were found the
                        program module was deemed ready for flight by
                        the inspection team of system engineers and
                        programmers.

  This process took several
                        days and was always successful since to my
                        knowledge no flight operational program
                        problems were ever reported.The time to generate a 2000 ft punch tape
                      took several hours and I spent many long nights in
                      the 7090 computer room being sure that no
                      problems occurred in the hole punching equipment.



  I have often wondered how IBM
                        assembled this team of dedicated Gemini people
                        that came together and did so many creative
                        things.
 On
                          no-operation (NOP), memory overheating when
                          the wrong instruction sequence is used, and
                          waiting for multiplications or divisions to
                          complete:




                          |
                               I will give
                                    you an example of coding to prevent
                                    overheating of memory. Lets say the
                                    equations required the programmer to
                                    make 3 divides in a row (
                                    A=B/C, D=E/F, G=H/I).
                                    Conceptually, it would be
                                    programmed as:
                              CLA    B
                                       Load the accumulator
                              SPQ
                                    A    Save the
                                    computed quotientNOP
NOP
                                    did not use any memory locations and
                                    thus would not heat up the memory.

                              NOP
Again
                                    no heat up of the memory

                                NOP
Again
                                      no heat of the memory
                               You could do
                                    as many divides in a row as you
                                    wanted as long as you put the NOP
                                    instruction after the SPQ
                                    instruction. Those extra NOPs kept
                                    the memory from heating up.
                               Now, the real
                                    interesting thing about the DIVide
                                    instruction is that the answer was
                                    only available to the memory
                                    location specified by the SPQ
                                    instruction after 4 instructions
                                    were executed after the DIV
                                    instruction.  So the code
                                    snippet above wouldn't actually have
                                    worked.  The example was really
                                    programmed as below:



                                      Later on in the Gemini Program,
                                      Jim Condell noticed that the 3 NOP
                                      instructions between the DIV and
                                      SPQ were not doing any useful work
                                      and asked Pat Mooney if we the
                                      programmers could use them for
                                      something other than NOPs. Pat
                                      checked with the Computer
                                      designers and they said YES! This
                                      was an Atta Boy for Jim on memory
                                      use saving!!
 |
 On scaling of
                          numerical values during calculations:
                        Scaling
                                      is something the programmer did by
                                      hand calculations. You got no help
                                      from the assembler on this topic.
                                      Fixed point scaling of numbers in
                                      Gemini made the programmer always,
                                        always, always remember
                                      where the decimal point and binary
                                      point was at ALL times. Scaling
                                      was a most difficult task in
                                      Gemini programming.
 The assembler read and processed one 80 column
                        punch card (from the punch card deck) at a time
                        that card contained (Left Hand Symbol,
                        operation instruction, instruction address, and
                        comment preceded by a # sign). There was not a
                        second card that contained more information for
                        a single 80 column card just read by the
                        assembler.
   The assembler
                        provided a lot of pre and post
                        processed tables before and after the coded
                        program was assigned the binary 39 bit code
                        for each instruction.
   A program
                        listing generated by the assembler for Re-entry
                        and Ascent (just examples) would be about 3
                        inches thick  each and contained: Pre and
                        Post processed tables for Constants, Variables,
                        Constants and Left hand symbols ( I showed this
                        in my code Snippets)   A symbolic card
                        deck (punched from a key punch machine) for
                        either of these programs would contain a
                        complete box of IBM cards for each
                        program (80 columns per card);   On power up of
                        the Gemini Computer the first instruction
                        executed would always start at
                        00-0-00 (sector zero, instruction zero and
                        address zero).   In my Gemini
                        Re-entry mode and Touch Predict mode coding in
                        the Sixties (1962 to 1966), I did not
                        hardly ever use comments and probably
                        is why I did use the # in front my
                        Comments in the code Snippets. This was
                        added programming work in key punching and I did
                        see the value added comments. On the other hand,
                        Al was an excellent programmer and used many
                        comments for one to use in following his coding
                        techniques and the use of many Temp01, 02, 03,
                        04, 05 and 06 variables!! When I was reviewing
                        Al's code Snippets it took me 2 1/2 hour for
                        just one pass through the code!(On Don O'Neill, the
                        OBC assembler guru.) When we (the
                        less than 10 OBC programmers) were working
                        coding the operational programs in Owego you
                        could always count on Don stopping by your
                        desk at any time with Assembler in hand. He
                        would stay as long as he thought necessary to be
                        sure you knew another part of the Assembler and
                        its interface with the Gemini Simulator. He told
                        us it was necessary to know every part of the
                        Assembler and how it worked. He said we would be
                        better programmers if we knew how every part of
                        the Assembler operated on your code!! |




        From Dick Fisher:




                | The
                      OAO Program, the Gemini computer, and the Apollo
                      Program were such exciting space ventures that you
                      had to feel privileged to be working on
                      them.  I have never been on a program again
                      like Apollo where you were working with so many
                      other companies and you were cheering them on for
                      their successes.
 I
                      joined IBM in Harry Branning's Dept. in
                      1956.  Al Vinal was there working on the MARS
                      device.  I didn't have much to do with him
                      then as I was in the digital circuits group under
                      Bob Hildenbrandt.  Bob had left for Glendale
                      [an
                        IBM lab located near Endicott, NY] by
                      1960 when we bid on the OAO so I was the
                      senior circuits guy then in that dept.  The
                      OAO was to last a year in orbit and there was no
                      technology with that kind of reliability.
                      Bob Urquhart and I came up with a new circuit
                      technology we called quad-redundancy.
                      Grumman won the spacecraft contract but NASA
                  made
                      them take our design for the memory system instead
                      of Westinghouse, who had bid the memory system
                      with Grumman and made Radiation
                      Inc. (who won the communications part) use our
                      design concept. After
                      I finished the digital circuits design Harry put
                      me on the design of all
                      the memory circuits for Al Vinal.  The last
                      time I had checked on the status of the OAO in
                      orbit, it was still performing after three
                      years.  I used that same design concept on
                      the switch selector for the Saturn Launch
                  Vehicle
                      in Huntsville as the switch selector had to have
                      the highest reliability as there were four of
                      those boxes on each rocket, one for the Instrument
                      Unit and one in each of the three stages of
                      propulsion and all commands
                      for gimballing of the engines for control of the
                      rocket and for stage
                      separation and ignition of the next stage from the
                      control computer were
                      sent thru the switch selector.  IBM got about
                      a 5 million dollar contract from that and I got an
                      OCA.  I had often wondered where Al Vinal was
                      and what he was doing since the Gemini
                      program.  Its hard to believe he's been dead
                      for the past 16 years [as of 2011] and he died so
                      young.   I think the last I had heard of
                      him he and Connie something were working on a new
                      theory of relativity.  He was a very bright
                      guy and very patient to work with as I
                  knew
                      nothing of the MARS devices when I first started
                      working with him.

 |




        From Don O'Neill:




                | (In
                          response to "How much
                          programming could you do with 16 instructions
                          and 39 bits?")  As
                        much as a Turing Machine and more!
                    Limits
                        were imposed only by the lack of an interrupt
                        mechanism, sector addressability, the lack of
                        floating point, and 25-bit plus sign precision.
                        Some may recall when Jim Joachim demanded an
                        interrupt mechanism and the shoe banging
                        imitating the Nikita Kruschev action at the UN.
 (On the
                          question of "left-hand symbols" vs. "labels"
                          for naming lines of code.)
                    Left-hand symbols were used
                          for navigation through the code. Variables and
                          constants were named. Left-hand symbols,
                          variable symbol, and constant symbols
                          (preceded with a K signifying a constant that
                          was not to stored into memory altered) might
                          be called labels, but the term label was not
                          used at the time.

 Overall the
                              contemporary criteria for coding standard
                              of excellence can be found in the Software
                              Inspections checklists I have sent
                              you.  [The checklists mentioned were
                                ones Don developed while working on SEI
                                at CMU; I don't care to reproduce them
                                here, but if you're familiar with SEI
                                you'll get the idea.]  Ron,
                              you might want to conduct a software
                              inspection on one of your procedures [alas! so
                                wise and yet so wrong!] to see
                              how you stack up against the standard of
                              excellence or to see how the standard of
                              excellence stacks up as an actual quality
                              threshold.

 (On the
                              question of very limited use of
                              subroutines in OBC code.)I
                        do not recall a subroutine mechanism. A number
                        of people on the Gemini Project worked on the
                        XB70 bombing and navigation computer, a drum
                        computer whose instructions were read and
                        executed from a rotating drum so there was no
                        subroutine mechanism possible. In addition, the
                        slavish attention to the Math Flow, literally a
                        flow chart, reinforced linear, sequential
                        thinking. This was reinforced by the fact that
                        there was no interrupt on the Gemini computer.
                  All this was literally a
                    deterministic state machine.

 |




        From Pat Mooney:




                | (In
                          response to being presented by
                          Charlie Leist and Jim Condell—who had worked for him—with the Gemini
                          Programming Manual in 2011, rather
                          than the 1960's when it was written.) "Charlie and Jim,
                      I told you two guys to write this manual and to
                      bring it back to me for comment and sign off. I
                      always wondered why you did not follow my
                      direction and how did you get it out of Owego with
                      out my signature? ... Charlie, I am going to
                      review this document, make comments and sign off
                      on it. I expect you fix the errors I find!!" |




        From various unidentified team members:




                | The
                                    memory element was a non-destructive
                                    readout (NDRO) device invented for
                                    use in the Orbiting Astronomical
                                    Observatory (OAO).  The design
                                    was based on the Multi-Aperture
                                    Readout Sensing
                                    (MARS) principle.  The
                                    MARS device principal used a
                                    two-hole core (as opposed to
                                    single-hole "donut" then commonly
                                    used in memory designs).  The
                                    new principle was based on sensing
                                    the logical state of a core at one
                                    of the holes, and restoring the
                                    state by electrically pulsing the
                                    second hole (ed. that's my limited
                                    understanding) thus achieving the
                                    equivalent of non-destructive
                                    readout -- a critical requirement
                                    for space applications.
 The 7090
                                had a fixed point add, subtract,
                                etc.  So, one could program the
                                Gemini OBC equations in assembly
                                language and execute them on the 7090
                                using a simulator.  But you had to
                                mask off all 7090 bits over 26 to
                                contain the computation to the Gemini
                                OBC 26-bit format.  We did that to
                                check function and accuracy.

 Computational
                                step size in the simulation was
                                controlled using 7090 console
                                keys.  A family of results could be
                                run to determine if the Gemini OBC
                                timing was adequate.

 |





        Homage

        Part of my purpose on this web-page is to pay homage to the
        original Gemini flight-software developers.  I have little
        information about them, so if you know things about them, feel
        free to pass your information to me.   What I
do know follows:

          - Here's a big list of 70-or-so names (and where recalled)
            responsibilities of team members, put together by OBC
            developers Gene Mertz, Charlie Leist, &co.:   Gemini development
              team.
- And here are a few other names I got from Gene, which for
            some reason or other didn't make it onto his official list:
            - Marv Czarnik, of McDonnell, interface for rendezvous
              guidance.
- Scarborough (?), programmer (?)
- I'm also informed of the Gemini area of the U.S. Space
            Walk of Fame, which includes an engraved list of names
            (pictured at right).  I'm given to understand that
            (sadly) only a few of the names on the monument seem to from
            the IBM Gemini flight-software software-development team.





        This page is available under the Creative
Commons
          No Rights Reserved License
      Last modified by Ronald Burkey on
          2023-05-30.
