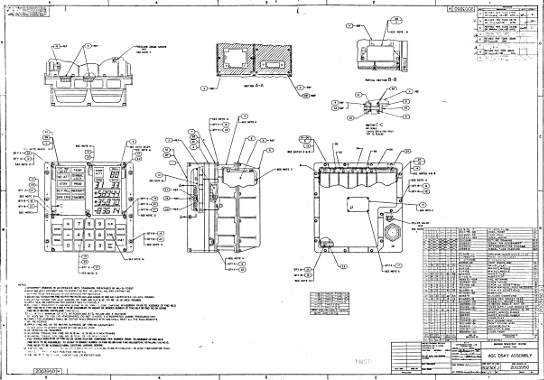

2003950-061,
AGC
DSKY ASSEMBLY
The sub-assembly hierarchy of DSKY p/n 2003950-061 is listed
below. Minor sub-assemblies and individual components that
appear in the drawings but are not listed below may appear in our master engineering-drawing search engine.
- 1006315-001
INDICATOR,
DIGITAL
- 2003955-011,
MAIN
HOUSING ASSEMBLY
- 2003947-011,
IDM
WIREWRAP PLATE ASSEMBLY
- 2004705,
PLATE, IDM
- 2005906, WIREWRAP CARD DECK
- 2005953,
INTERCONNECTING DIAGRAM.
- 2003951-011,
CONNECTOR
PLATE ASSEMBLY
- 1000159,
PACKING, PREFORMED, O-RING
- 2004903,
VALVE, PNEUMATIC TANK
- 2003980-011,
WIRING
HARNESS, BRANCHED
- 2004931, RETAINER, VALVE CAP
- 2004927, COMB, WIRE
- 2005953,
INTERCONNECTING DIAGRAM.
- 2004900,
COVER, REAR
- 1006350,
GASKET, BONDED, RUBBER
- 1006349,
GASKET, BONDED, RUBBER
- 2003952-021,
INDICATOR
DRIVER MODULE D1-D6, expanded
in
more detail below.
- 2003901-021,
POWER
SUPPLY ASSEMBLY MODULE D7, expanded in more
detail below.
- 2003909-021,
KEYBOARD MODULE ASSEMBLY D8
- 1004260-20,
NAMEPLATE
- 2004959, BRACKET, MODULE
- 2004958, BRACKET, MODULE
- 2003949-051, FRONT HOUSING ASSEMBLY. Presently, we have
info only up to -031.
- 2005918,
SIGNAL FLOW DIAGRAM
- 2005953,
INTERCONNECTING DIAGRAM
- 2005957,
SIGNAL PIN ASSIGNMENT
- 2003956,
OUTLINE DRAWING
- 2003897-041,
COVER ASSY
- 2004739-001,
COVER, FRONT
- 1006387-002
or 1006387-003, INDICATOR ALARM
2003952-021,
INDICATOR
DRIVER MODULE D1-D6
- 2003907-011,
HEADER
ASSEMBLY
- 2003910-011,
RELAY
CIRCUIT ASSEMBLY
- 2004908,
BLOCK, COMPONENT RELAY
- 2004933,
INSULATOR, A
- 2004952,
INSULATOR, B
- 2004916,
INSULATOR
- 2004951, BOARD, INSULATOR
- 2003911-011,
MATRIX
ASSEMBLY
- 1006282-2,
RELAY
- 1010784-11,
RELAY
2005902,
SCHEMATIC. Note:
There is an inconsistency here, in that assemblies 2003908-011
and 2003910-011 call out a different schematic drawing than
their parent assembly, 2003952. Moreover, internally,
schematic 2005902 indicates that it is a child of drawing
2003902 (and vice-versa) rather than of drawing 2003952.
Finally, schematic 2005952, which is what's called out by
drawing 2003952, indicates internally that it is a child of
2003952. All of these facts, collectively and
individually, indicate that drawing 2005952 is the correct
schematic rather than drawing 2005902.
- 2003908-011,
DECODING
CIRCUIT ASSEMBLY
- 2004911, COVER
- 2004956, COVER, REAR
- 2004990-011, INSULATOR, PHOTOMASTER, REAR
- 2004991, INSULATOR, PHOTOMASTER, UPPER LEVEL
- 2004992-011, INSULATOR, PHOTOMASTER, LOWER LEVEL
- 2004993, INSULATOR, PHOTOMASTER, SPECIAL LEVEL
- 2004917,
INSULATOR
- 2005952,
SCHEMATIC. Note: This drawing has been
transcribed into CAD files (see the
explanation), which can
be
found in our CAD schematics repository. There is
also a folder of visual renderings of
those CAD files as images.
2003901-021,
POWER
SUPPLY ASSEMBLY MODULE D7
- 2003921-011,
HEADER
ASSEMBLY
- 2004905, COVER, TOP
- 2004906, COVER, BOTTOM
- 2004934,
INSULATOR, REAR
- 2004714, INSULATOR, LOWER LEVEL
- 2004715, INSULATOR, UPPER LEVEL
- 2005921,
SCHEMATIC. Note: This drawing has been
transcribed into CAD files (see the
explanation), which can
be
found in our CAD schematics repository. There is
also a folder of visual renderings of
those CAD files as images.
