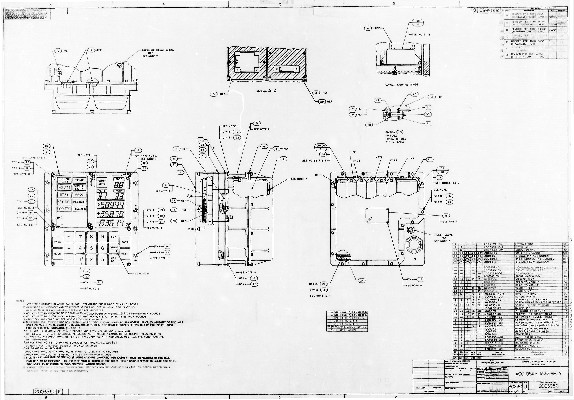

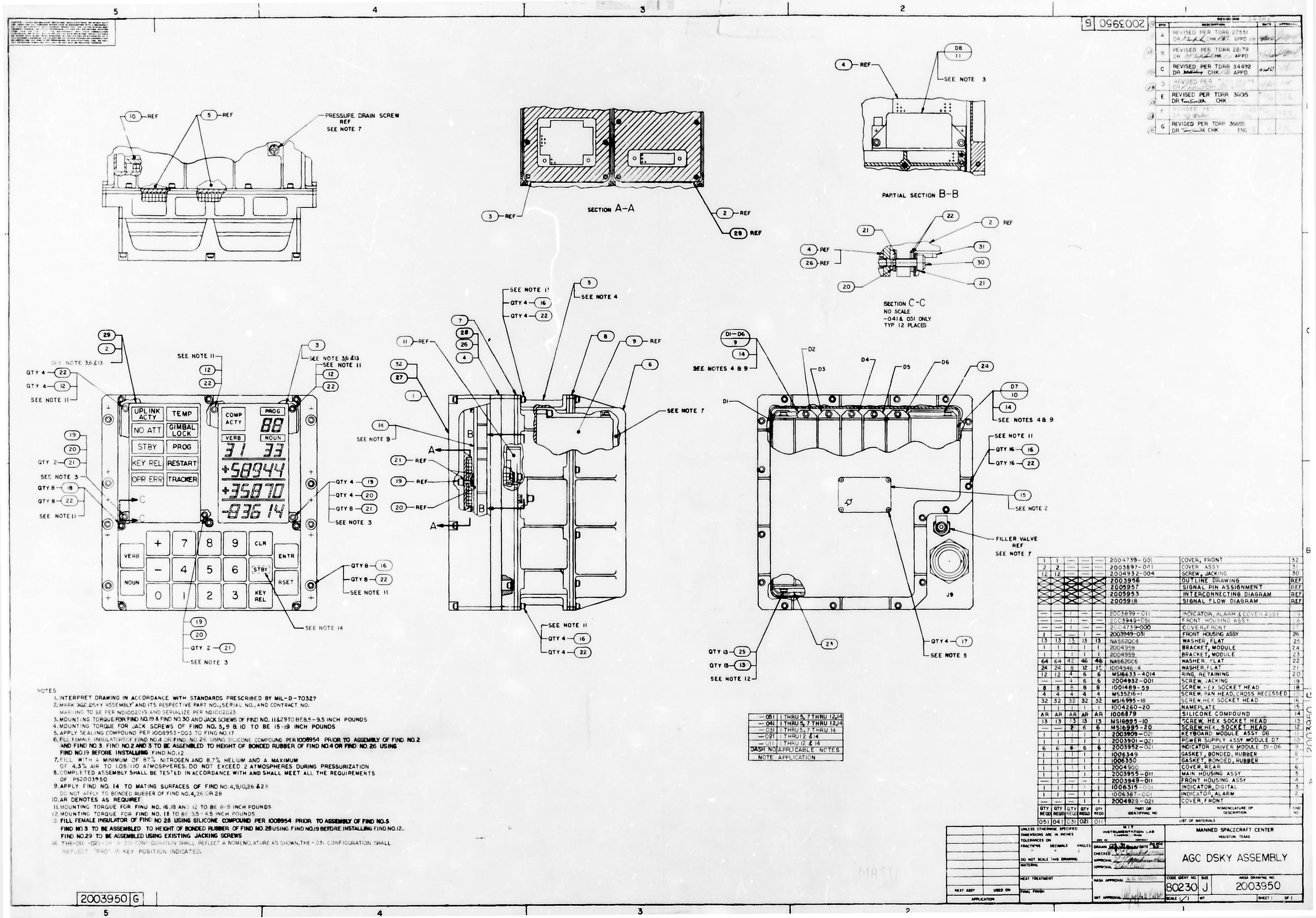

2003950-011,
AGC
DSKY ASSEMBLY
The sub-assembly hierarchy of DSKY p/n 2003950-011 is listed
below. Minor sub-assemblies and individual components that
appear in the drawings but are not listed below may appear in our master engineering-drawing index.
- 2004929-021,
COVER,
FRONT
- 1006387-001,
INDICATOR,
ALARM
- 1006315-001
INDICATOR,
DIGITAL
- 2003949-011,
FRONT
HOUSING ASSEMBLY
- 2004968-021,
HOUSING,
FRONT
- 1006351,
GASKET, PREFORMED
- 2003959-011,
ADAPTER,
PLATE ASSEMBLY
- 2004919-021,
PLATE,
ADAPTER
- 2003957-011,
CONNECTOR,
PLATE ASSEMBLY
- 2003958-011,
CONNECTOR,
PLATE ASSEMBLY
- 2003948-011,
CONNECTOR,
PLATE ASSEMBLY
- 2004922-011, PLATE, CONNECTOR
- 2003984, SWITCH ASSEMBLY, PUSHBUTTON
- 1000159,
O RING SEAL
2005953,
INTERCONNECTING DIAGRAM. Note:
Drawings 2003947, 2003949, and 2003955 call out a different
interconnecting diagram than their parent drawing, 2003950,
does. It is not possible to resolve the discrepancy
merely from the internal information within the drawings
themselves. For the purpose of these page, we assume
that the parent drawing is the correct one.
- 2003955-011,
MAIN
HOUSING ASSEMBLY
- 2003947-011,
IDM
WIREWRAP PLATE ASSEMBLY
- 2004705,
PLATE, IDM
- 2005906, WIREWRAP CARD DECK
2005953,
INTERCONNECTING DIAGRAM. Note:
Drawings 2003947, 2003949, and 2003955 call out a different
interconnecting diagram than their parent drawing, 2003950,
does. It is not possible to resolve the discrepancy
merely from the internal information within the drawings
themselves. For the purpose of these page, we assume
that the parent drawing is the correct one.
- 2003951-011,
CONNECTOR
PLATE ASSEMBLY
- 1000159,
PACKING, PREFORMED, O-RING
- 2004903,
VALVE, PNEUMATIC TANK
- 2003980-011,
WIRING
HARNESS, BRANCHED
- 2004931, RETAINER, VALVE CAP
- 2004927, COMB, WIRE
2005953,
INTERCONNECTING DIAGRAM. Note:
Drawings 2003947, 2003949, and 2003955 call out a different
interconnecting diagram than their parent drawing, 2003950,
does. It is not possible to resolve the discrepancy
merely from the internal information within the drawings
themselves. For the purpose of these page, we assume
that the parent drawing is the correct one.
- 2004900,
COVER, REAR
- 1006350,
GASKET, BONDED, RUBBER
- 1006349,
GASKET, BONDED, RUBBER
- 2003952-021,
INDICATOR
DRIVER MODULE D1-D6, expanded
in
more detail below.
- 2003901-021,
POWER
SUPPLY ASSEMBLY MODULE D7, expanded in more
detail below.
- 2003909-021,
KEYBOARD MODULE ASSEMBLY D8, expanded
in more detail below.
- 1004260-20,
NAMEPLATE
- 2004959, BRACKET, MODULE
- 2004958, BRACKET, MODULE
- 2005950,
SIGNAL FLOW DIAGRAM
- 2005951,
INTERCONNECTING DIAGRAM
- 2005957,
SIGNAL PIN ASSIGNMENT
- 2003956,
OUTLINE DRAWING
2003952-021,
INDICATOR
DRIVER MODULE D1-D6
- 2003907-011,
HEADER
ASSEMBLY
- 2003910-011,
RELAY
CIRCUIT ASSEMBLY
- 2004908,
BLOCK, COMPONENT RELAY
- 2004933,
INSULATOR, A
- 2004952,
INSULATOR, B
- 2004916,
INSULATOR
- 2004951, BOARD, INSULATOR
- 2003911-011,
MATRIX
ASSEMBLY
- 1006282-2,
RELAY
- 1010784-11,
RELAY
2005902,
SCHEMATIC. Note:
There is an inconsistency here, in that assemblies 2003908-011
and 2003910-011 call out a different schematic drawing than
their parent assembly, 2003952. Moreover, internally,
schematic 2005902 indicates that it is a child of drawing
2003902 (and vice-versa) rather than of drawing 2003952.
Finally, schematic 2005952, which is what's called out by
drawing 2003952, indicates internally that it is a child of
2003952. All of these facts, collectively and
individually, indicate that drawing 2005952 is the correct
schematic rather than drawing 2005902.
- 2003908-011,
DECODING
CIRCUIT ASSEMBLY
- 2004911, COVER
- 2004956, COVER, REAR
- 2004990-011, INSULATOR, PHOTOMASTER, REAR
- 2004991, INSULATOR, PHOTOMASTER, UPPER LEVEL
- 2004992-011, INSULATOR, PHOTOMASTER, LOWER LEVEL
- 2004993, INSULATOR, PHOTOMASTER, SPECIAL LEVEL
- 2004917,
INSULATOR
- 2005952,
SCHEMATIC. Note: This drawing has been
transcribed into CAD files (see the
explanation), which can
be
found in our CAD schematics repository. There is
also a folder of visual renderings of
those CAD files as images.
2003901-021,
POWER
SUPPLY ASSEMBLY MODULE D7
- 2003921-011,
HEADER
ASSEMBLY
- 2004905, COVER, TOP
- 2004906, COVER, BOTTOM
- 2004934,
INSULATOR, REAR
- 2004714, INSULATOR, LOWER LEVEL
- 2004715, INSULATOR, UPPER LEVEL
- 2005921,
SCHEMATIC. Note: This drawing has been
transcribed into CAD files (see the
explanation), which can
be
found in our CAD schematics repository. There is
also a folder of visual renderings of
those CAD files as images.
2003909-021,
KEYBOARD MODULE ASSEMBLY D8
