Threshold does not apply, use dummy value if v.clean is run with several tools.
The break tool breaks lines/boundaries at intersections and also breaks lines/boundaries forming a collapsed loop, for example 0.0;1.0;0.0 is broken at 1.0.
Breaking lines should be followed by removing duplicates, e.g. v.clean tool=break,rmdupl.
Threshold does not apply, use dummy value if v.clean is run with several tools.
The rmdupl tool removes geometry features with identical coordinates. Categories are merged. If a point and a centroid have identical coordinates, one of them will be removed if both points and centroids are selected with v.clean type=point,centroid. The same applies for lines and boundaries.
The rmdupl tool should be used after breaking lines and breaking polygons.
Threshold gives maximum line/boundary length in map units, degrees for latlon. Dangles shorter than thresh are removed sequentially. All dangles will be removed if thresh < 0.
A line/boundary is considered to be a dangle if no other line of given type is on at least one end node. If a dangle is formed by several lines, such a string of lines is taken as one dangle and line lengths are summarized. The rmdangle tool deletes a dangle if the (combined) length is shorter than thres or thres < 0. If the combined length is larger than thresh, nothing is deleted.
With thresh < 0, only closed loops and lines connecting loops will remain. This is useful to remove all incorrect boundaries after other cleaning operations with thres is < 0. Areas can then be successfully built.
To preferentially remove shortest dangles first, a first pass with a small thresh value can be followed by subsequent passes with increasing thresh values.
The chdangle tool is similar to the rmdangle tool, but works only on boundaries and changes dangling boundaries to lines instead of removing dangles.
Threshold does not apply, use dummy value if v.clean is run with several tools.
A bridge is an area type connection of an island (polygon in a polygon) to the outer polygon. This is topologically incorrect (but OGC Simple Features allow it). The rmbridge tool removes bridges and the chbridge tool changes bridges to type line:
+-------------+ +-------------+ +-------------+
| P| P: polygon | P| | P|
| +---+ | I: island | +---+ | | +---+ |
| | I | | B: bridge | | I | | | | I | |
| | | | L: line | | | | | | | |
| +-+-+ | | +---+ | | +-.-+ |
| | | | | | . |
| | B | | | | . L |
| | | | | | . |
+------+------+ +-------------+ +-------------+
Islands and areas must be already clean, i.e. without dangles or small angles, e.g. v.clean type=boundary tool=rmdangle,rmsa,break,rmdupl,rmbridge thresh=-1,0,0,0,0.
Threshold gives maximum distance to another vertex in map units, degrees for latlon.
The snap tool snaps vertices to another vertex not farther away than thresh. If there is no other vertex within thresh, no snapping will be done. The type option can have a strong influence on the result. A too large threshold and type=boundary can severely damage area topology.
Snapped boundaries may need to be cleaned with rmdangle,break,rmdupl.
Threshold does not apply, use dummy value if v.clean is run with several tools.
The rmdac tool removes duplicate area centroids that can result from deleting boundaries.
Threshold does not apply, use dummy value if v.clean is run with several tools.
The bpol tool breaks boundaries on each point shared between 2 and more areas where angles of boundary segments are different and on all boundary nodes (start and end points of each boundary). The bpol tool behaves similar to break for boundaries, but does not break collapsed loops. The bpol tool is faster than the break tool but needs more memory.
The bpol tool should be followed by rmdupl.
The prune tool simplifies lines and boundaries by removing vertices according to threshold. This tool preserves area topology, areas are never deleted and centroid attachment is never changed. v.generalize offers much more functionality for line simplification but does not preserve area topology.
Threshold gives area size in map units, square meters for latlon.
The rmarea tool removes all areas <= thresh. The longest boundary with an adjacent area is removed or all boundaries if there is no adjacent area. Area categories are not combined when a small area is merged with a larger area.
Threshold does not apply, use dummy value if v.clean is run with several tools.
The rmline tool removes all lines or boundaries of zero length that may have resulted from other cleaning operations. Zero length boundaries are redundant and do not influence area topology.
Threshold does not apply, use dummy value if v.clean is run with several tools.

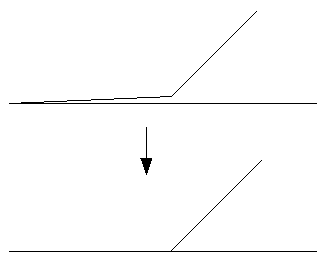

The rmsa tool only concerns angles which are so small that the calculated angle is 0. The following figure should help demonstrate what the tool does.
|
|
| tool=rmsa |
The rmsa tool should be followed by break,rmdupl.
v.clean input=testmap output=cleanmap tool=snap thresh=1
v.clean input=areamap output=areamap_clean tool=bpol,rmdupl type=boundary
v.clean input=lines1 output=lines2 err=points tool=break type=line
v.in.ascii -n out=crossed_lines format=standard << EOF
L 2
0 5
10 5
L 2
5 0
5 10
EOF
v.clean in=crossed_lines out=crossed_lines_brk \
error=intersection tool=break type=line
v.out.ascii zero format=standard L 2 1 -819832.09065589 -987825.2187231 -806227.28362601 -971104.80702988 1 1 L 2 1 -799165.24638913 -972974.16982788 -799165.24638913 -972974.16982788 1 2 v.clean input=zero output=zero_clean tool=rmline type=line v.out.ascii zero_clean format=standard L 2 1 -819832.09065589 -987825.2187231 -806227.28362601 -971104.80702988 1 1
v.clean input=testmap output=cleanmap type=line tool=rmdangle,rmdangle,rmdangle,rmdangle thresh=5,10,20,50
