g.copy vect=roads,myroads
v.db.addcolumn myroads col="cost double precision"

# define traveling costs as inverse of speed limit:
v.db.update myroads col=cost val=1/50
v.db.update myroads col=cost val=1/75 where="label='interstate'"
v.db.update myroads col=cost val=1/5 where="label='unimproved road'"
v.db.update myroads col=cost val=1/25 where="label='light-duty road, improved surface'"
v.db.select myroads

# we have 6 locations to visit on our trip
echo "1|601653.5|4922869.2|a
2|608284|4923776.6|b
3|601845|4914981.9|c
4|596270|4917456.3|d
5|593330.8|4924096.6|e
6|598005.5|4921439.2|f" | v.in.ascii cat=1 x=2 y=3 out=centers col="cat integer, \
                         east double precision, north double precision, label varchar(43)"

# verify data preparation
v.db.select centers
v.category centers op=report
# type       count        min        max
# point          6          1          6


# create lines map connecting points to network (on layer 2)
v.net myroads points=centers out=myroads_net op=connect thresh=500
v.category myroads_net op=report
# Layer / table: 1 / myroads_net
# type       count        min        max
# line         837          1          5
#
# Layer: 2
# type       count        min        max
# point          6          1          5

# The network is now prepared. Visualize it
g.region vect=myroads_net
d.mon x0
d.vect myroads_net
d.vect -c centers icon=basic/triangle
d.font verdana
d.vect centers col=red disp=attr attrcol=label lsize=12

# due to the costs (?, TODO), the result looks like a Steiner tree:
# v.net.salesman myroads_net acol=cost ccats=1-6 out=mysalesman

# run without traveling costs

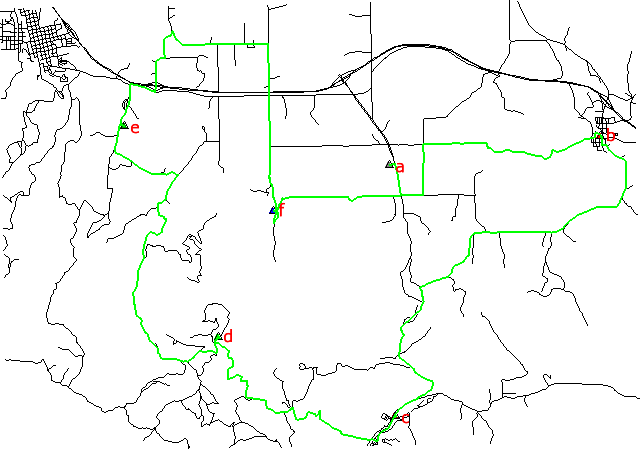

v.net.salesman myroads_net ccats=1-6 out=mysalesman
d.vect mysalesman col=green width=2
d.vect centers col=red disp=attr attrcol=label lsize=12
