-- U.S. NAVY SHIP TYPES --
WORLD WAR I ERA TRANSPORTS --
Converted Freighters of Miscellaneous and Unidentified Types
Seventeen U.S. Navy's WWI era converted freighters transports
were of notably different design than those listed on other pages,
or cannot be typed on the basis of dimensions and photographs.
Similar characteristics link one sub-grouping of three ships and
another three subgroups containing one pair each. The remaining
eight, among them five ex-German vessels, were apparently all
"singletons".
Ten of the seventeen had initial Navy service as cargo ships
before being converted to transports between late 1918 and the
spring of 1919. The other seven were acquired following the end
of fighting and only served in the transport role.
This page features a table (with links to individual ships)
of World War I era U.S. Navy transports converted from freighters
of miscellaneous and unidentified types, plus a photograph of
each ship in this group.
Click each ship name to access
that ship's complete Online Library entry.
Click the small photographs
to prompt a larger view of the same image, and the words "Picture
Data" to access the Picture Data Sheet for that image.
Ships in this group:
SEVENTEEN SHIPS, of varying or unidentified appearance and
characteristics. mast,
kingposts and smokestack arrangement, as well as deck line
configuration and other details, are useful for identifying individual
ships and sub-groupings. These vessels are listed below in order
of length:
Arrangement of kingposts, masts and smokestacks (funnels):
M-M-F-M-M
One ship, built by the Maryland Steel Company at Sparrows
Point, Maryland, in 1903 as S.S. Maine. Later acquired
by the American-Hawaiian Steamship Company and renamed. Midships
superstructure extends to the hull sides.

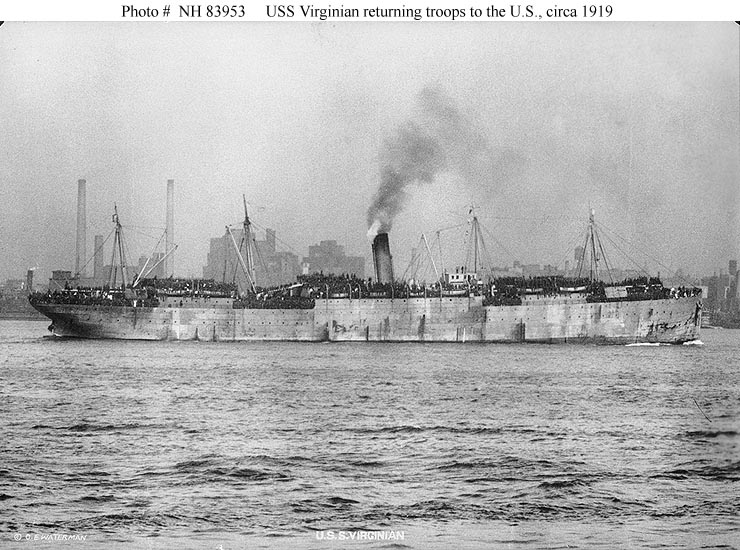

Virginian,
USN 1919-1919 (ex-American S.S. Virginian, 1903).
7914 Gross Tons; Length 492.0'; Breadth 58.3'
Arrangement of kingposts, masts and smokestacks (funnels):
K-M-K-KF-K-K-M-KS
One ship, built by Bremer-Vulcan shipyard, Vegesack,
Germany in 1913. Coding for this ship's arrangement is unusually
complex, as her topsides are cluttered with a "forest"
of tall kingposts, all also used as ventilators.
Suwanee,
USN 1919-1919 (ex-German S.S. Mark, 1913).
6579 Gross Tons; Length 471.1'; Breadth 59.2'
Arrangement of kingposts, masts and smokestacks (funnels):
M-K-KF-M-K
One ship, built by the Neptun shipyard at Rostock,
Germany in 1912. Split superstructure. Forward pair of kingposts
are incorporated in the superstructure face.

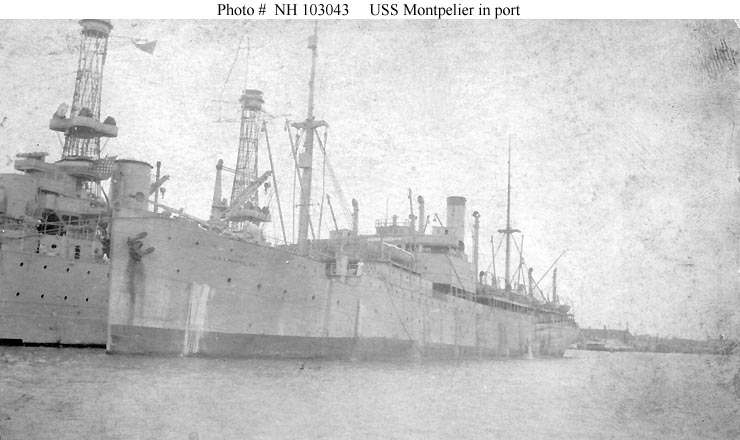

Montpelier,
USN 1919-1919 (ex-German S.S. Bochum, 1912).
6161 Gross Tons; Length 460.0'; Breadth 58.0'
Arrangement of kingposts, masts and smokestacks (funnels):
Unknown
One ship, built by the Vulkan shipyard at Stettin,
Germany in 1912 and later owned by the Government of Peru. The
only photograph we have of this ship does not allow a good evaluation
of her appearance.
Callao,
USN 1919-1919 (ex-S.S. Sierra Cordoba, 1912).
8226 Gross Tons; Length 439.1'; Breadth 56.0'
Arrangement of kingposts, masts and smokestacks (funnels):
M-KF-M. These ships had flush-deck hulls, and a split midships
superstructure. While in USN service, Radnor's port midships
kingpost was extended to form a signal mast).
Two ships, built by the Sun Shipbuilding Company at
Chester, Pennsylvania, in 1918.

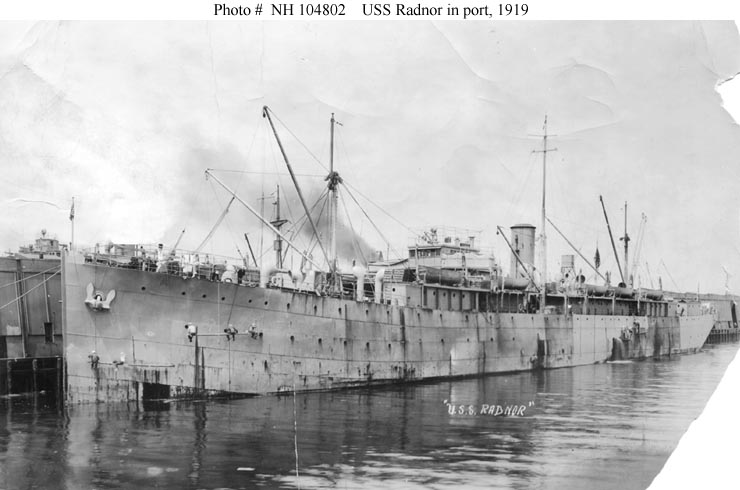

Radnor,
USN 1918-1919 (ex-American S.S. Radnor, 1918).
7699 Gross Tons; Length 450'; Breadth 57.5'
Lancaster, USN 1918-1919 (ex-American S.S. Lancaster,
1918).
7699 Gross Tons; Length 450'; Breadth 57.5'
No image is available (or known to exist) of USS
Lancaster
Arrangement of kingposts, masts and smokestacks (funnels):
M-K-F-M
One ship, built by Blohm and Voss at Hamburg, Germany
in 1907. This ship had a very long combined poop and midships
island, separated by a short well from her raised forecastle.
Santa Elena,
USN 1919-1919 (ex-German S.S. Santa Elena, 1907).
7415 Gross Tons; Length 430.9'; Breadth 54.8'
Arrangement of kingposts, masts and smokestacks (funnels):
M-M-F-M-M
One ship, built by the Newport News Shipbuilding and
Dry Dock Company at Newport News, Virginia, in 1916. This ship
had a flush main deck, with low bulwarks at the bow and amidships,
plus four tall masts.

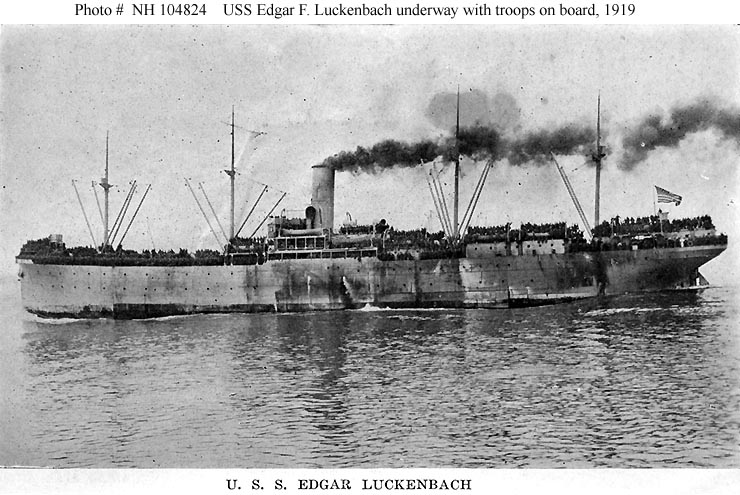

Edgar
F. Luckenbach, USN 1918-1919 (ex-American S.S. Edgar
F. Luckenbach, 1916).
7923 Gross Tons; Length 425.0'; Breadth 57.3'
Arrangement of kingposts, masts and smokestacks (funnels):
M-KF-M (see Notes (1) and (2) below)
Three ships, built by the Union Iron Works/Bethlehem
Steel Company at San Francisco, California, in 1917-1918. These
ships had a split superstructure amidships. Notes:
(1) As completed Liberator's masts were of kingpost height,
but were raised by 1919, when she served as a transport. A light
signal mast was fitted aft of her smokestack, which was shorter
and thinner than in Tiger and Peerless.
(2) In USN service (but not when completed), Tiger had
a light mast atop her pilothouse.
(3) Both Tiger and Peerless had a large letter "S"
on each side of her smokestack.
Liberator,
USN 1918-1919 (ex-American S.S. Liberator, 1918).
7951 Gross Tons; Length 410.0'; Breadth 56.0'

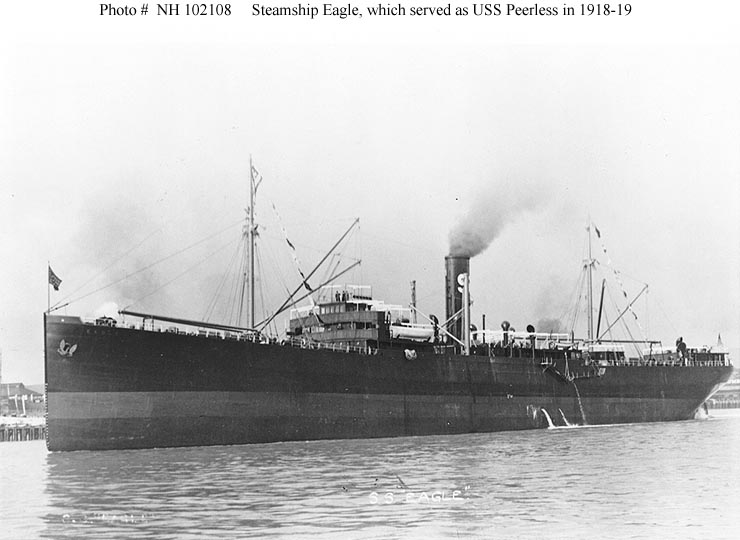

Peerless,
USN 1918-1919 (ex-American S.S. Eagle, 1917).
6273 Gross Tons; Length 410.0'; Breadth 56.0'

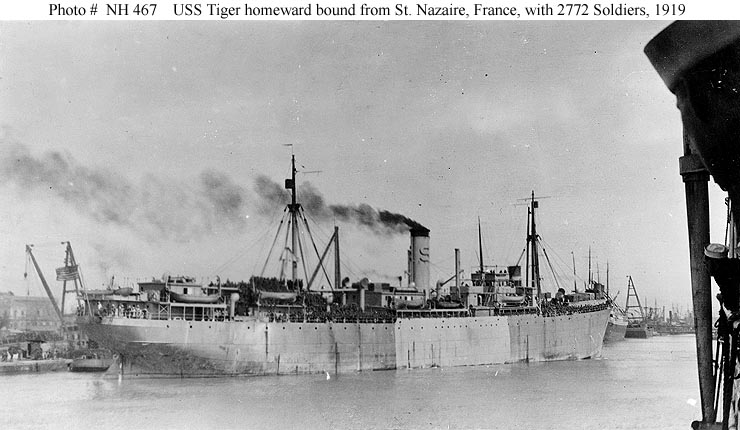

Tiger,
USN 1918-1919 (ex-American S.S. Tiger, 1917).
6273 Gross Tons; Length 410.0'; Breadth 56.0'
Arrangement of kingposts, masts and smokestacks (funnels):
M-F-M. Note: as completed El Oriente appears to have
also had a pair of kingposts just forward of the superstructure
face.
Two ships, built by the Newport News Shipbuilding and
Dry Dock Company at Newport News, Virginia:

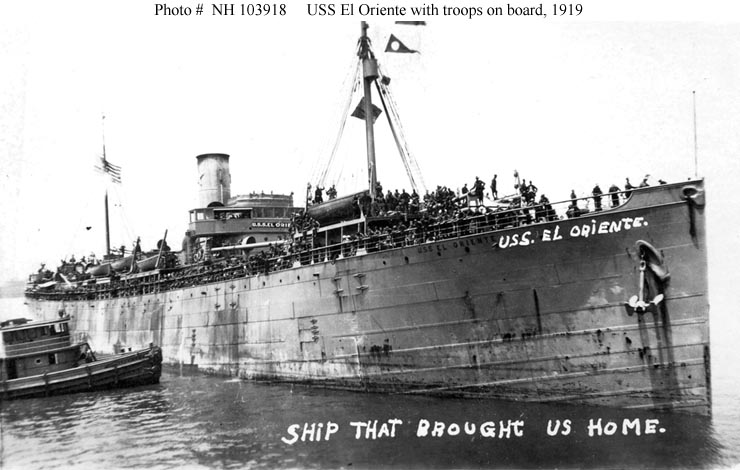

El Oriente,
USN 1918-1919 (ex-American S.S. El Oriente, 1910).
6008 Gross Tons; Length 405.6'; Breadth 53.1'

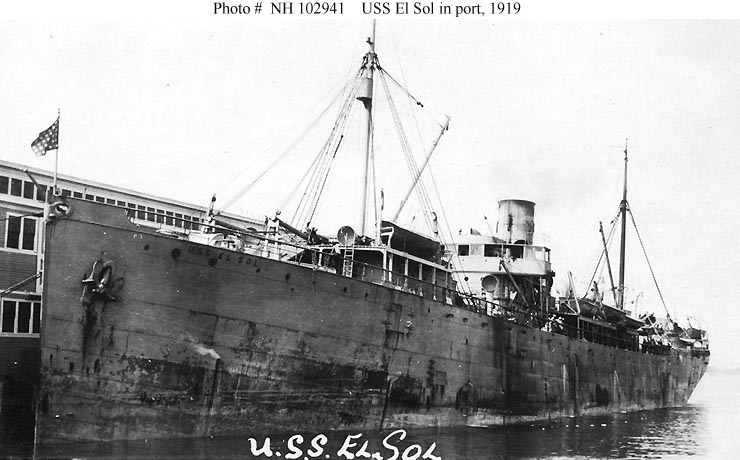

El Sol,
USN 1918-1919 (ex-American S.S. El Sol, 1910).
6008 Gross Tons; Length 405.6'; Breadth 53.1'
Note: USS El
Occidente had identical tonnage and dimensions to El
Oriente and El Sol. Also built by the Newport News
Shipbuilding and Dry Dock Company in 1910, she served as a Navy
cargo ship in 1918-1919, but was not employed as a transport.
Arrangement of kingposts, masts and smokestacks (funnels):
M-F-M.
Two ships, built by the Cramp Shipyard at Philadelphia,
Pennsylvania in 1913 for operation by the W.R. Grace Steamship
Company. Based on date of construction and dimensions, it is presumed
that both were of identical configuration. The dimensions of Santa
Clara (and presumably Santa Cecilia) were identical
to those of five other W.R. Grace ships presented in another
page of this presentation, but had flush deck hulls with low
bulwarks at the bow and amidships, and no kingposts.

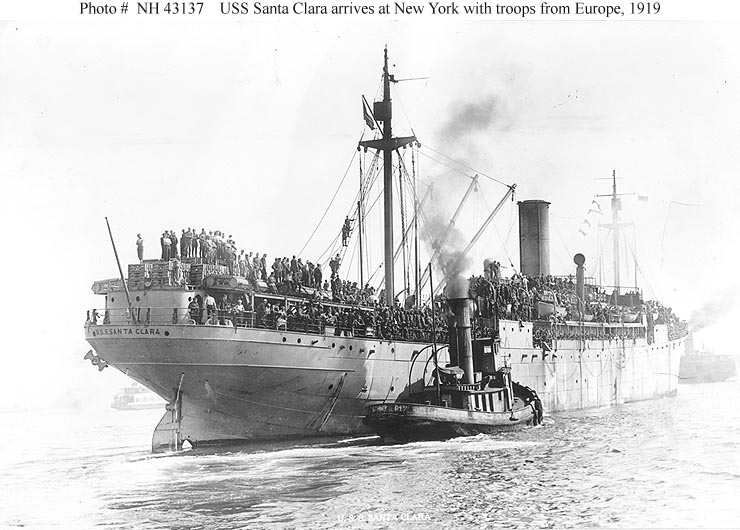

Santa Clara,
USN 1918-1919 (ex-American S.S. Santa Clara, 1913).
6300 Gross Tons; Length 404.6'; Breadth 53.9'
Santa Cecilia, USN 1919-1919 (ex-American S.S.
Santa Cecilia, 1913).
6462 Gross Tons; Length 404.6'; Breadth 53.9'
We have no photographs of this ship, and know of none.
Arrangement of kingposts, masts and smokestacks (funnels):
M-K-F-M. This ship had a very long midships island, with her
masts located near its ends. Relatively short wells separated
her island from the forecastle and poop.
One ship, built by the Union Iron Works, San Francisco,
California, 1916.

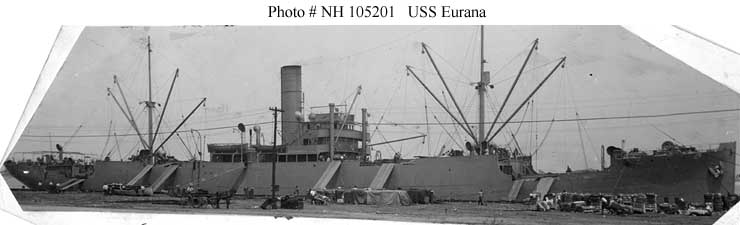

Eurana,
USN 1918-1919 (ex-American S.S. Eurana, 1916).
5915 Gross Tons; Length 399.7'; Breadth 56.2'
Arrangement of kingposts, masts and smokestacks (funnels):
M-F-M
One ship, built by Bremer-Vulcan shipyard, Vegesack,
Germany in 1912:

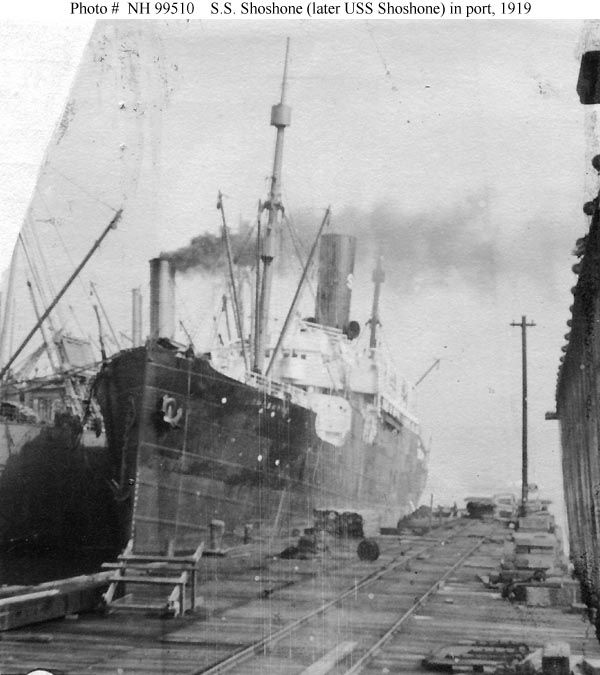

Shoshone,
USN 1919-1919 (ex-German S.S. Wasgenwald, 1912).
4707 Gross Tons; Length 353.1'; Breadth 48.7'
